Here you will find all available parts and drawings of the 'Makita 8451'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

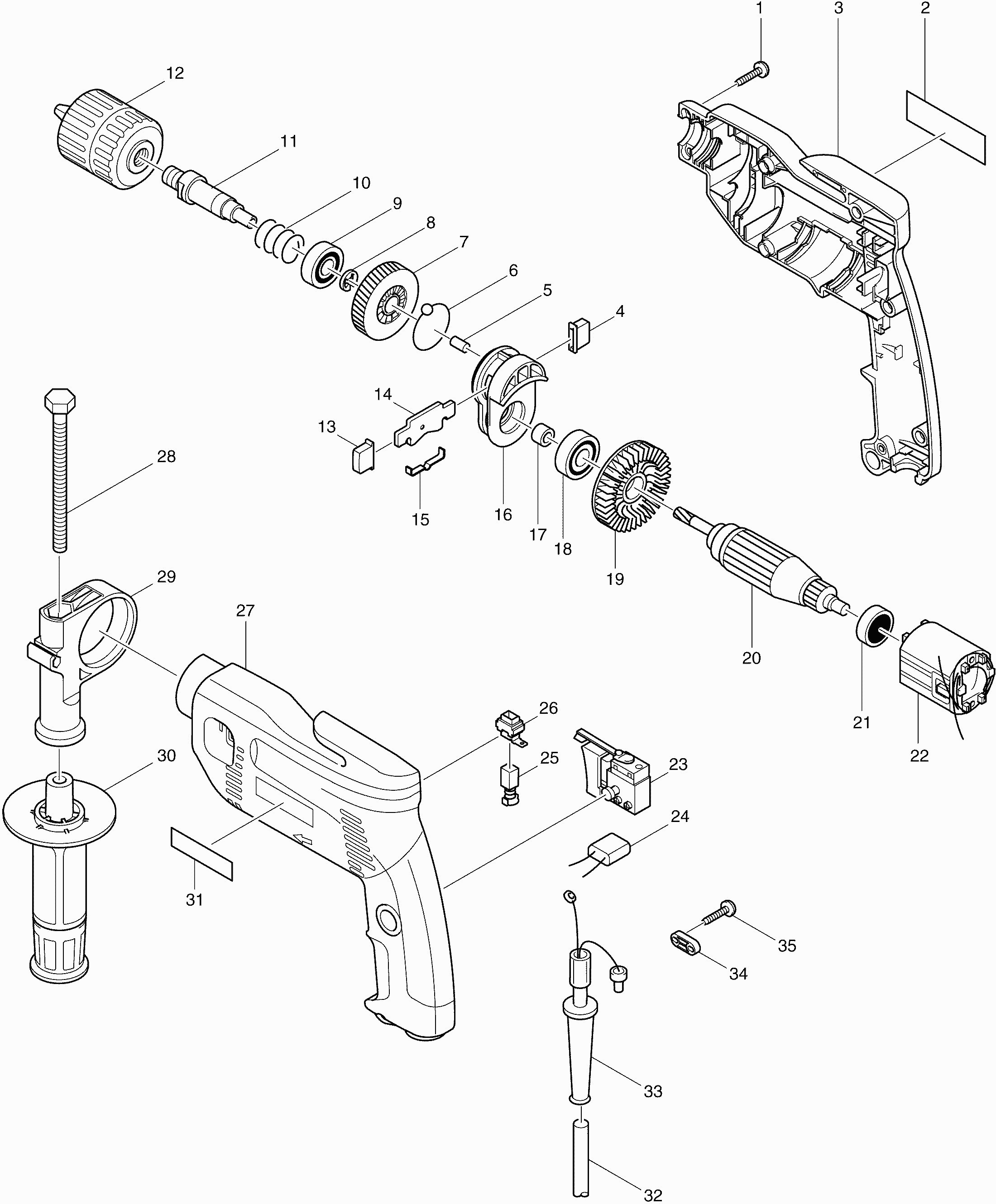

Technical drawing of model Makita 8451
Spare parts list of model Makita 8451
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 0.83 | 1.00 | |
| Motorhouse Set 8451 * | ||||
| 003 | 182963-3 | 19.29 | 23.34 | |
| Adjustment Button | ||||
| 004 | 415453-4 | 0.83 | 1.00 | |
| Pen 4 | ||||
| 005 | 256251-5 | 0.83 | 1.00 | |
| Steel ball 3.5 | ||||
| 006 | 216040-0 | 0.83 | 1.00 | |
| Gear 41 | ||||
| 007 | 226423-6 | 7.57 | 9.16 | |
| Lock washer S-15 | ||||
| 008 | 961055-9 | 0.83 | 1.00 | |
| Ball bearing 6002ddw | ||||
| 009 | 211236-8 | 9.24 | 11.18 | |
| Compression Spring 16 Hp1500 * | ||||
| 010 | 233091-8 | 0.83 | 1.00 | |
| Drill shaft | ||||
| 011 | 323757-9 | 12.22 | 14.79 | |
| CHUCK | ||||
| 012 | 192664-5 | 40.00 | 48.40 | |
| Adjustment Button | ||||
| 013 | 415453-4 | 0.83 | 1.00 | |
| Adjustment plate Hp1500 New A | ||||
| 014 | 344419-6 | 0.83 | 1.00 | |
| Leaf spring Hp1500 | ||||
| 015 | 232134-3 | 0.83 | 1.00 | |
| Striker | ||||
| 016 | 152529-3 | 9.67 | 11.70 | |
| Spacer 7 * | ||||
| 017 | 262528-8 | 1.39 | 1.68 | |
| Ball Bearing 608ddw | ||||
| 018 | 210005-4 | 4.45 | 5.38 | |
| Fan 55 | ||||
| 019 | 241869-5 | 3.12 | 3.78 | |
| No information available, not orderable | ||||
| 020 | 517108-8 | |||
| Ball bearing 627llb | ||||
| 021 | 210025-8 | 2.71 | 3.28 | |
| Field | ||||
| 022 | 633303-3 | 11.82 | 14.30 | |
| Switch | ||||
| 023 | 651986-7 | 25.36 | 30.69 | |
| Capacitor | ||||
| 024 | 645144-5 | 2.84 | 3.44 | |
| Brush Set CB-419 | ||||
| 025 | 195015-1 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 026 | 643936-6 | |||
| Motorhouse Set 8451 * | ||||
| 027 | 182963-3 | 19.29 | 23.34 | |
| Nut bolt M8x110mm | ||||
| 028 | 265495-6 | 0.83 | 1.00 | |
| Zijhandgreep boormachine/combihamer | ||||
| 029 | 136603-5 | 4.00 | 4.84 | |
| Zijhandgreep boormachine/combihamer | ||||
| 030 | 136603-5 | 4.00 | 4.84 | |
| Power cord 2x1.00 2.2mtr | ||||
| 032 | 665383-1 | 10.50 | 12.70 | |
| Cable grommet | ||||
| 033 | 682549-8 | 1.02 | 1.23 | |
| Clamp Bracket | ||||
| 034 | 687053-2 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 035 | 265A48-7 | 0.83 | 1.00 | |
