Here you will find all available parts and drawings of the 'Makita 8444D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

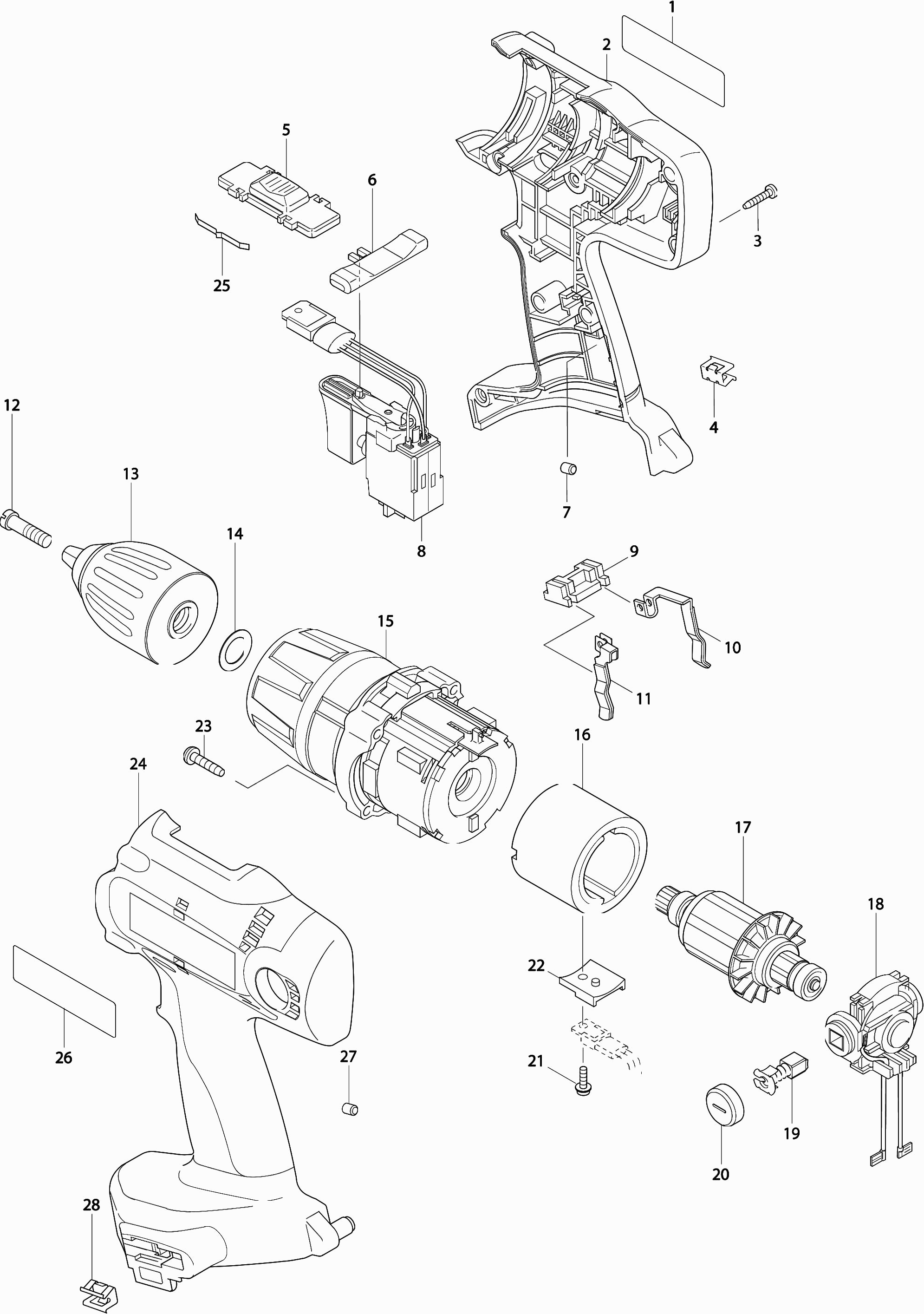

Technical drawing of model Makita 8444D
Spare parts list of model Makita 8444D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Label | ||||
| 001 | 860951-7 | 2.71 | 3.28 | |
| Motor Housing Set 6349D | ||||
| 002 | 183846-0 | 23.04 | 27.88 | |
| Rubber Pin 4 | ||||
| 002A | 263002-9 | 0.83 | 1.00 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| Bit clamp | ||||
| 004 | 344391-2 | 0.83 | 1.00 | |
| H/L Gear Shift Bdf441 A | ||||
| 005 | 125435-5 | 0.83 | 1.00 | |
| L/r adjusting lever | ||||
| 006 | 418753-1 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 007 | 263024-9 | 0.83 | 1.00 | |
| Switch | ||||
| 008 | 650559-3 | 28.02 | 33.90 | |
| Holder | ||||
| 009 | 687085-9 | 0.83 | 1.00 | |
| Contact strip +/+ | ||||
| 010 | 654168-0 | 2.36 | 2.86 | |
| Contact strip -/- | ||||
| 011 | 654169-8 | 2.36 | 2.86 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 012 | 251468-5 | 0.83 | 1.00 | |
| Boorkop snelspan 1,5-13mm | ||||
| 013 | 766027-7 | 26.00 | 31.46 | |
| Rivet 13 | ||||
| 014 | 253798-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 015 | 125428-2 | |||
| Control Fork | ||||
| 015A | 450385-8 | 3.12 | 3.78 | |
| Clutch Sleeve | ||||
| 015B | 419558-2 | 2.71 | 3.28 | |
| Pin 1.4mm | ||||
| 015C | 268199-9 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 016 | 638376-1 | |||
| Armature 6349D | ||||
| 017 | 629831-4 | 32.15 | 38.90 | |
| Brush/bearing holder | ||||
| 018 | 638375-3 | 3.54 | 4.28 | |
| Carbon brush set Cb-430 | ||||
| 019 | 191971-3 | 3.54 | 4.28 | |
| Brush Cap | ||||
| 020 | 643929-3 | 0.83 | 1.00 | |
| Tapping Screw St3x10 | ||||
| 021 | 266282-6 | 0.83 | 1.00 | |
| Spacer | ||||
| 022 | 689136-4 | 0.83 | 1.00 | |
| Tapping screw Pt4x20 | ||||
| 023 | 266045-0 | 0.83 | 1.00 | |
| Motor Housing Set 6349D | ||||
| 024 | 183846-0 | 23.04 | 27.88 | |
| Rubber Pin 4 | ||||
| 024A | 263002-9 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 025 | 232220-0 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 027 | 263024-9 | 0.83 | 1.00 | |
| Bit clamp | ||||
| 028 | 344391-2 | 0.83 | 1.00 | |
