Here you will find all available parts and drawings of the 'Makita 8443D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

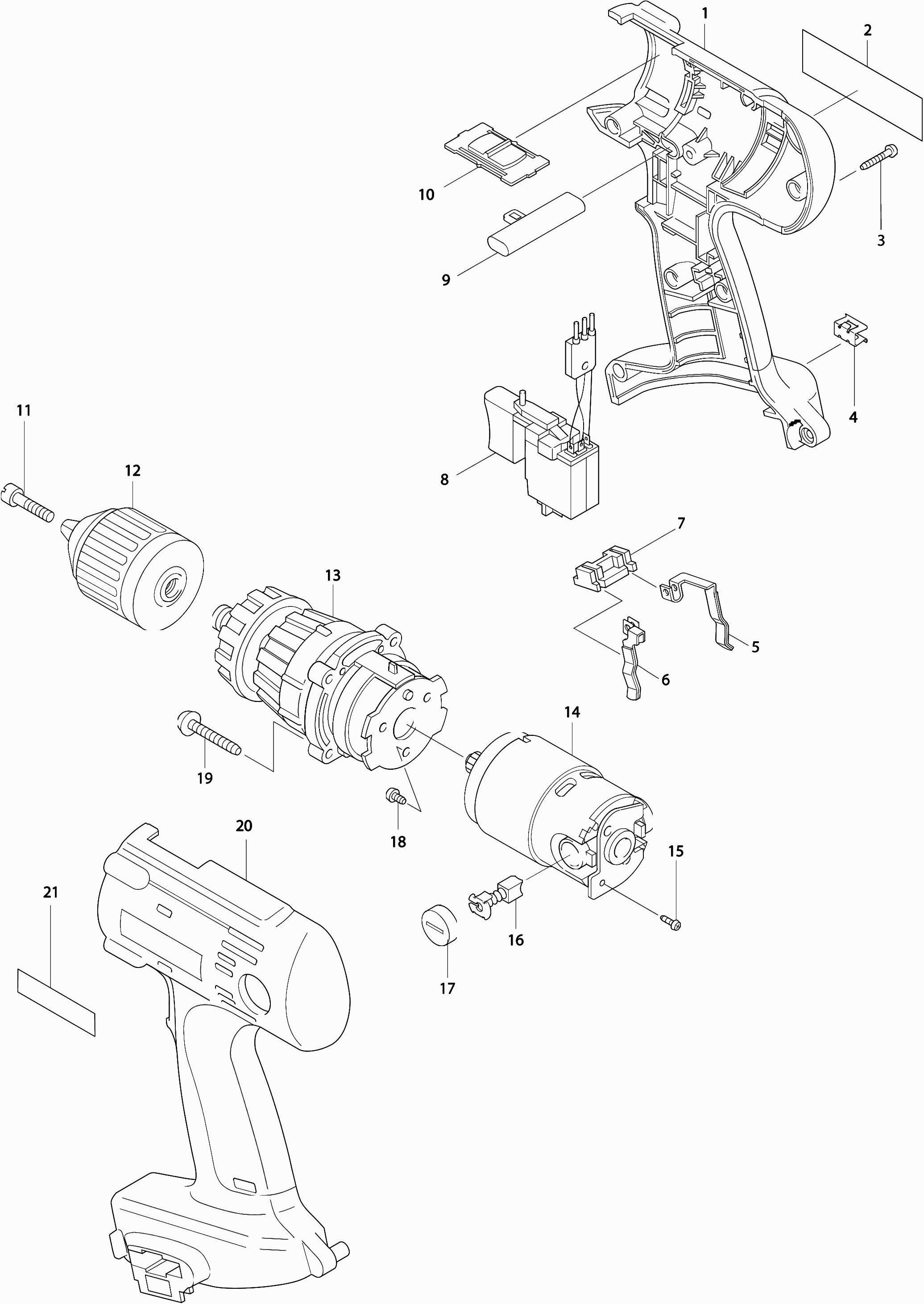

Technical drawing of model Makita 8443D
Spare parts list of model Makita 8443D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 183208-2 | |||
| No information available, not orderable | ||||
| 002 | 852117-3 | |||
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| Bit clamp | ||||
| 004 | 344391-2 | 1.00 | 1.21 | |
| Contact strip +/+ | ||||
| 005 | 654168-0 | 2.40 | 2.90 | |
| Contact strip -/- | ||||
| 006 | 654169-8 | 2.40 | 2.90 | |
| Holder | ||||
| 007 | 687085-9 | 1.20 | 1.45 | |
| Switch | ||||
| 008 | 651968-9 | 33.00 | 39.93 | |
| L/r adjusting lever | ||||
| 009 | 416079-5 | 1.20 | 1.45 | |
| High/low speed slide | ||||
| 010 | 125091-1 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 010A | 231433-0 | 1.00 | 1.21 | |
| Screw 6x32 | ||||
| 011 | 251465-1 | 9.60 | 11.62 | |
| BOORKOP SNELSPAN 1,5-13MM | ||||
| 012 | 766027-7 | 20.00 | 24.20 | |
| Gear set | ||||
| 013 | 125165-8 | 92.40 | 111.80 | |
| Adjustable handle 6316D * | ||||
| 013A | 417381-9 | 1.20 | 1.45 | |
| DC Motor 18V | ||||
| 014 | 629729-5 | 59.40 | 71.87 | |
| Schroef 3x8 | ||||
| 015 | 652066-2 | 1.00 | 1.21 | |
| Carbon brush set Cb-430 | ||||
| 016 | 191971-3 | 3.60 | 4.36 | |
| Brush Cap | ||||
| 017 | 643929-3 | 1.00 | 1.21 | |
| Self-tapping screw 4X8 * | ||||
| 018 | 266134-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 019 | 265999-8 | |||
| No information available, not orderable | ||||
| 020 | 183208-2 | |||
| Label Makita | ||||
| 021 | 819063-3 | 2.40 | 2.90 | |
