Here you will find all available parts and drawings of the 'Makita 8412D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

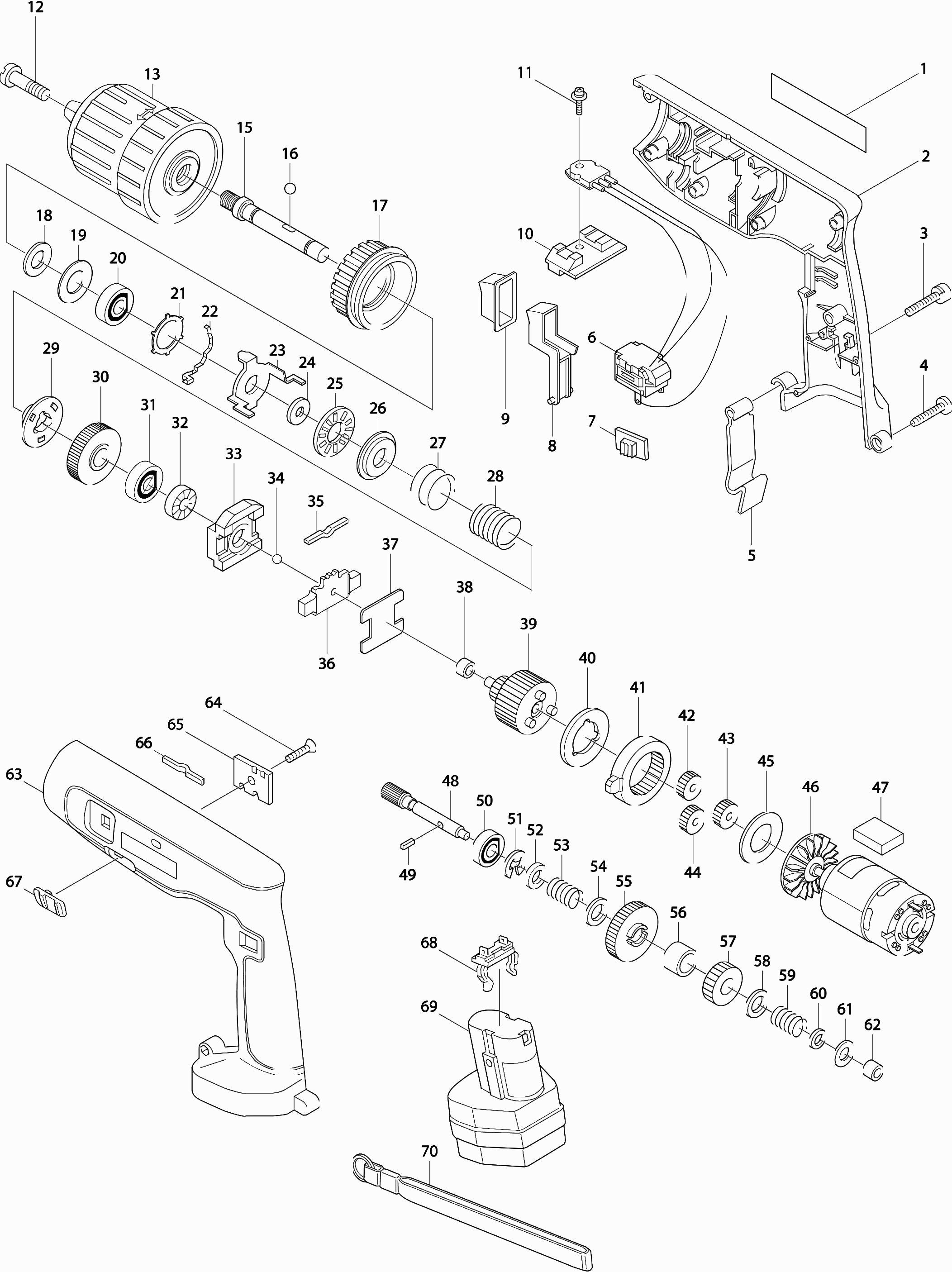

Technical drawing of model Makita 8412D
Spare parts list of model Makita 8412D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 002 | 182823-9 | |||
| Screw 4x20 | ||||
| 003 | 911138-5 | 1.00 | 1.21 | |
| Self-tapping screw 4x20 | ||||
| 004 | 265925-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 005 | 343579-1 | |||
| Switch Sw-129 | ||||
| 006 | 192944-9 | 72.60 | 87.85 | |
| Switch slide | ||||
| 007 | 414740-8 | 2.40 | 2.90 | |
| Switch lever 8412Dwh * | ||||
| 008 | 415327-9 | 2.40 | 2.90 | |
| Dust Cap Switch 8412Dw * | ||||
| 009 | 421481-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 010 | 689027-9 | |||
| Schroef 3x8 | ||||
| 011 | 652066-2 | 1.00 | 1.21 | |
| Screw M6x22 | ||||
| 012 | 251469-3 | 1.20 | 1.45 | |
| BOORKOP SNELSPAN 1,5-13MM | ||||
| 013 | 766027-7 | 20.00 | 24.20 | |
| Drill Axis 8412Dwh * | ||||
| 015 | 322713-6 | 34.10 | 41.26 | |
| Steel ball 5.6 | ||||
| 016 | 216041-8 | 1.00 | 1.21 | |
| Clutch ring 8412Dwh * | ||||
| 017 | 415555-6 | 6.00 | 7.26 | |
| Sealing ring 8412Dwh * | ||||
| 018 | 213115-6 | 1.00 | 1.21 | |
| Washer 17 | ||||
| 019 | 267114-0 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 020 | 211131-2 | 9.60 | 11.62 | |
| Blocking ring 30 8412Dwh * | ||||
| 021 | 259027-9 | 1.20 | 1.45 | |
| Cam Plate 8412Dwh * | ||||
| 022 | 344140-7 | 1.20 | 1.45 | |
| Sled 8412Dwh * | ||||
| 023 | 344059-0 | 4.80 | 5.81 | |
| Washer 12 | ||||
| 024 | 267113-2 | 1.20 | 1.45 | |
| Pressure Needle Bearing 1224 8412Dwh * | ||||
| 025 | 216402-2 | 8.40 | 10.16 | |
| Washer 12 * | ||||
| 026 | 267711-2 | 2.40 | 2.90 | |
| Compression Spring 29 8412Dwh * | ||||
| 027 | 233090-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 028 | 233056-0 | |||
| Clutch plate 8412Dwh * | ||||
| 029 | 223096-6 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 030 | 226262-4 | |||
| Ball Bearing 6001dw | ||||
| 031 | 211131-2 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 032 | 223085-1 | |||
| Cam disk holder 8412Dwh * | ||||
| 033 | 153226-4 | 23.10 | 27.95 | |
| Steel ball 6.4 | ||||
| 034 | 216007-8 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 035 | 232053-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 036 | 152450-6 | |||
| No information available, not orderable | ||||
| 037 | 344061-3 | |||
| Slide Bearing 4 | ||||
| 038 | 214019-5 | 1.00 | 1.21 | |
| Gear | ||||
| 039 | 153213-3 | 23.10 | 27.95 | |
| 16 * Washer | ||||
| 040 | 267098-2 | 1.20 | 1.45 | |
| Gear 48 6201Dw-6211Dw-631* | ||||
| 041 | 226248-8 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 042 | 226245-4 | |||
| No information available, not orderable | ||||
| 043 | 226245-4 | |||
| No information available, not orderable | ||||
| 044 | 226245-4 | |||
| Washer 18 | ||||
| 045 | 253794-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 046 | 629667-1 | |||
| No information available, not orderable | ||||
| 046A | 221882-9 | |||
| Fan 44 8412Dwh * | ||||
| 046B | 241871-8 | 4.80 | 5.81 | |
| Seal Rubber 20-26 * | ||||
| 047 | 413065-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 226263-2 | |||
| Inlegspie 3 | ||||
| 049 | 254236-5 | 2.40 | 2.90 | |
| Ball bearing 608llb | ||||
| 050 | 210043-6 | 2.40 | 2.90 | |
| Stopring E-7 | ||||
| 051 | 961013-5 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 052 | 253777-8 | 1.00 | 1.21 | |
| Compression Spring 8 8412Dwh * | ||||
| 053 | 233104-5 | 1.00 | 1.21 | |
| Thin Washer 8 | ||||
| 054 | 253339-2 | 1.00 | 1.21 | |
| Gear 40 | ||||
| 055 | 226247-0 | 2.40 | 2.90 | |
| Washer 12 6201/11/8411/12D * | ||||
| 056 | 257178-2 | 2.40 | 2.90 | |
| Gear 25 | ||||
| 057 | 226261-6 | 14.30 | 17.30 | |
| Thin Washer 8 | ||||
| 058 | 253339-2 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 059 | 231025-5 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 060 | 267099-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 061 | 267111-6 | |||
| Ball bearing 404* | ||||
| 062 | 211044-7 | 9.60 | 11.62 | |
| Countersunk Screw M4 * | ||||
| 064 | 265007-5 | 1.00 | 1.21 | |
| Blocking plate 6201Dw-6211Dw-6* | ||||
| 065 | 343987-6 | 3.60 | 4.36 | |
| Leaf Spring | ||||
| 066 | 232053-3 | 1.00 | 1.21 | |
| Speed slider 6201Dw-6211Dw-6 * | ||||
| 067 | 415014-0 | 2.40 | 2.90 | |
| Battery clamp | ||||
| 068 | 643918-8 | 8.40 | 10.16 | |
| Shoulder strap | ||||
| 070 | 163319-9 | 3.60 | 4.36 | |
