Here you will find all available parts and drawings of the 'Makita 8280D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

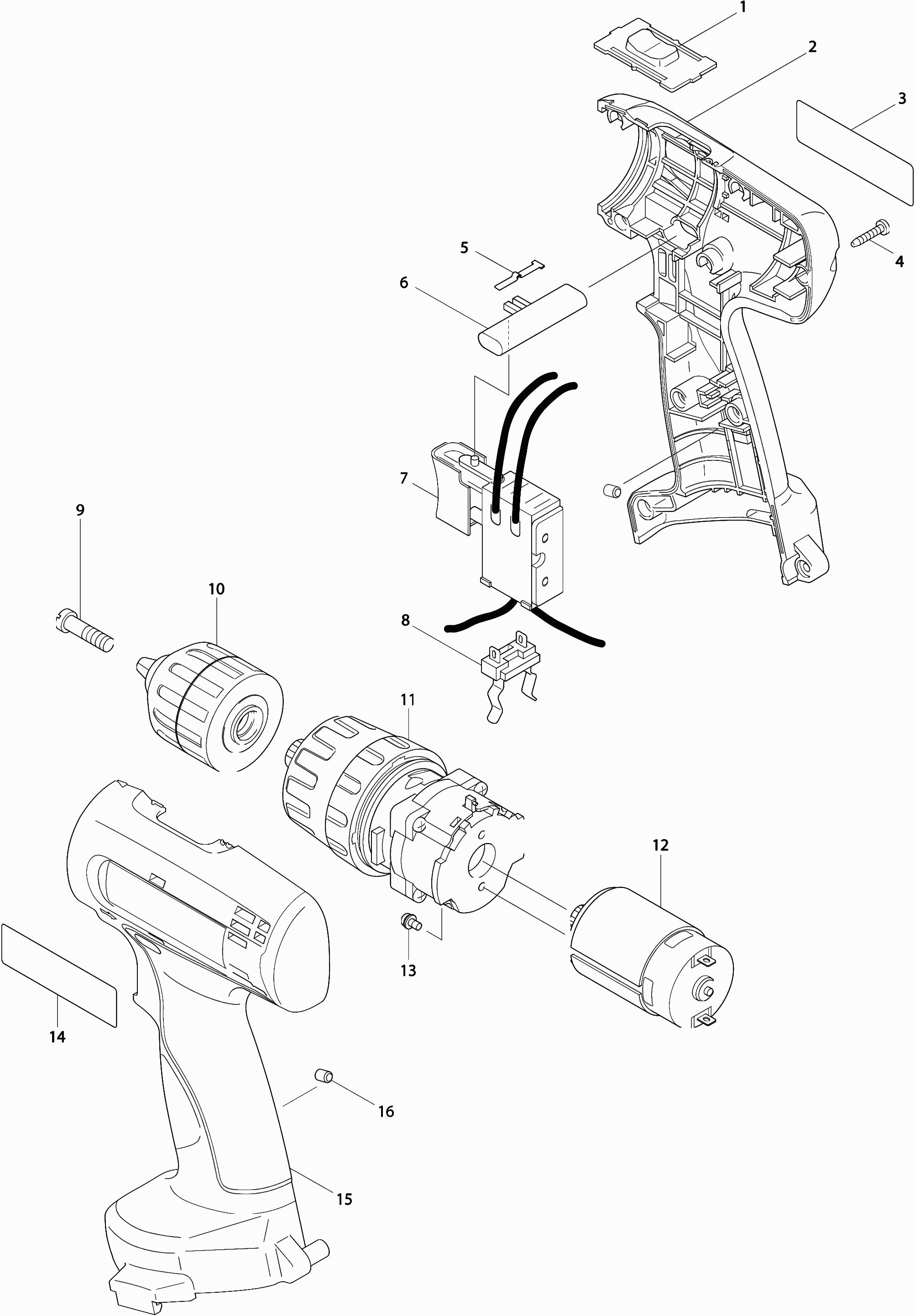

Technical drawing of model Makita 8280D
Spare parts list of model Makita 8280D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| High/Low-speed Slider | ||||
| 001 | 125102-2 | 1.20 | 1.45 | |
| Motorhuis set | ||||
| 002 | 183824-0 | 12.10 | 14.64 | |
| No information available, not orderable | ||||
| 003 | 860978-7 | |||
| Tapping Screw 3x16 | ||||
| 004 | 266130-9 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 005 | 232182-2 | 1.00 | 1.21 | |
| Reverse rod | ||||
| 006 | 417283-9 | 2.40 | 2.90 | |
| Switch | ||||
| 007 | 650556-9 | 22.00 | 26.62 | |
| Battery connector piece | ||||
| 008 | 643909-9 | 3.60 | 4.36 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| BOORKOP SNELSPAN 1-10MM | ||||
| 010 | 193615-1 | 22.00 | 26.62 | |
| Gear set | ||||
| 011 | 125259-9 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 012 | 629823-3 | |||
| Screw 3x6 | ||||
| 013 | 911003-8 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 014 | 819001-5 | |||
| Motorhuis set | ||||
| 015 | 183824-0 | 12.10 | 14.64 | |
| Rubber Pin 4 | ||||
| 016 | 263024-9 | 1.20 | 1.45 | |
