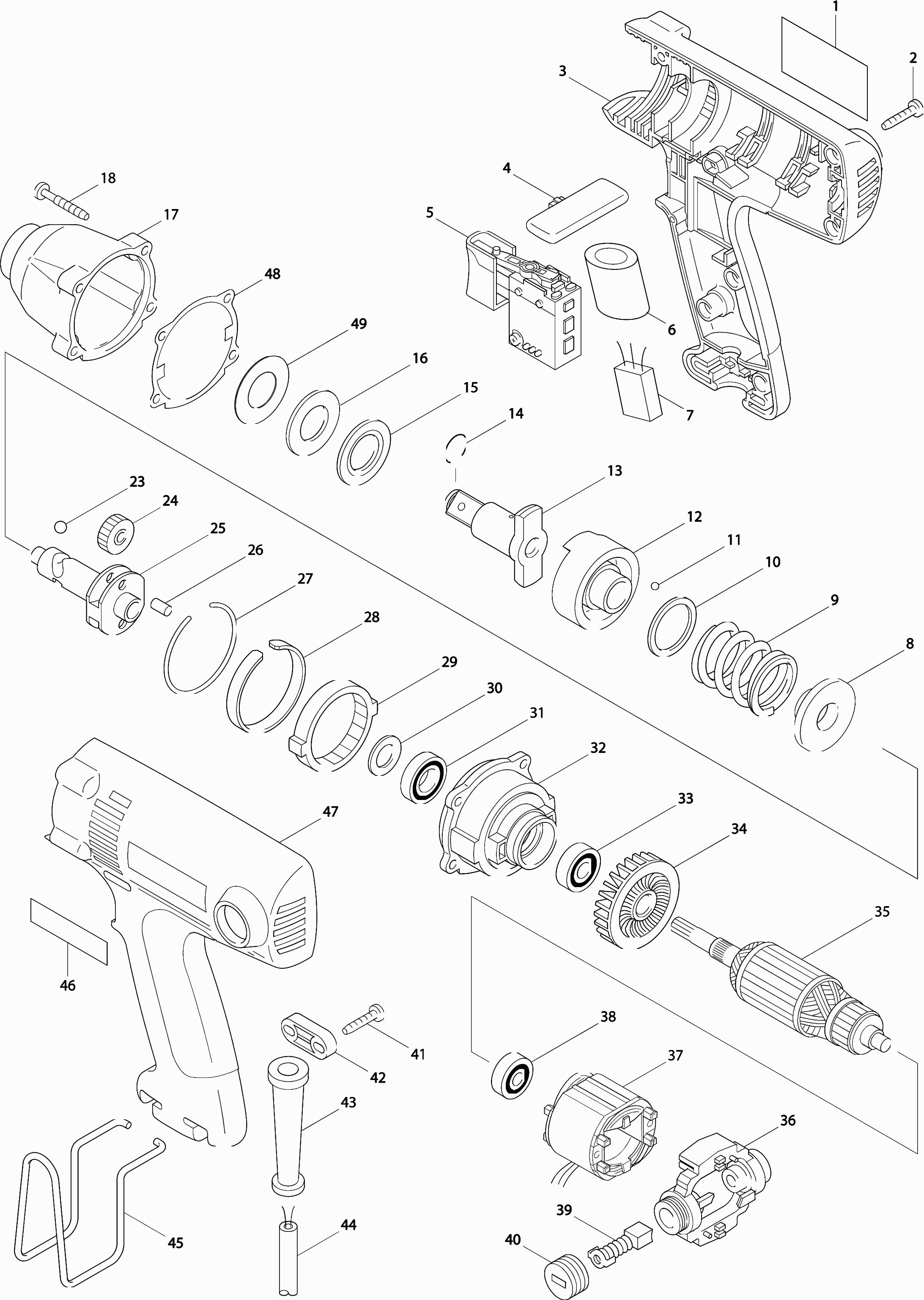

Technical drawing of model Makita 6953
Spare parts list of model Makita 6953
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 853010-4 | |||
| Tap screw 4x18 | ||||
| 002 | 265A48-7 | 0.83 | 1.00 | |
| Motorhuis set | ||||
| 003 | 183394-9 | 30.69 | 37.13 | |
| Rubber Pin 4 | ||||
| 003A | 263002-9 | 0.83 | 1.00 | |
| L/r slide | ||||
| 004 | 417553-6 | 0.98 | 1.19 | |
| Switch | ||||
| 005 | 650523-4 | 36.05 | 43.62 | |
| Sponge ring | ||||
| 006 | 685722-9 | 2.02 | 2.44 | |
| Capacitor | ||||
| 007 | 645253-0 | 4.45 | 5.38 | |
| Washer 14 | ||||
| 008 | 267759-4 | 3.12 | 3.78 | |
| Compression Spring 25 | ||||
| 009 | 233335-6 | 2.36 | 2.86 | |
| Flat Washer 24 | ||||
| 010 | 267175-0 | 0.83 | 1.00 | |
| Steel ball 3.5 | ||||
| 011 | 216040-0 | 0.83 | 1.00 | |
| Striker | ||||
| 012 | 324174-6 | 28.02 | 33.90 | |
| Anvil | ||||
| 013 | 324176-2 | 33.35 | 40.35 | |
| Lock washer 10 | ||||
| 014 | 231907-1 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 015 | 267227-7 | |||
| Rubber Washer 18 | ||||
| 016 | 261120-7 | 0.83 | 1.00 | |
| Gear Cover | ||||
| 017 | 152827-5 | 33.35 | 40.35 | |
| Seal Ring 18 | ||||
| 017A | 213257-6 | 3.97 | 4.80 | |
| Filler washer 18 | ||||
| 017B | 257714-4 | 9.24 | 11.18 | |
| No information available, not orderable | ||||
| 018 | 266295-7 | |||
| No information available, not orderable | ||||
| 023 | 216011-7 | |||
| Gear 22 | ||||
| 024 | 227362-3 | 3.12 | 3.78 | |
| Drive Shaft | ||||
| 025 | 324090-2 | 77.67 | 93.98 | |
| Pen 5 | ||||
| 026 | 268070-7 | 0.83 | 1.00 | |
| Lock washer 43 | ||||
| 027 | 233910-8 | 0.83 | 1.00 | |
| Compensating washer | ||||
| 028 | 344991-8 | 1.39 | 1.68 | |
| Internal gear 51 | ||||
| 029 | 227001-5 | 2.71 | 3.28 | |
| Washer 12 | ||||
| 030 | 267212-0 | 0.83 | 1.00 | |
| Ball Bearing 6901llb | ||||
| 031 | 211140-1 | 6.70 | 8.11 | |
| Internal gearbox | ||||
| 032 | 317428-8 | 12.80 | 15.49 | |
| Ball bearing 608 2rs | ||||
| 033 | 210024-0 | 3.12 | 3.78 | |
| Impeller 46 | ||||
| 034 | 240046-6 | 2.84 | 3.44 | |
| Armature | ||||
| 035 | 517554-5 | 62.04 | 75.07 | |
| Motor Field Support | ||||
| 036 | 152990-4 | 13.83 | 16.73 | |
| Brush Holder | ||||
| 036A | 643981-1 | 5.06 | 6.12 | |
| Field | ||||
| 037 | 635049-7 | 26.55 | 32.13 | |
| Ball bearing 607llb | ||||
| 038 | 211021-9 | 4.45 | 5.38 | |
| Brush Set CB411 RT0702C | ||||
| 039 | 195010-1 | 4.45 | 5.38 | |
| Brush Cap | ||||
| 040 | 643928-5 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 041 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 042 | 687124-5 | 0.83 | 1.00 | |
| Cable gland 10 | ||||
| 043 | 682566-8 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 044 | 665865-3 | |||
| Carry Hook | ||||
| 045 | 324284-9 | 4.14 | 5.01 | |
| Label Makita | ||||
| 046 | 819063-3 | 2.71 | 3.28 | |
| Motorhuis set | ||||
| 047 | 183394-9 | 30.69 | 37.13 | |
| Rubber Pin 4 | ||||
| 047A | 263002-9 | 0.83 | 1.00 | |
| Engine housing gasket | ||||
| 048 | 442137-1 | 1.46 | 1.77 | |
| Washer 18 | ||||
| 049 | 267235-8 | 1.39 | 1.68 | |
