Here you will find all available parts and drawings of the 'Makita 6950'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

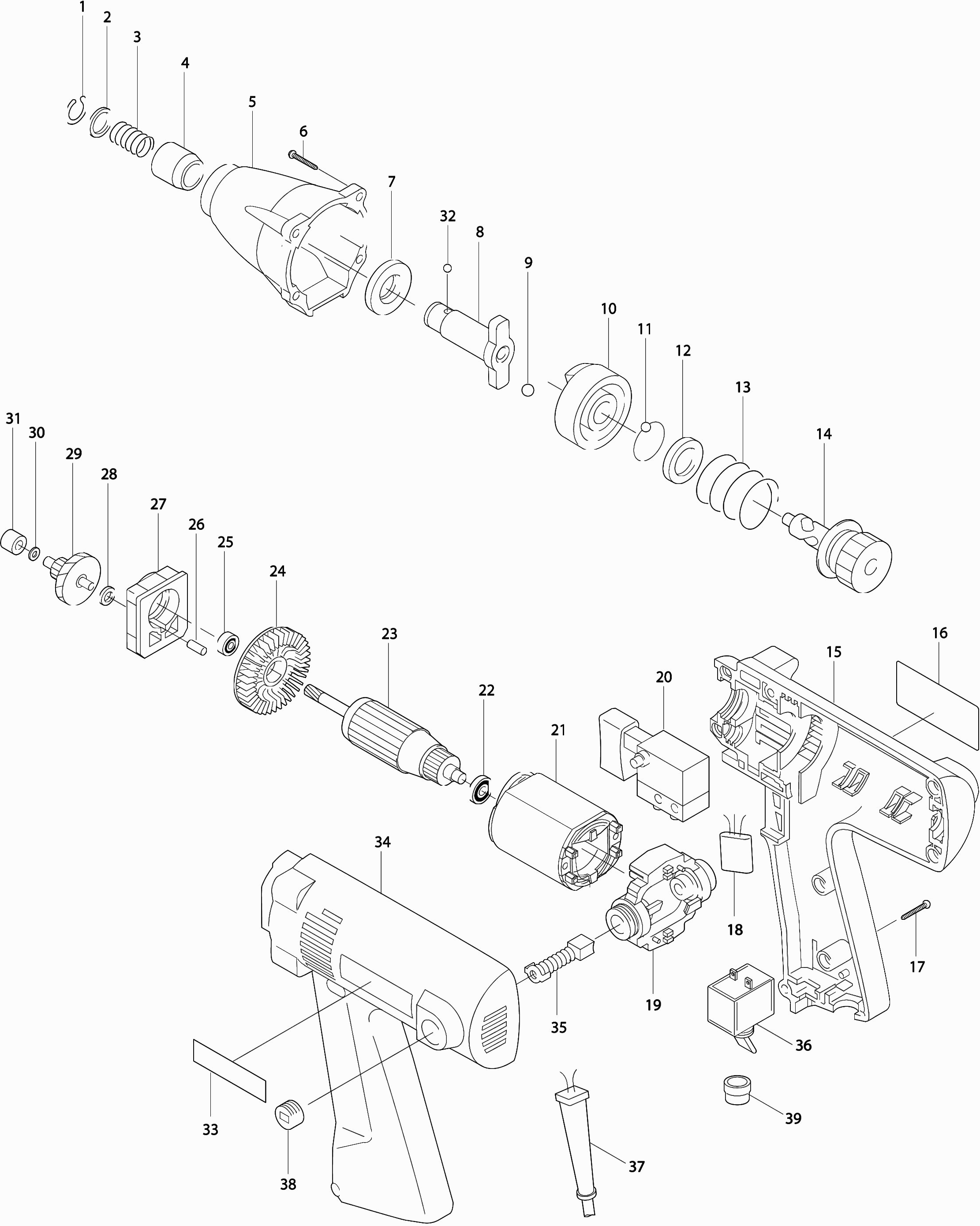

Technical drawing of model Makita 6950
Spare parts list of model Makita 6950
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Locking Ring 11 | ||||
| 001 | 231951-8 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 002 | 267085-1 | 0.83 | 1.00 | |
| Compression Spring 13 | ||||
| 003 | 233005-7 | 0.83 | 1.00 | |
| Socket | ||||
| 004 | 324420-7 | 3.96 | 4.79 | |
| Impact House 6950 * | ||||
| 005 | 159749-0 | 30.69 | 37.13 | |
| Self-tapping screw 4x20 | ||||
| 006 | 265925-7 | 0.83 | 1.00 | |
| Nylon ring 14 | ||||
| 007 | 261099-2 | 1.18 | 1.43 | |
| Anvil | ||||
| 008 | 324267-9 | 27.90 | 33.76 | |
| No information available, not orderable | ||||
| 009 | 216011-7 | |||
| Hammer | ||||
| 010 | 322793-2 | 19.29 | 23.34 | |
| Steel ball 3.5 | ||||
| 011 | 216040-0 | 0.83 | 1.00 | |
| Washer 22 | ||||
| 012 | 267126-3 | 0.98 | 1.19 | |
| Compression Spring 24 6950 * | ||||
| 013 | 233111-8 | 1.67 | 2.02 | |
| Spindle 6950 * | ||||
| 014 | 153230-3 | 33.35 | 40.35 | |
| Motor House Set 6950 * | ||||
| 015 | 182727-5 | 18.81 | 22.76 | |
| Self-tapping screw 4x20 | ||||
| 017 | 265925-7 | 0.83 | 1.00 | |
| Capacitor 0,1uf | ||||
| 018 | 645105-5 | 2.71 | 3.28 | |
| Holder Arm 6950 * | ||||
| 019 | 152475-0 | 11.82 | 14.30 | |
| No information available, not orderable | ||||
| 020 | 651275-0 | |||
| Field | ||||
| 021 | 635018-8 | 25.36 | 30.69 | |
| Ball bearing 607llb | ||||
| 022 | 211021-9 | 4.45 | 5.38 | |
| Armature 6950 * | ||||
| 023 | 517523-6 | 59.31 | 71.77 | |
| Fan 48 * | ||||
| 024 | 241885-7 | 3.96 | 4.79 | |
| Ball bearing 608llb | ||||
| 025 | 210043-6 | 1.67 | 2.02 | |
| Rubber Pin 4 | ||||
| 026 | 263002-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 027 | 152465-3 | |||
| No information available, not orderable | ||||
| 027A | 152465-3 | |||
| 4 Washer | ||||
| 028 | 267099-0 | 0.83 | 1.00 | |
| Gear 9-34 6950 * | ||||
| 029 | 226815-9 | 19.29 | 23.34 | |
| Lock washer 5 | ||||
| 030 | 253811-4 | 0.83 | 1.00 | |
| Slide Bearing 5 6950 * | ||||
| 031 | 214034-9 | 1.18 | 1.43 | |
| Steel ball 3.5 | ||||
| 032 | 216040-0 | 0.83 | 1.00 | |
| Brush Set CB411 RT0702C | ||||
| 035 | 195010-1 | 4.45 | 5.38 | |
| Switch Sw-78 | ||||
| 036 | 651478-6 | 11.82 | 14.30 | |
| Power cord 2x1.00 2.2mtr | ||||
| 037 | 665383-1 | 10.50 | 12.70 | |
| Brush holder cap | ||||
| 038 | 643550-8 | 0.83 | 1.00 | |
