Here you will find all available parts and drawings of the 'Makita 6934FD'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

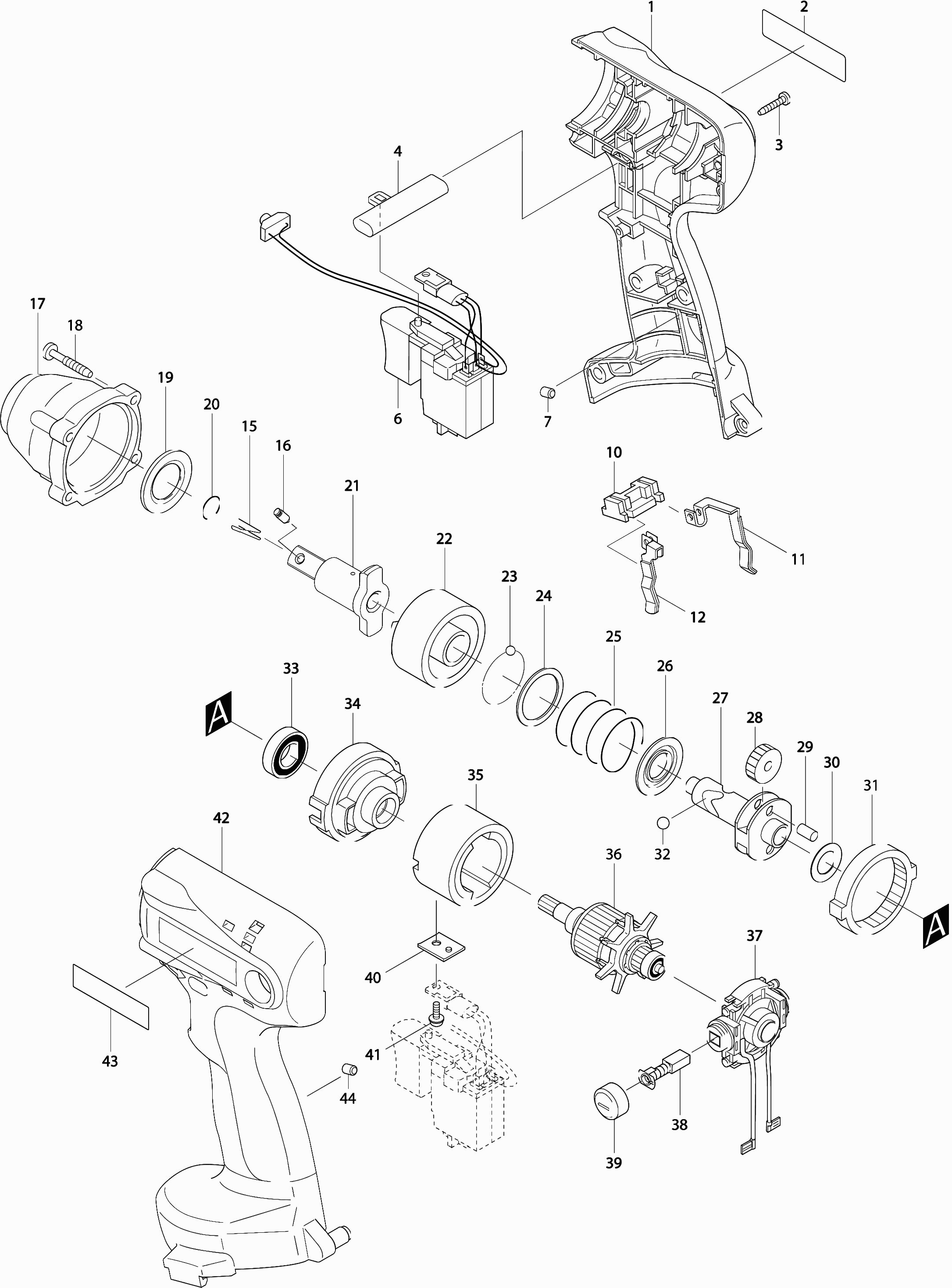

Technical drawing of model Makita 6934FD
Spare parts list of model Makita 6934FD
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing Set | ||||
| 001 | 183682-4 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 002 | 863765-3 | |||
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| L/r adjusting lever | ||||
| 004 | 416079-5 | 1.20 | 1.45 | |
| Switch | ||||
| 006 | 638288-8 | 48.40 | 58.56 | |
| Rubber Pin 4 | ||||
| 007 | 263024-9 | 1.20 | 1.45 | |
| Holder | ||||
| 010 | 687085-9 | 1.20 | 1.45 | |
| Contact strip +/+ | ||||
| 011 | 654168-0 | 2.40 | 2.90 | |
| Contact strip -/- | ||||
| 012 | 654169-8 | 2.40 | 2.90 | |
| Hammer Case | ||||
| 017 | 153873-1 | 18.70 | 22.63 | |
| No information available, not orderable | ||||
| 018 | 265999-8 | |||
| Nylon washer 18 Btw250/51 | ||||
| 019 | 261116-8 | 1.20 | 1.45 | |
| Lock washer 10 | ||||
| 020 | 231907-1 | 1.00 | 1.21 | |
| Anvil | ||||
| 021 | 323892-3 | 33.00 | 39.93 | |
| Striker | ||||
| 022 | 324404-5 | 30.80 | 37.27 | |
| Steel ball 3.5 | ||||
| 023 | 216040-0 | 1.00 | 1.21 | |
| Flat Washer 24 | ||||
| 024 | 267175-0 | 1.20 | 1.45 | |
| Compression Spring 25 | ||||
| 025 | 233276-6 | 2.40 | 2.90 | |
| Washer 14 | ||||
| 026 | 267766-7 | 1.00 | 1.21 | |
| Axis 6916Fd A | ||||
| 027 | 324220-5 | 10.80 | 13.07 | |
| Gear 22 | ||||
| 028 | 227362-3 | 3.60 | 4.36 | |
| Pen 5 | ||||
| 029 | 256253-1 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 030 | 267212-0 | 1.00 | 1.21 | |
| Internal gear 51 | ||||
| 031 | 227001-5 | 3.60 | 4.36 | |
| Steel ball 5.6 | ||||
| 032 | 216041-8 | 1.00 | 1.21 | |
| Ball Bearing 6901llb | ||||
| 033 | 211140-1 | 7.20 | 8.71 | |
| Gearcase Sa | ||||
| 034 | 417269-3 | 2.40 | 2.90 | |
| Magnet holder | ||||
| 035 | 632965-4 | 42.90 | 51.91 | |
| Armature | ||||
| 036 | 619132-8 | 34.10 | 41.26 | |
| Brush/bearing holder | ||||
| 037 | 638156-5 | 6.00 | 7.26 | |
| Brush Set Cb-434 | ||||
| 038 | 193466-2 | 4.80 | 5.81 | |
| Brush Cap | ||||
| 039 | 643933-2 | 2.40 | 2.90 | |
| Spacer | ||||
| 040 | 689096-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 041 | 266170-7 | |||
| Motor Housing Set | ||||
| 042 | 183682-4 | 17.60 | 21.30 | |
| Label Makita | ||||
| 043 | 819063-3 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 044 | 263024-9 | 1.20 | 1.45 | |
