Here you will find all available parts and drawings of the 'Makita 6916D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

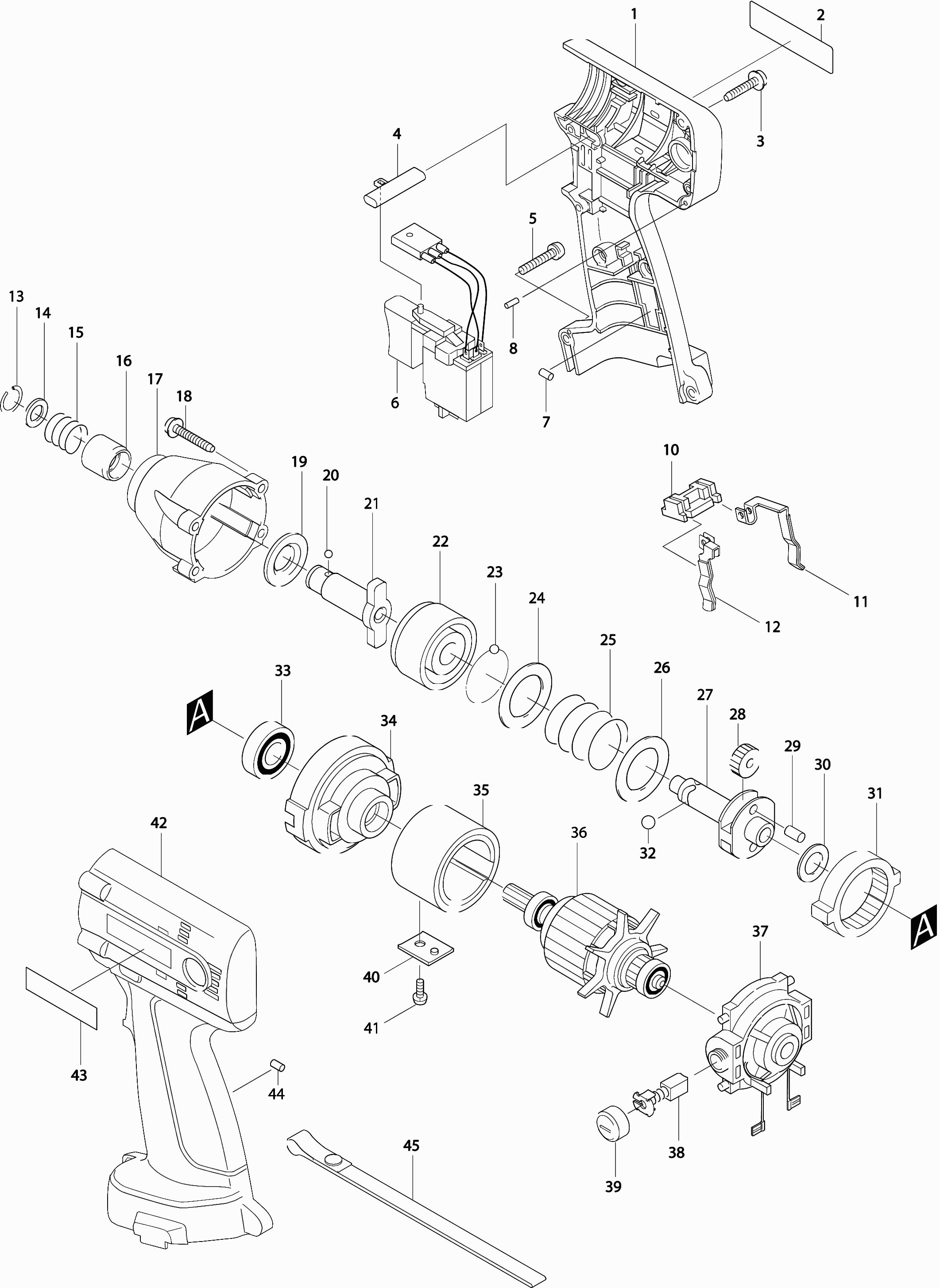

Technical drawing of model Makita 6916D
Spare parts list of model Makita 6916D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motorhuis set | ||||
| 001 | 183237-5 | 21.08 | 25.51 | |
| Tap screw 4x18 | ||||
| 003 | 265A48-7 | 0.83 | 1.00 | |
| L/r adjusting lever | ||||
| 004 | 416079-5 | 0.83 | 1.00 | |
| Screw 4x22 | ||||
| 005 | 911143-2 | 0.83 | 1.00 | |
| Switch | ||||
| 006 | 651989-1 | 33.36 | 40.37 | |
| Rubber Pin 4 | ||||
| 007 | 263024-9 | 0.83 | 1.00 | |
| Pen 2,5 | ||||
| 008 | 256176-3 | 0.83 | 1.00 | |
| Holder | ||||
| 010 | 687085-9 | 0.83 | 1.00 | |
| Contact strip +/+ | ||||
| 011 | 654168-0 | 2.36 | 2.86 | |
| Contact strip -/- | ||||
| 012 | 654169-8 | 2.36 | 2.86 | |
| Locking Ring 11 | ||||
| 013 | 231951-8 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 014 | 267085-1 | 0.83 | 1.00 | |
| Compression Spring 13 | ||||
| 015 | 233005-7 | 0.83 | 1.00 | |
| Socket | ||||
| 016 | 324420-7 | 3.96 | 4.79 | |
| Hammer Case | ||||
| 017 | 153778-5 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 018 | 265999-8 | |||
| Nylon ring 14 | ||||
| 019 | 261108-7 | 0.83 | 1.00 | |
| Steel ball 3.5 | ||||
| 020 | 216040-0 | 0.83 | 1.00 | |
| Anvil | ||||
| 021 | 324013-0 | 21.08 | 25.51 | |
| Striker | ||||
| 022 | 323996-1 | 15.60 | 18.88 | |
| Steel ball 3.5 | ||||
| 023 | 216040-0 | 0.83 | 1.00 | |
| Flat Washer 24 | ||||
| 024 | 267175-0 | 0.83 | 1.00 | |
| Compression Spring 25 | ||||
| 025 | 233276-6 | 2.02 | 2.44 | |
| Flat Washer 24 | ||||
| 026 | 267175-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 027 | 323994-5 | |||
| Gear 22 | ||||
| 028 | 227362-3 | 3.12 | 3.78 | |
| Pen 5 | ||||
| 029 | 256253-1 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 030 | 267212-0 | 0.83 | 1.00 | |
| Internal gear 51 | ||||
| 031 | 227001-5 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 032 | 216011-7 | |||
| Ball Bearing 6901llb | ||||
| 033 | 211140-1 | 6.70 | 8.11 | |
| Gearcase Sa | ||||
| 034 | 417269-3 | 2.10 | 2.54 | |
| Magnet holder | ||||
| 035 | 632964-6 | 43.75 | 52.94 | |
| Armature | ||||
| 036 | 619057-6 | 34.95 | 42.29 | |
| Brush/bearing holder | ||||
| 037 | 638103-6 | 9.24 | 11.18 | |
| Brush Set Cb-434 | ||||
| 038 | 193466-2 | 3.96 | 4.79 | |
| Brush Cap | ||||
| 039 | 643933-2 | 0.83 | 1.00 | |
| Spacer | ||||
| 040 | 689096-0 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 041 | 266170-7 | |||
| Motorhuis set | ||||
| 042 | 183237-5 | 21.08 | 25.51 | |
| Label Makita | ||||
| 043 | 819063-3 | 2.71 | 3.28 | |
| Rubber Pin 4 | ||||
| 044 | 263024-9 | 0.83 | 1.00 | |
| Shoulder strap | ||||
| 045 | 163319-9 | 2.71 | 3.28 | |
