Here you will find all available parts and drawings of the 'Makita 6913D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

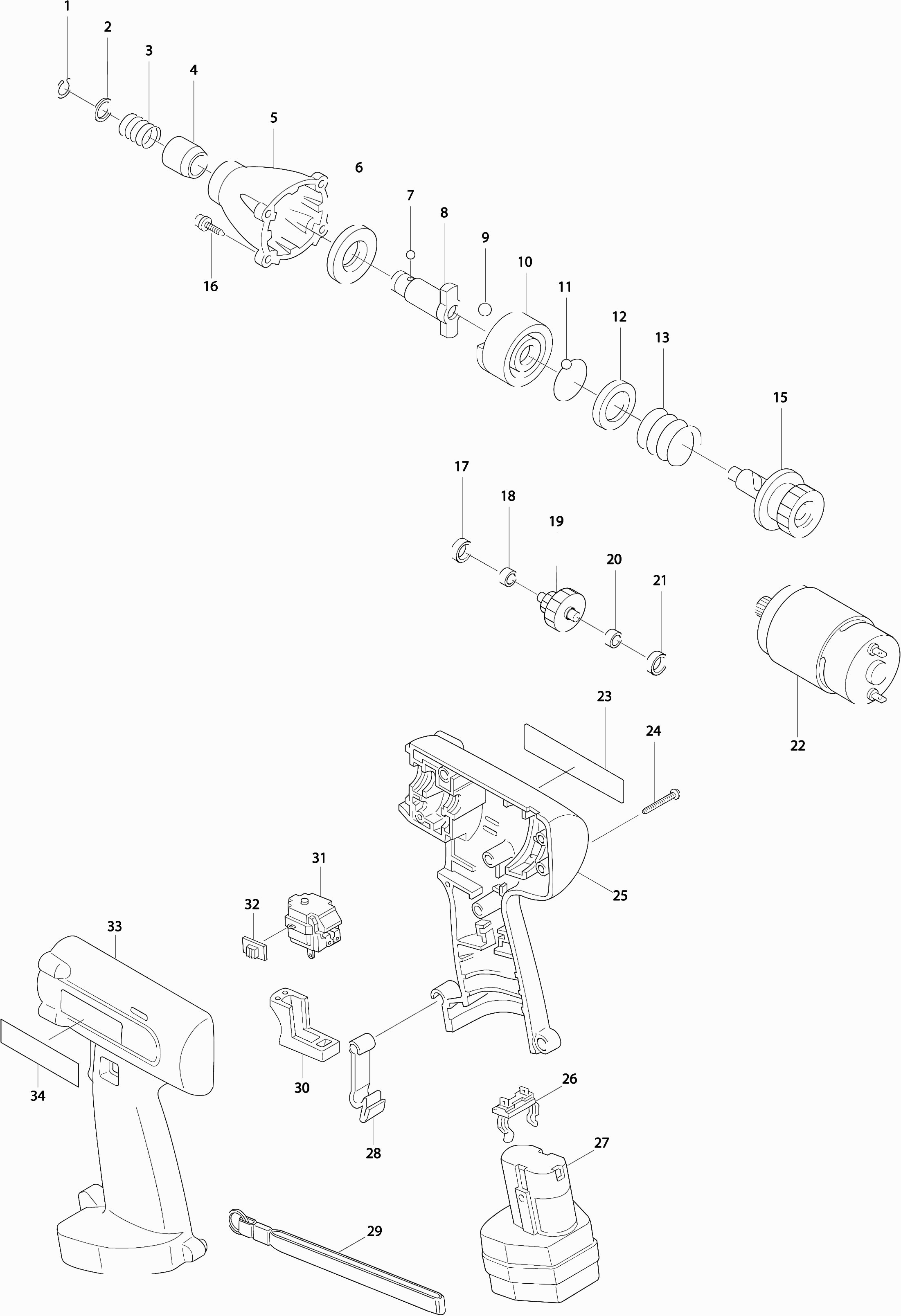

Technical drawing of model Makita 6913D
Spare parts list of model Makita 6913D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Locking Ring 11 | ||||
| 001 | 231951-8 | 0.83 | 1.00 | |
| Washer 12 | ||||
| 002 | 267085-1 | 0.83 | 1.00 | |
| Compression Spring 13 | ||||
| 003 | 233005-7 | 0.83 | 1.00 | |
| Socket | ||||
| 004 | 324420-7 | 3.96 | 4.79 | |
| Slaghuis 6913Dwh * | ||||
| 005 | 152472-6 | 17.38 | 21.03 | |
| No information available, not orderable | ||||
| 005A | 257665-1 | |||
| Nylon ring 14 | ||||
| 006 | 261099-2 | 1.18 | 1.43 | |
| Steel ball 3.5 | ||||
| 007 | 216040-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 008 | 322705-5 | |||
| No information available, not orderable | ||||
| 009 | 216011-7 | |||
| Impact Piece 6913Dwh * | ||||
| 010 | 322706-3 | 23.25 | 28.13 | |
| Steel ball 3.5 | ||||
| 011 | 216040-0 | 0.83 | 1.00 | |
| Washer 22 | ||||
| 012 | 267126-3 | 0.98 | 1.19 | |
| Compression Spring 24 6913Dwh * | ||||
| 013 | 233130-4 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 015 | 153231-1 | |||
| No information available, not orderable | ||||
| 015A | 226294-1 | |||
| Tapping screw Pt4x20 | ||||
| 016 | 266045-0 | 0.83 | 1.00 | |
| Rubber Bushing 8 6913Dwh * | ||||
| 017 | 165091-9 | 2.02 | 2.44 | |
| Slide Bearing 4 | ||||
| 018 | 214031-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 019 | 226127-0 | |||
| Slide Bearing 4 | ||||
| 020 | 214031-5 | 0.83 | 1.00 | |
| Rubber Bushing 8 6913Dwh * | ||||
| 021 | 165091-9 | 2.02 | 2.44 | |
| Dc Motor 12V 6913Dwh * | ||||
| 022 | 629686-7 | 33.36 | 40.37 | |
| No information available, not orderable | ||||
| 022A | 221882-9 | |||
| Tap screw 4x18 | ||||
| 024 | 265A48-7 | 0.83 | 1.00 | |
| Motor Housing Set 6913Dwh * | ||||
| 025 | 182679-0 | 15.60 | 18.88 | |
| Battery clamp | ||||
| 026 | 643918-8 | 7.22 | 8.74 | |
| Battery Plate | ||||
| 028 | 344121-1 | 1.75 | 2.12 | |
| Shoulder strap | ||||
| 029 | 163319-9 | 2.71 | 3.28 | |
| Switch handle | ||||
| 030 | 415671-4 | 0.98 | 1.19 | |
| Switch Sw-104 | ||||
| 031 | 650500-6 | 38.72 | 46.85 | |
| Switch slide | ||||
| 032 | 414740-8 | 1.46 | 1.77 | |
