Here you will find all available parts and drawings of the 'Makita 6911HD'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

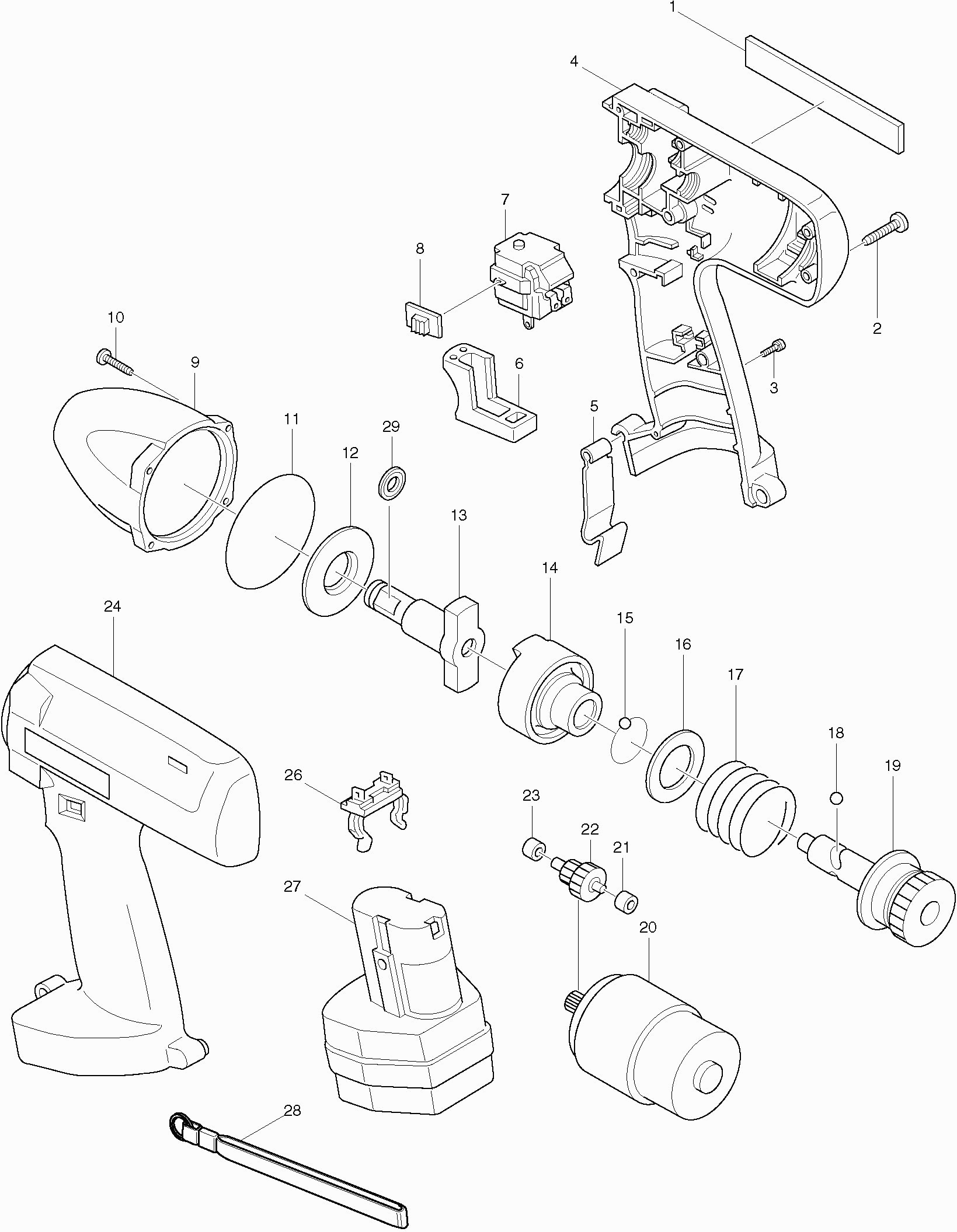

Technical drawing of model Makita 6911HD

Spare parts list of model Makita 6911HD

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Self-tapping screw 4x20
002 265925-7 0.83 1.00
Screw 4x20
003 911138-5 0.83 1.00
Motor Housing Set 6911Dw *
004 182532-0 19.23 23.27
Battery clamp plate
005 344798-2 3.28 3.97
Switch handle
006 415671-4 0.98 1.19
Switch Sw-104
007 650500-6 38.72 46.85
Switch slide
008 414740-8 1.46 1.77
Hammer Case
009 152411-6 51.84 62.73
Self-tapping screw 4x20
010 265925-7 0.83 1.00
O-ring 50
011 213604-1 1.67 2.02
Washer 18
012 267054-2 3.12 3.78
Anvil 1/2 6911Hdw *
013 322592-2 41.84 50.63
Impact Piece 6911Dw *
014 322527-3 29.64 35.86
Steel ball 3.5
015 216040-0 0.83 1.00
Thin washer 28
016 267088-5 3.28 3.97
Compression Spring 30*
017 233045-5 2.36 2.86
No information available, not orderable
018 216011-7
Shaft 6911Dw *
019 153216-7 45.48 55.03
DC motor 12v
020 629638-8 54.30 65.70
Slide Bearing 4
021 214027-6 0.83 1.00
Gear 10-38 6911Dw *
022 226115-7 23.04 27.88
Slide Bearing 4
023 214027-6 0.83 1.00
Battery clamp
026 643918-8 7.22 8.74
Shoulder strap
028 163319-9 2.71 3.28
Lock washer 10
029 231907-1 0.83 1.00
