Here you will find all available parts and drawings of the 'Makita 6908D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

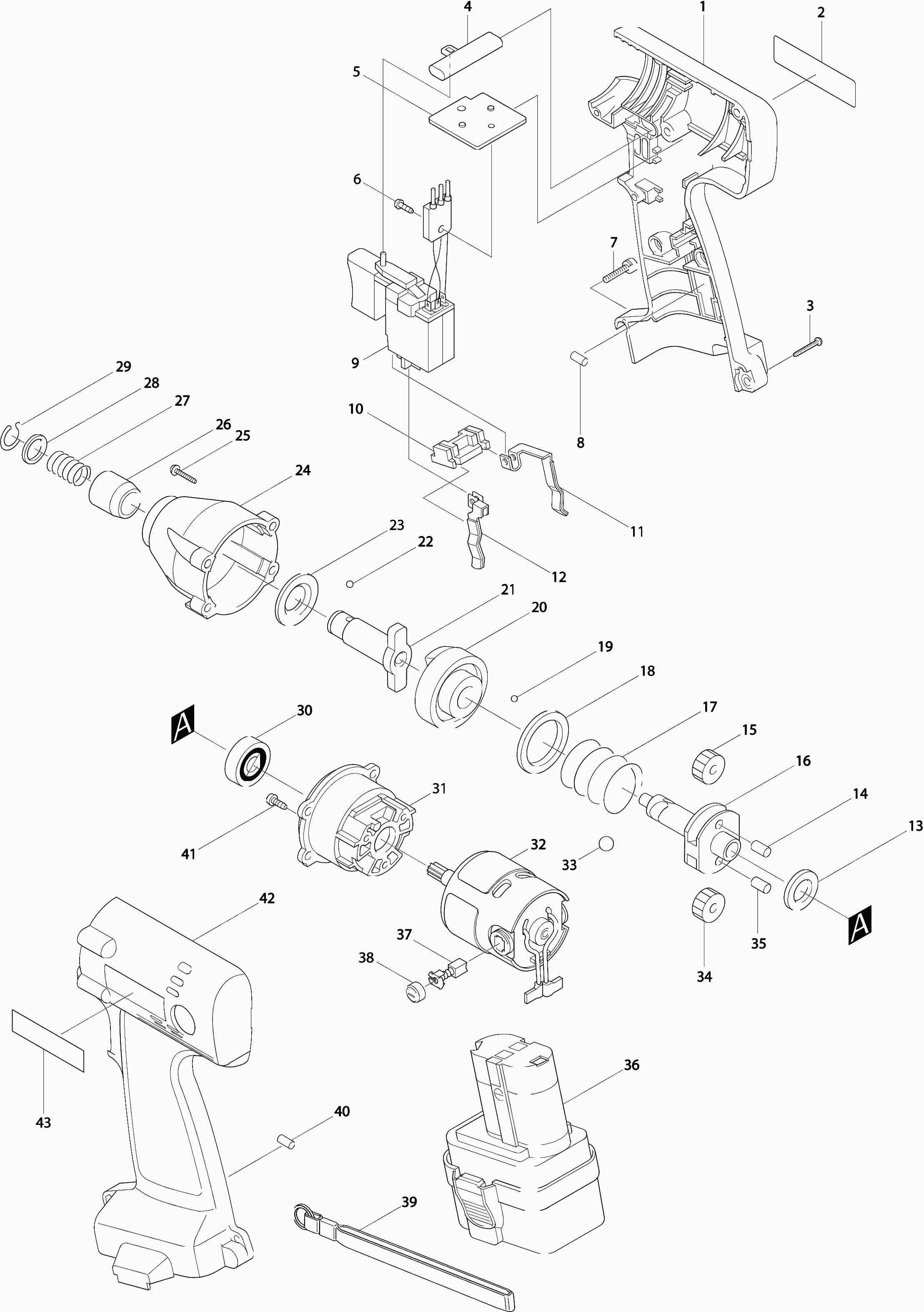

Technical drawing of model Makita 6908D
Spare parts list of model Makita 6908D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Set 6908Dwa * | ||||
| 001 | 182919-6 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 002 | 858715-1 | |||
| Tap screw 4x18 | ||||
| 003 | 265A48-7 | 1.00 | 1.21 | |
| L/r adjusting lever | ||||
| 004 | 416079-5 | 1.20 | 1.45 | |
| Cooling Sheet | ||||
| 005 | 689070-8 | 2.71 | 3.28 | |
| Schroef 3x8 | ||||
| 006 | 652066-2 | 1.00 | 1.21 | |
| Screw 4x22 | ||||
| 007 | 911143-2 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 008 | 263002-9 | 1.00 | 1.21 | |
| Switch | ||||
| 009 | 650540-4 | 36.30 | 43.92 | |
| Holder | ||||
| 010 | 687085-9 | 1.20 | 1.45 | |
| Contact strip +/+ | ||||
| 011 | 654168-0 | 2.40 | 2.90 | |
| Contact strip -/- | ||||
| 012 | 654169-8 | 2.40 | 2.90 | |
| Washer 12 | ||||
| 013 | 253744-3 | 1.00 | 1.21 | |
| Pen 5 | ||||
| 014 | 256253-1 | 1.00 | 1.21 | |
| Gear 22 | ||||
| 015 | 227362-3 | 3.60 | 4.36 | |
| Axis 6908Dwa * | ||||
| 016 | 322958-6 | 42.90 | 51.91 | |
| Compression Spring 24 6908Dwa * | ||||
| 017 | 233193-0 | 1.20 | 1.45 | |
| Flat Washer 23 Hr2010 * | ||||
| 018 | 267148-3 | 1.20 | 1.45 | |
| Steel ball 4 | ||||
| 019 | 216008-6 | 1.00 | 1.21 | |
| Impact Piece 6908Dwa * | ||||
| 020 | 322957-8 | 17.60 | 21.30 | |
| Anvil | ||||
| 021 | 324267-9 | 28.60 | 34.61 | |
| Steel ball 3.5 | ||||
| 022 | 216040-0 | 1.00 | 1.21 | |
| Nylon ring 14 | ||||
| 023 | 261108-7 | 1.00 | 1.21 | |
| Strike House 6908Dwa * | ||||
| 024 | 152555-2 | 19.80 | 23.96 | |
| No information available, not orderable | ||||
| 025 | 265999-8 | |||
| Socket | ||||
| 026 | 324420-7 | 4.80 | 5.81 | |
| Compression Spring 13 | ||||
| 027 | 233005-7 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 028 | 267085-1 | 1.00 | 1.21 | |
| Locking Ring 11 | ||||
| 029 | 231951-8 | 1.00 | 1.21 | |
| Ball bearing 6001llb | ||||
| 030 | 211101-1 | 6.00 | 7.26 | |
| Gearbox 6908Dwa * | ||||
| 031 | 416313-3 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 032 | 629710-6 | |||
| Gear for motor 7 | ||||
| 032A | 226337-9 | 16.50 | 19.96 | |
| Motor connection | ||||
| 032B | 654069-2 | 1.00 | 1.21 | |
| Steel ball 5.6 | ||||
| 033 | 216041-8 | 1.00 | 1.21 | |
| Gear 22 | ||||
| 034 | 227362-3 | 3.60 | 4.36 | |
| Pen 5 | ||||
| 035 | 256253-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 036 | 193099-3 | |||
| Carbon brush set Cb-424 | ||||
| 037 | 191966-6 | 3.60 | 4.36 | |
| Brush Cap | ||||
| 038 | 643933-2 | 2.40 | 2.90 | |
| Shoulder strap | ||||
| 039 | 163319-9 | 3.60 | 4.36 | |
| Rubber Pin 4 | ||||
| 040 | 263002-9 | 1.00 | 1.21 | |
| Tapping screw Ct 3x8 | ||||
| 041 | 266166-8 | 1.00 | 1.21 | |
| Housing Set 6908Dwa * | ||||
| 042 | 182919-6 | 16.50 | 19.96 | |
| Label Makita | ||||
| 043 | 819063-3 | 2.40 | 2.90 | |
