Here you will find all available parts and drawings of the 'Makita 6842'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

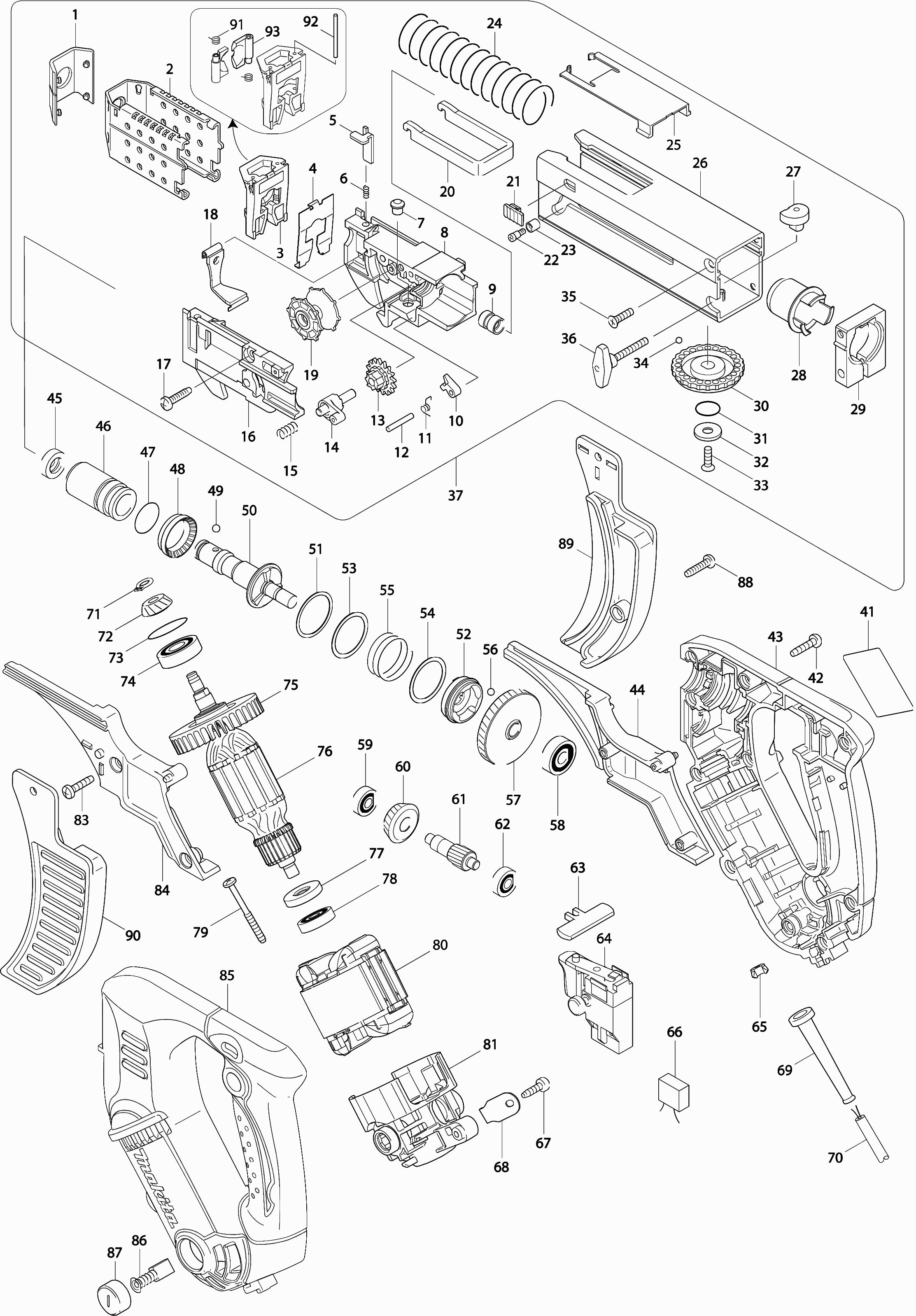

Technical drawing of model Makita 6842
Spare parts list of model Makita 6842
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nose cap | ||||
| 001 | 424043-2 | 2.40 | 2.90 | |
| Stop base | ||||
| 002 | 345839-7 | 8.40 | 10.16 | |
| Guide Block | ||||
| 003 | 140493-0 | 14.30 | 17.30 | |
| Shield | ||||
| 004 | 346269-5 | 2.40 | 2.90 | |
| Lever | ||||
| 005 | 345837-1 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 006 | 233211-4 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 007 | 256451-7 | 2.40 | 2.90 | |
| Feeder house | ||||
| 008 | 450107-6 | 4.80 | 5.81 | |
| Bus 5 6833/34/35/37 Grs A | ||||
| 009 | 257685-5 | 3.60 | 4.36 | |
| Stopper 6833 | ||||
| 010 | 310062-3 | 6.00 | 7.26 | |
| Torsion spring 4 | ||||
| 011 | 231636-6 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 012 | 256158-5 | 1.20 | 1.45 | |
| Gear 16 | ||||
| 013 | 226344-2 | 2.40 | 2.90 | |
| Pawl gear 6842 | ||||
| 014 | 158374-4 | 16.50 | 19.96 | |
| Compression Spring 6 | ||||
| 015 | 233212-2 | 1.00 | 1.21 | |
| Feed Housing Lid | ||||
| 016 | 158375-2 | 8.40 | 10.16 | |
| Tap screw 4x18 | ||||
| 017 | 265A48-7 | 1.00 | 1.21 | |
| Dust-Protection Cover | ||||
| 018 | 162201-9 | 4.80 | 5.81 | |
| Feed wheel | ||||
| 019 | 416518-5 | 3.60 | 4.36 | |
| Bow | ||||
| 020 | 345838-9 | 3.60 | 4.36 | |
| Lock Lever | ||||
| 021 | 450111-5 | 1.20 | 1.45 | |
| Adjusting Screw | ||||
| 022 | 265177-0 | 2.40 | 2.90 | |
| Socket | ||||
| 023 | 257764-9 | 2.40 | 2.90 | |
| Compression Spring 23 Bfr540 | ||||
| 024 | 234031-9 | 2.40 | 2.90 | |
| Screw housing cap | ||||
| 025 | 450114-9 | 2.40 | 2.90 | |
| Screw Housing | ||||
| 026 | 158377-8 | 30.80 | 37.27 | |
| Label "bfr540" nose piece | ||||
| 026 | 816885-2 | 2.40 | 2.90 | |
| Adjusting pin | ||||
| 027 | 310237-4 | 4.80 | 5.81 | |
| Insulation sleeve | ||||
| 028 | 450110-7 | 2.40 | 2.90 | |
| Circlip | ||||
| 029 | 318181-9 | 9.60 | 11.62 | |
| Button 42mm | ||||
| 030 | 417056-0 | 2.40 | 2.90 | |
| O-ring 12 | ||||
| 031 | 213107-5 | 1.00 | 1.21 | |
| Washer 6 6835D | ||||
| 032 | 267201-5 | 1.20 | 1.45 | |
| Countersunk screw 4x12 | ||||
| 033 | 912117-6 | 1.00 | 1.21 | |
| Steel ball 3.5 | ||||
| 034 | 216040-0 | 1.00 | 1.21 | |
| Countersunk screw 4x12 | ||||
| 035 | 912117-6 | 1.00 | 1.21 | |
| Screw 4x28 | ||||
| 036 | 265779-2 | 2.40 | 2.90 | |
| Complete nose piece 55 | ||||
| 037 | 195184-8 | 146.44 | 177.19 | |
| Label | ||||
| 041 | 863779-2 | 3.60 | 4.36 | |
| Tapping screw Pt4x20 | ||||
| 042 | 266045-0 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 043 | 188305-9 | 30.80 | 37.27 | |
| Screwdriver Set | ||||
| 044 | 188303-3 | 7.20 | 8.71 | |
| Dust Ring | ||||
| 045 | 421467-3 | 1.20 | 1.45 | |
| Slide bearing 14 | ||||
| 046 | 214173-5 | 4.80 | 5.81 | |
| O-ring 18 | ||||
| 047 | 213262-3 | 1.20 | 1.45 | |
| Washer | ||||
| 048 | 421927-5 | 1.20 | 1.45 | |
| Steel ball 3.5 | ||||
| 049 | 216040-0 | 1.00 | 1.21 | |
| As 6842 | ||||
| 050 | 324808-1 | 22.00 | 26.62 | |
| Washer 26 | ||||
| 051 | 267332-0 | 1.00 | 1.21 | |
| Clutch Plate C Bfr540 | ||||
| 052 | 223169-5 | 16.50 | 19.96 | |
| Washer 25 | ||||
| 053 | 267331-2 | 1.20 | 1.45 | |
| Washer 25 | ||||
| 054 | 267331-2 | 1.20 | 1.45 | |
| Compression Spring 25 | ||||
| 055 | 234017-3 | 2.40 | 2.90 | |
| Steel ball 4 | ||||
| 056 | 216008-6 | 1.00 | 1.21 | |
| Gear 57 | ||||
| 057 | 226658-9 | 24.20 | 29.28 | |
| Ball Bearing | ||||
| 058 | 211034-0 | 3.60 | 4.36 | |
| Ball bearing 606Zz A | ||||
| 059 | 210137-7 | 1.20 | 1.45 | |
| Gear 22 | ||||
| 060 | 227528-5 | 15.40 | 18.63 | |
| Gear 13 | ||||
| 061 | 226668-6 | 8.40 | 10.16 | |
| Ball bearing 606Zz A | ||||
| 062 | 210137-7 | 1.20 | 1.45 | |
| L/r adjusting lever | ||||
| 063 | 419304-3 | 2.40 | 2.90 | |
| Switch | ||||
| 064 | 650590-9 | 13.20 | 15.97 | |
| Square nut DIN 557-M5-05 | ||||
| 065 | 252045-6 | 1.20 | 1.45 | |
| Capacitor | ||||
| 066 | 645253-0 | 4.80 | 5.81 | |
| Tapping screw 4x14 mm GA9070Y A | ||||
| 067 | 265B74-2 | 1.00 | 1.21 | |
| Tapping screw 4X14 Ga7020 A | ||||
| 067 | 266385-6 | 0.83 | 1.00 | |
| Strain reliever | ||||
| 068 | 687169-3 | 1.00 | 1.21 | |
| Cable gland 8-110 | ||||
| 069 | 682559-5 | 1.20 | 1.45 | |
| Power cord 2x1.50 4.0mtr | ||||
| 070 | 695123-3 | 22.00 | 26.62 | |
| Lock ring S-6 | ||||
| 071 | 961002-0 | 1.00 | 1.21 | |
| Gear 15 | ||||
| 072 | 227527-7 | 13.20 | 15.97 | |
| O-ring 24 | ||||
| 073 | 213380-7 | 1.00 | 1.21 | |
| Ball bearing 6000llb | ||||
| 074 | 211061-7 | 8.40 | 10.16 | |
| Fan 55 | ||||
| 075 | 241869-5 | 3.60 | 4.36 | |
| Armature | ||||
| 076 | 515713-5 | 46.20 | 55.90 | |
| Insulation ring | ||||
| 077 | 681652-2 | 1.00 | 1.21 | |
| Ball bearing 607llb | ||||
| 078 | 211021-9 | 4.80 | 5.81 | |
| Tapschroef 4x45 | ||||
| 079 | 266069-6 | 1.20 | 1.45 | |
| Field | ||||
| 080 | 639372-2 | 29.70 | 35.94 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 080A | 654501-6 | 0.83 | 1.00 | |
| Stator spring Cb 9 | ||||
| 080B | 654018-9 | 1.20 | 1.45 | |
| Carbon brush/Bearing holder 6842 | ||||
| 081 | 158380-9 | 12.10 | 14.64 | |
| Tap screw 4x18 | ||||
| 083 | 265A48-7 | 1.00 | 1.21 | |
| Screwdriver Set | ||||
| 084 | 188303-3 | 7.20 | 8.71 | |
| Motor Housing | ||||
| 085 | 188305-9 | 30.80 | 37.27 | |
| Brush Set CB411 RT0702C | ||||
| 086 | 195010-1 | 4.80 | 5.81 | |
| Brush Cap | ||||
| 087 | 643928-5 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 088 | 265A48-7 | 1.00 | 1.21 | |
| Screw tape guide | ||||
| 089 | 188310-6 | 6.00 | 7.26 | |
| Screw tape guide | ||||
| 090 | 188310-6 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 091 | 233516-2 | |||
| Pen 2 | ||||
| 092 | 268188-4 | 1.00 | 1.21 | |
| Guide | ||||
| 093 | 310236-6 | 3.60 | 4.36 | |
