Here you will find all available parts and drawings of the 'Makita 6834'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

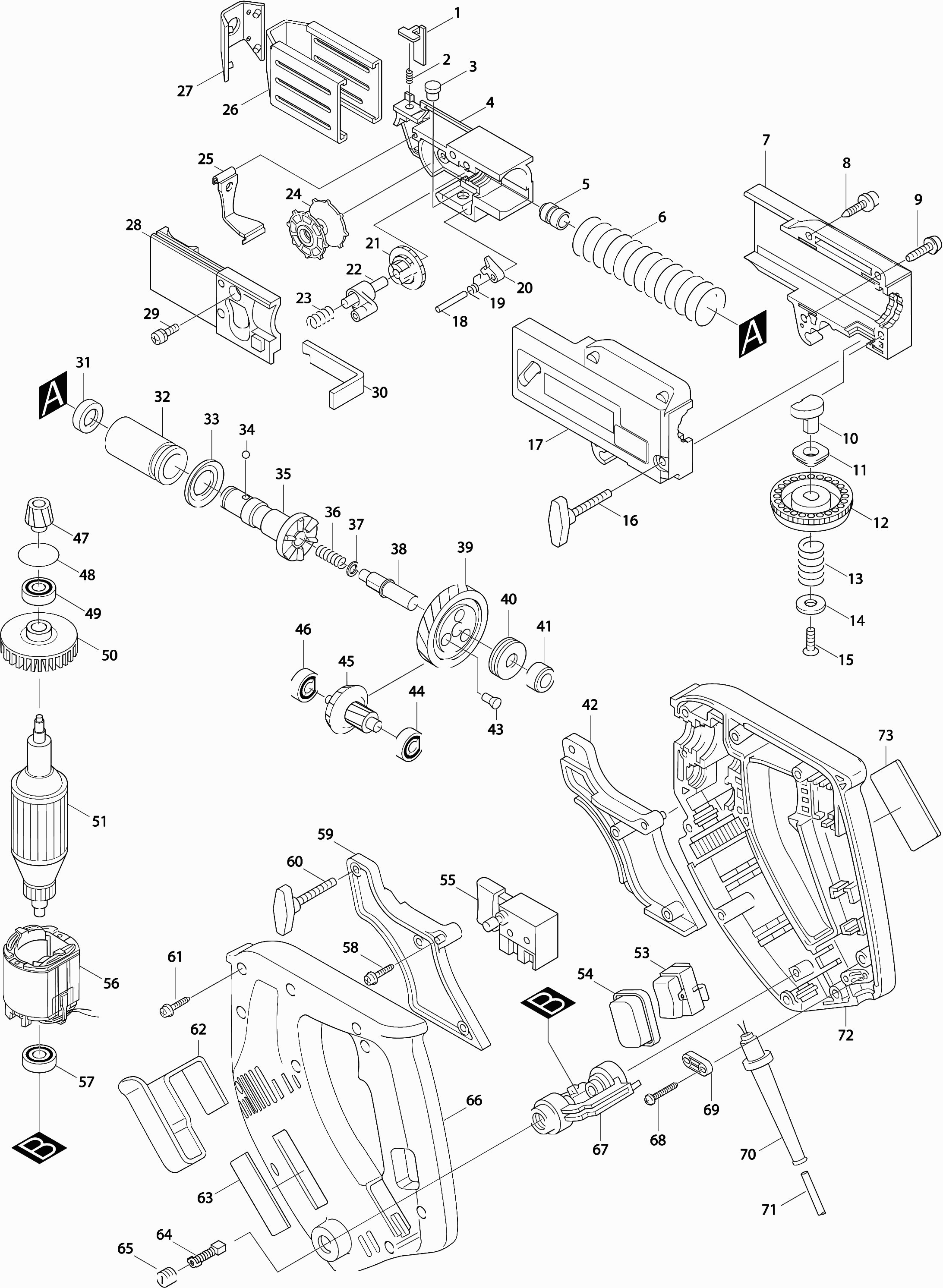

Technical drawing of model Makita 6834
Spare parts list of model Makita 6834
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bow | ||||
| 001 | 344625-3 | 1.20 | 1.45 | |
| Pressure Spring 2 | ||||
| 002 | 233211-4 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 003 | 256451-7 | 2.40 | 2.90 | |
| Feeder house | ||||
| 004 | 416500-4 | 4.80 | 5.81 | |
| Bus 5 6833/34/35/37 Grs A | ||||
| 005 | 257685-5 | 3.60 | 4.36 | |
| Bus 5 6833/34/35/37 Grs A | ||||
| 005A | 257685-5 | 3.60 | 4.36 | |
| Bus 5 6833/34/35/37 Grs A | ||||
| 005A1 | 257685-5 | 3.60 | 4.36 | |
| Pressure Spring 21 | ||||
| 006 | 233210-6 | 2.40 | 2.90 | |
| Screw housing | ||||
| 007 | 188213-4 | 23.10 | 27.95 | |
| Screw housing | ||||
| 007-1 | 188213-4 | 23.10 | 27.95 | |
| Tapping screw Pt4x20 | ||||
| 008 | 266045-0 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 009 | 265C54-4 | 1.00 | 1.21 | |
| Setting pin 14.5mm | ||||
| 010-1 | 310091-6 | 7.20 | 8.71 | |
| Adjustable pin 17.5mm | ||||
| 010A | 310061-5 | 7.20 | 8.71 | |
| Setting pin 14.5mm | ||||
| 010B | 310091-6 | 7.20 | 8.71 | |
| Bus 8 | ||||
| 011 | 257686-3 | 3.60 | 4.36 | |
| Button 42mm | ||||
| 012 | 417056-0 | 2.40 | 2.90 | |
| Button 42mm | ||||
| 012-1 | 417056-0 | 2.40 | 2.90 | |
| Compression spring 12 | ||||
| 013 | 233089-5 | 1.00 | 1.21 | |
| O-ring 11 | ||||
| 013-1 | 213105-9 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 014 | 267117-4 | 1.20 | 1.45 | |
| Washer 6 6835D | ||||
| 014-1 | 267201-5 | 1.20 | 1.45 | |
| Countersunk screw 4x12 | ||||
| 015 | 912117-6 | 1.00 | 1.21 | |
| Screw 4x28 | ||||
| 016 | 265779-2 | 2.40 | 2.90 | |
| Screw 4x28 | ||||
| 016-2 | 265779-2 | 2.40 | 2.90 | |
| Screw housing | ||||
| 017 | 188213-4 | 23.10 | 27.95 | |
| Screw housing | ||||
| 017-1 | 188213-4 | 23.10 | 27.95 | |
| Pen 3 | ||||
| 018 | 256158-5 | 1.20 | 1.45 | |
| Torsion spring 4 | ||||
| 019 | 231636-6 | 1.20 | 1.45 | |
| Stopper 6833 | ||||
| 020 | 310062-3 | 6.00 | 7.26 | |
| Gear 16 | ||||
| 021 | 226344-2 | 2.40 | 2.90 | |
| Pawl Arm | ||||
| 022 | 152580-3 | 16.50 | 19.96 | |
| Compression Spring 6 | ||||
| 023 | 233212-2 | 1.00 | 1.21 | |
| Feed wheel | ||||
| 024 | 416518-5 | 3.60 | 4.36 | |
| Dust-Protection Cover | ||||
| 025 | 162201-9 | 4.80 | 5.81 | |
| Stop base | ||||
| 026 | 344628-7 | 9.60 | 11.62 | |
| Front Cap | ||||
| 027 | 421617-0 | 2.40 | 2.90 | |
| Front Cap | ||||
| 027-1 | 421617-0 | 2.40 | 2.90 | |
| Feed Housing Lid | ||||
| 028 | 152581-1 | 8.40 | 10.16 | |
| Screw 4X18 | ||||
| 029 | 911133-5 | 1.00 | 1.21 | |
| Plate | ||||
| 030 | 344627-9 | 8.40 | 10.16 | |
| Dust Ring | ||||
| 031 | 421467-3 | 1.20 | 1.45 | |
| Slide bearing 14 | ||||
| 032 | 214168-8 | 8.40 | 10.16 | |
| Slide bearing 14 | ||||
| 032A | 214168-8 | 8.40 | 10.16 | |
| Washer 15 | ||||
| 033 | 421618-8 | 1.00 | 1.21 | |
| Steel ball 3.5 | ||||
| 034 | 216040-0 | 1.00 | 1.21 | |
| Shaft 6833/34/35 A | ||||
| 035 | 153741-8 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 035A | 323765-0 | |||
| Shaft 6833/34/35 A | ||||
| 035A1 | 153741-8 | 30.80 | 37.27 | |
| Compression Spring 8 | ||||
| 036 | 233393-2 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 036-1 | 233393-2 | 1.00 | 1.21 | |
| Flat Washer 6 | ||||
| 037 | 267277-2 | 1.00 | 1.21 | |
| Flat Washer 6 | ||||
| 037-1 | 267277-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 038 | 268032-5 | |||
| Gear | ||||
| 039 | 153739-5 | 27.50 | 33.28 | |
| Gear | ||||
| 039-3 | 153739-5 | 27.50 | 33.28 | |
| Thrust Needle Bearing 821 | ||||
| 040 | 212042-4 | 8.40 | 10.16 | |
| Glijlager 8 | ||||
| 041 | 214028-4 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 042 | 182984-5 | |||
| Collar Pin 4 | ||||
| 043 | 256467-2 | 1.20 | 1.45 | |
| Collar Pin 4 | ||||
| 043-1 | 256467-2 | 1.20 | 1.45 | |
| Ball bearing 606Zz A | ||||
| 044 | 210137-7 | 1.20 | 1.45 | |
| Gear 9-22 6834 * | ||||
| 045 | 226823-0 | 28.60 | 34.61 | |
| Ball bearing 606Zz A | ||||
| 046 | 210137-7 | 1.20 | 1.45 | |
| Gear 15 | ||||
| 047 | 226704-8 | 16.50 | 19.96 | |
| O-ring 24 | ||||
| 048 | 213380-7 | 1.00 | 1.21 | |
| O-ring 24 | ||||
| 048-1 | 213380-7 | 1.00 | 1.21 | |
| Ball bearing 6000llb | ||||
| 049 | 211061-7 | 8.40 | 10.16 | |
| Fan 55 | ||||
| 050 | 241869-5 | 3.60 | 4.36 | |
| Armature | ||||
| 051 | 517063-4 | 62.70 | 75.87 | |
| Armature | ||||
| 051A | 517063-4 | 62.70 | 75.87 | |
| Toggle switch | ||||
| 053 | 651569-3 | 13.20 | 15.97 | |
| Dust Cap | ||||
| 054 | 421621-9 | 2.40 | 2.90 | |
| Switch | ||||
| 055 | 651283-1 | 11.00 | 13.31 | |
| Field | ||||
| 056 | 633258-2 | 23.10 | 27.95 | |
| Field | ||||
| 056A | 633258-2 | 23.10 | 27.95 | |
| Little stator spring Cb-7 | ||||
| 056A | 654019-7 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 056B | 654501-6 | 0.83 | 1.00 | |
| Ball bearing 627llb | ||||
| 057 | 210025-8 | 3.60 | 4.36 | |
| Ball bearing 627llb | ||||
| 057-1 | 210025-8 | 3.60 | 4.36 | |
| Tapping screw Pt4x20 | ||||
| 058 | 266045-0 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 059 | 182984-5 | |||
| Screw 4x28 | ||||
| 060 | 265779-2 | 2.40 | 2.90 | |
| Screw 4x28 | ||||
| 060-2 | 265779-2 | 2.40 | 2.90 | |
| Tapping screw Pt4x20 | ||||
| 061 | 266045-0 | 1.00 | 1.21 | |
| Carry Hook | ||||
| 062 | 344056-6 | 11.00 | 13.31 | |
| Label Makita | ||||
| 063 | 819063-3 | 2.40 | 2.90 | |
| Brush Set CB411 RT0702C | ||||
| 064 | 195010-1 | 4.80 | 5.81 | |
| Brush Set CB411 RT0702C | ||||
| 064A | 195010-1 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 065 | 643550-8 | 1.20 | 1.45 | |
| Motorhuis set | ||||
| 066 | 182601-7 | 24.20 | 29.28 | |
| Holder arm | ||||
| 067 | 152433-6 | 13.20 | 15.97 | |
| Tap screw 4x18 | ||||
| 068 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 069 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 069 | 687124-5 | 1.00 | 1.21 | |
| Cable grommet 8-85 | ||||
| 070 | 682502-4 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 071 | 665383-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 071F | 666066-6 | |||
| Motorhuis set | ||||
| 072 | 182601-7 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 073 | 859469-3 | |||
| No information available, not orderable | ||||
| 074 | 257694-4 | |||
| Nose Piece Complete | ||||
| 076A | 194383-9 | 112.20 | 135.76 | |
| Feed Nose 6833/34/35/37 A | ||||
| 076B | 192853-2 | 69.30 | 83.85 | |
