Here you will find all available parts and drawings of the 'Makita 6832'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

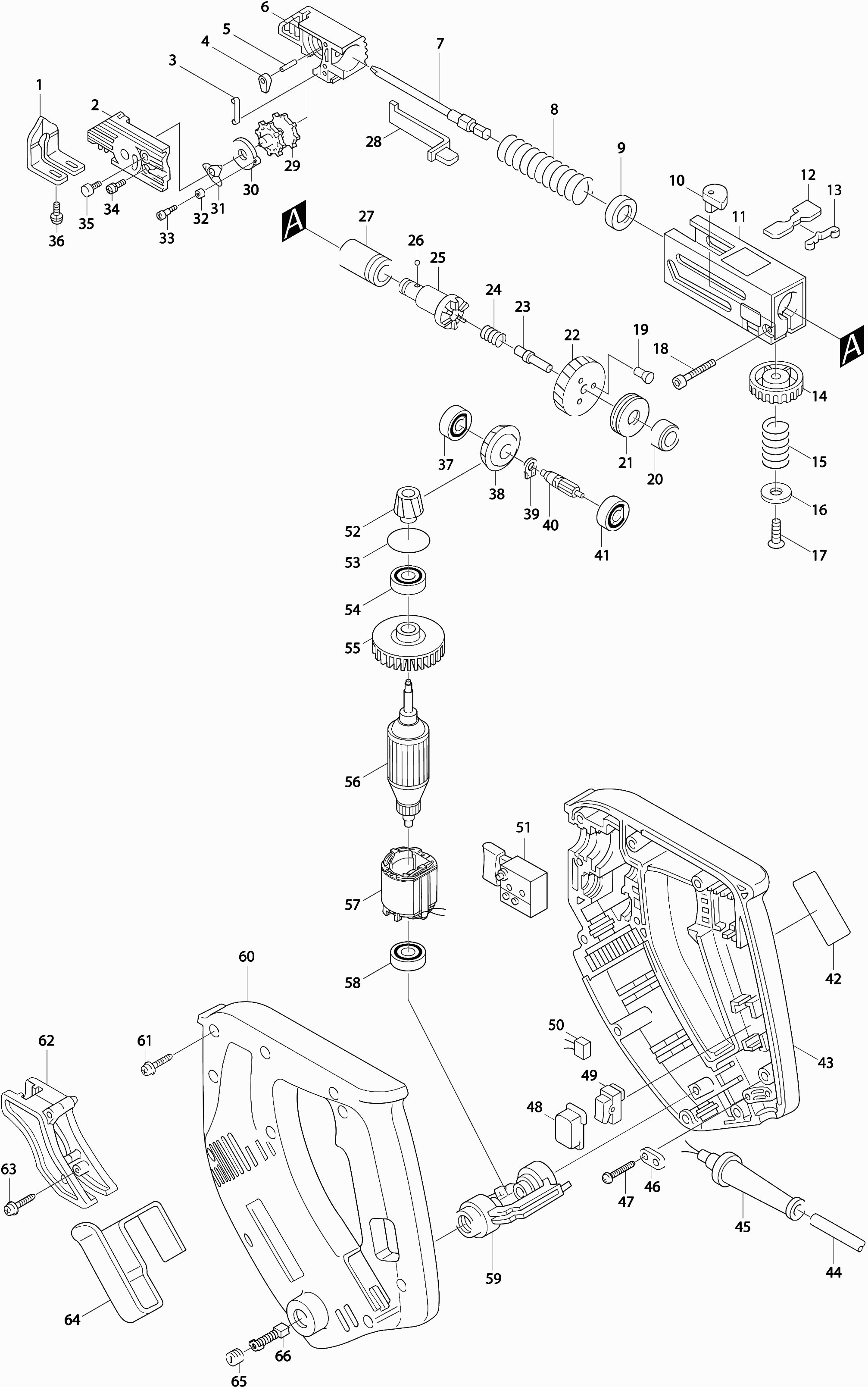

Technical drawing of model Makita 6832
Spare parts list of model Makita 6832
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 344237-2 | |||
| Stop bracket 25mm 6830/32 | ||||
| 001A | 344054-0 | 6.00 | 7.26 | |
| Feed cover | ||||
| 002 | 152502-3 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 002A | 256222-2 | |||
| Leaf spring 6830 | ||||
| 003 | 232132-7 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 004 | 311923-0 | |||
| No information available, not orderable | ||||
| 005 | 256222-2 | |||
| Feed box 5mm | ||||
| 006 | 152501-5 | 6.70 | 8.11 | |
| No information available, not orderable | ||||
| 006A | 256222-2 | |||
| Pressure Spring 21 | ||||
| 008 | 233141-9 | 2.40 | 2.90 | |
| Dust Ring | ||||
| 009 | 421467-3 | 1.20 | 1.45 | |
| Adjustment rod | ||||
| 010 | 310008-9 | 11.00 | 13.31 | |
| Screw Housing | ||||
| 011 | 150564-5 | 63.72 | 77.10 | |
| Plate 6832 * | ||||
| 012 | 344306-9 | 2.40 | 2.90 | |
| Leaf Spring | ||||
| 013 | 232152-1 | 2.40 | 2.90 | |
| Adjustment Button | ||||
| 014 | 415829-5 | 2.40 | 2.90 | |
| Compression spring 12 | ||||
| 015 | 233089-5 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 016 | 267117-4 | 1.20 | 1.45 | |
| Countersunk screw 4x12 | ||||
| 017 | 912117-6 | 1.00 | 1.21 | |
| Hexagon socket screw 4x25 | ||||
| 018 | 922146-1 | 1.20 | 1.45 | |
| Collar Pin 4 | ||||
| 019 | 256467-2 | 1.20 | 1.45 | |
| Glijlager 8 | ||||
| 020 | 214028-4 | 1.20 | 1.45 | |
| Thrust Needle Bearing 821 | ||||
| 021 | 212042-4 | 8.40 | 10.16 | |
| Gear 59 | ||||
| 022 | 226454-5 | 23.10 | 27.95 | |
| Pressure Pin 8 | ||||
| 023 | 256699-1 | 4.80 | 5.81 | |
| Compression Spring 6 | ||||
| 024 | 233126-5 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 025 | 223109-3 | 19.80 | 23.96 | |
| Steel ball 3.5 | ||||
| 026 | 216040-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 214164-6 | |||
| Plate | ||||
| 028 | 165154-1 | 4.80 | 5.81 | |
| Pawl Wheel | ||||
| 029 | 311921-4 | 24.20 | 29.28 | |
| Cam Disc | ||||
| 030 | 311976-9 | 21.03 | 25.45 | |
| Leaf Spring | ||||
| 031 | 232133-5 | 2.40 | 2.90 | |
| Sleeve 4 | ||||
| 032 | 257664-3 | 2.40 | 2.90 | |
| Crosshead screw 3x5 | ||||
| 033 | 265036-8 | 3.60 | 4.36 | |
| Screw 4X18 | ||||
| 034 | 911133-5 | 1.00 | 1.21 | |
| Hex bolt M4X8 A | ||||
| 035 | 265911-8 | 1.00 | 1.21 | |
| Hexagon socket bolt M4x18 | ||||
| 036 | 922132-2 | 1.00 | 1.21 | |
| Ball bearing 606Zz A | ||||
| 037 | 210137-7 | 1.20 | 1.45 | |
| Gear 22 | ||||
| 038 | 226705-6 | 17.60 | 21.30 | |
| Lock ring S-9 | ||||
| 039 | 961005-4 | 1.00 | 1.21 | |
| Gear 9 6832 * | ||||
| 040 | 226455-3 | 11.00 | 13.31 | |
| Ball bearing 606Zz A | ||||
| 041 | 210137-7 | 1.20 | 1.45 | |
| Motorhuis set | ||||
| 043 | 182601-7 | 24.20 | 29.28 | |
| Power cord 2x1.00 2.2mtr | ||||
| 044 | 665383-1 | 10.80 | 13.07 | |
| Cable grommet 8-85 | ||||
| 045 | 682502-4 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 046 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 047 | 265A48-7 | 1.00 | 1.21 | |
| Dust Cap | ||||
| 048 | 421621-9 | 2.40 | 2.90 | |
| Reversing Switch Sw110 | ||||
| 049 | 651556-2 | 12.10 | 14.64 | |
| Capacitor | ||||
| 050 | 645173-8 | 8.40 | 10.16 | |
| Switch Sw-128 | ||||
| 051 | 651272-6 | 29.70 | 35.94 | |
| Gear 15 | ||||
| 052 | 226704-8 | 16.50 | 19.96 | |
| O-ring 24 | ||||
| 053 | 213380-7 | 1.00 | 1.21 | |
| Ball bearing 6000llb | ||||
| 054 | 211061-7 | 8.40 | 10.16 | |
| Fan 55 | ||||
| 055 | 241869-5 | 3.60 | 4.36 | |
| Armature | ||||
| 056 | 517063-4 | 62.70 | 75.87 | |
| Field | ||||
| 057 | 633258-2 | 23.10 | 27.95 | |
| Little stator spring Cb-7 | ||||
| 057A | 654019-7 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 057B | 654501-6 | 0.83 | 1.00 | |
| Ball bearing 627llb | ||||
| 058 | 210025-8 | 3.60 | 4.36 | |
| Holder arm | ||||
| 059 | 152433-6 | 13.20 | 15.97 | |
| Brush holder 6x9mm * | ||||
| 059A | 643932-4 | 3.60 | 4.36 | |
| Tapping screw Pt4x20 | ||||
| 061 | 266045-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 062 | 415352-0 | |||
| Self-tapping screw 4x20 | ||||
| 063 | 265925-7 | 1.00 | 1.21 | |
| Carry Hook | ||||
| 064 | 344056-6 | 11.00 | 13.31 | |
| Brush holder cap | ||||
| 065 | 643550-8 | 1.20 | 1.45 | |
| Brush Set CB411 RT0702C | ||||
| 066 | 195010-1 | 4.80 | 5.81 | |
