Here you will find all available parts and drawings of the 'Makita 6831D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

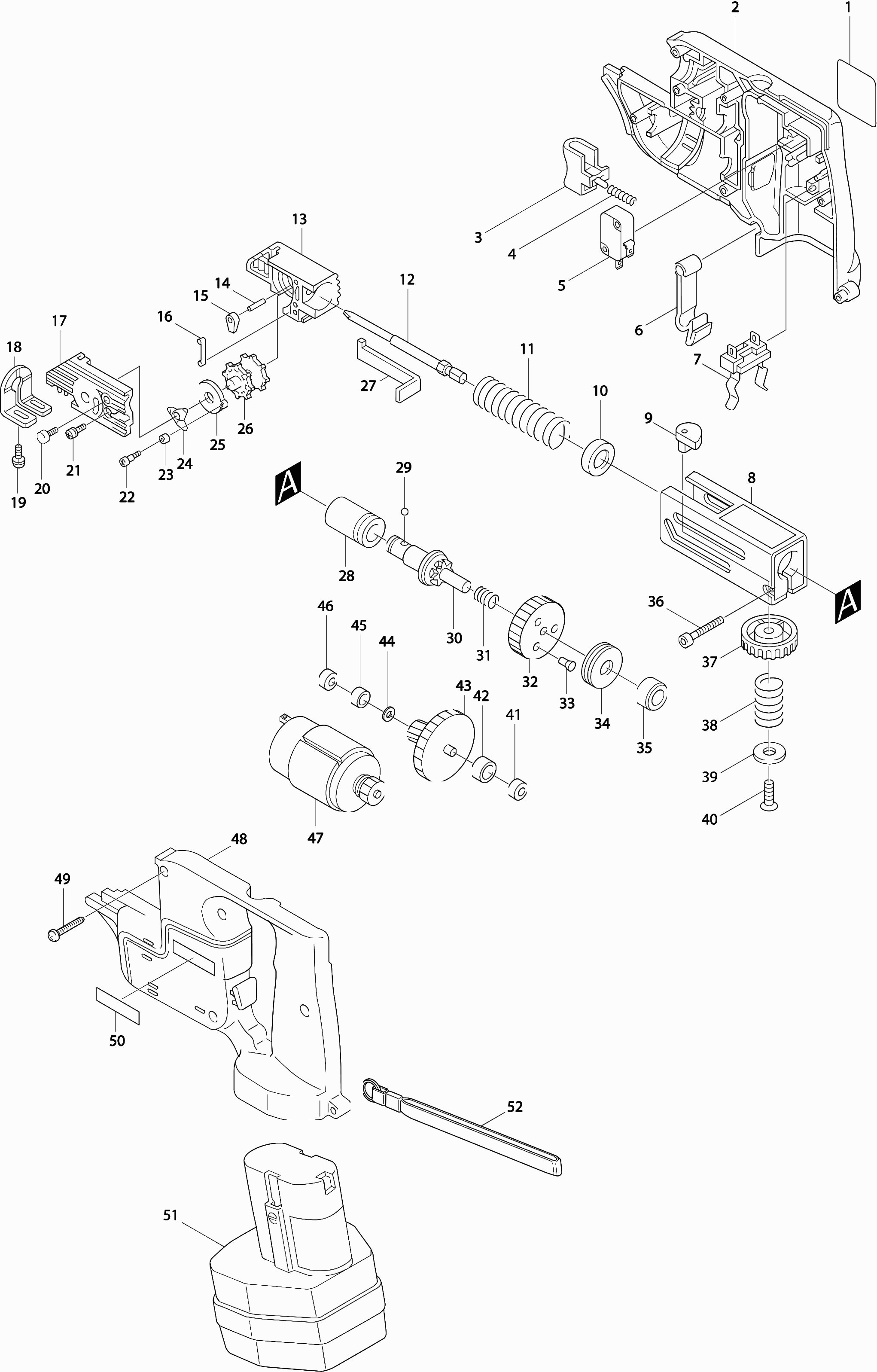

Technical drawing of model Makita 6831D
Spare parts list of model Makita 6831D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing 6831Dwh * | ||||
| 002 | 182658-8 | 21.08 | 25.51 | |
| Pushing Button | ||||
| 003 | 415478-8 | 1.02 | 1.23 | |
| Compression Spring 4 | ||||
| 004 | 233105-3 | 0.83 | 1.00 | |
| Switch D3V-16-3C26 A | ||||
| 005 | 650744-8 | 1.67 | 2.02 | |
| Battery Plate | ||||
| 006 | 344121-1 | 1.75 | 2.12 | |
| Battery clamp | ||||
| 007 | 643918-8 | 7.22 | 8.74 | |
| New Screw Housing | ||||
| 008 | 150565-3 | 68.13 | 82.44 | |
| Adjustment rod | ||||
| 009 | 310008-9 | 11.82 | 14.30 | |
| Dust Ring | ||||
| 010 | 421467-3 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 011 | 233112-6 | |||
| No information available, not orderable | ||||
| 013 | 152503-1 | |||
| No information available, not orderable | ||||
| 014 | 256222-2 | |||
| Stop 6830 | ||||
| 015 | 311923-0 | 7.22 | 8.74 | |
| Leaf spring 6830 | ||||
| 016 | 232132-7 | 2.02 | 2.44 | |
| Feed cover | ||||
| 017 | 152502-3 | 6.70 | 8.11 | |
| Stop bracket 25mm 6830/32 | ||||
| 018 | 344054-0 | 5.71 | 6.91 | |
| Hexagon socket bolt M4x18 | ||||
| 019 | 922132-2 | 0.83 | 1.00 | |
| Hex bolt M4X8 A | ||||
| 020 | 265911-8 | 0.83 | 1.00 | |
| Screw 4X18 | ||||
| 021 | 911133-5 | 0.83 | 1.00 | |
| Crosshead screw 3x5 | ||||
| 022 | 265036-8 | 3.54 | 4.28 | |
| Sleeve 4 | ||||
| 023 | 257664-3 | 2.02 | 2.44 | |
| Leaf Spring | ||||
| 024 | 232133-5 | 2.10 | 2.54 | |
| Cam Disc | ||||
| 025 | 311976-9 | 21.03 | 25.45 | |
| Pawl Wheel | ||||
| 026 | 311921-4 | 24.16 | 29.23 | |
| New plate | ||||
| 027 | 344308-5 | 3.72 | 4.50 | |
| Slide bearing 14 | ||||
| 028 | 214162-0 | 8.21 | 9.93 | |
| Steel ball 3.5 | ||||
| 029 | 216040-0 | 0.83 | 1.00 | |
| Axis 6831Dwh * | ||||
| 030 | 223103-5 | 28.02 | 33.90 | |
| Compression Spring 22 | ||||
| 031 | 231434-8 | 0.83 | 1.00 | |
| Gear 55 6831Dwh * | ||||
| 032 | 226431-7 | 25.92 | 31.36 | |
| Collar Pin 4 | ||||
| 033 | 256467-2 | 1.18 | 1.43 | |
| Thrust Needle Bearing 821 | ||||
| 034 | 212042-4 | 7.22 | 8.74 | |
| Glijlager 8 | ||||
| 035 | 214028-4 | 1.02 | 1.23 | |
| Hexagon socket screw 4x25 | ||||
| 036 | 922146-1 | 0.83 | 1.00 | |
| Adjustment Button | ||||
| 037 | 415829-5 | 2.36 | 2.86 | |
| Compression spring 12 | ||||
| 038 | 233089-5 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 039 | 267117-4 | 1.00 | 1.21 | |
| Countersunk screw 4x12 | ||||
| 040 | 912117-6 | 0.83 | 1.00 | |
| Sleeve 10 | ||||
| 041 | 165115-1 | 2.48 | 3.00 | |
| Slide Bearing 5 | ||||
| 042 | 214017-9 | 0.83 | 1.00 | |
| Gear 16-49 6835D * | ||||
| 043 | 226813-3 | 21.08 | 25.51 | |
| Lock washer 5 | ||||
| 044 | 253811-4 | 0.83 | 1.00 | |
| Slide Bearing 5 | ||||
| 045 | 214017-9 | 0.83 | 1.00 | |
| Sleeve 10 | ||||
| 046 | 165115-1 | 2.48 | 3.00 | |
| Motor 12v | ||||
| 047 | 629677-8 | 51.83 | 62.71 | |
| Tap screw 4x18 | ||||
| 049 | 265A48-7 | 0.83 | 1.00 | |
| Shoulder strap | ||||
| 052 | 163319-9 | 2.71 | 3.28 | |
