Here you will find all available parts and drawings of the 'Makita 6826'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

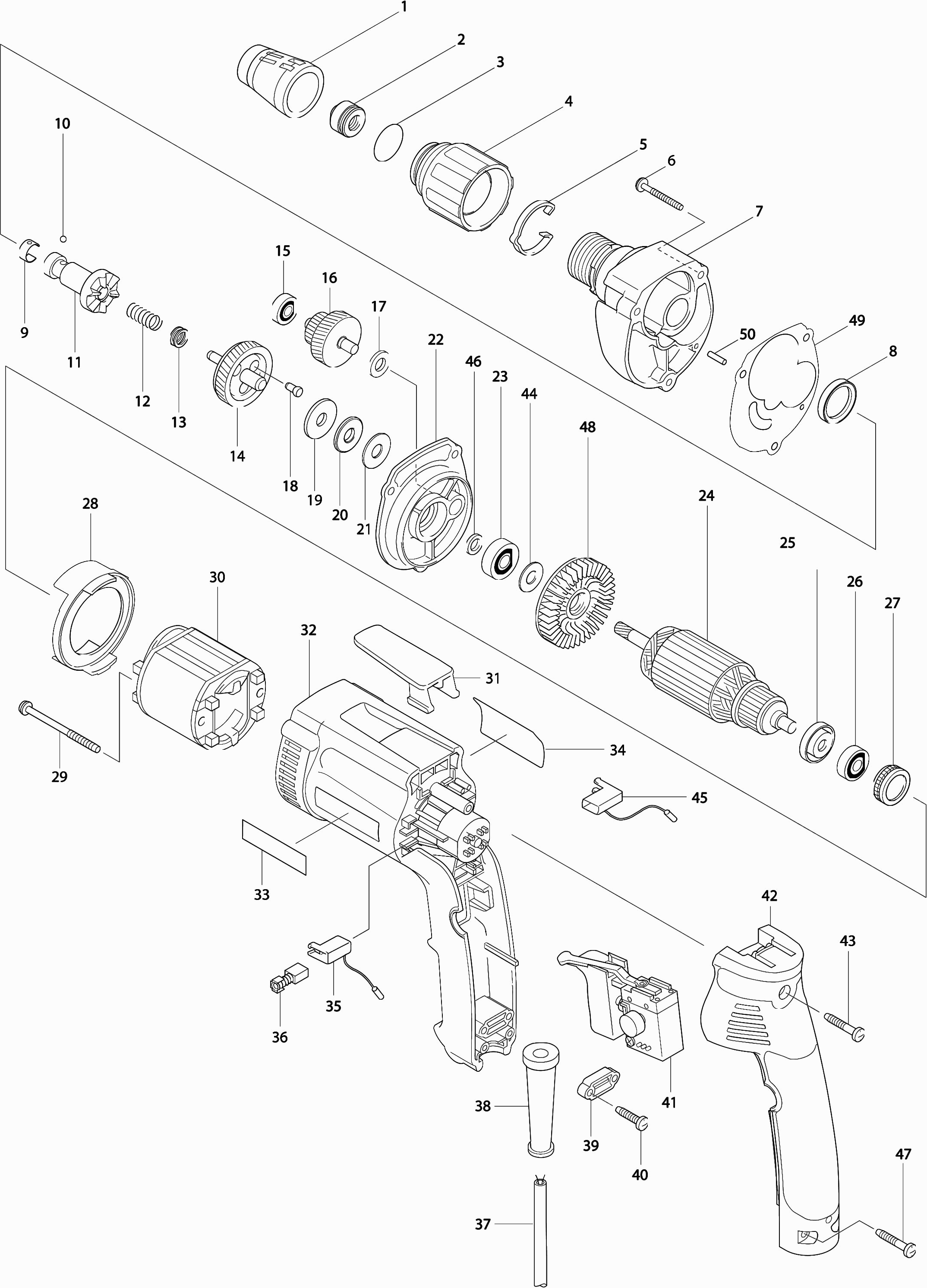

Technical drawing of model Makita 6826
Spare parts list of model Makita 6826
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| DOP 5/16"X65MM SCHROEVENDRAAIER | ||||
| A01 | 784804-5 | 13.00 | 15.73 | |
| No information available, not orderable | ||||
| A02 | 824449-8 | |||
| Case Closure Set | ||||
| C10 | 182935-8 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| C10 | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| E02 | 645200-1 | |||
| Capacitor | ||||
| E03 | 645253-0 | 4.80 | 5.81 | |
| Grounding Clamp | ||||
| E04 | 654128-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 001 | 152822-5 | |||
| No information available, not orderable | ||||
| 001A | 152823-3 | |||
| No information available, not orderable | ||||
| 002 | 421775-2 | |||
| O-ring 22 | ||||
| 003 | 213373-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 004 | 416994-3 | |||
| Lock ring 6824+6825 A | ||||
| 004-1 | 455428-1 | 3.60 | 4.36 | |
| Leaf Spring | ||||
| 005 | 232154-7 | 2.40 | 2.90 | |
| Leaf Spring | ||||
| 005-1 | 232154-7 | 2.40 | 2.90 | |
| Self Tapping Screw Pt4x30 | ||||
| 006 | 266050-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 007-1 | 152880-1 | |||
| Washer 20 | ||||
| 008 | 421766-3 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 009 | 232050-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 216001-0 | |||
| No information available, not orderable | ||||
| 011 | 152838-0 | |||
| Compression Spring 8 | ||||
| 012 | 233257-0 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 013 | 267202-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 014 | 152837-2 | |||
| No information available, not orderable | ||||
| 015 | 211014-6 | |||
| No information available, not orderable | ||||
| 015-1 | 211012-0 | |||
| Complete Gear 17-35 Js130* | ||||
| 016 | 226133-5 | 9.60 | 11.62 | |
| Washer 8 | ||||
| 017 | 267017-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 018 | 256439-7 | |||
| Collar Pin 4 | ||||
| 018-1 | 256467-2 | 1.20 | 1.45 | |
| Ring 824 | ||||
| 019 | 216213-5 | 2.40 | 2.90 | |
| Thrust Needle Bearing 821 | ||||
| 020 | 216415-3 | 3.60 | 4.36 | |
| Thrust Needle Bearing 821 | ||||
| 020-1 | 216415-3 | 3.60 | 4.36 | |
| Ring 821 | ||||
| 021 | 216212-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 022-2 | 152912-4 | |||
| Ball Bearing 608 | ||||
| 023 | 210007-0 | 6.00 | 7.26 | |
| Armature | ||||
| 024A | 517323-4 | 74.80 | 90.51 | |
| Insulation ring | ||||
| 025 | 681636-0 | 1.20 | 1.45 | |
| Ball bearing 607llb | ||||
| 026 | 211021-9 | 4.80 | 5.81 | |
| Rubber Ring for Bearing | ||||
| 027 | 421479-6 | 4.80 | 5.81 | |
| Intermediate Plate | ||||
| 028 | 416993-5 | 1.20 | 1.45 | |
| Tapping screw Pf 4x55 | ||||
| 029 | 266147-2 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 030A | 633443-7 | |||
| Hang Hook | ||||
| 031 | 417625-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 032 | 183285-4 | |||
| No information available, not orderable | ||||
| 032-1 | 188628-5 | |||
| Motor Housing | ||||
| 032-2 | 450718-7 | 7.20 | 8.71 | |
| Label Makita | ||||
| 033 | 819063-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 034 | 852983-8 | |||
| No information available, not orderable | ||||
| 034-1 | 860146-2 | |||
| Brush Holder | ||||
| 035A | 643960-9 | 6.00 | 7.26 | |
| Brush Set CB-419 | ||||
| 036A | 195015-1 | 4.80 | 5.81 | |
| Brush Set CB-419 | ||||
| 036A1 | 195015-1 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 037D | 695034-2 | |||
| No information available, not orderable | ||||
| 037E | 666855-9 | |||
| No information available, not orderable | ||||
| 037E1 | 695034-2 | |||
| Cable gland 8-110 | ||||
| 038 | 682559-5 | 1.20 | 1.45 | |
| Clamp Bracket | ||||
| 039-2 | 687124-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 039B | 687052-4 | |||
| Clamp Bracket | ||||
| 039B1 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 040 | 265A48-7 | 1.00 | 1.21 | |
| Switch | ||||
| 041 | 651978-6 | 30.80 | 37.27 | |
| Switch | ||||
| 041-1 | 651978-6 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 042 | 151961-8 | |||
| Handle Cover | ||||
| 042-1 | 158710-4 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 043 | 265999-8 | |||
| Washer 8x0.5mm | ||||
| 044 | 253139-0 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 045A | 643961-7 | 6.00 | 7.26 | |
| Washer 8 | ||||
| 046 | 262087-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 047 | 265999-8 | |||
| Fan 52 6824+6825 * | ||||
| 048 | 240022-0 | 2.40 | 2.90 | |
| Gasket | ||||
| 049 | 442136-3 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 050 | 256157-7 | 1.00 | 1.21 | |
