Here you will find all available parts and drawings of the 'Makita 6825'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

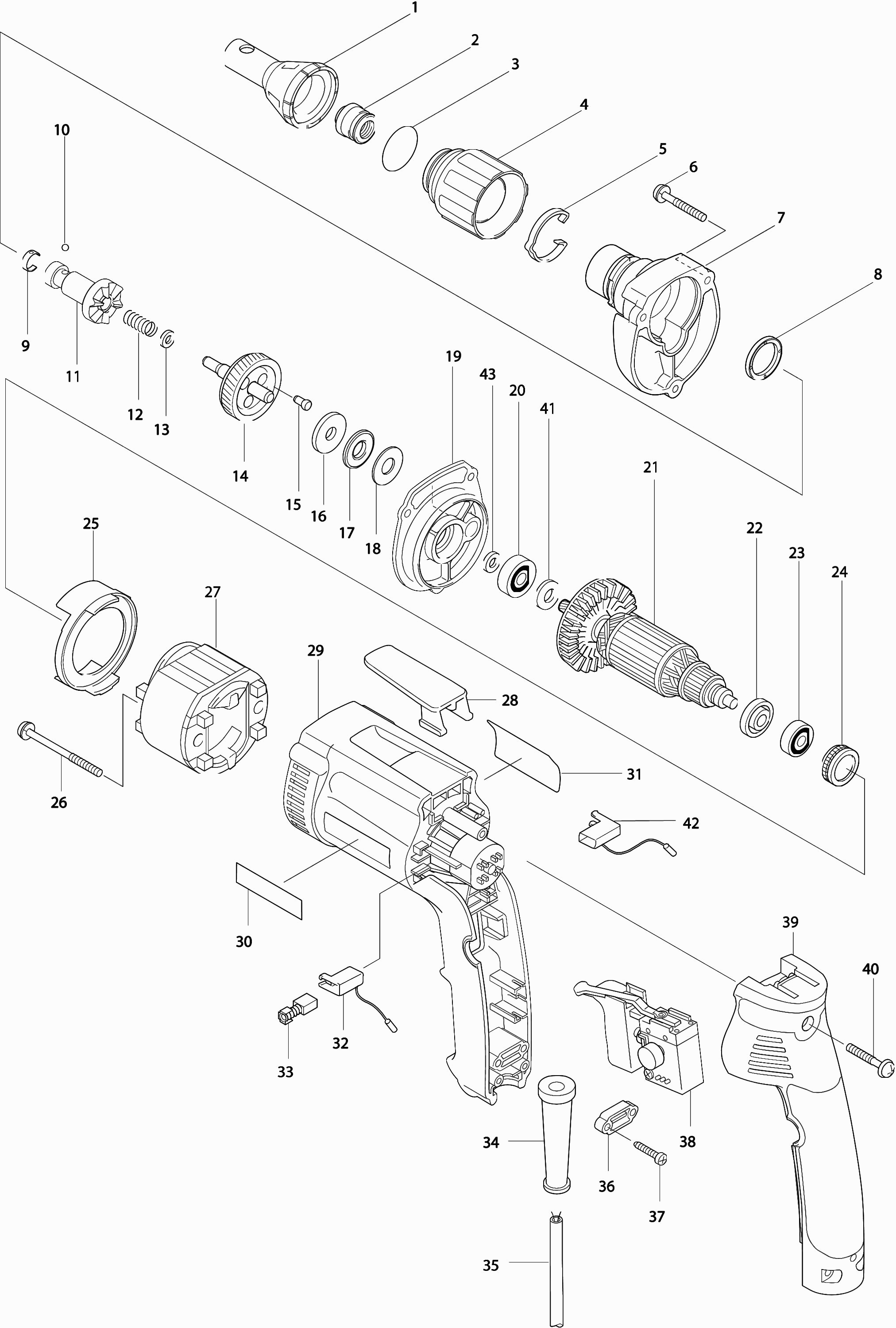

Technical drawing of model Makita 6825
Spare parts list of model Makita 6825
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Neusstuk voor bithouder 60mm | ||||
| 001 | 151760-8 | 4.00 | 4.84 | |
| Seal | ||||
| 002 | 421631-6 | 1.18 | 1.43 | |
| O-ring 22 | ||||
| 003 | 213373-4 | 1.18 | 1.43 | |
| Lock ring 6824+6825 A | ||||
| 004 | 455428-1 | 2.71 | 3.28 | |
| Leaf Spring | ||||
| 005 | 232154-7 | 2.36 | 2.86 | |
| No information available, not orderable | ||||
| 006 | 265999-8 | |||
| Gear Cover | ||||
| 007 | 151720-0 | 10.99 | 13.30 | |
| Washer 20 | ||||
| 008 | 421766-3 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 009 | 232050-9 | 0.83 | 1.00 | |
| Steel ball 3.5 | ||||
| 010 | 216040-0 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 011 | 151788-6 | 22.09 | 26.73 | |
| Compression Spring 8 | ||||
| 012 | 233257-0 | 0.83 | 1.00 | |
| Washer 8 | ||||
| 013 | 267202-3 | 0.83 | 1.00 | |
| Gear | ||||
| 014 | 151791-7 | 21.23 | 25.69 | |
| Collar Pin 4 | ||||
| 015 | 256467-2 | 1.18 | 1.43 | |
| Ring 824 | ||||
| 016 | 216213-5 | 1.24 | 1.50 | |
| Thrust Needle Bearing 821 | ||||
| 017 | 216415-3 | 3.12 | 3.78 | |
| Ring 821 | ||||
| 018 | 216212-7 | 1.24 | 1.50 | |
| Gearbox Cover 6824+6825 * | ||||
| 019 | 151722-6 | 8.21 | 9.93 | |
| Ball Bearing 608 | ||||
| 020 | 210007-0 | 5.71 | 6.91 | |
| Armature 6825 * | ||||
| 021 | 517328-4 | 85.15 | 103.03 | |
| Insulation ring | ||||
| 022 | 681636-0 | 1.18 | 1.43 | |
| Ball bearing 607llb | ||||
| 023 | 211021-9 | 4.45 | 5.38 | |
| Rubber Ring for Bearing | ||||
| 024 | 421479-6 | 4.45 | 5.38 | |
| Intermediate Plate | ||||
| 025 | 416993-5 | 0.98 | 1.19 | |
| Tapping screw Pf 4x55 | ||||
| 026 | 266147-2 | 0.83 | 1.00 | |
| Field | ||||
| 027 | 633443-7 | 9.24 | 11.18 | |
| Hang Hook | ||||
| 028 | 417625-7 | 1.46 | 1.77 | |
| Motor Housing | ||||
| 029 | 151960-0 | 12.22 | 14.79 | |
| Carbon Brush Holder 6824+6825 * | ||||
| 032 | 643958-6 | 5.30 | 6.41 | |
| Brush Set CB-419 | ||||
| 033 | 195015-1 | 4.45 | 5.38 | |
| Cable gland 8-110 | ||||
| 034 | 682559-5 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 035 | 665383-1 | 10.50 | 12.70 | |
| Clamp Bracket | ||||
| 036 | 687053-2 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 037 | 265A48-7 | 0.83 | 1.00 | |
| Switch | ||||
| 038 | 651978-6 | 30.70 | 37.15 | |
| No information available, not orderable | ||||
| 039 | 151961-8 | |||
| No information available, not orderable | ||||
| 040 | 265999-8 | |||
| Washer 8x0.5mm | ||||
| 041 | 253139-0 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 042 | 643959-4 | 5.06 | 6.12 | |
| Washer 8 | ||||
| 043 | 262087-2 | 0.83 | 1.00 | |
