Here you will find all available parts and drawings of the 'Makita 6823'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

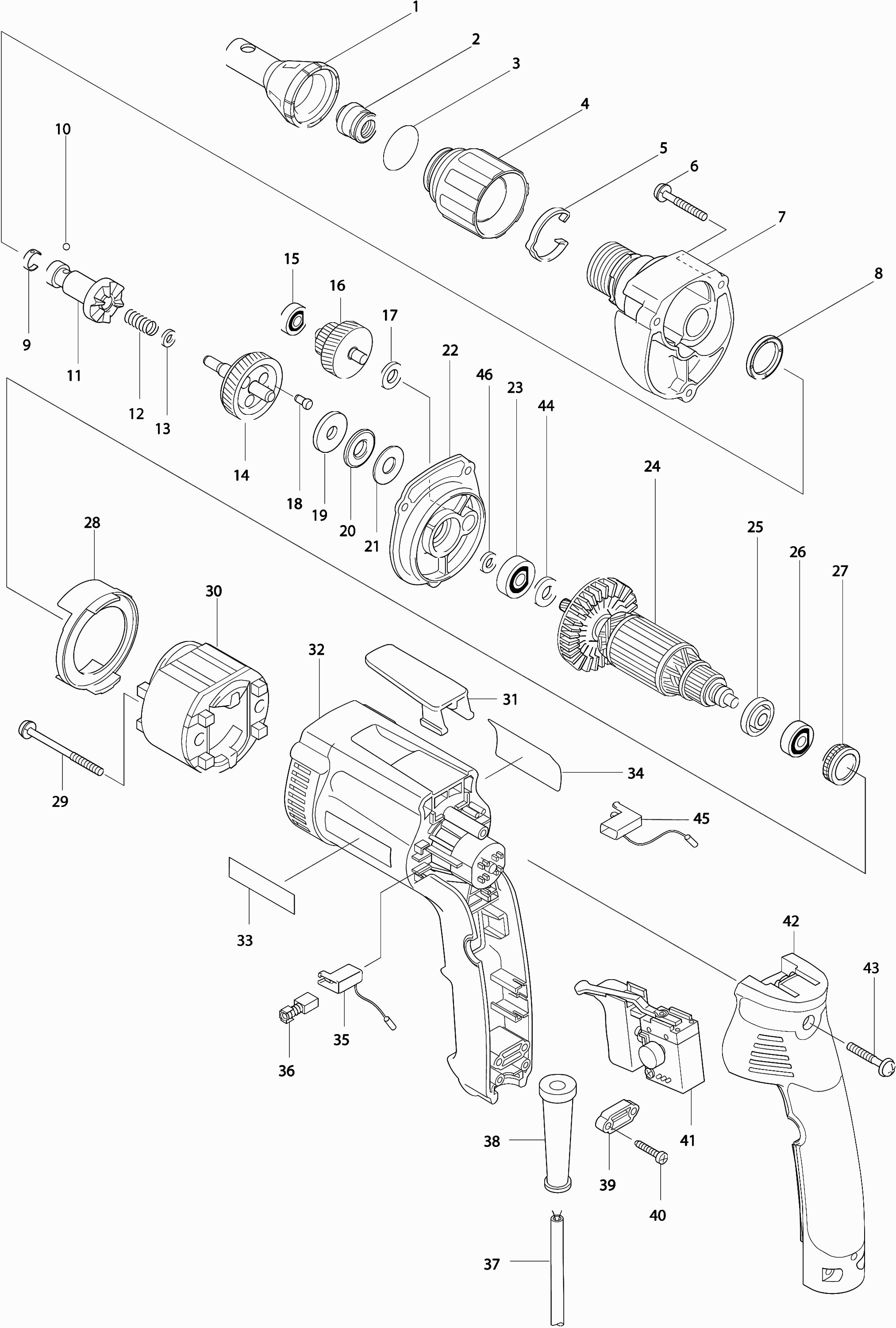

Technical drawing of model Makita 6823
Spare parts list of model Makita 6823
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| NEUSSTUK VOOR BITHOUDER 60MM | ||||
| 001 | 151760-8 | 3.00 | 3.63 | |
| Seal | ||||
| 002 | 421631-6 | 1.20 | 1.45 | |
| O-ring 22 | ||||
| 003 | 213373-4 | 1.20 | 1.45 | |
| Lock ring 6824+6825 A | ||||
| 004 | 455428-1 | 3.60 | 4.36 | |
| Lock ring 6824+6825 A | ||||
| 004-1 | 455428-1 | 3.60 | 4.36 | |
| Leaf Spring | ||||
| 005 | 232154-7 | 2.40 | 2.90 | |
| Leaf Spring | ||||
| 005-1 | 232154-7 | 2.40 | 2.90 | |
| Self Tapping Screw Pt4x30 | ||||
| 006 | 266050-7 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 007 | 154452-8 | 13.20 | 15.97 | |
| Gear Cover | ||||
| 007-1 | 154452-8 | 13.20 | 15.97 | |
| Washer 20 | ||||
| 008 | 421766-3 | 1.00 | 1.21 | |
| Washer 20 | ||||
| 008-1 | 421766-3 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 009 | 232050-9 | 1.00 | 1.21 | |
| Steel ball 3.5 | ||||
| 010 | 216040-0 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 011 | 151788-6 | 23.10 | 27.95 | |
| Compression Spring 8 | ||||
| 012 | 233257-0 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 013 | 267202-3 | 1.00 | 1.21 | |
| Gear | ||||
| 014 | 151789-4 | 26.40 | 31.94 | |
| Ball bearing 606Zz A | ||||
| 015 | 210137-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 015-1 | 211012-0 | |||
| Complete Gear 17-35 Js130* | ||||
| 016 | 226133-5 | 9.60 | 11.62 | |
| Washer 8 | ||||
| 017 | 267017-8 | 1.20 | 1.45 | |
| Collar Pin 4 | ||||
| 018 | 256467-2 | 1.20 | 1.45 | |
| Collar Pin 4 | ||||
| 018-1 | 256467-2 | 1.20 | 1.45 | |
| Ring 824 | ||||
| 019 | 216213-5 | 2.40 | 2.90 | |
| Thrust Needle Bearing 821 | ||||
| 020 | 216415-3 | 3.60 | 4.36 | |
| Ring 821 | ||||
| 021 | 216212-7 | 2.40 | 2.90 | |
| Inner Cover | ||||
| 022 | 151721-8 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 022-1 | 152910-8 | |||
| Ball Bearing 608 | ||||
| 023 | 210007-0 | 6.00 | 7.26 | |
| Ball Bearing 608ddw | ||||
| 023 | 210005-4 | 4.80 | 5.81 | |
| Armature | ||||
| 024 | 517323-4 | 74.80 | 90.51 | |
| Armature | ||||
| 024A | 517323-4 | 74.80 | 90.51 | |
| Fan 52 6824+6825 * | ||||
| 024A | 240022-0 | 2.40 | 2.90 | |
| Insulation ring | ||||
| 025 | 681636-0 | 1.20 | 1.45 | |
| Ball bearing 607llb | ||||
| 026 | 211021-9 | 4.80 | 5.81 | |
| Rubber Ring for Bearing | ||||
| 027 | 421479-6 | 4.80 | 5.81 | |
| Intermediate Plate | ||||
| 028 | 416993-5 | 1.20 | 1.45 | |
| Tapping screw Pf 4x55 | ||||
| 029 | 266147-2 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 030 | 633443-7 | |||
| No longer available, no replacement | ||||
| 030A | 633443-7 | |||
| Hang Hook | ||||
| 031 | 417625-7 | 2.40 | 2.90 | |
| Hang Hook | ||||
| 031-1 | 417625-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 032 | 183285-4 | |||
| No information available, not orderable | ||||
| 032A | 417168-9 | |||
| No information available, not orderable | ||||
| 032A1 | 183285-4 | |||
| No information available, not orderable | ||||
| 032A2 | 188628-5 | |||
| Motor Housing | ||||
| 032A3 | 450718-7 | 7.20 | 8.71 | |
| Label Makita | ||||
| 033-1 | 819063-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 034-1 | 850487-4 | |||
| Brush Holder | ||||
| 035A | 643960-9 | 6.00 | 7.26 | |
| Brush Set CB-419 | ||||
| 036 | 195015-1 | 4.80 | 5.81 | |
| Brush Set CB-419 | ||||
| 036A | 195015-1 | 4.80 | 5.81 | |
| Power cord 2x1.00 2.2mtr | ||||
| 037 | 665383-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 037L | 666855-9 | |||
| No information available, not orderable | ||||
| 037L1 | 695034-2 | |||
| Cable gland 8-110 | ||||
| 038 | 682559-5 | 1.20 | 1.45 | |
| Clamp Bracket | ||||
| 039 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 039 | 687124-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 039-2 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 040 | 265A48-7 | 1.00 | 1.21 | |
| Switch | ||||
| 041 | 651978-6 | 30.80 | 37.27 | |
| Switch | ||||
| 041-1A | 651978-6 | 30.80 | 37.27 | |
| Switch | ||||
| 041-1B | 651978-6 | 30.80 | 37.27 | |
| Switch | ||||
| 041-2 | 651978-6 | 30.80 | 37.27 | |
| No information available, not orderable | ||||
| 042 | 151961-8 | |||
| Rubber Pin 4 | ||||
| 042A | 263002-9 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 042A1 | 158710-4 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 043 | 265999-8 | |||
| Washer 8x0.5mm | ||||
| 044 | 253139-0 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 045 | 643961-7 | 6.00 | 7.26 | |
| Brush Holder | ||||
| 045A | 643961-7 | 6.00 | 7.26 | |
| RING 8 HP2071 A | ||||
| 046 | 257857-2 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 046 | 262087-2 | 0.83 | 1.00 | |
