Here you will find all available parts and drawings of the 'Makita 6807'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

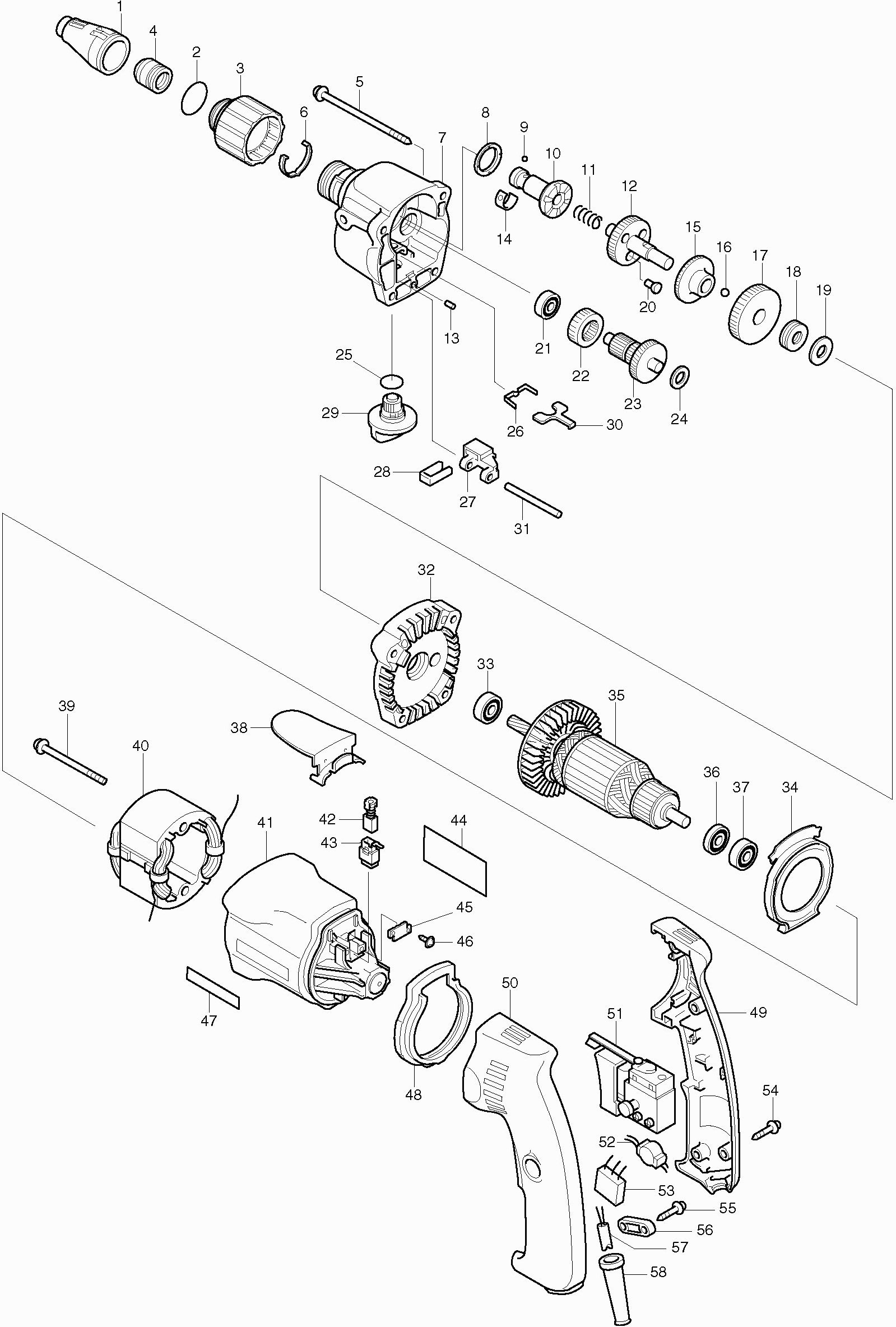

Technical drawing of model Makita 6807
Spare parts list of model Makita 6807
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Neusstuk voor bithouder 60mm | ||||
| 001 | 152483-1 | 5.00 | 6.05 | |
| O-ring 22 | ||||
| 002 | 213373-4 | 1.18 | 1.43 | |
| Locking Ring | ||||
| 003 | 416670-9 | 5.06 | 6.12 | |
| Seal | ||||
| 004 | 421631-6 | 1.18 | 1.43 | |
| Metal Screw M5x45mm | ||||
| 005 | 266037-9 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 006 | 232154-7 | 2.36 | 2.86 | |
| Gear Cover | ||||
| 007 | 150944-5 | 82.76 | 100.14 | |
| O-ring 14 | ||||
| 007A | 213154-6 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 007B | 263002-9 | 0.83 | 1.00 | |
| Needle Bearing 1416 6802Bv * | ||||
| 007C | 212155-1 | 10.50 | 12.70 | |
| O-ring 20 | ||||
| 008 | 421392-8 | 0.83 | 1.00 | |
| Steel ball 3.5 | ||||
| 009 | 216040-0 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 010 | 223126-3 | 35.62 | 43.10 | |
| Compression Spring 6 | ||||
| 011 | 233232-6 | 0.98 | 1.19 | |
| Gear | ||||
| 012 | 153261-2 | 48.40 | 58.56 | |
| Pen 4 | ||||
| 013 | 256184-4 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 014 | 232050-9 | 0.83 | 1.00 | |
| Drive gear wheel | ||||
| 015 | 226375-1 | 223.15 | 270.01 | |
| Steel ball 4 | ||||
| 016 | 216008-6 | 0.83 | 1.00 | |
| Drive gear wheel | ||||
| 017 | 226374-3 | 45.48 | 55.03 | |
| Thrust Needle Bearing 821 | ||||
| 018 | 212042-4 | 7.22 | 8.74 | |
| Urethane washer 8 | ||||
| 019 | 261111-8 | 0.83 | 1.00 | |
| Collar Pin 4 | ||||
| 020 | 256467-2 | 1.18 | 1.43 | |
| Ball bearing 606Zz A | ||||
| 021 | 210137-7 | 0.98 | 1.19 | |
| Drive gear wheel | ||||
| 022 | 226372-7 | 30.69 | 37.13 | |
| Gear 13-36 | ||||
| 023 | 153262-0 | 101.63 | 122.97 | |
| Washer 8 | ||||
| 024 | 253865-1 | 0.83 | 1.00 | |
| O-ring 14 | ||||
| 025 | 213162-7 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 026 | 232143-2 | 0.83 | 1.00 | |
| Serrated plate | ||||
| 027 | 416671-7 | 3.54 | 4.28 | |
| Shift Plate | ||||
| 028 | 344668-5 | 1.67 | 2.02 | |
| Adjustment Button | ||||
| 029 | 416669-4 | 5.06 | 6.12 | |
| Locking Plate Hp2030 * | ||||
| 030 | 344178-2 | 0.83 | 1.00 | |
| Pen 4 | ||||
| 031 | 256268-8 | 1.18 | 1.43 | |
| Inner Cover | ||||
| 032 | 150945-3 | 45.48 | 55.03 | |
| Ball Bearing 608ddw | ||||
| 033 | 210005-4 | 4.45 | 5.38 | |
| Spacer plate | ||||
| 034 | 413073-8 | 3.12 | 3.78 | |
| Armature | ||||
| 035 | 517278-3 | 59.21 | 71.64 | |
| Insulation ring | ||||
| 036 | 681614-0 | 0.83 | 1.00 | |
| Ball bearing 627llb | ||||
| 037 | 210025-8 | 2.71 | 3.28 | |
| Hang Hook | ||||
| 038 | 344669-3 | 8.21 | 9.93 | |
| Self Tapping Screw Pt4X60 * | ||||
| 039 | 266052-3 | 0.83 | 1.00 | |
| Field | ||||
| 040 | 633418-6 | 21.23 | 25.69 | |
| Motor case Hp2030 * | ||||
| 041 | 415601-5 | 21.08 | 25.51 | |
| Brush Set CB-419 | ||||
| 042 | 195015-1 | 4.45 | 5.38 | |
| Brush Holder | ||||
| 043 | 643923-5 | 1.18 | 1.43 | |
| Label | ||||
| 044 | 851461-5 | 2.71 | 3.28 | |
| Brush Holder | ||||
| 045 | 415622-7 | 0.83 | 1.00 | |
| Tapping screw Pt3x10 | ||||
| 046 | 266007-8 | 0.83 | 1.00 | |
| Label Makita | ||||
| 047 | 819063-3 | 2.71 | 3.28 | |
| Damping Rubber | ||||
| 048 | 421630-8 | 2.02 | 2.44 | |
| Handle set | ||||
| 049 | 183047-0 | 12.22 | 14.79 | |
| Switch | ||||
| 051 | 651986-7 | 25.36 | 30.69 | |
| Interference filter | ||||
| 052 | 646342-4 | 23.06 | 27.90 | |
| Capacitor | ||||
| 053 | 645253-0 | 4.45 | 5.38 | |
| Tap screw 4x18 | ||||
| 054 | 265A48-7 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 055 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 056 | 687053-2 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 057 | 665383-1 | 10.50 | 12.70 | |
| Cable grommet 8-85 | ||||
| 058 | 682502-4 | 1.67 | 2.02 | |
