Here you will find all available parts and drawings of the 'Makita 6795D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

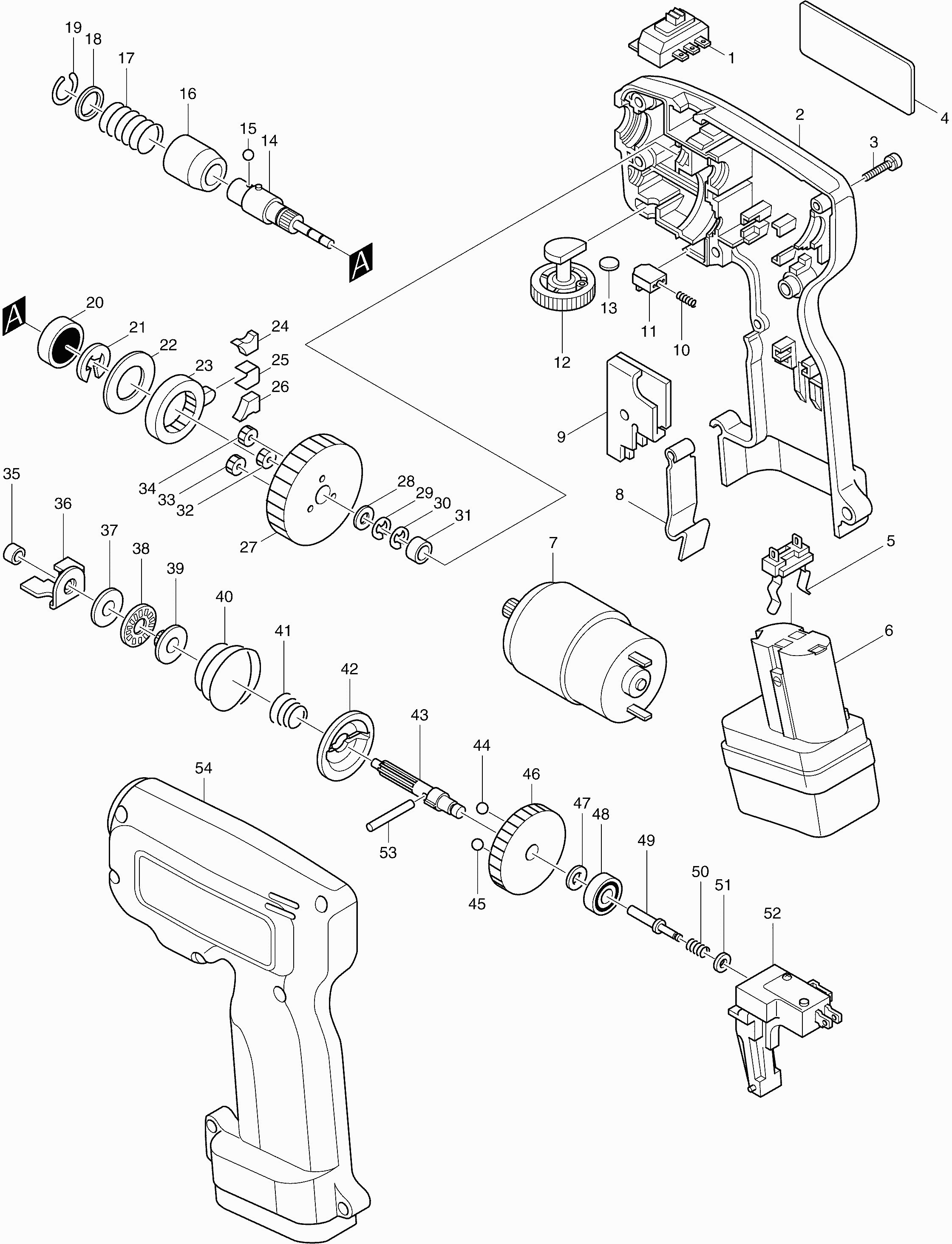

Technical drawing of model Makita 6795D
Spare parts list of model Makita 6795D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch Sw-81 6518895 * | ||||
| 001 | 531054-1 | 13.20 | 15.97 | |
| Motor Housing 6791D 6973D 6794D * | ||||
| 002 | 182891-2 | 26.40 | 31.94 | |
| Screw 4x22 | ||||
| 003 | 911143-2 | 1.00 | 1.21 | |
| Battery connector piece | ||||
| 005 | 643909-9 | 3.60 | 4.36 | |
| DC Motor 9.6 Volt 6791Dw * | ||||
| 007 | 629580-3 | 22.00 | 26.62 | |
| Battery clamp plate | ||||
| 008 | 344798-2 | 3.60 | 4.36 | |
| Control Circuit 6793D * | ||||
| 009 | 631196-2 | 48.40 | 58.56 | |
| Compression spring 2 * | ||||
| 010 | 231453-4 | 1.00 | 1.21 | |
| Stopper | ||||
| 011 | 414515-5 | 1.20 | 1.45 | |
| New adjustment knob | ||||
| 012 | 153219-1 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 013 | 344058-2 | |||
| Screw shaft 6795D * | ||||
| 014 | 152561-7 | 48.40 | 58.56 | |
| Steel ball 3.5 | ||||
| 015 | 216040-0 | 1.00 | 1.21 | |
| Socket | ||||
| 016 | 322620-3 | 7.20 | 8.71 | |
| Compression Spring 13 | ||||
| 017 | 233005-7 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 018 | 267085-1 | 1.00 | 1.21 | |
| Locking Ring 11 | ||||
| 019 | 231951-8 | 1.00 | 1.21 | |
| Ball bearing 6000llb | ||||
| 020 | 211061-7 | 8.40 | 10.16 | |
| Stopring E-7 | ||||
| 021 | 961013-5 | 1.00 | 1.21 | |
| Washer 18 | ||||
| 022 | 253794-8 | 1.00 | 1.21 | |
| Internal gear 48 | ||||
| 023 | 226379-3 | 13.20 | 15.97 | |
| Plastic block 6795D * | ||||
| 024 | 421598-8 | 1.00 | 1.21 | |
| Gear Holder | ||||
| 025 | 344587-5 | 1.20 | 1.45 | |
| Plastic block 6795D * | ||||
| 026 | 421598-8 | 1.00 | 1.21 | |
| Gear | ||||
| 027 | 153250-7 | 23.10 | 27.95 | |
| Lock washer 5 | ||||
| 028 | 253811-4 | 1.00 | 1.21 | |
| Retaining Ring E-4 | ||||
| 029 | 961011-9 | 1.00 | 1.21 | |
| Retaining Ring E-4 | ||||
| 030 | 961011-9 | 1.00 | 1.21 | |
| Slide Bearing 5 | ||||
| 031 | 214017-9 | 1.00 | 1.21 | |
| Gear 15 | ||||
| 032 | 226341-8 | 2.40 | 2.90 | |
| Gear 15 | ||||
| 033 | 226341-8 | 2.40 | 2.90 | |
| Gear 15 | ||||
| 034 | 226341-8 | 2.40 | 2.90 | |
| Slide Bearing 4 | ||||
| 035 | 214019-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 036 | 164625-5 | |||
| Washer 8 * | ||||
| 037 | 253851-2 | 1.00 | 1.21 | |
| Thrust needle bearing 1023 | ||||
| 038 | 216413-7 | 3.60 | 4.36 | |
| Washer | ||||
| 039 | 341902-4 | 1.00 | 1.21 | |
| Compression spring 18-29 | ||||
| 040 | 231980-1 | 10.80 | 13.07 | |
| Compression spring 10-14 | ||||
| 041 | 231981-9 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 042 | 322231-4 | |||
| Gear 12 6791Dw * | ||||
| 043 | 226258-5 | 48.40 | 58.56 | |
| Steel ball 7.1 | ||||
| 044 | 216009-4 | 1.00 | 1.21 | |
| Steel ball 7.1 | ||||
| 045 | 216009-4 | 1.00 | 1.21 | |
| Gear 89 | ||||
| 046 | 221987-5 | 56.10 | 67.88 | |
| Washer 6 | ||||
| 047 | 253726-5 | 1.00 | 1.21 | |
| Ball bearing 626llb | ||||
| 048 | 211016-2 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 049 | 322241-1 | |||
| Compression spring 3 * | ||||
| 050 | 231461-5 | 1.00 | 1.21 | |
| Rivet 3 | ||||
| 051 | 253821-1 | 1.00 | 1.21 | |
| Switch SW-101 6512378* | ||||
| 052 | 651237-8 | 14.30 | 17.30 | |
| Pen 4 * | ||||
| 053 | 256187-8 | 1.00 | 1.21 | |
| Motor Housing 6791D 6973D 6794D * | ||||
| 054 | 182891-2 | 26.40 | 31.94 | |
