Here you will find all available parts and drawings of the 'Makita 6791D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

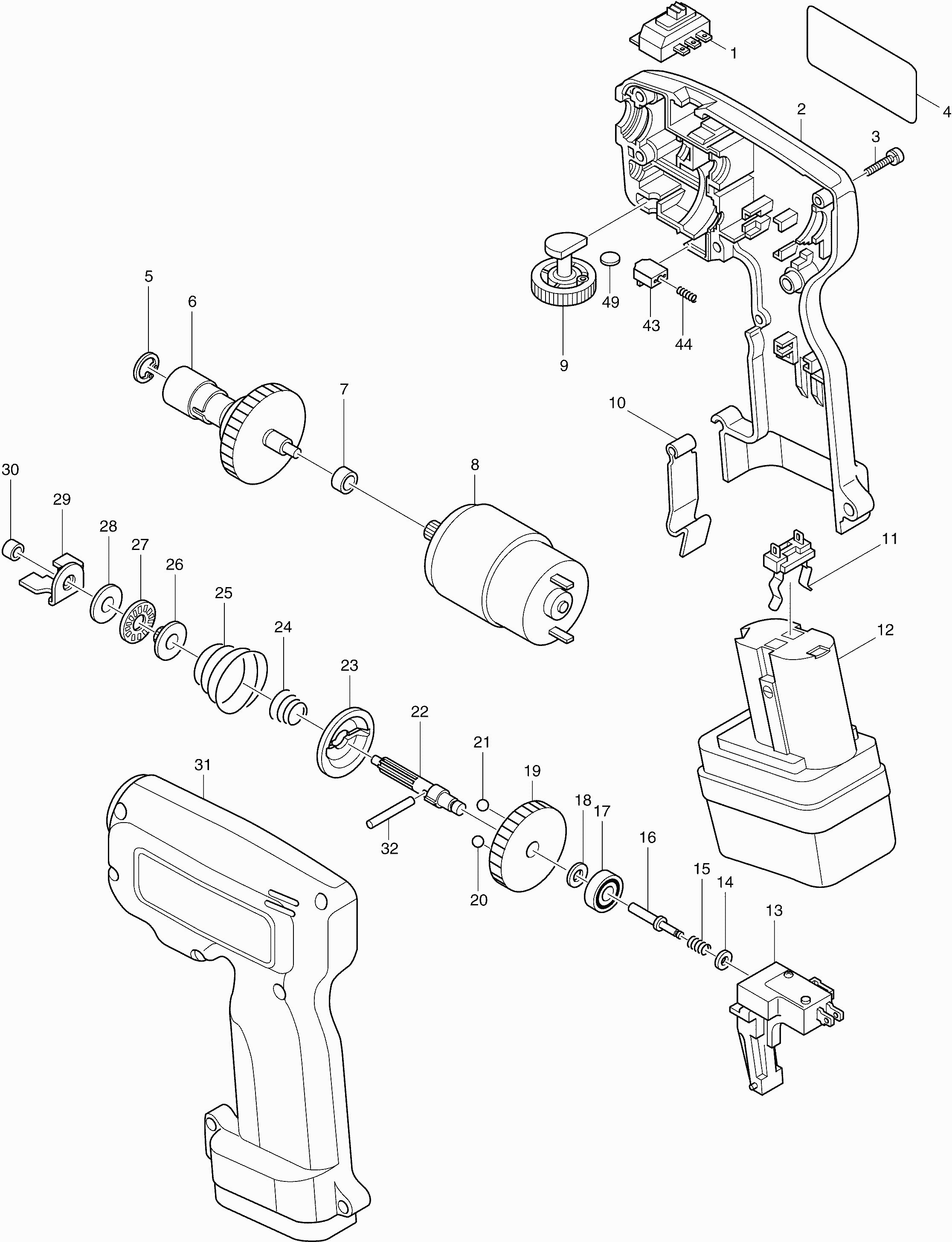

Technical drawing of model Makita 6791D
Spare parts list of model Makita 6791D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch Sw-81 6518895 * | ||||
| 001 | 531054-1 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 002 | 182205-5 | |||
| Screw 4x22 | ||||
| 003 | 911143-2 | 1.00 | 1.21 | |
| Lock Washer 12 | ||||
| 005 | 961072-9 | 1.00 | 1.21 | |
| As Compleet 6791Dw * | ||||
| 006 | 134728-9 | 92.40 | 111.80 | |
| Slide Bearing 5 | ||||
| 007 | 214017-9 | 1.00 | 1.21 | |
| DC Motor 9.6 Volt 6791Dw * | ||||
| 008 | 629580-3 | 22.00 | 26.62 | |
| New adjustment knob | ||||
| 009 | 153219-1 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 010 | 343579-1 | |||
| Battery clamp | ||||
| 011 | 643918-8 | 8.40 | 10.16 | |
| Switch SW-101 6512378* | ||||
| 013 | 651237-8 | 14.30 | 17.30 | |
| Rivet 3 | ||||
| 014 | 253821-1 | 1.00 | 1.21 | |
| Compression spring 3 * | ||||
| 015 | 231461-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 016 | 322241-1 | |||
| Ball bearing 626llb | ||||
| 017 | 211016-2 | 6.00 | 7.26 | |
| Washer 6 | ||||
| 018 | 253726-5 | 1.00 | 1.21 | |
| Gear 89 | ||||
| 019 | 221987-5 | 56.10 | 67.88 | |
| Steel ball 7.1 | ||||
| 020 | 216009-4 | 1.00 | 1.21 | |
| Steel ball 7.1 | ||||
| 021 | 216009-4 | 1.00 | 1.21 | |
| Gear 12 6791Dw * | ||||
| 022 | 226258-5 | 48.40 | 58.56 | |
| No information available, not orderable | ||||
| 023 | 322231-4 | |||
| Compression Spring 10 * | ||||
| 024 | 231949-5 | 2.40 | 2.90 | |
| Conical Compression Spring 18-29 * | ||||
| 025 | 231945-3 | 2.40 | 2.90 | |
| Adjustment knob 6012Hdw-6095Dw | ||||
| 026 | 168096-8 | 4.80 | 5.81 | |
| Thrust needle bearing 1023 | ||||
| 027 | 216413-7 | 3.60 | 4.36 | |
| Washer 8 * | ||||
| 028 | 253851-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 029 | 164625-5 | |||
| Slide Bearing 4 | ||||
| 030 | 214019-5 | 1.00 | 1.21 | |
| Pen 4 * | ||||
| 032 | 256187-8 | 1.00 | 1.21 | |
| Stopper | ||||
| 043 | 414515-5 | 1.20 | 1.45 | |
| Compression spring 2 * | ||||
| 044 | 231453-4 | 1.00 | 1.21 | |
