Here you will find all available parts and drawings of the 'Makita 6704D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

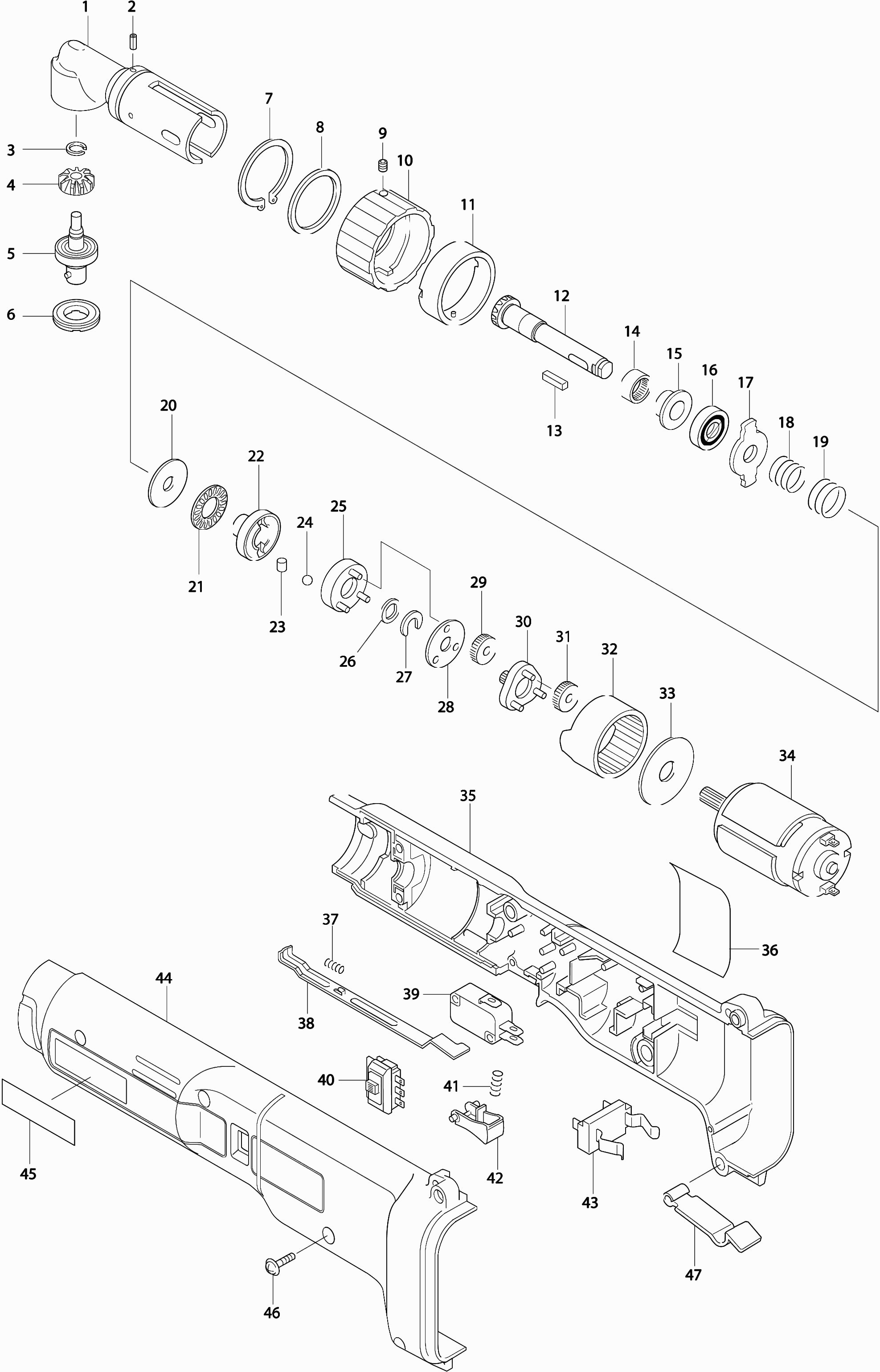

Technical drawing of model Makita 6704D
Spare parts list of model Makita 6704D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| C10 | 226235-7 | |||
| Compression Spring 3 | ||||
| C20 | 233081-1 | 1.00 | 1.21 | |
| Washer 8x0.5mm | ||||
| C30 | 253139-0 | 1.00 | 1.21 | |
| Pin 3-5 6507D * | ||||
| C40 | 256436-3 | 2.40 | 2.90 | |
| Kap 6706D * | ||||
| C50 | 322640-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| E01 | 824380-8 | |||
| No information available, not orderable | ||||
| E02 | 192019-4 | |||
| No information available, not orderable | ||||
| E03A | ***DC9700 | |||
| No information available, not orderable | ||||
| E03A1 | ***DC9710 | |||
| No information available, not orderable | ||||
| E03A2 | ***DC1414 | |||
| PROTECTION COVER | ||||
| E04 | 414938-7 | 2.00 | 2.42 | |
| No information available, not orderable | ||||
| 001 | 152558-6 | |||
| No information available, not orderable | ||||
| 002 | 258002-2 | |||
| Retaining Ring S-7 | ||||
| 003 | 961023-2 | 1.00 | 1.21 | |
| Gear 14 | ||||
| 004 | 221391-8 | 13.20 | 15.97 | |
| Shaft 3/8" | ||||
| 005 | 152400-1 | 28.60 | 34.61 | |
| Bearing Lock 13-23 | ||||
| 006 | 285671-6 | 8.40 | 10.16 | |
| Stop Ring S-34 | ||||
| 007 | 961172-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 008 | 267093-2 | |||
| Screw 4x6 | ||||
| 009 | 266025-6 | 1.00 | 1.21 | |
| Clutch adjustment ring | ||||
| 010 | 415444-5 | 4.80 | 5.81 | |
| Locking Ring | ||||
| 011 | 152406-9 | 19.80 | 23.96 | |
| Gearshaft 13 6702Dw * | ||||
| 012 | 221390-0 | 34.10 | 41.26 | |
| Key 4 6702Dw * | ||||
| 013 | 254235-7 | 2.40 | 2.90 | |
| Needle Bearing 1212 | ||||
| 014 | 212104-8 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 015 | 343798-9 | |||
| Ball bearing 6000llb | ||||
| 016 | 211061-7 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 017 | 343897-7 | |||
| No information available, not orderable | ||||
| 018 | 233026-9 | |||
| Pressure spring 20 6702Dw * | ||||
| 019 | 233027-7 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 020 | 267024-1 | |||
| Pressure Needle Bearing 1224 8412Dwh * | ||||
| 021 | 216402-2 | 8.40 | 10.16 | |
| Connector | ||||
| 022 | 322493-4 | 13.20 | 15.97 | |
| Pen 4 | ||||
| 023 | 256217-5 | 1.00 | 1.21 | |
| Steel ball 6 | ||||
| 024 | 216030-3 | 1.00 | 1.21 | |
| Holder 6706D * | ||||
| 025 | 152399-0 | 19.80 | 23.96 | |
| Lock washer 10 | ||||
| 026 | 253998-2 | 1.20 | 1.45 | |
| Closing Plate | ||||
| 027 | 343945-2 | 1.20 | 1.45 | |
| Plate 6702Dw * | ||||
| 028 | 343896-9 | 2.40 | 2.90 | |
| Gear 28 | ||||
| 029 | 226204-8 | 3.60 | 4.36 | |
| Gear 11 | ||||
| 030 | 153196-7 | 8.40 | 10.16 | |
| Gear 28 | ||||
| 031 | 226204-8 | 3.60 | 4.36 | |
| Internal gear 67 | ||||
| 032 | 226205-6 | 3.60 | 4.36 | |
| Washer 12 | ||||
| 033 | 267067-3 | 1.20 | 1.45 | |
| DC Motor 9.6v | ||||
| 034 | 629624-9 | 20.90 | 25.29 | |
| DC Motor 9.6v | ||||
| 034-1 | 629624-9 | 20.90 | 25.29 | |
| Motorhuis set | ||||
| 035 | 183057-7 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 036 | 851442-9 | |||
| Pressure Spring 2 | ||||
| 037 | 233025-1 | 1.00 | 1.21 | |
| Control rod | ||||
| 038 | 343898-5 | 9.60 | 11.62 | |
| Switch | ||||
| 039 | 651942-7 | 6.00 | 7.26 | |
| Switch with overflight security | ||||
| 040 | 651872-2 | 14.30 | 17.30 | |
| Compression Spring 4 | ||||
| 041 | 233024-3 | 1.00 | 1.21 | |
| Switch Push Button 6702Dw * | ||||
| 042 | 414752-1 | 2.40 | 2.90 | |
| Battery connector piece | ||||
| 043 | 643909-9 | 3.60 | 4.36 | |
| Motorhuis set | ||||
| 044 | 183057-7 | 28.60 | 34.61 | |
| Label Makita | ||||
| 045 | 819063-3 | 2.40 | 2.90 | |
| Screw 4x22 | ||||
| 046 | 911143-2 | 1.00 | 1.21 | |
| Battery clamp plate | ||||
| 047 | 344798-2 | 3.60 | 4.36 | |
