Here you will find all available parts and drawings of the 'Makita 6413'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

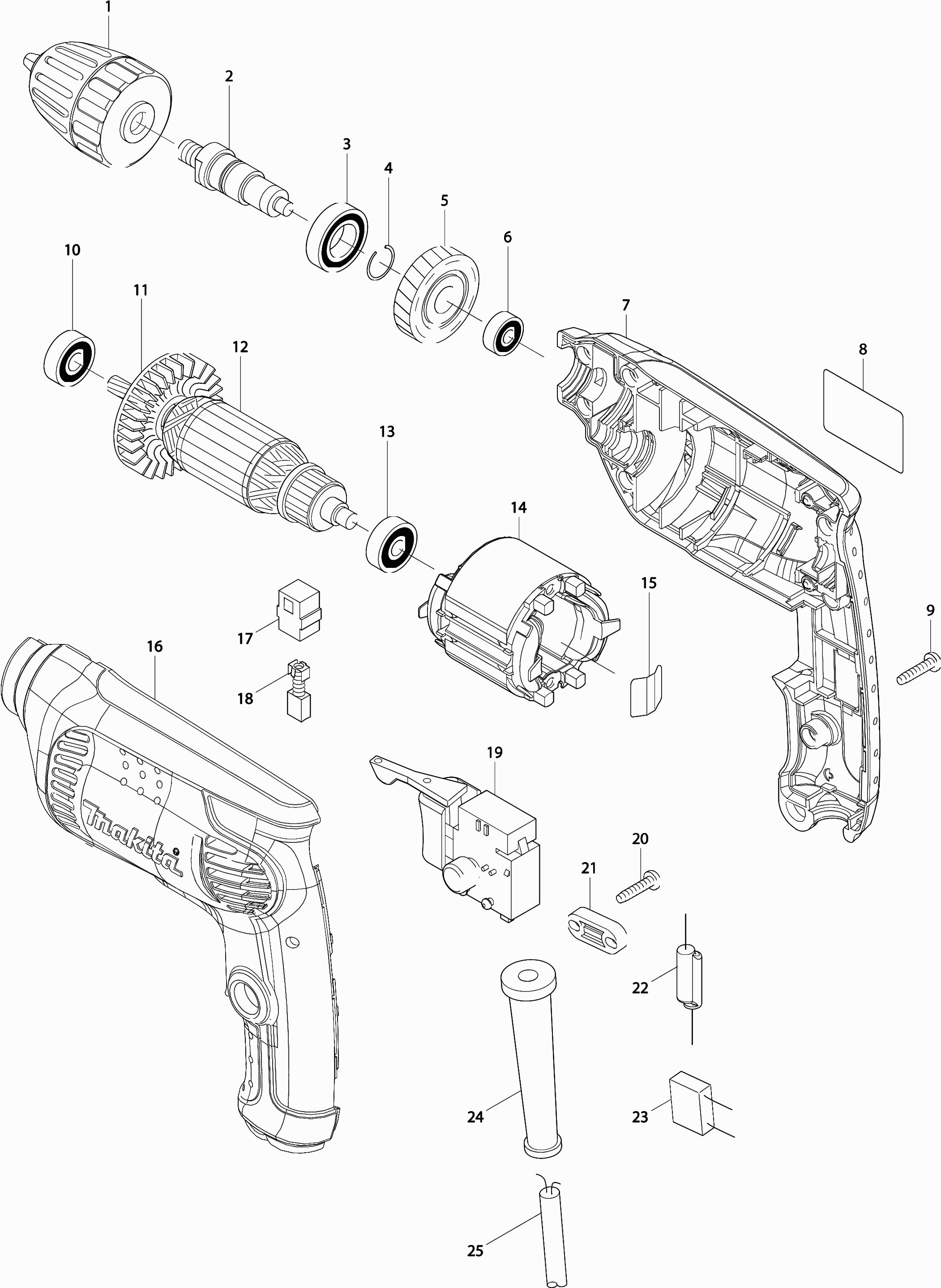

Technical drawing of model Makita 6413
Spare parts list of model Makita 6413
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Keyless drill chuck 1-10 mm | ||||
| 001 | 192016-0 | 20.00 | 24.20 | |
| Spindle Ass'y | ||||
| 002 | 324376-4 | 3.60 | 4.36 | |
| Ball bearing 6902Zz A | ||||
| 003 | 210153-9 | 1.20 | 1.45 | |
| Locking washer 13 | ||||
| 004 | 233925-5 | 1.00 | 1.21 | |
| Gear 35 | ||||
| 005 | 226578-7 | 3.60 | 4.36 | |
| Ball bearing 606Zz A | ||||
| 006 | 210137-7 | 1.20 | 1.45 | |
| Motor Housing Set 6413 * | ||||
| 007 | 188277-8 | 13.20 | 15.97 | |
| Rubber Pin 4 | ||||
| 007A | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 008 | 863402-9 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 009 | 265B67-9 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 010 | 210046-0 | 1.20 | 1.45 | |
| Fan 52 | ||||
| 011 | 240066-0 | 1.20 | 1.45 | |
| Armature | ||||
| 012 | 515699-3 | 23.10 | 27.95 | |
| Ball Bearing 627Zz A | ||||
| 013 | 210050-9 | 1.20 | 1.45 | |
| Field | ||||
| 014 | 599369-2 | 13.20 | 15.97 | |
| Connection unit | ||||
| 014A | 654409-4 | 1.00 | 1.21 | |
| Leaf Spring 6413 * | ||||
| 015 | 232210-3 | 1.00 | 1.21 | |
| Motor Housing Set 6413 * | ||||
| 016 | 188277-8 | 13.20 | 15.97 | |
| Rubber Pin 4 | ||||
| 016A | 263002-9 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 017 | 643563-9 | 1.00 | 1.21 | |
| Brush holder 5X8 Mt818 | ||||
| 017-1A | 643566-3 | 1.00 | 1.21 | |
| Brush holder 5X8 Mt818 | ||||
| 017-1B | 643566-3 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 017A | 643563-9 | 1.00 | 1.21 | |
| KOOLBORSTEL SET CB-64 A | ||||
| 018 | 194968-1 | 4.80 | 5.81 | |
| Switch | ||||
| 019 | 650586-0 | 11.00 | 13.31 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 020 | 265B67-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 021 | 687124-5 | 1.00 | 1.21 | |
| Capacitor 6413 * | ||||
| 022 | 646151-1 | 1.20 | 1.45 | |
| Capacitor 0.22uF | ||||
| 023 | 645190-8 | 2.40 | 2.90 | |
| Cable grommet 8-85 | ||||
| 024 | 682502-4 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 025 | 665383-1 | 10.80 | 13.07 | |
