Here you will find all available parts and drawings of the 'Makita 6390D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

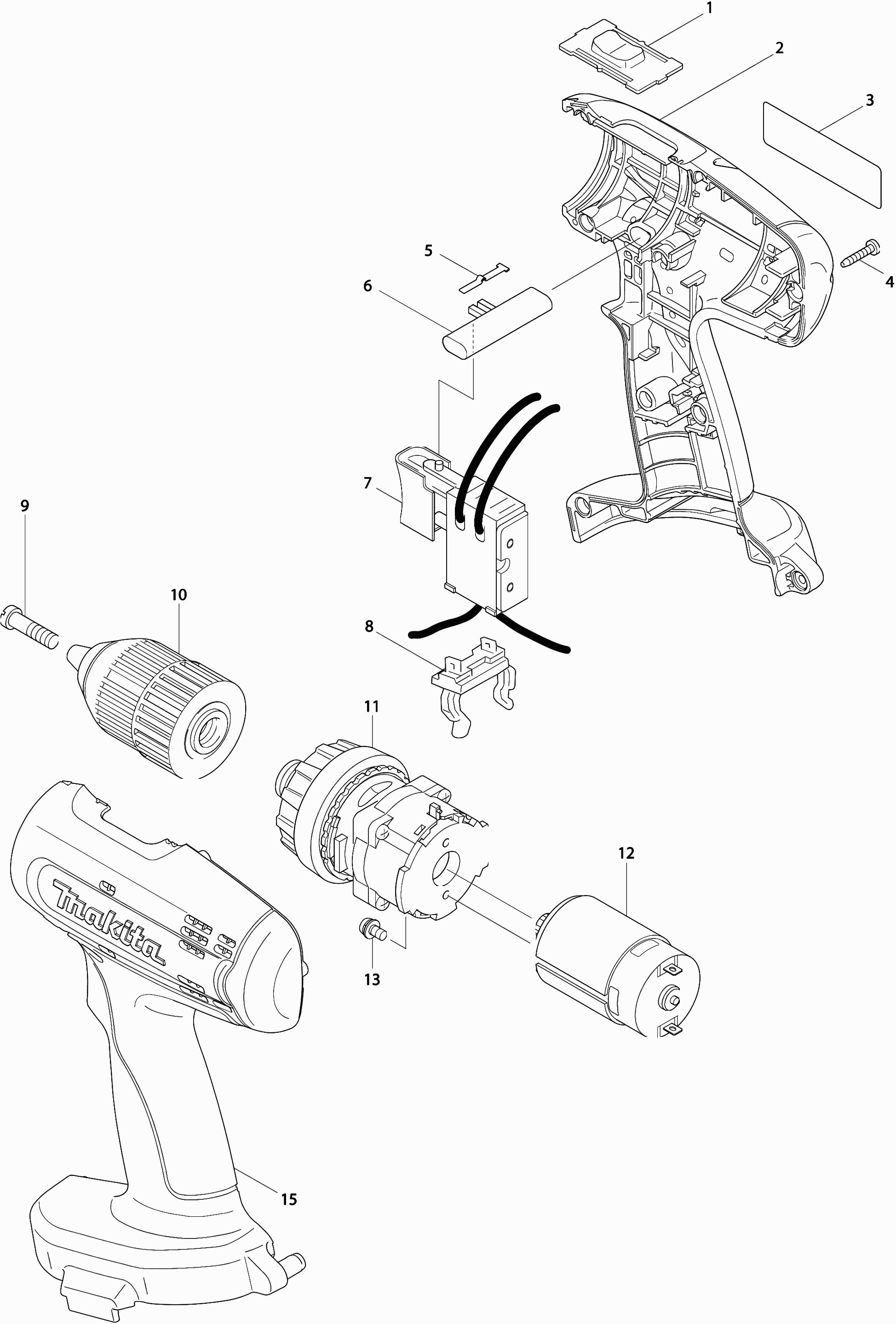

Technical drawing of model Makita 6390D
Spare parts list of model Makita 6390D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| High/Low-speed Slider | ||||
| 001 | 125102-2 | 1.20 | 1.45 | |
| Motor housing 8390D | ||||
| 002 | 183968-6 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 003 | 861353-0 | |||
| Tapping Screw 3x16 | ||||
| 004 | 266130-9 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 005 | 232182-2 | 1.00 | 1.21 | |
| Reverse rod | ||||
| 006 | 417283-9 | 2.40 | 2.90 | |
| Switch | ||||
| 007 | 650566-6 | 26.40 | 31.94 | |
| Battery clamp | ||||
| 008 | 643918-8 | 8.40 | 10.16 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 763178-7 | |||
| Gear set | ||||
| 011 | 125275-1 | 23.10 | 27.95 | |
| Motor 18.0v | ||||
| 012 | 629937-8 | 17.60 | 21.30 | |
| Screw 4x8 | ||||
| 013 | 911109-2 | 1.00 | 1.21 | |
| Motor housing 8390D | ||||
| 015 | 183968-6 | 13.20 | 15.97 | |
