Here you will find all available parts and drawings of the 'Makita 6300T'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

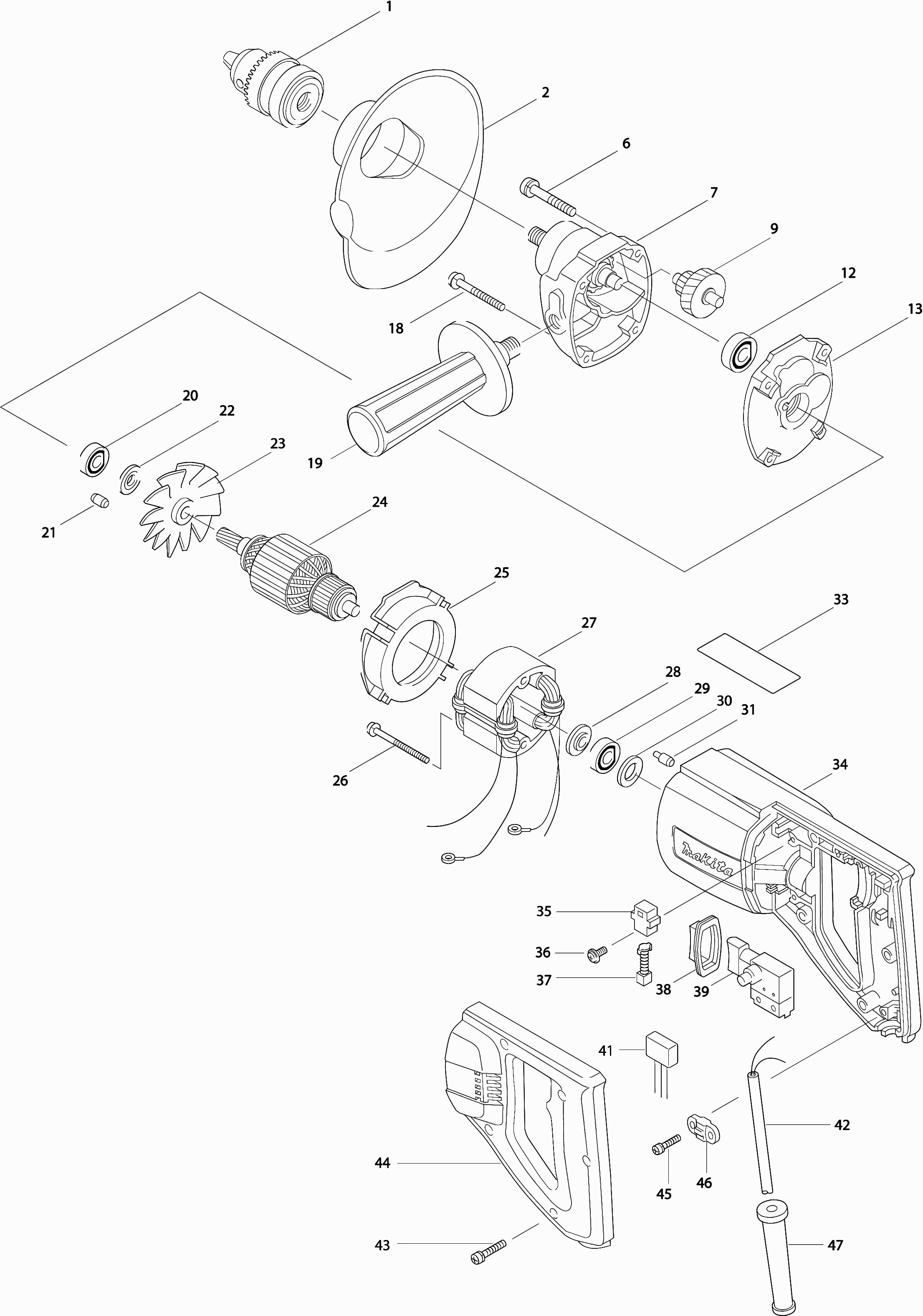

Technical drawing of model Makita 6300T
Spare parts list of model Makita 6300T
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 192541-1 | |||
| Guard | ||||
| 002 | 411596-0 | 9.60 | 11.62 | |
| Screw 5x35 | ||||
| 006 | 911256-9 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 007 | 134304-9 | 170.50 | 206.30 | |
| Gear 13-41 | ||||
| 009 | 226012-7 | 26.40 | 31.94 | |
| Rubber Pin 4 | ||||
| 011 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 012 | 210043-6 | 2.40 | 2.90 | |
| Gear Cover | ||||
| 013 | 156436-2 | 23.10 | 27.95 | |
| Screw 5X45 * | ||||
| 018 | 911266-6 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 020 | 210043-6 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 021 | 263002-9 | 1.00 | 1.21 | |
| Dust seal 8 | ||||
| 022 | 213002-9 | 1.20 | 1.45 | |
| Fan 68 * | ||||
| 023 | 241015-0 | 8.40 | 10.16 | |
| Armature | ||||
| 024 | 512638-4 | 67.10 | 81.19 | |
| No information available, not orderable | ||||
| 025 | 411234-4 | |||
| SCREW 5X50 | ||||
| 026 | 911275-5 | 1.20 | 1.45 | |
| Field 6300T # | ||||
| 027 | 528753-4 | 41.84 | 50.63 | |
| Insulation ring | ||||
| 028 | 681613-2 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 029 | 210043-6 | 2.40 | 2.90 | |
| Washer 14 | ||||
| 030 | 253192-6 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 031 | 263014-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 034 | 159482-4 | |||
| Brush Holder | ||||
| 035 | 643551-6 | 1.20 | 1.45 | |
| Screw 4x14 | ||||
| 036 | 911123-8 | 1.00 | 1.21 | |
| Carbon Brush Set Cb-55 | ||||
| 037 | 181026-2 | 6.00 | 7.26 | |
| Dust cover for switch | ||||
| 038 | 421144-7 | 7.20 | 8.71 | |
| Switch Sw-71 | ||||
| 039 | 651315-4 | 18.70 | 22.63 | |
| Power cord 2x1.50 4.0mtr | ||||
| 042 | 695123-3 | 22.00 | 26.62 | |
| Screw 4x28 | ||||
| 043 | 911151-3 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 044 | 410068-2 | 8.40 | 10.16 | |
| Screw 4X18 | ||||
| 045 | 911131-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 046 | 687031-2 | 1.00 | 1.21 | |
| Cable grommet 10-85 | ||||
| 047 | 682504-0 | 2.40 | 2.90 | |
| Bearing Lock 19-36 * | ||||
| 048 | 285806-9 | 2.40 | 2.90 | |
| Ball bearing 6202llb | ||||
| 049 | 211228-7 | 8.40 | 10.16 | |
| Ring 12 6300T * | ||||
| 050 | 257109-1 | 13.20 | 15.97 | |
| Ball bearing 608llb | ||||
| 051 | 210043-6 | 2.40 | 2.90 | |
| Sleeve 6300T * | ||||
| 052 | 313045-2 | 4.80 | 5.81 | |
| Wear Plate 6300T * | ||||
| 053 | 313038-9 | 16.50 | 19.96 | |
| Nut 12-21 | ||||
| 054 | 252209-2 | 7.20 | 8.71 | |
| Spring Plate | ||||
| 055 | 232072-9 | 2.40 | 2.90 | |
| Chuck key holder Hp2030 * | ||||
| 400 | 410102-8 | 1.00 | 1.21 | |
