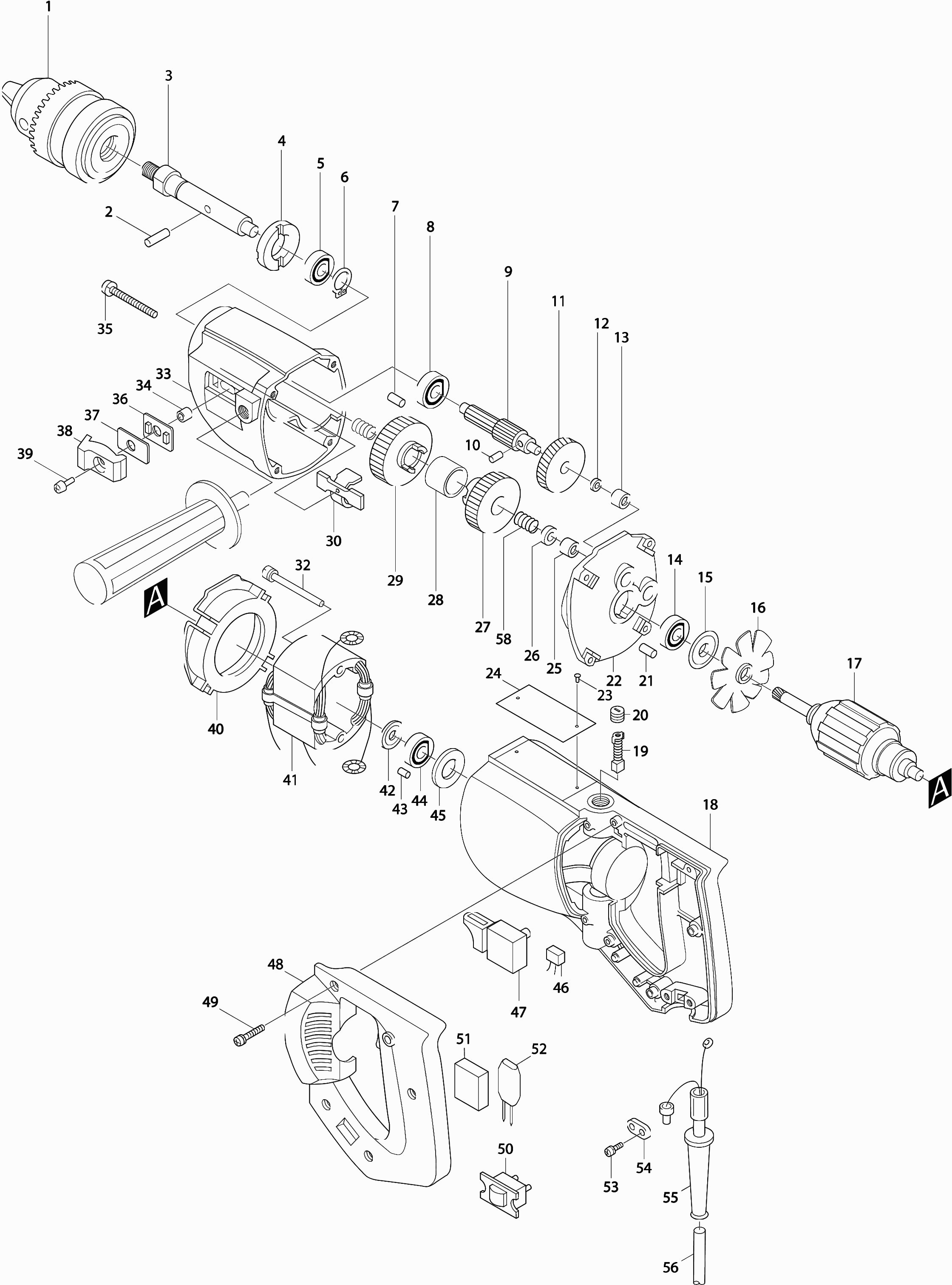

Technical drawing of model Makita 63004
Spare parts list of model Makita 63004
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Brush holder * | ||||
| C10 | 643556-6 | 3.60 | 4.36 | |
| Stator spring Cb 9 | ||||
| C10 | 654018-9 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 1.25mm | ||||
| C20 | 654501-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 001-1 | 192877-8 | |||
| Pen 5 * | ||||
| 002 | 256021-2 | 1.00 | 1.21 | |
| Drill Spindle | ||||
| 003 | 335044-4 | 39.60 | 47.92 | |
| Bearing Lock 22-36 | ||||
| 004 | 285807-7 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 005 | 211206-7 | |||
| Lock washer S-15 | ||||
| 006 | 961055-9 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 007 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 626llb | ||||
| 008 | 211016-2 | 6.00 | 7.26 | |
| Gear 7-13 | ||||
| 009 | 221825-1 | 19.80 | 23.96 | |
| Pen 4 | ||||
| 010 | 256074-1 | 1.00 | 1.21 | |
| Gear 43 | ||||
| 011 | 221619-4 | 11.00 | 13.31 | |
| Washer 8 | ||||
| 012 | 253731-2 | 1.00 | 1.21 | |
| Needle Bearing 810 | ||||
| 013 | 212004-2 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 014 | 211031-6 | |||
| Dust seal 8 | ||||
| 015 | 213002-9 | 1.20 | 1.45 | |
| Fan 68 * | ||||
| 016 | 241015-0 | 8.40 | 10.16 | |
| Armature | ||||
| 017C | 512638-4 | 67.10 | 81.19 | |
| Motor Housing | ||||
| 018-1 | 159087-0 | 36.30 | 43.92 | |
| Motor Housing | ||||
| 018-2 | 159087-0 | 36.30 | 43.92 | |
| Carbon brush set Cb-51 | ||||
| 019 | 181021-2 | 3.12 | 3.78 | |
| KOOLBORSTEL SET CB-51 A | ||||
| 019 | 194963-1 | 3.12 | 3.78 | |
| KOOLBORSTEL SET CB-51 A | ||||
| 019-1 | 194963-1 | 3.12 | 3.78 | |
| Brush holder cap | ||||
| 020 | 643550-8 | 1.20 | 1.45 | |
| Rubber Pin 4 | ||||
| 021 | 263002-9 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 022 | 156976-0 | 19.80 | 23.96 | |
| Rivet 0,5 | ||||
| 023 | 953106-2 | 1.00 | 1.21 | |
| Label | ||||
| 024 | 815019-4 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 024-1 | 856F02-8 | |||
| Needle Bearing 810 | ||||
| 025 | 212004-2 | 4.80 | 5.81 | |
| Washer 8 | ||||
| 026 | 253731-2 | 1.00 | 1.21 | |
| Gear 38 | ||||
| 027 | 221824-3 | 22.00 | 26.62 | |
| Housing 20 | ||||
| 028 | 257538-8 | 2.40 | 2.90 | |
| Gear 45 | ||||
| 029 | 221823-5 | 23.10 | 27.95 | |
| Slide 20 | ||||
| 030 | 342482-3 | 7.20 | 8.71 | |
| SCREW 5X50 | ||||
| 032-1 | 911275-5 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 033 | 156913-4 | 51.70 | 62.56 | |
| Bus 5 | ||||
| 034 | 257539-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 035 | 911261-6 | |||
| Leaf Spring | ||||
| 036 | 343286-6 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 037 | 232045-2 | 1.00 | 1.21 | |
| Adjustment Button | ||||
| 038 | 411344-7 | 3.60 | 4.36 | |
| Screw 5x12 | ||||
| 039-1 | 911215-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 040 | 411234-4 | |||
| Field | ||||
| 041I | 528715-2 | 58.30 | 70.54 | |
| Insulation ring | ||||
| 042-1 | 681613-2 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 043-1 | 263014-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 044 | 211031-6 | |||
| Washer 14 | ||||
| 045 | 253192-6 | 1.00 | 1.21 | |
| Capacitor | ||||
| 046J | 645253-0 | 4.80 | 5.81 | |
| Switch Sw-85 | ||||
| 047G | 651232-8 | 6.00 | 7.26 | |
| Switch Sgel206c-2 | ||||
| 047G1 | 651268-7 | 7.20 | 8.71 | |
| Switch Sgel206c-2 | ||||
| 047G2 | 651268-7 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 048-1 | 414522-8 | |||
| Handle Cover | ||||
| 048-2 | 419468-3 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 049 | 911153-9 | |||
| No information available, not orderable | ||||
| 050A | 651600-5 | |||
| Sponge rubber Hm1810 | ||||
| 051 | 685718-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 052A | 631011-0 | |||
| Screw 4X18 | ||||
| 053-1 | 911133-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 054 | 687001-1 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 054C | 687031-2 | 1.00 | 1.21 | |
| Cable grommet 8-85 | ||||
| 055A | 682502-4 | 2.40 | 2.90 | |
| Cable grommet 9.3-85 | ||||
| 055B | 682516-3 | 1.20 | 1.45 | |
| Cable grommet 10-85 | ||||
| 055B1 | 682504-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 056D | 666066-6 | |||
| No information available, not orderable | ||||
| 056R | 665865-3 | |||
| Compression Spring 14 | ||||
| 058 | 231232-0 | 1.00 | 1.21 | |
| Gasket | ||||
| 059 | 450634-3 | 2.40 | 2.90 | |
| Chuck Key | ||||
| 400-2 | 763432-9 | 3.00 | 3.63 | |
| Handle TSC 55 | ||||
| 401A1 | 151949-8 | 9.00 | 10.89 | |
| Chuck key holder Hp2030 * | ||||
| 402 | 410102-8 | 1.00 | 1.21 | |
