Here you will find all available parts and drawings of the 'Makita 6271D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

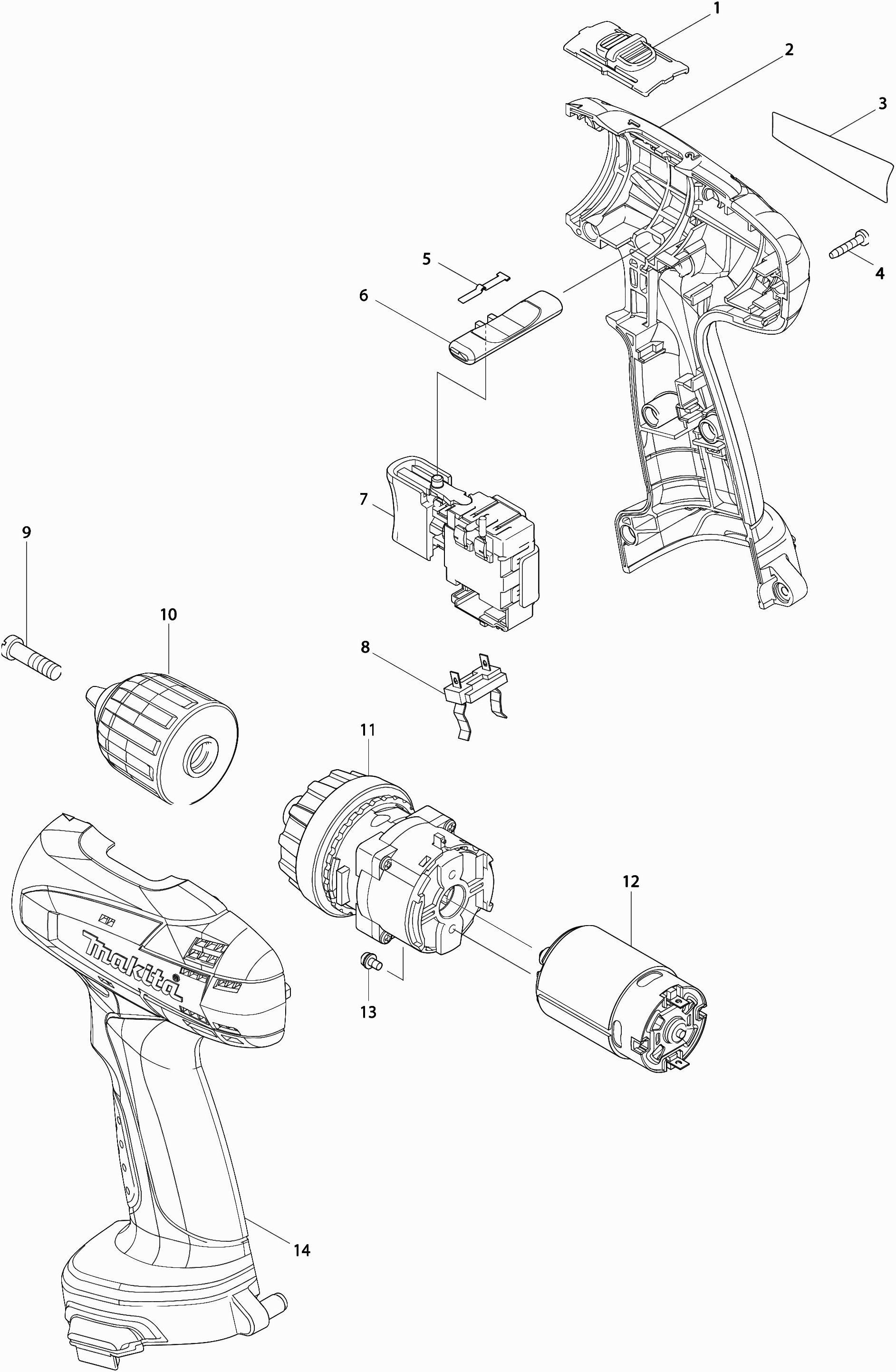

Technical drawing of model Makita 6271D
Spare parts list of model Makita 6271D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| High/low speed slide | ||||
| 001 | 125310-5 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 001A | 231433-0 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 002 | 187300-6 | 11.00 | 13.31 | |
| Nameplate "6271d" | ||||
| 003 | 865151-4 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 004 | 266130-9 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 005 | 232182-2 | 1.00 | 1.21 | |
| Slide Button | ||||
| 006 | 450584-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 007 | 650663-8 | |||
| Line filter | ||||
| 007A | 688165-4 | 1.00 | 1.21 | |
| Line filter | ||||
| 007B | 688164-6 | 1.00 | 1.21 | |
| Battery connector piece | ||||
| 008 | 643909-9 | 3.60 | 4.36 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| BOORKOP SNELSPAN 1-10MM | ||||
| 010 | 193615-1 | 22.00 | 26.62 | |
| Gear set (white locking plate) | ||||
| 011 | 125482-6 | 23.10 | 27.95 | |
| Motor 14.4v (white locking plate) | ||||
| 012 | 629875-4 | 11.00 | 13.31 | |
| Motor 12.0V 6270D | ||||
| 012 | 629817-8 | 10.80 | 13.07 | |
| Screw 3x6 | ||||
| 013 | 911003-8 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 014 | 187300-6 | 11.00 | 13.31 | |
| No longer available, no replacement | ||||
| 1220 | 192681-5 | |||
