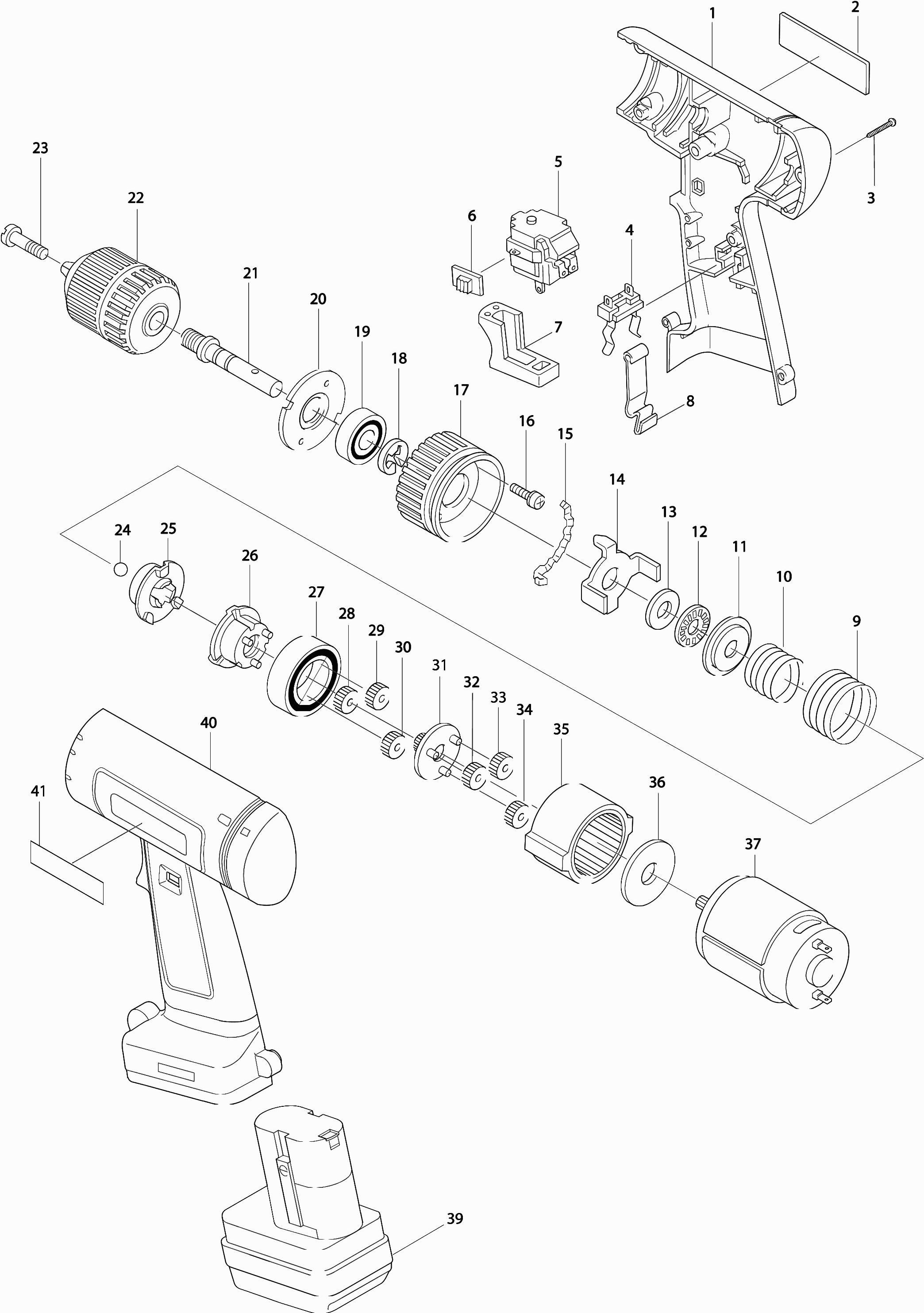

Technical drawing of model Makita 6221D
Spare parts list of model Makita 6221D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing 6221Dwe * | ||||
| 001 | 182819-0 | 13.20 | 15.97 | |
| Tap screw 4x18 | ||||
| 003 | 265A48-7 | 1.00 | 1.21 | |
| Battery connector piece | ||||
| 004 | 643909-9 | 3.60 | 4.36 | |
| Switch Sw-104 | ||||
| 005 | 650500-6 | 39.60 | 47.92 | |
| Switch slide | ||||
| 006 | 414740-8 | 2.40 | 2.90 | |
| Switch handle | ||||
| 007 | 415671-4 | 1.20 | 1.45 | |
| Battery Plate | ||||
| 008 | 344121-1 | 2.40 | 2.90 | |
| Compression Spring 27* | ||||
| 009 | 233044-7 | 2.40 | 2.90 | |
| Pressure spring 22 * | ||||
| 010 | 233043-9 | 1.20 | 1.45 | |
| Washer 10 * | ||||
| 011 | 267705-7 | 2.40 | 2.90 | |
| Thrust needle bearing 1023 | ||||
| 012 | 216413-7 | 3.60 | 4.36 | |
| Washer 10 | ||||
| 013 | 253180-3 | 1.20 | 1.45 | |
| Sliding Plate | ||||
| 014 | 165087-0 | 3.60 | 4.36 | |
| Crown plate | ||||
| 015 | 344131-8 | 2.40 | 2.90 | |
| Phillips screw M3X14 * | ||||
| 016 | 911023-2 | 1.00 | 1.21 | |
| Clutch ring | ||||
| 017 | 415515-8 | 4.80 | 5.81 | |
| Retaining Ring E-9 | ||||
| 018 | 961015-1 | 1.00 | 1.21 | |
| Ball bearing 6000llb | ||||
| 019 | 211061-7 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 020 | 285678-2 | |||
| Axis for drill chuck | ||||
| 021 | 322880-7 | 13.20 | 15.97 | |
| Keyless drill chuck 1-10 mm | ||||
| 022 | 192016-0 | 20.00 | 24.20 | |
| No longer available, no replacement | ||||
| 023 | 251451-2 | |||
| Pen 4 * | ||||
| 024 | 256054-7 | 1.00 | 1.21 | |
| Coupling plate 6221Dwe * | ||||
| 025 | 223115-8 | 6.00 | 7.26 | |
| Clutch 6221Dw * | ||||
| 026 | 153229-8 | 19.80 | 23.96 | |
| Ball Bearing 6805llb | ||||
| 027 | 211375-4 | 13.20 | 15.97 | |
| Gear 15 | ||||
| 028 | 226284-4 | 2.40 | 2.90 | |
| Gear 15 | ||||
| 029 | 226284-4 | 2.40 | 2.90 | |
| Gear 15 | ||||
| 030 | 226284-4 | 2.40 | 2.90 | |
| Gear 9 | ||||
| 031 | 153228-0 | 10.80 | 13.07 | |
| Gear 15 | ||||
| 032 | 226283-6 | 1.20 | 1.45 | |
| Gear 15 | ||||
| 033 | 226283-6 | 1.20 | 1.45 | |
| Gear 15 | ||||
| 034 | 226283-6 | 1.20 | 1.45 | |
| Internal gear 42 | ||||
| 035 | 226285-2 | 16.50 | 19.96 | |
| Washer 12 | ||||
| 036 | 267067-3 | 1.20 | 1.45 | |
| DC Motor 9.6v | ||||
| 037 | 629783-9 | 10.80 | 13.07 | |
| Gear 9 6221D * | ||||
| 037A | 226281-0 | 7.20 | 8.71 | |
| Shoulder strap | ||||
| 038 | 163319-9 | 3.60 | 4.36 | |
| Motor Housing 6221Dwe * | ||||
| 040 | 182819-0 | 13.20 | 15.97 | |
