Here you will find all available parts and drawings of the 'Makita 6207D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

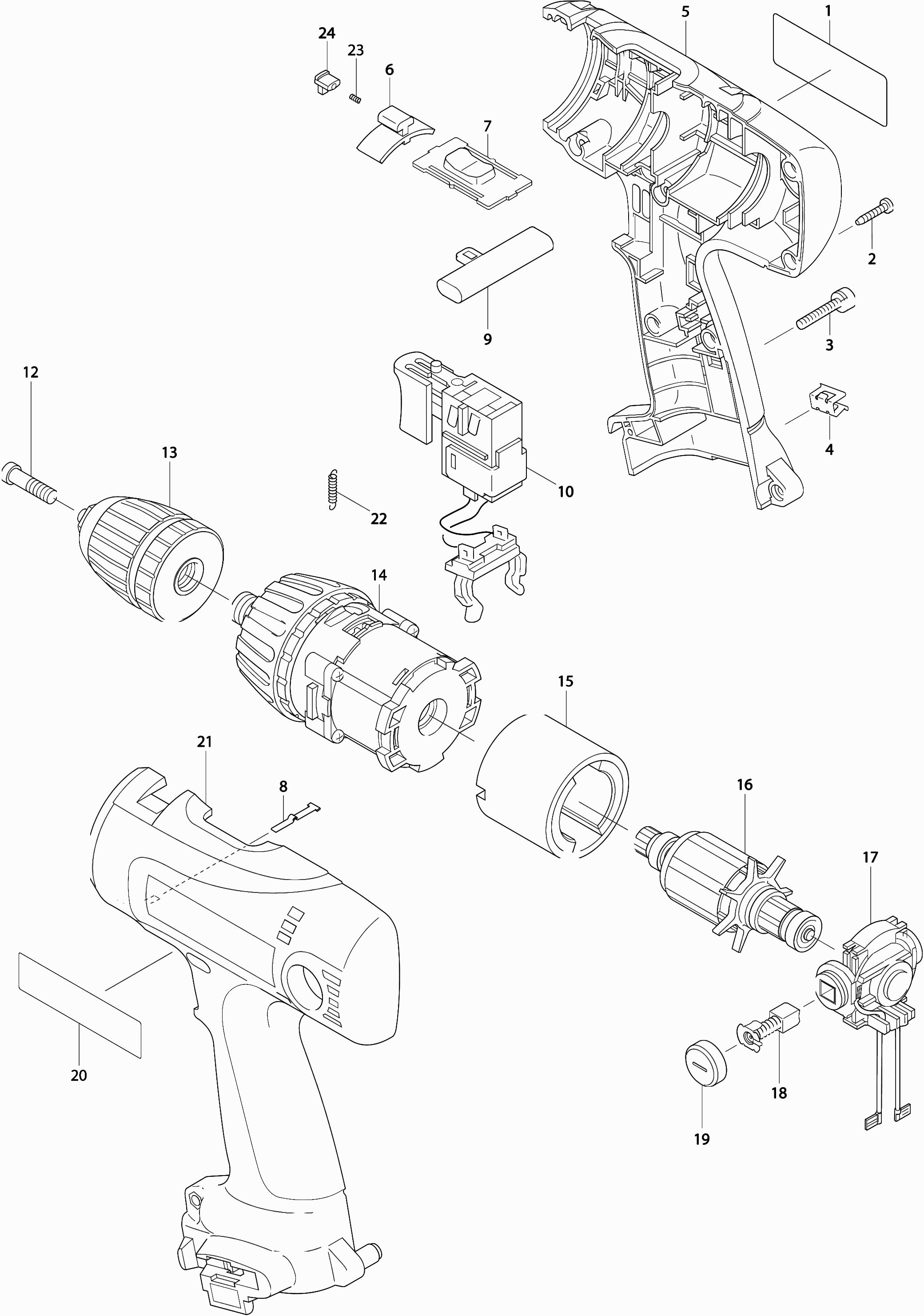

Technical drawing of model Makita 6207D
Spare parts list of model Makita 6207D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 853697-2 | |||
| Tapping Screw 3x16 | ||||
| 002 | 266130-9 | 1.00 | 1.21 | |
| Screw 4x22 | ||||
| 003 | 911143-2 | 1.00 | 1.21 | |
| Bit clamp | ||||
| 004 | 344391-2 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 005 | 183450-5 | 26.40 | 31.94 | |
| Adjustment Button | ||||
| 006 | 417879-6 | 2.40 | 2.90 | |
| High/Low-speed Slider | ||||
| 007 | 125102-2 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 007A | 231433-0 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 008 | 232182-2 | 1.00 | 1.21 | |
| Adjustment button L/r | ||||
| 009 | 417880-1 | 4.80 | 5.81 | |
| Switch m/battery clip | ||||
| 010 | 638144-2 | 39.60 | 47.92 | |
| Battery clamp | ||||
| 011 | 643918-8 | 8.40 | 10.16 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 012 | 251468-5 | 1.00 | 1.21 | |
| Gear set | ||||
| 014 | 125574-1 | 36.30 | 43.92 | |
| Magnet holder | ||||
| 015 | 638138-7 | 8.40 | 10.16 | |
| Armature | ||||
| 016 | 619117-4 | 30.80 | 37.27 | |
| Brush/bearing holder | ||||
| 017 | 638139-5 | 4.80 | 5.81 | |
| Carbon brush set Cb-430 | ||||
| 018 | 191971-3 | 3.60 | 4.36 | |
| Brush Cap | ||||
| 019 | 643929-3 | 1.00 | 1.21 | |
| Label "makita" | ||||
| 020 | 819064-1 | 2.40 | 2.90 | |
| Motorhuis set | ||||
| 021 | 183450-5 | 26.40 | 31.94 | |
| Pull Spring 2 | ||||
| 022 | 231829-5 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 023 | 233353-4 | 1.00 | 1.21 | |
| Lock handle (red) | ||||
| 024 | 418095-3 | 1.00 | 1.21 | |
