Here you will find all available parts and drawings of the 'Makita 6075D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

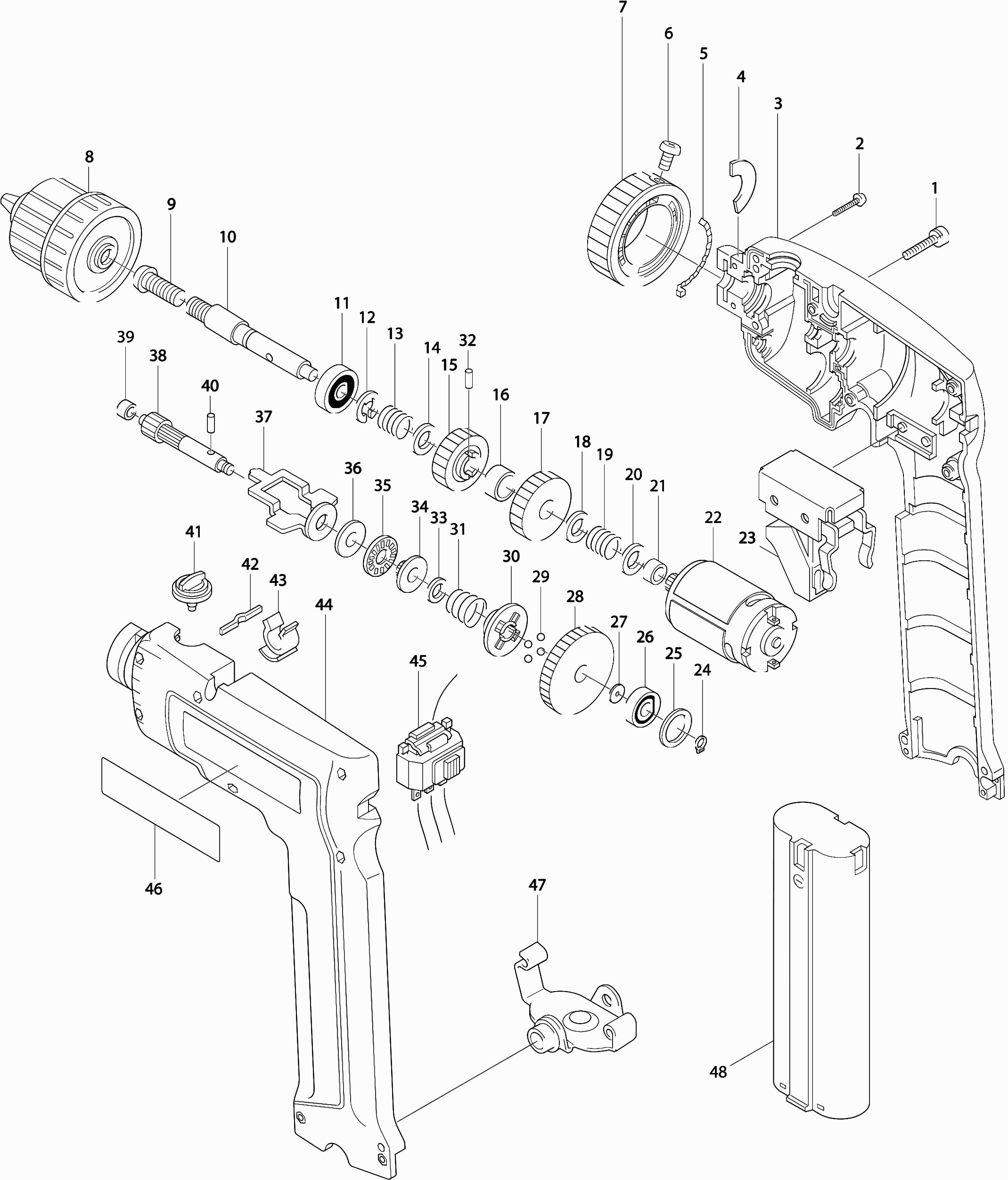

Technical drawing of model Makita 6075D
Spare parts list of model Makita 6075D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 4x22 | ||||
| 001 | 911143-2 | 0.83 | 1.00 | |
| Screw 4x35 | ||||
| 002 | 911163-6 | 0.83 | 1.00 | |
| Motor housing 6073Dw-6074Dw-6075 | ||||
| 003 | 181974-5 | 25.36 | 30.69 | |
| No longer available, no replacement | ||||
| 004 | 343421-6 | |||
| Cam ring | ||||
| 005 | 343410-1 | 1.39 | 1.68 | |
| Schroef 5X12 | ||||
| 006 | 251322-3 | 0.83 | 1.00 | |
| Clutch Sleeve | ||||
| 007 | 410936-9 | 8.21 | 9.93 | |
| No longer available, no replacement | ||||
| 009 | 251451-2 | |||
| Spindle Ass'y | ||||
| 010 | 321995-7 | 10.99 | 13.30 | |
| Ball bearing 6000llb | ||||
| 011 | 211061-7 | 7.22 | 8.74 | |
| Retaining Ring E-9 | ||||
| 012 | 961015-1 | 0.83 | 1.00 | |
| Compression spring 10 | ||||
| 013 | 231250-8 | 0.83 | 1.00 | |
| Thin Washer 10 | ||||
| 014 | 253330-0 | 0.83 | 1.00 | |
| Gear 78 | ||||
| 015 | 221862-5 | 18.20 | 22.02 | |
| No information available, not orderable | ||||
| 016 | 257073-6 | |||
| Gear 93 | ||||
| 017 | 221884-5 | 17.40 | 21.05 | |
| Thin Washer 10 | ||||
| 018 | 253330-0 | 0.83 | 1.00 | |
| Compression spring 10 | ||||
| 019 | 231250-8 | 0.83 | 1.00 | |
| Lock washer 5 | ||||
| 020 | 253807-5 | 0.83 | 1.00 | |
| Slide Bearing 5 | ||||
| 021 | 214017-9 | 0.83 | 1.00 | |
| Motor 7.2V 6073Dw-6075Dw * | ||||
| 022 | 629557-8 | 13.82 | 16.72 | |
| No information available, not orderable | ||||
| 023 | 651354-4 | |||
| Lock ring S-6 | ||||
| 024 | 961002-0 | 0.83 | 1.00 | |
| Washer 14 | ||||
| 025 | 253842-3 | 0.83 | 1.00 | |
| Ball bearing 626llb | ||||
| 026 | 211016-2 | 5.71 | 6.91 | |
| Washer 6 | ||||
| 027 | 253804-1 | 0.83 | 1.00 | |
| Gear 76 6073-6074-6075Dw * | ||||
| 028 | 226234-9 | 10.52 | 12.73 | |
| No information available, not orderable | ||||
| 029 | 216011-7 | |||
| Clutch Plate | ||||
| 030 | 223086-9 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 031 | 231927-5 | |||
| Pen 3 | ||||
| 032 | 256101-4 | 0.83 | 1.00 | |
| Washer 8 | ||||
| 033 | 257141-5 | 2.38 | 2.88 | |
| Washer | ||||
| 034 | 341902-4 | 0.83 | 1.00 | |
| Thrust needle bearing 1023 | ||||
| 035 | 216413-7 | 2.71 | 3.28 | |
| Washer 8 * | ||||
| 036 | 253851-2 | 0.83 | 1.00 | |
| CARRIAGE SA | ||||
| 037 | 164840-1 | 2.71 | 3.28 | |
| Gear 12-28 | ||||
| 038 | 226062-2 | 25.36 | 30.69 | |
| Slide Bearing 4 | ||||
| 039 | 214019-5 | 0.83 | 1.00 | |
| Pen 3 | ||||
| 040 | 256157-7 | 0.83 | 1.00 | |
| Adjustment knob 6012Hdw-6095Dw | ||||
| 041 | 168096-8 | 4.14 | 5.01 | |
| Leaf Spring | ||||
| 042 | 232053-3 | 0.83 | 1.00 | |
| Drill Chuck Key Clamp | ||||
| 043 | 411640-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 045 | 531074-5 | |||
| Battery terminal plate | ||||
| 047 | 342833-0 | 2.36 | 2.86 | |
