Here you will find all available parts and drawings of the 'Makita 6018D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

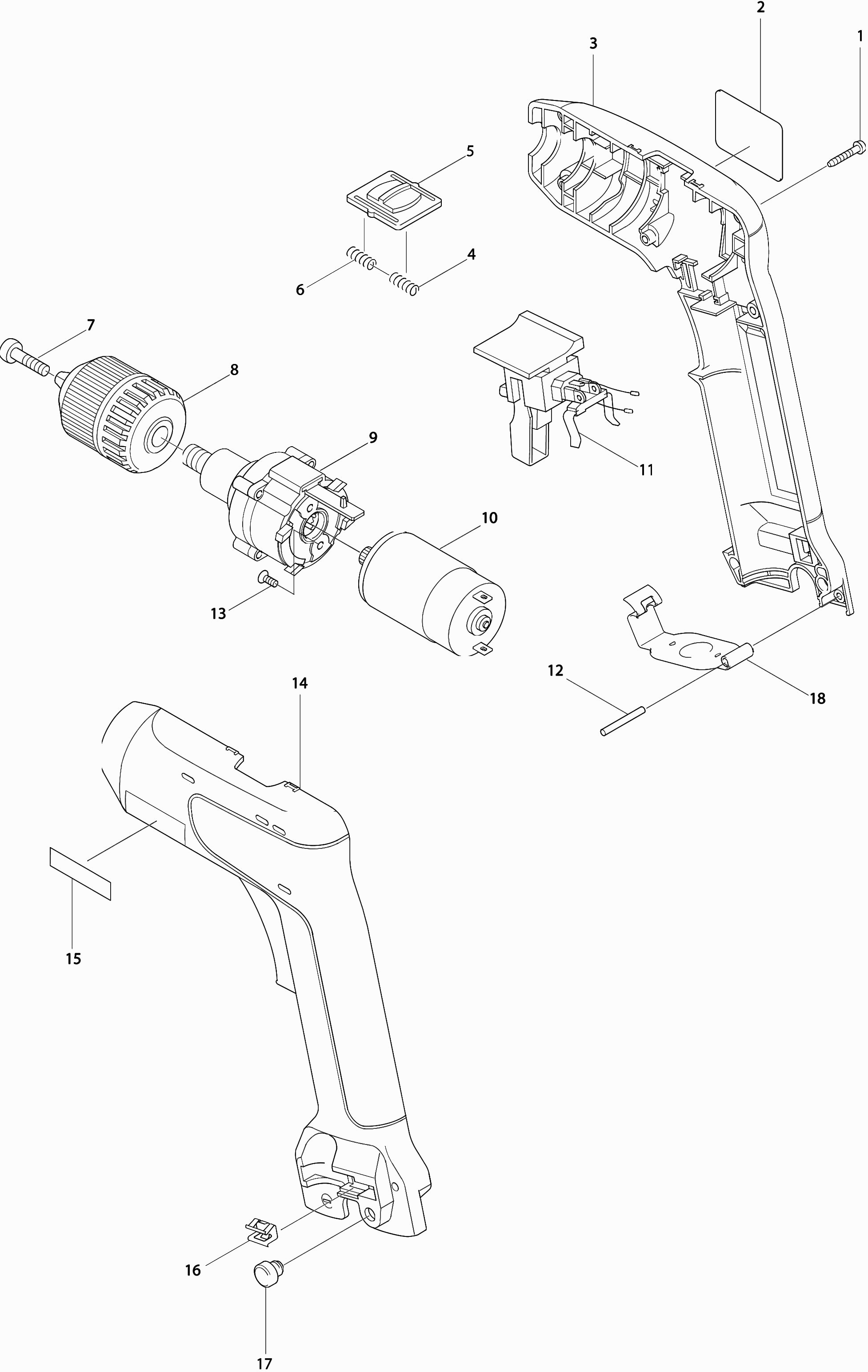

Technical drawing of model Makita 6018D
Spare parts list of model Makita 6018D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw 3x16 | ||||
| 001 | 266130-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 002 | 858381-4 | |||
| Motorhuis set | ||||
| 003 | 182834-4 | 12.10 | 14.64 | |
| Compression Spring 4 | ||||
| 004 | 231433-0 | 1.00 | 1.21 | |
| Speed slider | ||||
| 005 | 416119-9 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 006 | 231433-0 | 1.00 | 1.21 | |
| Screw 5x18 left-hand thread | ||||
| 007 | 251457-0 | 1.00 | 1.21 | |
| Keyless drill chuck 1-10 mm | ||||
| 008 | 192016-0 | 20.00 | 24.20 | |
| Gear unit | ||||
| 009 | 125049-0 | 16.50 | 19.96 | |
| Dc motor 7.2v | ||||
| 010 | 629779-0 | 15.40 | 18.63 | |
| Switch | ||||
| 011 | 531078-7 | 36.30 | 43.92 | |
| Pen 3 | ||||
| 012 | 256252-3 | 1.00 | 1.21 | |
| Screw M3X6 * | ||||
| 013 | 912002-3 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 014 | 182834-4 | 12.10 | 14.64 | |
| Bit clamp | ||||
| 016 | 344391-2 | 1.00 | 1.21 | |
| Rubber Cap | ||||
| 017 | 263022-3 | 1.00 | 1.21 | |
| Battery Clamp Plate | ||||
| 018 | 344549-3 | 2.40 | 2.90 | |
