Here you will find all available parts and drawings of the 'Makita 6013BR'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

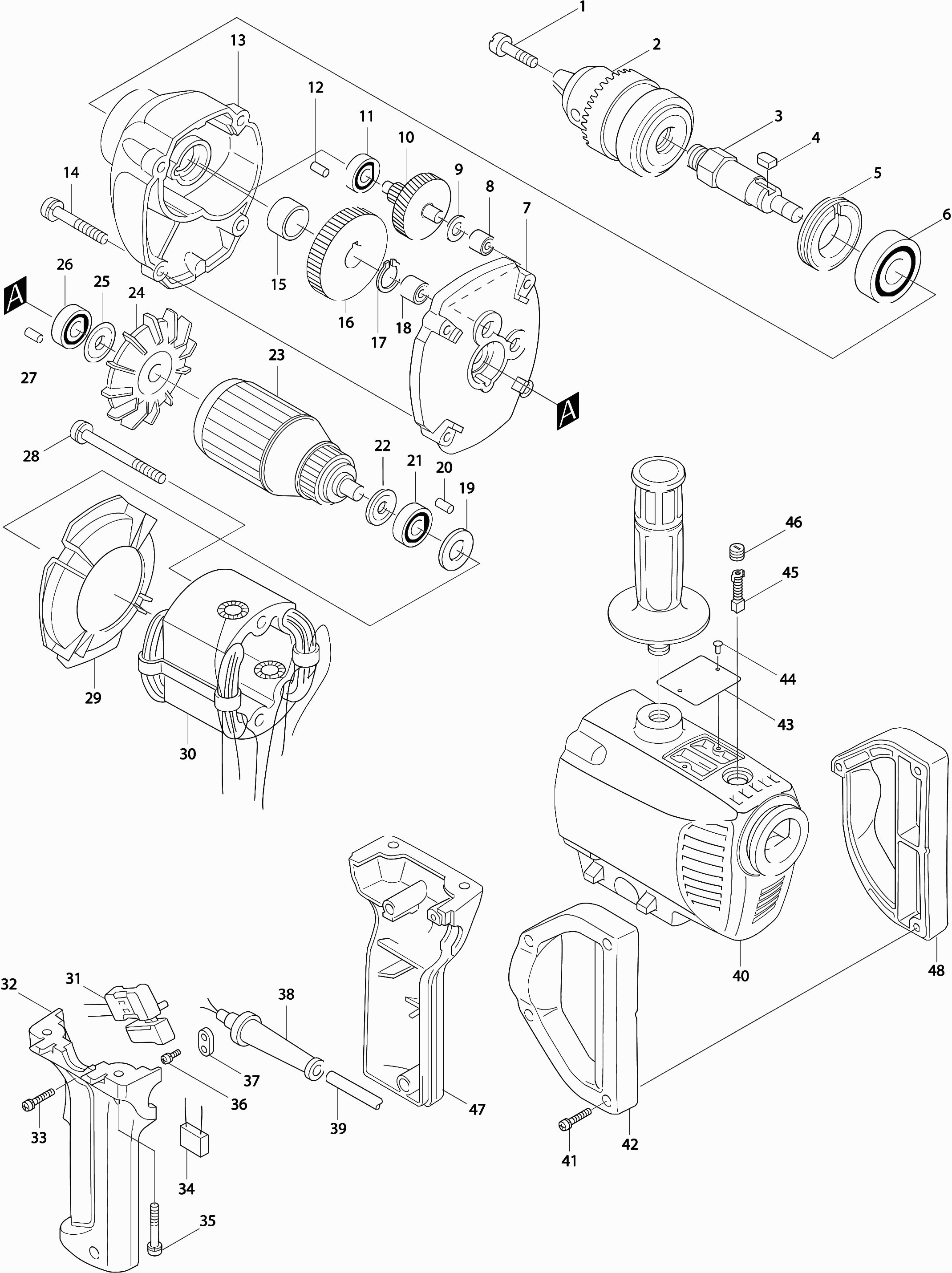

Technical drawing of model Makita 6013BR
Spare parts list of model Makita 6013BR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Brush holder * | ||||
| C10 | 643556-6 | 3.60 | 4.36 | |
| Stator spring Cb 9 | ||||
| C10 | 654018-9 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 1.25mm | ||||
| C20 | 654501-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 001 | 251425-3 | |||
| No information available, not orderable | ||||
| 002-1 | 192877-8 | |||
| Drill Spindle | ||||
| 003 | 325494-1 | 17.60 | 21.30 | |
| Inlegspie 5 | ||||
| 004 | 254211-1 | 1.20 | 1.45 | |
| Bearing Lock 25-36 | ||||
| 005 | 285808-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 006 | 211206-7 | |||
| Inner Cover | ||||
| 007 | 156972-8 | 16.50 | 19.96 | |
| NAALDLAGER 609 A | ||||
| 008 | 212268-8 | 4.80 | 5.81 | |
| Plastic Washer 6 | ||||
| 009 | 261008-1 | 1.00 | 1.21 | |
| Gear 7-41 | ||||
| 010 | 226028-2 | 20.90 | 25.29 | |
| Ball bearing 626llb | ||||
| 011 | 211016-2 | 6.00 | 7.26 | |
| Rubber Pin 4 | ||||
| 012 | 263002-9 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 013 | 156971-0 | 30.80 | 37.27 | |
| Screw 5x35 | ||||
| 014 | 911256-9 | 1.00 | 1.21 | |
| Washer 15 | ||||
| 015 | 257018-4 | 2.40 | 2.90 | |
| Gear 47 | ||||
| 016 | 221261-1 | 12.10 | 14.64 | |
| Lock ring S-14 | ||||
| 017 | 961054-1 | 1.00 | 1.21 | |
| Needle Bearing 810 | ||||
| 018 | 212003-4 | 4.80 | 5.81 | |
| Washer 14 | ||||
| 019 | 253192-6 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 020 | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 021 | 211033-2 | |||
| Insulation ring | ||||
| 022-1 | 681613-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 023C | 512613-0 | |||
| Fan 62 | ||||
| 024 | 241622-9 | 4.80 | 5.81 | |
| Dust seal 8 | ||||
| 025 | 213002-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 026 | 211031-6 | |||
| Rubber Pin 4 | ||||
| 027 | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 028-1 | 911280-2 | |||
| Intermediate Plate | ||||
| 029 | 411487-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 030K | 527436-3 | |||
| Switch Sw-07 | ||||
| 031-2 | 651564-3 | 26.40 | 31.94 | |
| Switch Sw-07 | ||||
| 031-3 | 651564-3 | 26.40 | 31.94 | |
| Rear Handle Set 6013Br * | ||||
| 032 | 181163-2 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 033 | 911153-9 | |||
| Capacitor 0,1uf | ||||
| 034A1 | 645105-5 | 3.60 | 4.36 | |
| Capacitor | ||||
| 034D | 645206-9 | 4.80 | 5.81 | |
| Screw 5x28 | ||||
| 035 | 911248-8 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 036-1 | 911133-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 037 | 687001-1 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 037D | 687031-2 | 1.00 | 1.21 | |
| Cable grommet 8-85 | ||||
| 038A | 682502-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 039T | 666066-6 | |||
| No information available, not orderable | ||||
| 039W | 665394-6 | |||
| Motor housing compl. | ||||
| 040 | 156443-5 | 33.00 | 39.93 | |
| Motor housing compl. | ||||
| 040-1 | 156443-5 | 33.00 | 39.93 | |
| No information available, not orderable | ||||
| 041 | 911153-9 | |||
| Rear handle set | ||||
| 042 | 181162-4 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 043 | 815091-6 | |||
| No information available, not orderable | ||||
| 043-1 | 850143-6 | |||
| Rivet 0,5 | ||||
| 044 | 953106-2 | 1.00 | 1.21 | |
| Carbon brush set Cb-51 | ||||
| 045 | 181021-2 | 3.12 | 3.78 | |
| KOOLBORSTEL SET CB-51 A | ||||
| 045 | 194963-1 | 3.12 | 3.78 | |
| KOOLBORSTEL SET CB-51 A | ||||
| 045-1 | 194963-1 | 3.12 | 3.78 | |
| Brush holder cap | ||||
| 046 | 643550-8 | 1.20 | 1.45 | |
| Rear Handle Set 6013Br * | ||||
| 047 | 181163-2 | 14.30 | 17.30 | |
| Rear handle set | ||||
| 048 | 181162-4 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 050 | 819003-1 | |||
| Chuck Key | ||||
| 400-1 | 763432-9 | 3.00 | 3.63 | |
| ZIJHANDGREEP KUNSTSTOF M12 | ||||
| 401-1 | 152492-0 | 3.00 | 3.63 | |
| Insulation ring | ||||
| 901 | 681625-5 | 1.20 | 1.45 | |
| Interference filter | ||||
| 903 | 646358-9 | 2.40 | 2.90 | |
