Here you will find all available parts and drawings of the 'Makita 6012D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

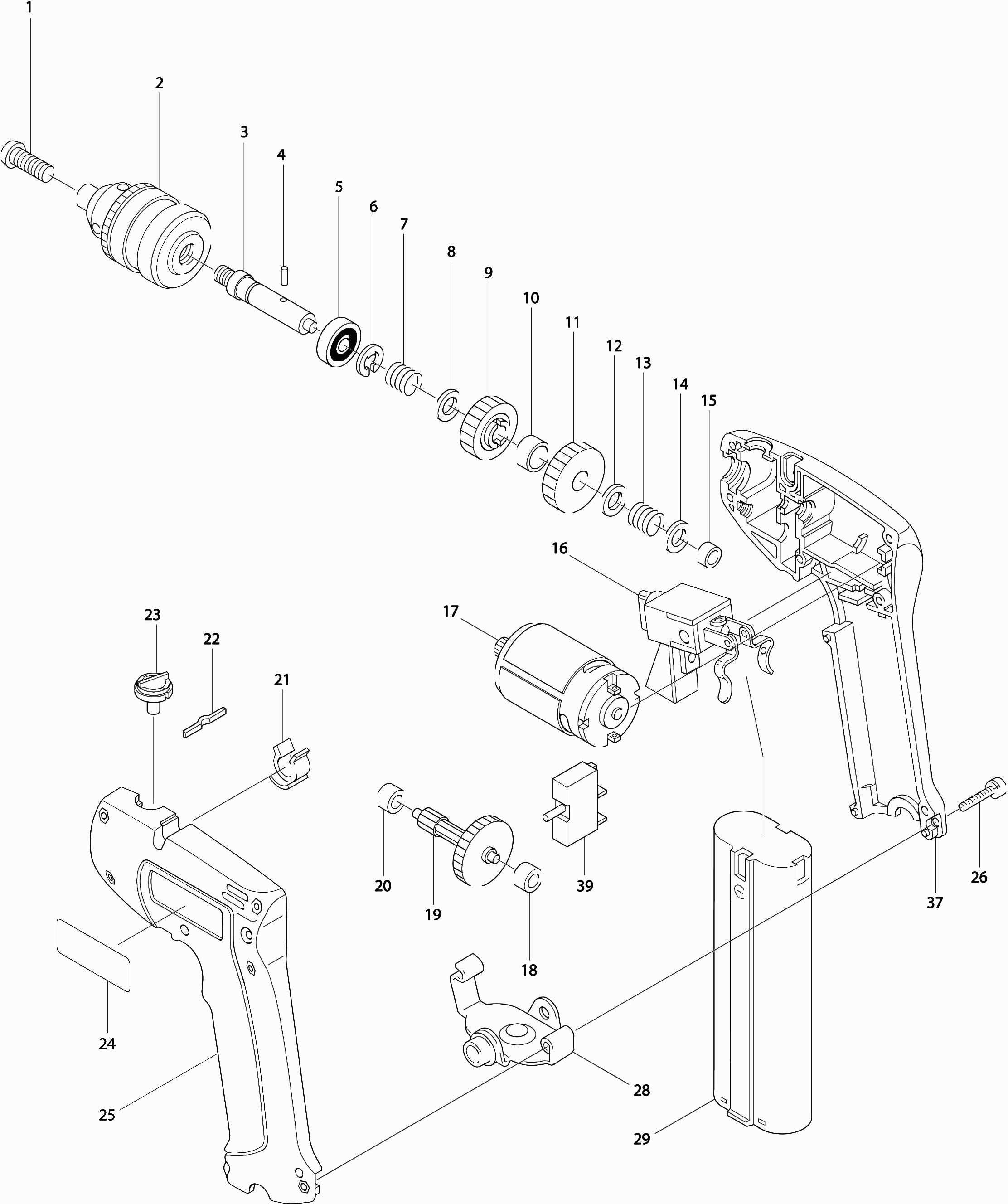

Technical drawing of model Makita 6012D
Spare parts list of model Makita 6012D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 5x18 left-hand thread | ||||
| 001 | 251457-0 | 1.00 | 1.21 | |
| BOORKOP TANDKRANS 1-10MM | ||||
| 002 | 192550-0 | 13.00 | 15.73 | |
| Drill Spindle | ||||
| 003 | 321723-0 | 8.40 | 10.16 | |
| Pen 3 | ||||
| 004 | 256101-4 | 1.00 | 1.21 | |
| Ball bearing 6000llb | ||||
| 005 | 211061-7 | 8.40 | 10.16 | |
| Retaining Ring E-9 | ||||
| 006 | 961015-1 | 1.00 | 1.21 | |
| Compression spring 10 | ||||
| 007 | 231250-8 | 1.00 | 1.21 | |
| Thin Washer 10 | ||||
| 008 | 253330-0 | 1.00 | 1.21 | |
| Gear 69 6012Dwk * | ||||
| 009 | 221861-7 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 010 | 257073-6 | |||
| Gear 78 | ||||
| 011 | 221862-5 | 18.70 | 22.63 | |
| Thin Washer 10 | ||||
| 012 | 253330-0 | 1.00 | 1.21 | |
| Compression spring 10 | ||||
| 013 | 231250-8 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 014 | 253807-5 | 1.00 | 1.21 | |
| Slide Bearing 5 | ||||
| 015 | 214017-9 | 1.00 | 1.21 | |
| Switch a/u+l/r | ||||
| 016 | 531043-6 | 14.30 | 17.30 | |
| Motor 7.2v | ||||
| 017 | 629801-3 | 13.20 | 15.97 | |
| Slide Bearing 3 | ||||
| 018 | 214016-1 | 1.00 | 1.21 | |
| Complete Gear 6012D * | ||||
| 019 | 153126-8 | 23.10 | 27.95 | |
| Slide Bearing 3 | ||||
| 020 | 214016-1 | 1.00 | 1.21 | |
| Drill Chuck Key Clamp | ||||
| 021 | 411640-3 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 022 | 232053-3 | 1.00 | 1.21 | |
| High-low button | ||||
| 023 | 168097-6 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 025 | 181337-5 | |||
| Screw 4x22 | ||||
| 026 | 911143-2 | 1.00 | 1.21 | |
| Battery terminal plate | ||||
| 028 | 342833-0 | 2.40 | 2.90 | |
| Thermal protection 12a | ||||
| 039 | 652532-9 | 6.00 | 7.26 | |
