Here you will find all available parts and drawings of the 'Makita 5704R'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

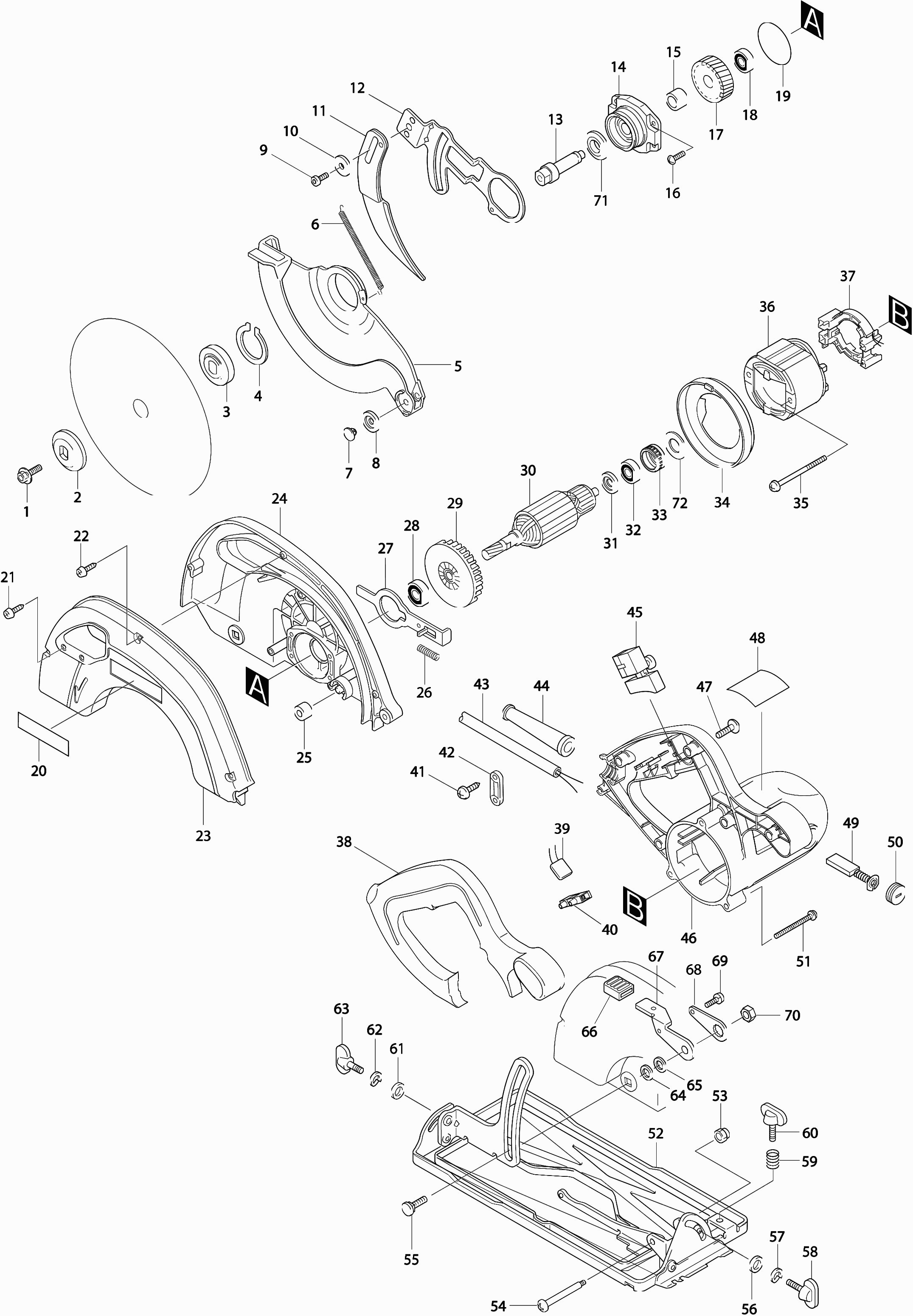

Technical drawing of model Makita 5704R
Spare parts list of model Makita 5704R
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Inbusbout M6X20 | ||||
| 001 | 266024-8 | 1.20 | 1.45 | |
| Outer Flange 40 | ||||
| 002 | 224275-9 | 7.20 | 8.71 | |
| Inner Flange 40 | ||||
| 003 | 224370-5 | 6.00 | 7.26 | |
| Lock Ring S-40 | ||||
| 004 | 961156-3 | 2.40 | 2.90 | |
| Spring protection cap | ||||
| 005 | 317461-0 | 13.20 | 15.97 | |
| Trekveer 4 | ||||
| 006 | 232468-4 | 2.40 | 2.90 | |
| Guide wheel pin 6 | ||||
| 007 | 415437-2 | 1.00 | 1.21 | |
| Spring loaded guide wheel cap | ||||
| 008 | 415438-0 | 1.00 | 1.21 | |
| Hex socket head screw M6x12 | ||||
| 009 | 922312-0 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 010 | 253783-3 | 1.20 | 1.45 | |
| Riving Knife | ||||
| 011 | 165094-3 | 19.80 | 23.96 | |
| Cavity mesh holder 5704R A | ||||
| 012 | 345734-1 | 6.00 | 7.26 | |
| Cavity mesh holder 5704R A | ||||
| 012-1 | 345734-1 | 6.00 | 7.26 | |
| Plunger | ||||
| 013 | 324110-2 | 13.20 | 15.97 | |
| Bearing Housing | ||||
| 014 | 162220-5 | 10.80 | 13.07 | |
| Washer 12 | ||||
| 015 | 257513-4 | 2.40 | 2.90 | |
| Screw 4x16 A | ||||
| 016 | 911526-6 | 1.00 | 1.21 | |
| Gear 49 | ||||
| 017 | 226540-2 | 9.60 | 11.62 | |
| Ball Bearing 608Zz A | ||||
| 018 | 210046-0 | 1.20 | 1.45 | |
| O-ring 46 | ||||
| 019 | 213620-3 | 1.20 | 1.45 | |
| Label "makita" | ||||
| 020 | 819064-1 | 2.40 | 2.90 | |
| Tapping Screw Ct4x16 | ||||
| 021 | 266034-5 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 022 | 266034-5 | 1.00 | 1.21 | |
| Cover for fixed hood | ||||
| 023 | 183357-5 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 023-1 | 317460-2 | |||
| FIXED PROTECTIVE COVER | ||||
| 024 | 152810-2 | 26.40 | 31.94 | |
| Rubber Pin 4 | ||||
| 024A | 263002-9 | 1.00 | 1.21 | |
| Rubber bush 6 | ||||
| 025 | 262511-5 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 026 | 233092-6 | 1.00 | 1.21 | |
| Axle Lock Washer | ||||
| 027 | 344990-0 | 2.40 | 2.90 | |
| Ball bearing 6000llb | ||||
| 028 | 211061-7 | 8.40 | 10.16 | |
| Fan 70 | ||||
| 029 | 241858-0 | 3.60 | 4.36 | |
| Armature | ||||
| 030 | 516489-7 | 30.80 | 37.27 | |
| Insulation ring | ||||
| 031 | 681654-8 | 1.20 | 1.45 | |
| Ball Bearing 608Zz A | ||||
| 032 | 210046-0 | 1.20 | 1.45 | |
| Rubber Ring | ||||
| 033 | 421720-7 | 7.20 | 8.71 | |
| Intermediate Plate | ||||
| 034 | 417580-3 | 2.40 | 2.90 | |
| Tap Screw 5X25 | ||||
| 035 | 266041-8 | 1.00 | 1.21 | |
| Tapping screw 5x60mm | ||||
| 035 | 266044-2 | 1.00 | 1.21 | |
| Field | ||||
| 036 | 634449-8 | 19.80 | 23.96 | |
| Field | ||||
| 037 | 638070-5 | 6.00 | 7.26 | |
| Stator spring Cb5 | ||||
| 037A | 654020-2 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 037B | 654501-6 | 0.83 | 1.00 | |
| Handle Cover | ||||
| 038 | 417579-8 | 8.40 | 10.16 | |
| Capacitor 0.22uF | ||||
| 039 | 645190-8 | 2.40 | 2.90 | |
| Capacitor 0.22uF | ||||
| 039-1 | 645190-8 | 2.40 | 2.90 | |
| Terminal block | ||||
| 040 | 654575-7 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 041 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 042 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 042 | 687124-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 042A | 687063-9 | |||
| No information available, not orderable | ||||
| 042A1 | 687052-4 | |||
| Clamp Bracket | ||||
| 042A2 | 687124-5 | 1.00 | 1.21 | |
| Power cord 2x1.00 2.2mtr | ||||
| 043 | 665383-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 043A | 666216-3 | |||
| No information available, not orderable | ||||
| 043A1 | 665865-3 | |||
| Cable grommet 8-90 | ||||
| 044 | 682503-2 | 2.40 | 2.90 | |
| Cable grommet 8-90 | ||||
| 044A | 682503-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 044A1 | 682540-6 | |||
| Switch | ||||
| 045 | 651291-2 | 8.40 | 10.16 | |
| Wire Clamp 56/5704R * | ||||
| 045A | 652257-5 | 1.00 | 1.21 | |
| Screw 3.5X7 | ||||
| 045B | 652008-6 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 046 | 152811-0 | 26.40 | 31.94 | |
| Carbon Brush holder 5X11 A | ||||
| 046A | 644501-4 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 047 | 265A48-7 | 1.00 | 1.21 | |
| Label | ||||
| 048 | 853170-2 | 3.60 | 4.36 | |
| Carbon brush set Cb-303 | ||||
| 049 | 194996-6 | 6.00 | 7.26 | |
| Carbon brush cap | ||||
| 050 | 643515-0 | 1.00 | 1.21 | |
| Screw 5x45 | ||||
| 051 | 911268-2 | 1.00 | 1.21 | |
| Base | ||||
| 052 | 168353-4 | 16.50 | 19.96 | |
| Hex lock nut 5x8 | ||||
| 053 | 252103-8 | 1.20 | 1.45 | |
| Crosshead screw M5 | ||||
| 054 | 265075-8 | 2.40 | 2.90 | |
| Bolt 8x24 | ||||
| 055 | 265965-5 | 2.40 | 2.90 | |
| Washer 6x12mm | ||||
| 056 | 941151-9 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 057 | 253903-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 058 | 265701-9 | |||
| Compression Spring 7 | ||||
| 059 | 231316-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 060 | 265701-9 | |||
| Washer 6x12mm | ||||
| 061 | 941151-9 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 062 | 253903-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 063 | 265701-9 | |||
| Washer 8 | ||||
| 064 | 941202-8 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 065 | 941202-8 | 1.00 | 1.21 | |
| Rubber Cap (1) | ||||
| 066 | 421746-9 | 1.20 | 1.45 | |
| Lever | ||||
| 067 | 344989-5 | 2.40 | 2.90 | |
| Clamping Plate | ||||
| 068 | 341415-5 | 1.00 | 1.21 | |
| Screw 4x8 | ||||
| 069 | 911109-2 | 1.00 | 1.21 | |
| NUT M8 | ||||
| 070 | 931402-8 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 071 | 257243-7 | 2.40 | 2.90 | |
| Rubber washer 13 | ||||
| 072 | 261115-0 | 2.40 | 2.90 | |
