Here you will find all available parts and drawings of the 'Makita 5143R'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

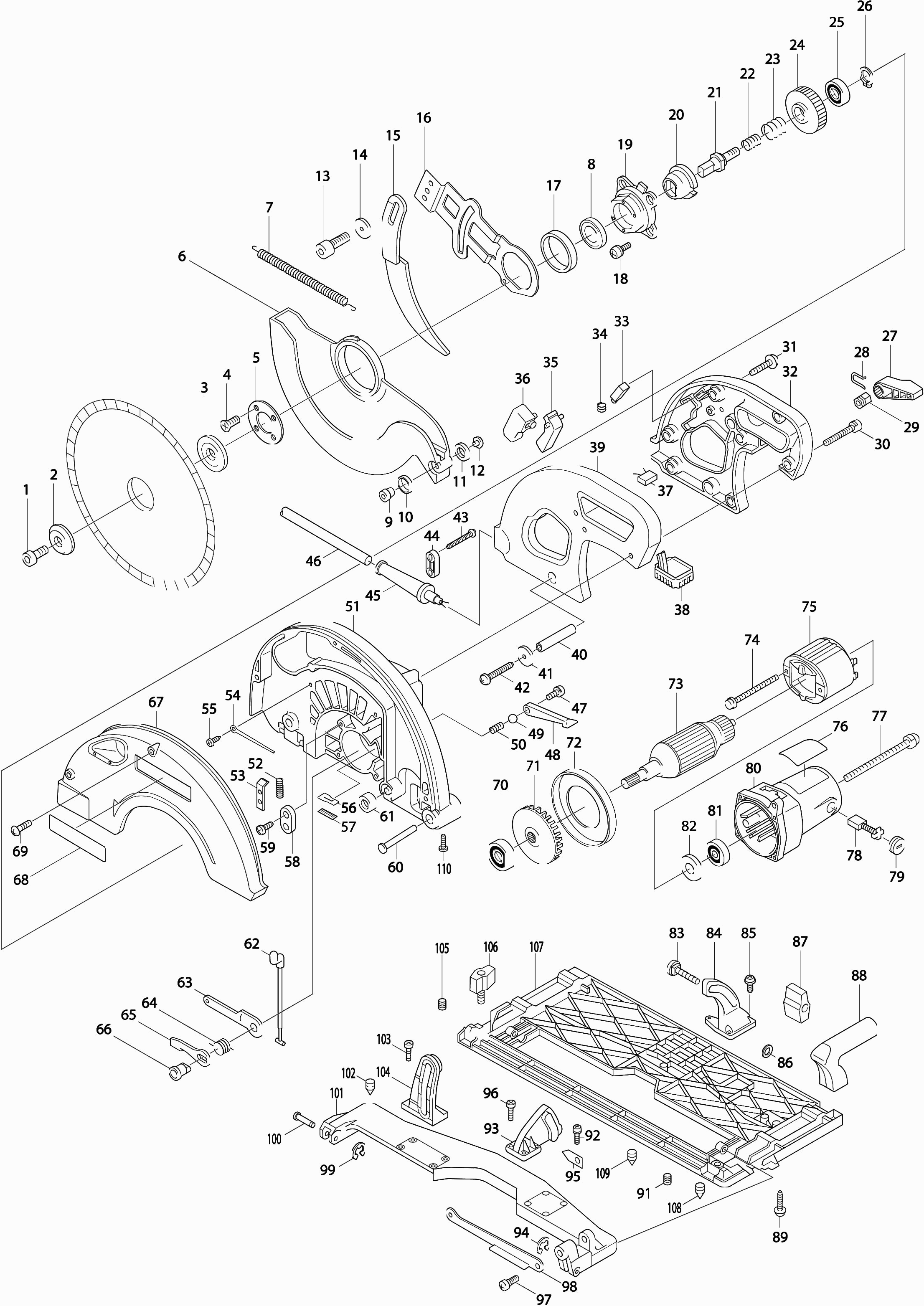

Technical drawing of model Makita 5143R
Spare parts list of model Makita 5143R
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Allen Screw 10x25 | ||||
| 001 | 266083-2 | 6.00 | 7.26 | |
| Outer Flange 65 | ||||
| 002 | 224327-6 | 16.50 | 19.96 | |
| Inside Flange 65 | ||||
| 003 | 224328-4 | 19.80 | 23.96 | |
| Countersunk Screw 5x16 | ||||
| 004 | 912221-1 | 1.00 | 1.21 | |
| Bearing Cover Plate 42-68 | ||||
| 005 | 285683-9 | 6.00 | 7.26 | |
| Spring protection cap | ||||
| 006 | 318063-5 | 55.40 | 67.03 | |
| Spring protection cap | ||||
| 006A | 318063-5 | 55.40 | 67.03 | |
| SPRING-LOADED SAFETY GUARD 5143R A | ||||
| 006B | 312F42-1 | 55.40 | 67.03 | |
| Pull Spring 8x155 | ||||
| 007 | 231842-3 | 6.00 | 7.26 | |
| Ball Bearing 6204 | ||||
| 008 | 211306-3 | 10.80 | 13.07 | |
| Guide wheel pin 6 | ||||
| 009 | 415437-2 | 1.00 | 1.21 | |
| Spring loaded guide wheel cap | ||||
| 010 | 415438-0 | 1.00 | 1.21 | |
| Spring loaded guide wheel cap | ||||
| 011 | 415438-0 | 1.00 | 1.21 | |
| Guide wheel pin 6 | ||||
| 012 | 415437-2 | 1.00 | 1.21 | |
| Allen Bolt M8x16 | ||||
| 013 | 922422-3 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 014 | 267284-5 | 1.00 | 1.21 | |
| Riving Knife | ||||
| 015 | 345751-1 | 41.80 | 50.58 | |
| Spac. wedge hol CS 70 ET-BG | ||||
| 016 | 345753-7 | 36.30 | 43.92 | |
| Compensating washer | ||||
| 017 | 344304-3 | 4.80 | 5.81 | |
| Screw 5x16 | ||||
| 018 | 911224-2 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 019 | 316753-4 | 30.80 | 37.27 | |
| Locking bushing | ||||
| 020 | 322830-2 | 34.10 | 41.26 | |
| Plunger | ||||
| 021 | 322828-9 | 36.30 | 43.92 | |
| Lock Spring 20 | ||||
| 022 | 231969-9 | 9.60 | 11.62 | |
| Lock Spring 27 | ||||
| 023 | 231968-1 | 16.50 | 19.96 | |
| Gear 57 | ||||
| 024 | 226453-7 | 83.60 | 101.16 | |
| Ball Bearing 6001 | ||||
| 025 | 211104-5 | 4.80 | 5.81 | |
| Lock washer S-12 | ||||
| 026 | 961052-5 | 1.00 | 1.21 | |
| Vergrendelhefboom | ||||
| 027 | 272230-5 | 2.40 | 2.90 | |
| Lock Spring 12 | ||||
| 028 | 231955-0 | 1.00 | 1.21 | |
| Hex nut M8 | ||||
| 029 | 252141-0 | 3.60 | 4.36 | |
| Screw 5x40 | ||||
| 030 | 911263-2 | 1.00 | 1.21 | |
| Tap Screw 5X25 | ||||
| 031 | 266041-8 | 1.00 | 1.21 | |
| Handle set | ||||
| 032 | 182773-8 | 34.10 | 41.26 | |
| Release button | ||||
| 033 | 415440-3 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 034 | 231230-4 | 1.00 | 1.21 | |
| Switch push button | ||||
| 035 | 415439-8 | 2.40 | 2.90 | |
| Switch Sw-127 | ||||
| 036 | 651923-1 | 13.20 | 15.97 | |
| Micro Switch | ||||
| 037 | 651941-9 | 3.60 | 4.36 | |
| Control Unit 5103R | ||||
| 038 | 631209-9 | 78.10 | 94.50 | |
| Handle set | ||||
| 039 | 182773-8 | 34.10 | 41.26 | |
| Sleeve 9 | ||||
| 040 | 331469-0 | 2.40 | 2.90 | |
| Washer 8 | ||||
| 041 | 941202-8 | 1.00 | 1.21 | |
| Bolt 8x98 | ||||
| 042 | 266019-1 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 043 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 044 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 044 | 687124-5 | 1.00 | 1.21 | |
| Cable grommet 8-90 | ||||
| 045 | 682503-2 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 046 | 695123-3 | 22.00 | 26.62 | |
| Screw 5x12 | ||||
| 047 | 911213-7 | 1.00 | 1.21 | |
| Clamp Lever | ||||
| 048 | 416250-1 | 6.00 | 7.26 | |
| Steel ball 7.9 | ||||
| 049 | 216004-4 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 050 | 231240-1 | 1.00 | 1.21 | |
| New Saw Cover | ||||
| 051 | 158091-6 | 132.00 | 159.72 | |
| New Saw Cover | ||||
| 051A | 158091-6 | 132.00 | 159.72 | |
| Rubber pen 6 | ||||
| 051A | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 051B | 141X04-8 | |||
| Rubber pen 6 | ||||
| 051C10 | 263005-3 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 052 | 233140-1 | 2.40 | 2.90 | |
| Blocking Plate | ||||
| 053 | 344294-0 | 6.00 | 7.26 | |
| Guide pin | ||||
| 054 | 322829-7 | 1.20 | 1.45 | |
| Tapping screw M4x12mm Ck | ||||
| 055 | 266026-4 | 1.00 | 1.21 | |
| Felt ring | ||||
| 056 | 443098-8 | 1.00 | 1.21 | |
| Label | ||||
| 057 | 344263-1 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 058 | 687124-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 058 | 687053-2 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 059 | 266034-5 | 1.00 | 1.21 | |
| Pen 10 | ||||
| 060 | 268018-9 | 6.00 | 7.26 | |
| Rubber Washer 8 | ||||
| 061 | 262007-6 | 1.20 | 1.45 | |
| Steel Wire Rod | ||||
| 062 | 353017-5 | 7.20 | 8.71 | |
| Lever | ||||
| 063 | 344295-8 | 2.40 | 2.90 | |
| Spring 23 | ||||
| 064 | 231625-1 | 2.40 | 2.90 | |
| Plate | ||||
| 065 | 344296-6 | 3.60 | 4.36 | |
| Pen 12 | ||||
| 066 | 268009-0 | 11.00 | 13.31 | |
| Cover for fixed guard | ||||
| 067 | 415817-2 | 41.80 | 50.58 | |
| Tapping screw M4x12mm Ck | ||||
| 067A | 266026-4 | 1.00 | 1.21 | |
| Tapping screw M4x12mm Ck | ||||
| 067C10 | 266026-4 | 1.00 | 1.21 | |
| Label 5143R | ||||
| 068 | 819091-8 | 2.40 | 2.90 | |
| Tapping Screw Ct5x20 | ||||
| 069 | 266036-1 | 1.00 | 1.21 | |
| Ball bearing 6002ddw | ||||
| 070 | 211236-8 | 9.60 | 11.62 | |
| Impeller 74 | ||||
| 071 | 241889-9 | 7.20 | 8.71 | |
| Intermediate Plate | ||||
| 072 | 415768-9 | 3.60 | 4.36 | |
| Armature | ||||
| 073 | 516668-7 | 106.70 | 129.11 | |
| Screw 5x90 | ||||
| 074 | 911947-2 | 2.40 | 2.90 | |
| Field (field wires) | ||||
| 075 | 596323-7 | 100.10 | 121.12 | |
| Label | ||||
| 076 | 857936-2 | 3.60 | 4.36 | |
| Screw 5x65 | ||||
| 077 | 911288-6 | 1.00 | 1.21 | |
| Carbon Brush Set CB-203 A | ||||
| 078 | 194991-6 | 7.20 | 8.71 | |
| Brush holder cap | ||||
| 079 | 643700-5 | 1.20 | 1.45 | |
| Motor House (contact spacing) | ||||
| 080A | 159843-8 | 48.40 | 58.56 | |
| Field | ||||
| 080A1 | 632542-2 | 22.00 | 26.62 | |
| Brush Holder | ||||
| 080A2 | 643707-1 | 4.80 | 5.81 | |
| Motor Housing (field wires) | ||||
| 080B | 158628-9 | 68.20 | 82.52 | |
| Brush Holder | ||||
| 080B1 | 643712-8 | 8.40 | 10.16 | |
| Stator spring | ||||
| 080B2 | 654197-3 | 1.00 | 1.21 | |
| Clamping bushing for statorv. 2mm | ||||
| 080B3 | 654502-4 | 1.00 | 1.21 | |
| Ball bearing 629llb | ||||
| 081 | 210042-8 | 2.40 | 2.90 | |
| Insulation ring | ||||
| 082 | 681633-6 | 2.40 | 2.90 | |
| Bolt 8x50 | ||||
| 083 | 923471-3 | 2.40 | 2.90 | |
| Angle Guide | ||||
| 084 | 316747-9 | 16.50 | 19.96 | |
| Angle Guide | ||||
| 084A | 316747-9 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 084B | 312F31-6 | |||
| Tapping Screw Ct5x20 | ||||
| 085 | 266036-1 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 086 | 941202-8 | 1.00 | 1.21 | |
| Wing Nut M8 | ||||
| 087 | 252626-6 | 6.00 | 7.26 | |
| Handle | ||||
| 088 | 415815-6 | 13.20 | 15.97 | |
| Tap Screw 5X25 | ||||
| 089 | 266041-8 | 1.00 | 1.21 | |
| Pen 8 | ||||
| 090 | 268013-9 | 7.20 | 8.71 | |
| Stelschroef M4x15 | ||||
| 091 | 265993-0 | 1.00 | 1.21 | |
| Tapping Screw Ct5x20 | ||||
| 092 | 266036-1 | 1.00 | 1.21 | |
| New corner plate | ||||
| 093 | 316879-2 | 11.00 | 13.31 | |
| New corner plate | ||||
| 093A | 316879-2 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 093B | 312F34-0 | |||
| Retaining ring E-6 A | ||||
| 094 | 961012-7 | 1.00 | 1.21 | |
| Stop point | ||||
| 095 | 343902-0 | 2.40 | 2.90 | |
| Tapping screw M4x12mm Ck | ||||
| 096 | 266026-4 | 1.00 | 1.21 | |
| Crosshead screw M5 | ||||
| 097 | 265011-4 | 1.20 | 1.45 | |
| Clamp | ||||
| 098 | 345722-8 | 10.80 | 13.07 | |
| Retaining ring E-6 A | ||||
| 099 | 961012-7 | 1.00 | 1.21 | |
| Pen 8 | ||||
| 100 | 268013-9 | 7.20 | 8.71 | |
| Sole Plate Holder | ||||
| 101 | 316880-7 | 82.50 | 99.82 | |
| Sole Plate Holder | ||||
| 101A | 316880-7 | 82.50 | 99.82 | |
| No information available, not orderable | ||||
| 101B | 312F41-3 | |||
| Adjusting screw M6x10mm | ||||
| 102 | 266085-8 | 1.20 | 1.45 | |
| Tapping Screw Ct5x20 | ||||
| 103 | 266036-1 | 1.00 | 1.21 | |
| Depth stop | ||||
| 104 | 316748-7 | 14.30 | 17.30 | |
| Depth stop | ||||
| 104A | 316748-7 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 104B | 312F32-4 | |||
| Stelschroef M4x15 | ||||
| 105 | 265993-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 106 | 251858-2 | |||
| Base plate 5143R | ||||
| 107 | 312F33-2 | 118.80 | 143.75 | |
| Base plate 5143R | ||||
| 107A | 312F33-2 | 118.80 | 143.75 | |
| Base plate 5143R | ||||
| 107B | 312F33-2 | 118.80 | 143.75 | |
| Adjusting screw M6x10mm | ||||
| 108 | 266085-8 | 1.20 | 1.45 | |
| Adjusting screw M6x10mm | ||||
| 109 | 266085-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 110 | 226026-4 | |||
| Gasket | ||||
| 113 | 442125-8 | 1.20 | 1.45 | |
