Here you will find all available parts and drawings of the 'Makita 5104S'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

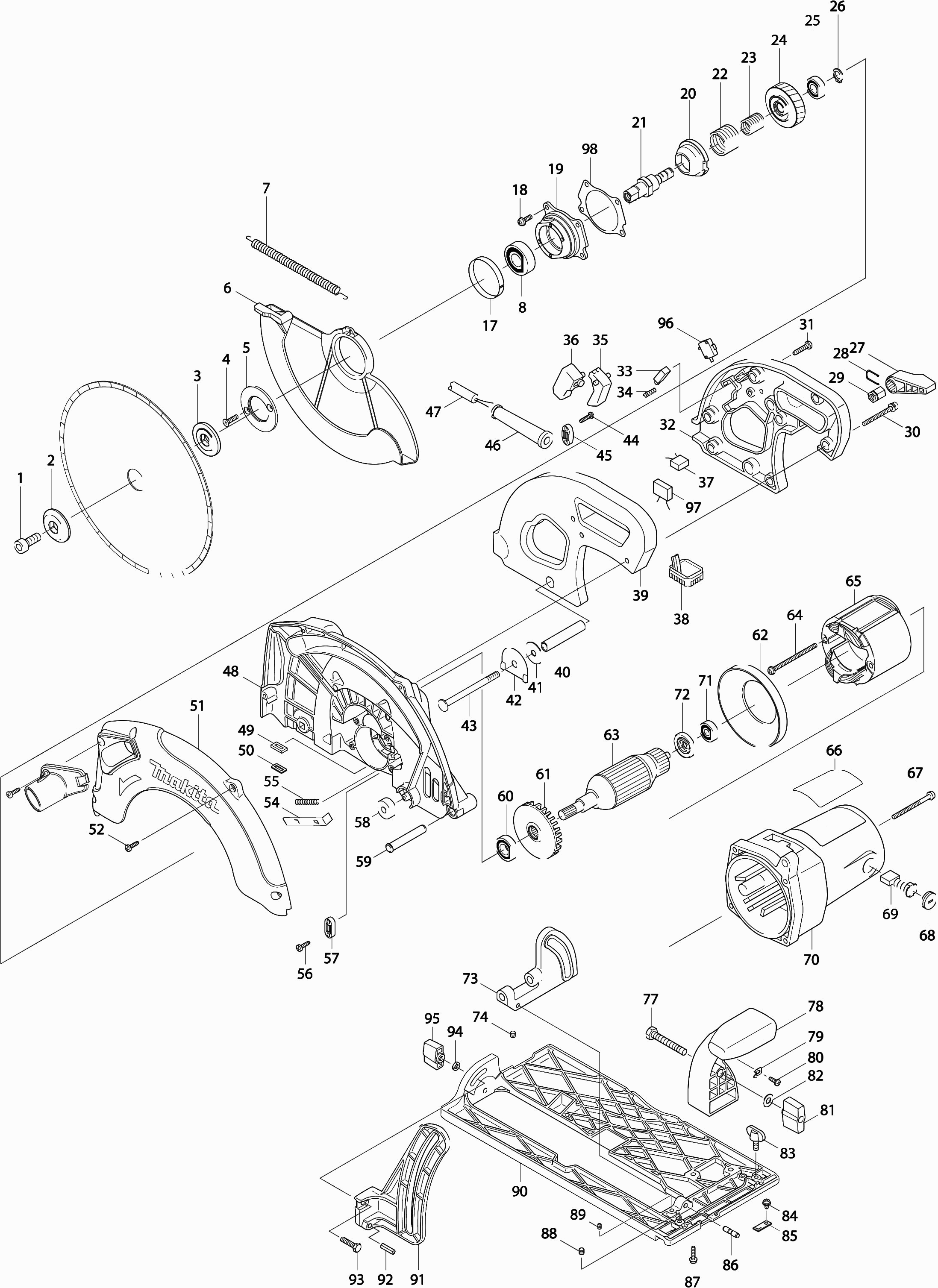

Technical drawing of model Makita 5104S
Spare parts list of model Makita 5104S
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Allen Screw 10x25 | ||||
| 001 | 266083-2 | 5.71 | 6.91 | |
| Outer Flange 45 | ||||
| 002 | 224325-0 | 10.50 | 12.70 | |
| Inner flange 45 | ||||
| 003 | 224326-8 | 11.82 | 14.30 | |
| No information available, not orderable | ||||
| 004 | 912222-9 | |||
| Bearing Lock 34-62 | ||||
| 005 | 285681-3 | 5.06 | 6.12 | |
| No information available, not orderable | ||||
| 006 | 318240-9 | |||
| No information available, not orderable | ||||
| 007 | 231850-4 | |||
| Ball bearing 6203dw | ||||
| 008 | 211278-2 | 9.24 | 11.18 | |
| Compensating washer | ||||
| 017 | 344303-5 | 3.96 | 4.79 | |
| Screw 5X16 JR3051T A | ||||
| 018 | 265C32-4 | 0.83 | 1.00 | |
| Bearing Housing | ||||
| 019 | 316709-7 | 23.06 | 27.90 | |
| Locking bushing | ||||
| 020 | 322830-2 | 33.36 | 40.37 | |
| Plunger | ||||
| 021 | 322827-1 | 36.05 | 43.62 | |
| Lock Spring 27 | ||||
| 022 | 231968-1 | 15.60 | 18.88 | |
| Lock Spring 20 | ||||
| 023 | 231969-9 | 9.24 | 11.18 | |
| Gear 39 | ||||
| 024 | 226452-9 | 38.72 | 46.85 | |
| Ball Bearing 6001 | ||||
| 025 | 211104-5 | 4.45 | 5.38 | |
| Lock washer S-12 | ||||
| 026 | 961052-5 | 0.83 | 1.00 | |
| Vergrendelhefboom | ||||
| 027 | 272230-5 | 2.02 | 2.44 | |
| Lock Spring 12 | ||||
| 028 | 231955-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 029 | 252134-7 | |||
| Screw 5x40 | ||||
| 030 | 911263-2 | 0.83 | 1.00 | |
| Tap Screw 5X25 | ||||
| 031 | 266041-8 | 0.83 | 1.00 | |
| Handle set | ||||
| 032 | 182773-8 | 33.36 | 40.37 | |
| Release button | ||||
| 033 | 415440-3 | 1.18 | 1.43 | |
| Compression Spring 4 | ||||
| 034 | 231230-4 | 0.83 | 1.00 | |
| Switch push button | ||||
| 035 | 415439-8 | 1.67 | 2.02 | |
| Switch Sw-127 | ||||
| 036 | 651923-1 | 12.22 | 14.79 | |
| Capacitor 0,1uf | ||||
| 037 | 645105-5 | 2.71 | 3.28 | |
| Control Unit 5103R | ||||
| 038 | 631209-9 | 77.67 | 93.98 | |
| Handle set | ||||
| 039 | 182773-8 | 33.36 | 40.37 | |
| Sleeve 9 | ||||
| 040 | 331469-0 | 2.02 | 2.44 | |
| Washer 8 | ||||
| 041 | 267216-2 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 042 | 232151-3 | 2.71 | 3.28 | |
| Bolt 8x98 | ||||
| 043 | 266019-1 | 2.71 | 3.28 | |
| Tap screw 4x18 | ||||
| 044 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 045 | 687053-2 | 0.83 | 1.00 | |
| Cable grommet 10-90 | ||||
| 046 | 682505-8 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 047 | 665865-3 | |||
| No information available, not orderable | ||||
| 048 | 158612-4 | |||
| Felt ring | ||||
| 049 | 443098-8 | 0.83 | 1.00 | |
| Label | ||||
| 050 | 344263-1 | 1.24 | 1.50 | |
| No information available, not orderable | ||||
| 051 | 318237-8 | |||
| Tapping Screw Ct4x16 | ||||
| 052 | 266034-5 | 0.83 | 1.00 | |
| Locking pin | ||||
| 054 | 344261-5 | 4.67 | 5.65 | |
| Compression Spring 6 5903R | ||||
| 055 | 233084-5 | 0.83 | 1.00 | |
| Tapping Screw Ct4x16 | ||||
| 056 | 266034-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 057 | 687052-4 | |||
| Rubber Washer 8 | ||||
| 058 | 262007-6 | 0.83 | 1.00 | |
| Pin 10 | ||||
| 059 | 268008-2 | 2.84 | 3.44 | |
| Ball bearing 6002ddw | ||||
| 060 | 211236-8 | 9.24 | 11.18 | |
| Impeller 74 | ||||
| 061 | 241889-9 | 6.38 | 7.72 | |
| Intermediate Plate | ||||
| 062 | 415768-9 | 2.71 | 3.28 | |
| Armature | ||||
| 063 | 516653-0 | 105.70 | 127.90 | |
| Screw 5x80 | ||||
| 064 | 911944-8 | 1.18 | 1.43 | |
| Field (field wires) | ||||
| 065 | 596318-0 | 82.76 | 100.14 | |
| Screw 5x65 | ||||
| 067 | 911288-6 | 0.83 | 1.00 | |
| Brush holder cap | ||||
| 068 | 643700-5 | 0.98 | 1.19 | |
| Koolborstel Set Cb-203 A | ||||
| 069 | 194991-6 | 6.38 | 7.72 | |
| No information available, not orderable | ||||
| 070 | 158613-2 | |||
| Ball bearing 629llb | ||||
| 071 | 210042-8 | 2.36 | 2.86 | |
| Insulation ring | ||||
| 072 | 681633-6 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 073 | 318262-9 | |||
| Allen bolt M6X6 A | ||||
| 074 | 265A21-7 | 0.83 | 1.00 | |
| Hexagonal bolt 8x55 | ||||
| 077 | 921477-5 | 0.98 | 1.19 | |
| Depth stop | ||||
| 078 | 415722-3 | 12.22 | 14.79 | |
| Indicator Plate | ||||
| 079 | 816128-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 080 | 266020-6 | |||
| Wing Nut M8 | ||||
| 081 | 252626-6 | 5.34 | 6.46 | |
| Washer 8 | ||||
| 082 | 941202-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 083 | 265701-9 | |||
| Screw 4x8 | ||||
| 084 | 911109-2 | 0.83 | 1.00 | |
| Saw indicator plate | ||||
| 085 | 415433-0 | 0.83 | 1.00 | |
| Pin 6 | ||||
| 086 | 256231-1 | 0.83 | 1.00 | |
| Tapschroef 5x20 | ||||
| 087 | 266021-4 | 0.83 | 1.00 | |
| Allen bolt M6X6 A | ||||
| 088 | 265A21-7 | 0.83 | 1.00 | |
| Stelschroef M4x15 | ||||
| 089 | 265993-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 090 | 318238-6 | |||
| No information available, not orderable | ||||
| 091 | 318239-4 | |||
| Tension Pin 6-20 | ||||
| 092 | 951210-1 | 0.83 | 1.00 | |
| Hex bolt 6x25 | ||||
| 093 | 921342-8 | 0.83 | 1.00 | |
| Washer 6x12mm | ||||
| 094 | 941151-9 | 0.83 | 1.00 | |
| Wing nut M6 | ||||
| 095 | 252624-0 | 1.67 | 2.02 | |
| Micro Switch | ||||
| 096 | 651941-9 | 3.12 | 3.78 | |
| No information available, not orderable | ||||
| 097 | 645200-1 | |||
| No information available, not orderable | ||||
| 098 | 442142-8 | |||
