Here you will find all available parts and drawings of the 'Makita 5103R'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

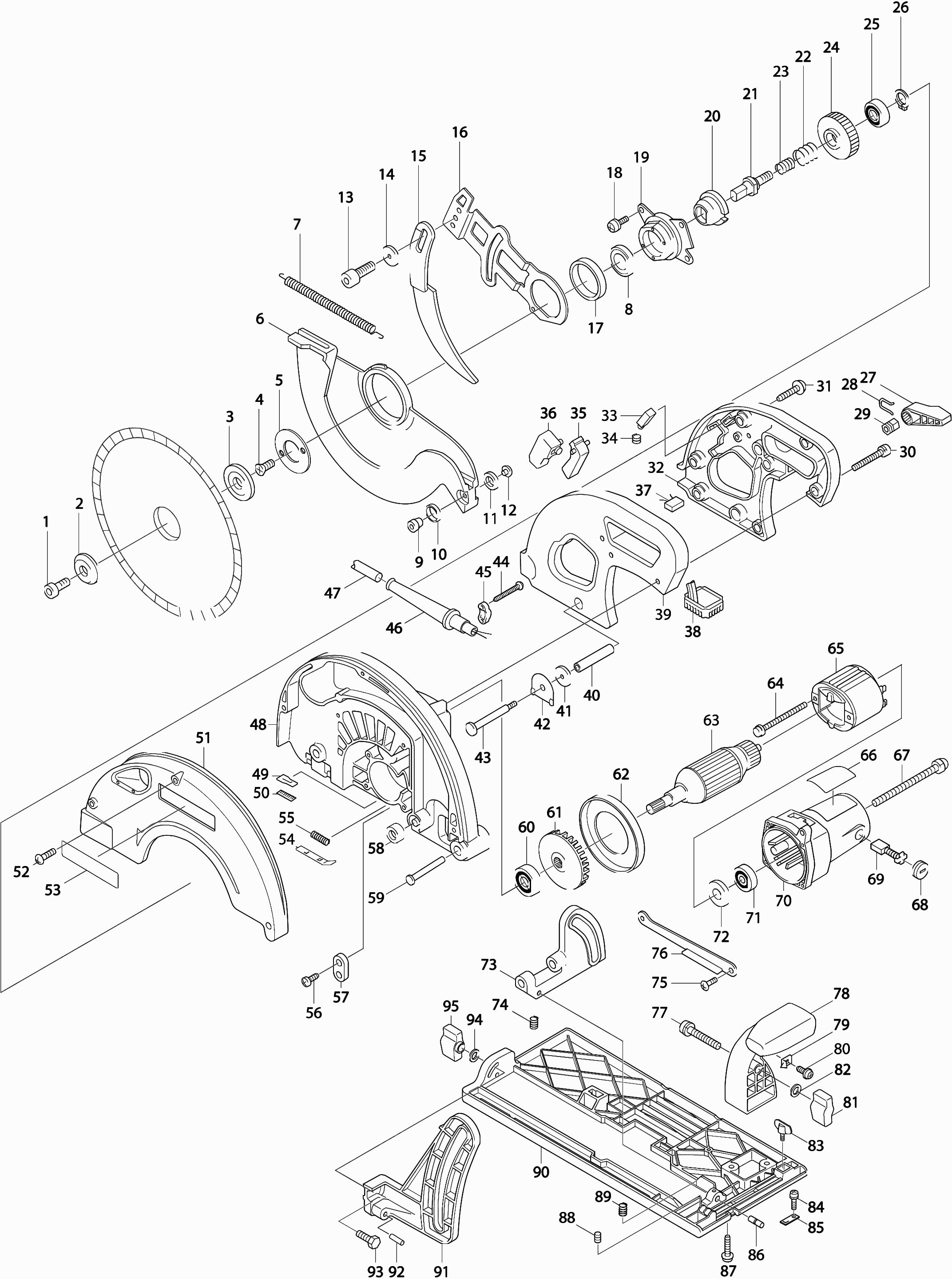

Technical drawing of model Makita 5103R
Spare parts list of model Makita 5103R
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Allen Screw 10x25 | ||||
| 001 | 266083-2 | 6.00 | 7.26 | |
| Outer Flange 45 | ||||
| 002 | 224325-0 | 10.80 | 13.07 | |
| Inner flange 45 | ||||
| 003 | 224326-8 | 11.00 | 13.31 | |
| Countersunk Screw 5x16 | ||||
| 004 | 912221-1 | 1.00 | 1.21 | |
| Bearing Lock 34-62 | ||||
| 005 | 285681-3 | 6.00 | 7.26 | |
| VERENDE BESCHERMKAP 5103R A | ||||
| 006 | 312E54-8 | 39.60 | 47.92 | |
| No information available, not orderable | ||||
| 007 | 231804-1 | |||
| Ball bearing 6203dw | ||||
| 008 | 211278-2 | 9.60 | 11.62 | |
| Guide wheel pin 6 | ||||
| 009 | 415437-2 | 1.00 | 1.21 | |
| Spring loaded guide wheel cap | ||||
| 010 | 415438-0 | 1.00 | 1.21 | |
| Spring loaded guide wheel cap | ||||
| 011 | 415438-0 | 1.00 | 1.21 | |
| Guide wheel pin 6 | ||||
| 012 | 415437-2 | 1.00 | 1.21 | |
| Allen Bolt M8x16 | ||||
| 013 | 922422-3 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 014 | 253814-8 | 1.20 | 1.45 | |
| Riving Knife | ||||
| 015 | 345750-3 | 30.80 | 37.27 | |
| Spac. wedge hol CS 70 ET-BG | ||||
| 016 | 345752-9 | 30.80 | 37.27 | |
| Compensating washer | ||||
| 017 | 344303-5 | 4.80 | 5.81 | |
| Screw 5x16 | ||||
| 018 | 911224-2 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 019 | 316709-7 | 23.10 | 27.95 | |
| Locking bushing | ||||
| 020 | 322830-2 | 34.10 | 41.26 | |
| Plunger | ||||
| 021 | 322827-1 | 36.30 | 43.92 | |
| Lock Spring 27 | ||||
| 022 | 231968-1 | 16.50 | 19.96 | |
| Lock Spring 20 | ||||
| 023 | 231969-9 | 9.60 | 11.62 | |
| Gear 39 | ||||
| 024 | 226452-9 | 39.60 | 47.92 | |
| Ball Bearing 6001 | ||||
| 025 | 211104-5 | 4.80 | 5.81 | |
| Lock washer S-12 | ||||
| 026 | 961052-5 | 1.00 | 1.21 | |
| Vergrendelhefboom | ||||
| 027 | 272230-5 | 2.40 | 2.90 | |
| Lock Spring 12 | ||||
| 028 | 231955-0 | 1.00 | 1.21 | |
| Hex nut M8 | ||||
| 029 | 252141-0 | 3.60 | 4.36 | |
| Screw 5x40 | ||||
| 030 | 911263-2 | 1.00 | 1.21 | |
| Tap Screw 5X25 | ||||
| 031 | 266041-8 | 1.00 | 1.21 | |
| Handle set | ||||
| 032 | 182773-8 | 34.10 | 41.26 | |
| Release button | ||||
| 033 | 415440-3 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 034 | 231230-4 | 1.00 | 1.21 | |
| Switch push button | ||||
| 035 | 415439-8 | 2.40 | 2.90 | |
| Switch Sw-127 | ||||
| 036 | 651923-1 | 13.20 | 15.97 | |
| Micro Switch | ||||
| 036A | 651941-9 | 3.60 | 4.36 | |
| Capacitor 0.22uF | ||||
| 037 | 645190-8 | 2.40 | 2.90 | |
| Control Unit 5103R | ||||
| 038 | 631209-9 | 78.10 | 94.50 | |
| Sleeve 9 | ||||
| 040 | 331469-0 | 2.40 | 2.90 | |
| Washer 8 | ||||
| 041 | 253814-8 | 1.20 | 1.45 | |
| Leaf Spring | ||||
| 042 | 232151-3 | 3.60 | 4.36 | |
| Bolt 8x98 | ||||
| 043 | 266019-1 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 044 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 045 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 045 | 687124-5 | 1.00 | 1.21 | |
| Cable grommet 8-90 | ||||
| 046 | 682503-2 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 047 | 695123-3 | 22.00 | 26.62 | |
| FIXED PROTECTIVE COVER | ||||
| 048 | 158090-8 | 105.70 | 127.90 | |
| Rubber pen 6 | ||||
| 048A | 263005-3 | 1.00 | 1.21 | |
| Felt ring | ||||
| 049 | 443098-8 | 1.00 | 1.21 | |
| Label | ||||
| 050 | 344263-1 | 2.40 | 2.90 | |
| Cover for fixed hood | ||||
| 051 | 316705-5 | 28.60 | 34.61 | |
| Tapping Screw Ct5x20 | ||||
| 052 | 266036-1 | 1.00 | 1.21 | |
| Locking pin | ||||
| 054 | 344261-5 | 4.80 | 5.81 | |
| Compression Spring 6 5903R | ||||
| 055 | 233084-5 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 056 | 266034-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 057 | 687124-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 057 | 687053-2 | 1.00 | 1.21 | |
| Rubber Washer 8 | ||||
| 058 | 262007-6 | 1.20 | 1.45 | |
| Pin 10 | ||||
| 059 | 268008-2 | 3.60 | 4.36 | |
| Ball bearing 6002ddw | ||||
| 060 | 211236-8 | 9.60 | 11.62 | |
| Impeller 74 | ||||
| 061 | 241889-9 | 7.20 | 8.71 | |
| Intermediate Plate | ||||
| 062 | 415768-9 | 3.60 | 4.36 | |
| Armature | ||||
| 063 | 516653-0 | 106.70 | 129.11 | |
| Armature | ||||
| 063A | 516653-0 | 106.70 | 129.11 | |
| No information available, not orderable | ||||
| 063B | 516651-4 | |||
| Screw 5x80 | ||||
| 064 | 911944-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 065 | 636113-7 | |||
| Field (field wires) | ||||
| 065A | 596318-0 | 83.60 | 101.16 | |
| Stator spring | ||||
| 065A1 | 654197-3 | 1.00 | 1.21 | |
| Clamping bushing for statorv. 2mm | ||||
| 065A2 | 654502-4 | 1.00 | 1.21 | |
| Field (field wires) | ||||
| 065B | 596318-0 | 83.60 | 101.16 | |
| Stator spring | ||||
| 065BC10 | 654197-3 | 1.00 | 1.21 | |
| Clamping bushing for statorv. 2mm | ||||
| 065BC20 | 654502-4 | 1.00 | 1.21 | |
| FIELD 110V 5103R * | ||||
| 065C | 596316-4 | 61.60 | 74.54 | |
| Screw 5x65 | ||||
| 067 | 911288-6 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 068 | 643700-5 | 1.20 | 1.45 | |
| Carbon Brush Set CB-203 A | ||||
| 069 | 194991-6 | 7.20 | 8.71 | |
| Motor House (contact spacing) | ||||
| 070 | 159843-8 | 48.40 | 58.56 | |
| Brush Holder | ||||
| 070-1 | 643707-1 | 4.80 | 5.81 | |
| Field | ||||
| 070-2 | 632542-2 | 22.00 | 26.62 | |
| Motor Housing (field wires) | ||||
| 070A | 158628-9 | 68.20 | 82.52 | |
| Brush Holder | ||||
| 070A1 | 643712-8 | 8.40 | 10.16 | |
| Ball bearing 629llb | ||||
| 071 | 210042-8 | 2.40 | 2.90 | |
| Insulation ring | ||||
| 072 | 681633-6 | 2.40 | 2.90 | |
| Angle Guide | ||||
| 073 | 316779-6 | 28.60 | 34.61 | |
| Allen bolt M6X6 A | ||||
| 074 | 265A21-7 | 1.00 | 1.21 | |
| Crosshead screw 4x11 | ||||
| 075 | 265028-7 | 1.20 | 1.45 | |
| Lever | ||||
| 076 | 152511-2 | 8.40 | 10.16 | |
| Hexagonal bolt 8x55 | ||||
| 077 | 921477-5 | 1.20 | 1.45 | |
| Depth stop | ||||
| 078 | 415722-3 | 13.20 | 15.97 | |
| Indicator Plate | ||||
| 079 | 816128-2 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 080 | 265A48-7 | 1.00 | 1.21 | |
| Wing Nut M8 | ||||
| 081 | 252626-6 | 6.00 | 7.26 | |
| Washer 8 | ||||
| 082 | 941202-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 083 | 251858-2 | |||
| Screw 4x8 | ||||
| 084 | 911109-2 | 1.00 | 1.21 | |
| Saw indicator plate | ||||
| 085 | 415433-0 | 1.20 | 1.45 | |
| Pin 6 | ||||
| 086 | 256231-1 | 1.00 | 1.21 | |
| Tapschroef 5x20 | ||||
| 087 | 266021-4 | 1.20 | 1.45 | |
| Allen bolt M6X6 A | ||||
| 088 | 265A21-7 | 1.00 | 1.21 | |
| Stelschroef M4x15 | ||||
| 089 | 265993-0 | 1.00 | 1.21 | |
| Foot pad | ||||
| 090 | 312E51-4 | 78.10 | 94.50 | |
| Depth stop | ||||
| 091 | 316708-9 | 22.00 | 26.62 | |
| Tension Pin 6-20 | ||||
| 092 | 951210-1 | 1.00 | 1.21 | |
| Hex bolt 6x25 | ||||
| 093 | 921342-8 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 094 | 941151-9 | 1.00 | 1.21 | |
| Wing nut M6 | ||||
| 095 | 252624-0 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 110V | 516651-4 | |||
| FIELD 110V 5103R * | ||||
| 1110V | 596316-4 | 61.60 | 74.54 | |
