Here you will find all available parts and drawings of the 'Makita 5017RKB'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

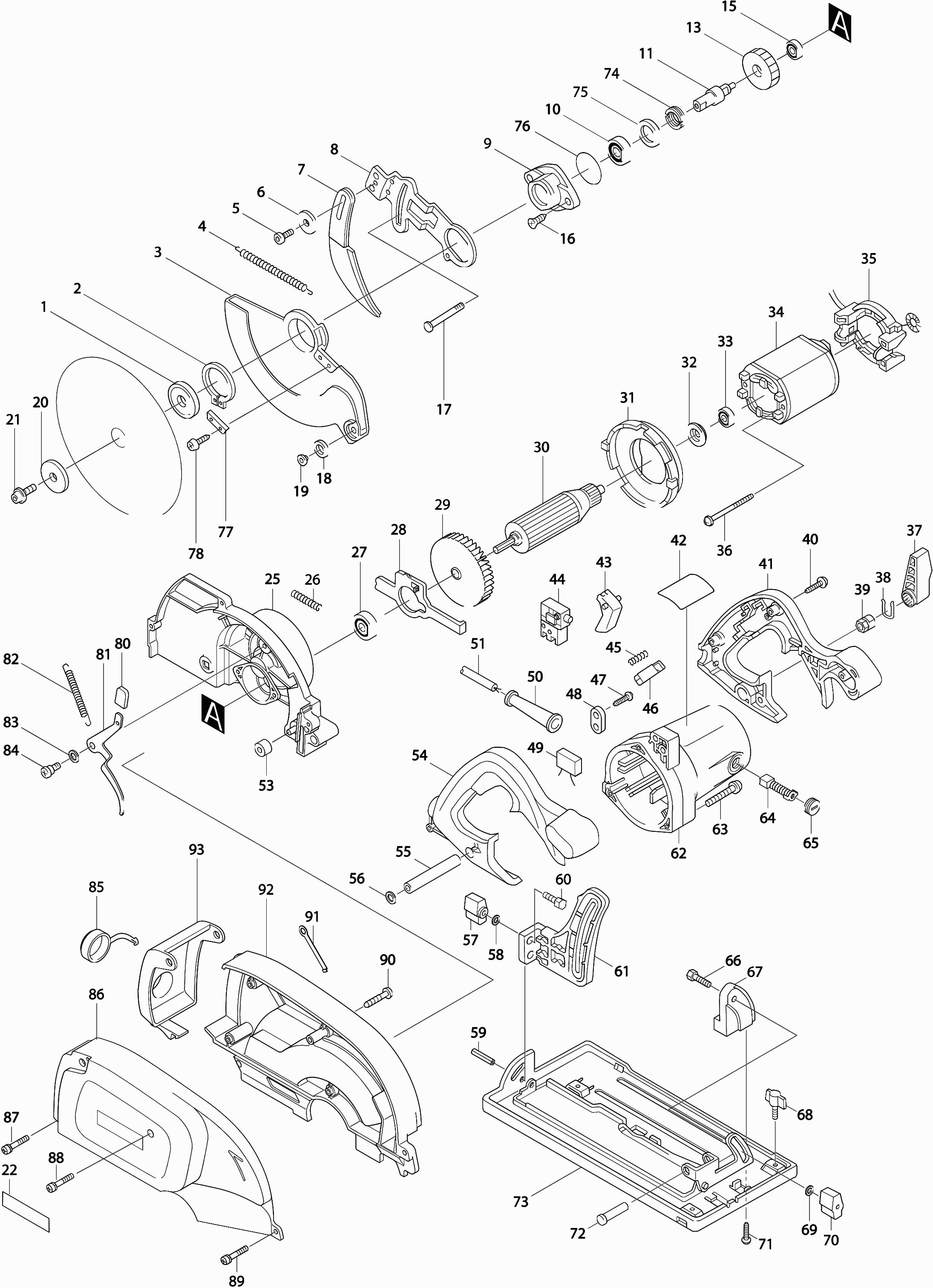

Technical drawing of model Makita 5017RKB

Spare parts list of model Makita 5017RKB

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Inner Flange 40
001 224339-9 5.06 6.12
Lock Ring S-40
002 961156-3 1.39 1.68
Spring protection cap
003 318077-4 26.55 32.13
Spring protection cap
003-1 318077-4 26.55 32.13
Compression Spring 4
004 231844-9 2.02 2.44
Compression Spring 4
004-1 231827-9 2.02 2.44
Pull Spring 4x72mm
004-2 231845-7 0.83 1.00
Hex socket head screw M6x12
005 922312-0 0.83 1.00
Washer 6
006 253783-3 0.98 1.19
Riving Knife
007 165094-3 19.23 23.27
No information available, not orderable
007-1 165623-2
Spac. wedge hol CS 70 ET-BG
008 345733-3 29.35 35.51
Spac. wedge hol CS 70 ET-BG
008-1 345733-3 29.35 35.51
Bearing Housing
009 317469-4 9.67 11.70
Ball bearing 6002ddw
010 211236-8 9.24 11.18
Ball bearing 6002ddw
010-1 211236-8 9.24 11.18
Saw axis 5703R New A
011 322922-7 3.72 4.50
Gear 41
013 226473-1 14.48 17.52
Ball Bearing
015 211034-0 3.72 4.50
Ball Bearing
015-1 211034-0 3.72 4.50
Countersunk screw 5x13
016 265034-2 0.83 1.00
Bolt 8x98
017 266019-1 2.71 3.28
Spring loaded guide wheel cap
018 415438-0 0.83 1.00
Guide wheel pin 6
019 415437-2 0.83 1.00
Outside Flange 40 new
020 224338-1 6.41 7.76
Hex Socket Head Cap Screw
021 266139-1 1.20 1.45
Label "makita"
022 819064-1 0.83 1.00
FIXED PROTECTIVE COVER
025 152635-4 55.40 67.03
No information available, not orderable
025-1 158087-7
Compression Spring 5
026 233092-6 0.83 1.00
Ball Bearing 6201dw1
027 211129-9 7.22 8.74
Spindle locking 5603R
028 344114-8 3.28 3.97
Impeller 76
029 241876-8 3.96 4.79
Armature
030 516418-0 111.57 135.00
Armature
030A 516418-0 111.57 135.00
Intermediate Plate
031 415460-7 1.75 2.12
Insulation ring
032 681625-5 0.83 1.00
Ball Bearing 608ddw
033 210005-4 4.45 5.38
Field
034 634373-5 41.77 50.54
Field
034A 634373-5 41.77 50.54
Welding Connection Unit 5603R A
035 135793-1 6.38 7.72
Welding Connection Unit 5603R A
035-1 135793-1 6.38 7.72
Stator spring Cb5
035A 654020-2 0.83 1.00
Clamping bushing for statorv. 1.25mm
035B 654501-6 0.83 1.00
Tapping screw Pt 5x65
036 266029-8 1.67 2.02
Vergrendelhefboom
037 272230-5 2.02 2.44
Lock Spring 12
038 231955-0 0.83 1.00
Hex nut M8
039 252141-0 3.12 3.78
Tap Screw 5X25
040 266041-8 0.83 1.00
Handle set
041 182675-8 12.19 14.75
No longer available, no replacement
042 852757-7
Switch push button
043 415439-8 1.67 2.02
Switch Sw-131
044 651922-3 11.82 14.30
Compression Spring 4
045 231230-4 0.83 1.00
Release button
046 415440-3 1.18 1.43
Tap screw 4x18
047 265A48-7 0.83 1.00
Clamp Bracket
048 687053-2 0.83 1.00
Capacitor 0.22uF
049 645190-8 2.36 2.86
No information available, not orderable
049-2 645142-9
Cable grommet 10-90
050 682505-8 1.67 2.02
Cable grommet 8-90
050 682503-2 1.39 1.68
Power cord 2x1.00 2.2mtr
051 665383-1 10.50 12.70
Rubber Ring 6 Bsr730 *
053 262550-5 0.83 1.00
Rubber bush 6
053-1 262511-5 0.83 1.00
Handle set
054 182675-8 12.19 14.75
Spacer
055 331432-3 2.02 2.44
Washer 8
056 941202-8 0.83 1.00
Wing nut M6
057 252624-0 1.67 2.02
Washer 6x12mm
058 941151-9 0.83 1.00
Tension Pin 6-16
059 951204-6 0.83 1.00
Bolt M6X20
060 921332-1 0.83 1.00
Depth stop
061 316578-6 15.60 18.88
Motor Housing
062 159714-9 21.23 25.69
Screw 5x55
063 911278-9 0.83 1.00
Carbon brush set Cb-303
064 194996-6 5.06 6.12
Koolborstelhouderdop
065 643750-0 0.83 1.00
Bolt M6X20
066 921332-1 0.83 1.00
Miter plate
067 415443-7 3.54 4.28
Wing Bolt 6x10
068 924306-1 0.83 1.00
Washer 6x12mm
069 941151-9 0.83 1.00
Wing nut M6
070 252624-0 1.67 2.02
Tap screw 4x18
071 265A48-7 0.83 1.00
Pin 10
072 256690-9 1.99 2.41
Base
073 168352-6 22.36 27.06
Base
073-1 168352-6 22.36 27.06
Bearing sheet
074 285831-0 4.67 5.65
Washer 22
075 267126-3 0.98 1.19
O-ring 44
076 213560-5 1.18 1.43
Support Plate
077 344944-7 2.36 2.86
Tapping screw M4x12mm Ck
078 266026-4 0.83 1.00
RUBBER CAP FOR BAR
080 421676-4 0.83 1.00
Bow
081 344945-5 9.26 11.20
Compression Spring 4
082 231823-7 1.39 1.68
Washer 8
083 941202-8 0.83 1.00
Screw M6
084 251267-5 0.83 1.00
Covering hood
085 421362-7 1.39 1.68
Dust extraction hood compl.
086 183288-8 21.08 25.51
Screw 5x28
087 911248-8 0.83 1.00
Screw 5x55
088 911278-9 0.83 1.00
Screw 5x28
089 911248-8 0.83 1.00
No information available, not orderable
090 265999-8
Ground Plate
091 344943-9 1.39 1.68
Dust extraction hood compl.
092 183288-8 21.08 25.51
Dust cover cap
093 417384-3 4.67 5.65
