Here you will find all available parts and drawings of the 'Makita 447L'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

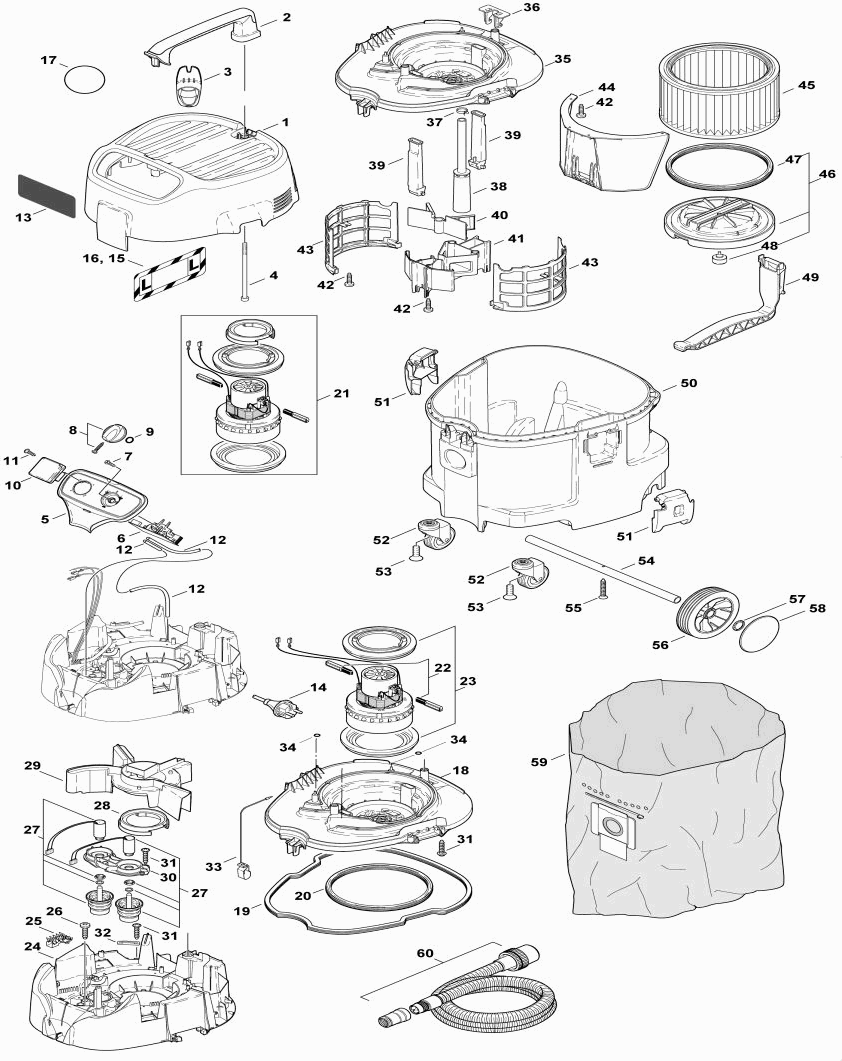

Technical drawing of model Makita 447L
Spare parts list of model Makita 447L
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Top deck | ||||
| 001 | W302001398 | 130.90 | 158.39 | |
| Handle | ||||
| 002 | W107402650 | 26.40 | 31.94 | |
| Cable Cleat | ||||
| 003 | W302000380 | 9.60 | 11.62 | |
| Bolt M6x140mm | ||||
| 004 | W909100084 | 4.80 | 5.81 | |
| Switch box | ||||
| 005 | W302001330 | 38.50 | 46.58 | |
| Switch | ||||
| 006 | W302000853 | 223.30 | 270.19 | |
| Screw 4x12 | ||||
| 007 | W18274 | 4.80 | 5.81 | |
| Rotary knob ABB OHYS2AJ | ||||
| 008 | W909100222 | 7.20 | 8.71 | |
| Gasket | ||||
| 009 | W9868 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 010 | W302000151 | |||
| Screw 3.5x18 | ||||
| 011 | W11256 | 4.80 | 5.81 | |
| Cable 447l | ||||
| 012 | W11379 | 8.40 | 10.16 | |
| Label | ||||
| 013 | W302000955 | 6.00 | 7.26 | |
| Power cord 3x1.5 7.5mtr 446L A | ||||
| 014 | W107400573 | 63.80 | 77.20 | |
| Power cord 3x1.5x5mtr Ra | ||||
| 014 | 695350-2 | 31.90 | 38.60 | |
| Warning Label | ||||
| 015 | W302000230 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 016 | W302000231 | |||
| No information available, not orderable | ||||
| 017 | W60995 | |||
| Motor support | ||||
| 018 | W302000511 | 81.40 | 98.49 | |
| Gasket | ||||
| 019 | W302000637 | 20.90 | 25.29 | |
| Filter gasket | ||||
| 020 | W302000697 | 10.80 | 13.07 | |
| Motor | ||||
| 021 | W49594 | 248.60 | 300.81 | |
| Carbon brush set L83-f13a | ||||
| 022 | W49625 | 46.20 | 55.90 | |
| Motor support | ||||
| 023 | W42538 | 27.50 | 33.28 | |
| Motor Cover Cap | ||||
| 024 | W107402639 | 62.70 | 75.87 | |
| Distributor | ||||
| 025 | W302000755 | 2.40 | 2.90 | |
| Screw 5x20 | ||||
| 026 | W909100138 | 1.20 | 1.45 | |
| Magnet | ||||
| 027 | W107402635 | 124.30 | 150.40 | |
| Compensating washer | ||||
| 028 | W47036 | 10.80 | 13.07 | |
| Air distributor | ||||
| 029 | W302000373 | 13.20 | 15.97 | |
| Holder | ||||
| 030 | W302000388 | 16.50 | 19.96 | |
| Screw 3.5x18 | ||||
| 031 | W11256 | 4.80 | 5.81 | |
| Plate | ||||
| 032 | W5697 | 4.80 | 5.81 | |
| Clip | ||||
| 033 | W61174 | 13.20 | 15.97 | |
| Gasket | ||||
| 034 | W62359 | 4.80 | 5.81 | |
| Motor support | ||||
| 035 | W302000511 | 81.40 | 98.49 | |
| FIXING CLAMP 447L A | ||||
| 036 | W107413313 | 9.60 | 11.62 | |
| Clamp ring | ||||
| 037 | W909100137 | 4.80 | 5.81 | |
| Pipe 447L | ||||
| 038 | W303000516 | 26.40 | 31.94 | |
| Support | ||||
| 039 | W302000514 | 19.80 | 23.96 | |
| BEATER 447L A | ||||
| 040 | W107412690 | 39.60 | 47.92 | |
| No information available, not orderable | ||||
| 041 | W302000386 | |||
| Screw 5x20 | ||||
| 042 | W909100138 | 1.20 | 1.45 | |
| Filter plate | ||||
| 043 | W302000385 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 044 | W302000383 | |||
| FIJNSTOFFILTER STOFZUIGER | ||||
| 045 | P-70225 | 46.00 | 55.66 | |
| No information available, not orderable | ||||
| 046 | W302000844 | |||
| Filter gasket | ||||
| 047 | W302000697 | 10.80 | 13.07 | |
| Knob | ||||
| 048 | W302000515 | 8.40 | 10.16 | |
| Filter Bracket | ||||
| 049 | W107402651 | 45.10 | 54.57 | |
| Catch container | ||||
| 050 | W302001309 | 130.90 | 158.39 | |
| Lock | ||||
| 051 | W302000349 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 052 | W302000682 | |||
| Screw M8X25mm 447L | ||||
| 053 | W909100164 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 054 | W302000636 | |||
| Screw | ||||
| 055 | W909100085 | 6.00 | 7.26 | |
| Rear wheel | ||||
| 056 | W302000639 | 13.20 | 15.97 | |
| Rivet | ||||
| 057 | W47302 | 4.80 | 5.81 | |
| Wheel cover cap | ||||
| 058 | W302001322 | 2.40 | 2.90 | |
| PAPIEREN STOFZAK 20L STOFZUIGER | ||||
| 059 | P-70203 | 42.00 | 50.82 | |
