Here you will find all available parts and drawings of the 'Makita 4331D'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

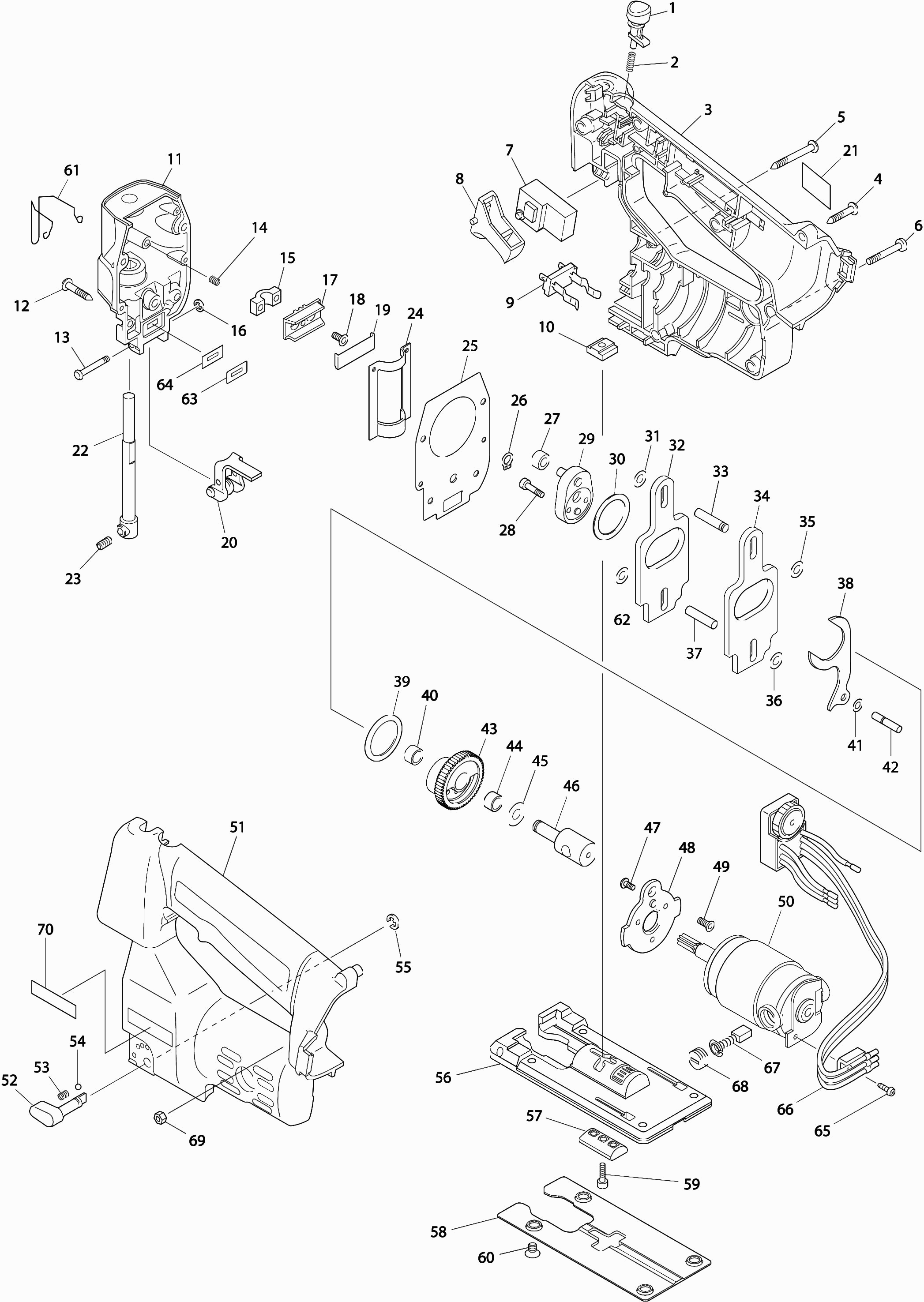

Technical drawing of model Makita 4331D
Spare parts list of model Makita 4331D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 001 | 416644-0 | |||
| DRUKVEER 4 UC120DW A | ||||
| 002 | 233194-8 | 1.00 | 1.21 | |
| Motor Housing Set 4331Dw * | ||||
| 003 | 183267-6 | 36.30 | 43.92 | |
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| Self Tapping Screw Pt4x30 | ||||
| 005 | 266050-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006 | 265999-8 | |||
| Switch Tg73Bd 4331Dw * | ||||
| 007 | 651976-0 | 15.40 | 18.63 | |
| Switch handle | ||||
| 008 | 416642-4 | 2.40 | 2.90 | |
| Battery clamp | ||||
| 009 | 643918-8 | 8.40 | 10.16 | |
| Sole Plate Holder | ||||
| 010 | 164749-7 | 2.40 | 2.90 | |
| Inner Cover | ||||
| 011 | 153391-9 | 42.90 | 51.91 | |
| Glijlager 8 | ||||
| 011A | 214005-6 | 1.20 | 1.45 | |
| Slide Bearing 10 | ||||
| 011B | 214061-6 | 2.40 | 2.90 | |
| Spring pin 3-12 | ||||
| 011C | 951057-3 | 1.00 | 1.21 | |
| Seal 8 | ||||
| 011D | 421821-1 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 012 | 265A48-7 | 1.00 | 1.21 | |
| Pin 4 | ||||
| 013 | 256693-3 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 014 | 231314-8 | 1.00 | 1.21 | |
| Bridge Holder | ||||
| 015 | 316608-3 | 11.00 | 13.31 | |
| Stopring E-3 | ||||
| 016 | 961017-7 | 1.00 | 1.21 | |
| New bridge | ||||
| 017 | 310028-3 | 12.10 | 14.64 | |
| Phillips Screw 4x10 | ||||
| 018 | 265035-0 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 019 | 344232-2 | 1.20 | 1.45 | |
| Support wheel compl. | ||||
| 020 | 152947-5 | 14.30 | 17.30 | |
| Pin 4 | ||||
| 020A | 268074-9 | 2.40 | 2.90 | |
| ROLLER | ||||
| 020B | 152950-6 | 8.40 | 10.16 | |
| Stopring E-3 | ||||
| 020C | 961017-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 021 | 852646-6 | |||
| Plunger | ||||
| 022 | 165089-6 | 59.40 | 71.87 | |
| Hex socket head bolt M6x8 | ||||
| 023 | 265894-2 | 1.00 | 1.21 | |
| Guide Plate | ||||
| 024 | 344137-6 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 025 | 421692-6 | |||
| Lock ring S-8 | ||||
| 026 | 961004-6 | 1.00 | 1.21 | |
| Needle Bearing 607 | ||||
| 027 | 212010-7 | 13.20 | 15.97 | |
| Hexagon socket bolt M4x16 | ||||
| 028 | 922126-7 | 1.00 | 1.21 | |
| Eccentric | ||||
| 029 | 152454-8 | 9.60 | 11.62 | |
| Washer 26 | ||||
| 030 | 253792-2 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 031 | 253715-0 | 1.20 | 1.45 | |
| Balance plate 4331Dw * | ||||
| 032 | 344792-4 | 8.40 | 10.16 | |
| Pin 6 4331Dw * | ||||
| 033 | 256289-0 | 2.40 | 2.90 | |
| Balance plate 4331Dw * | ||||
| 034 | 344792-4 | 8.40 | 10.16 | |
| Washer 6 | ||||
| 035 | 253715-0 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 036 | 253715-0 | 1.20 | 1.45 | |
| Pin 6 4331Dw * | ||||
| 037 | 256143-8 | 1.20 | 1.45 | |
| Pressure plate 4304 | ||||
| 038 | 344134-2 | 4.80 | 5.81 | |
| Washer 26 | ||||
| 039 | 253792-2 | 1.00 | 1.21 | |
| Needle Bearing 810 | ||||
| 040 | 212043-2 | 3.60 | 4.36 | |
| Lock washer 5 | ||||
| 041 | 253811-4 | 1.00 | 1.21 | |
| Pen 5 * | ||||
| 042 | 256235-3 | 1.00 | 1.21 | |
| Gear 51 | ||||
| 043 | 226428-6 | 23.10 | 27.95 | |
| Needle Bearing 810 | ||||
| 044 | 212043-2 | 3.60 | 4.36 | |
| Washer 8x0.5mm | ||||
| 045 | 253139-0 | 1.00 | 1.21 | |
| Pin 8 4331Dw * | ||||
| 046 | 256288-2 | 13.20 | 15.97 | |
| Self-tapping screw 4X8 * | ||||
| 047 | 266134-1 | 1.00 | 1.21 | |
| Motor bracket 4331/33D * | ||||
| 048 | 344791-6 | 8.40 | 10.16 | |
| Phillips Screw 4x10 | ||||
| 049 | 265035-0 | 1.00 | 1.21 | |
| Motor 12v | ||||
| 050 | 629735-0 | 78.10 | 94.50 | |
| Motor Housing Set 4331Dw * | ||||
| 051 | 183267-6 | 36.30 | 43.92 | |
| Adjustment Button | ||||
| 052 | 272231-3 | 8.40 | 10.16 | |
| Compression Spring 4 | ||||
| 053 | 231314-8 | 1.00 | 1.21 | |
| Steel ball 4 | ||||
| 054 | 216008-6 | 1.00 | 1.21 | |
| Retaining Ring E-5 | ||||
| 055 | 961018-5 | 1.00 | 1.21 | |
| Foot pad | ||||
| 056 | 316883-1 | 26.40 | 31.94 | |
| Holding Plate | ||||
| 057 | 331435-7 | 2.40 | 2.90 | |
| Cover plate for sole | ||||
| 058 | 344443-9 | 15.40 | 18.63 | |
| Hexagon socket bolt M4x16 | ||||
| 059 | 922126-7 | 1.00 | 1.21 | |
| Hexagon Bolt 5x8 | ||||
| 060 | 266055-7 | 1.00 | 1.21 | |
| Protection Spring | ||||
| 061 | 322893-8 | 2.40 | 2.90 | |
| Washer 6 | ||||
| 062 | 253715-0 | 1.20 | 1.45 | |
| Holding Plate | ||||
| 063 | 344784-3 | 1.00 | 1.21 | |
| Sealing felt | ||||
| 064 | 443106-5 | 1.00 | 1.21 | |
| Schroef 3x8 | ||||
| 065 | 652066-2 | 1.00 | 1.21 | |
| Electronic regulator 4331Dw * | ||||
| 066 | 631372-8 | 41.80 | 50.58 | |
| Carbon brush set Cb-430 | ||||
| 067 | 191971-3 | 3.60 | 4.36 | |
| Brush Cap | ||||
| 068 | 643929-3 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 069 | 931102-0 | 1.00 | 1.21 | |
| Label "makita" | ||||
| 070 | 819080-3 | 2.40 | 2.90 | |
