Here you will find all available parts and drawings of the 'Makita 4323'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

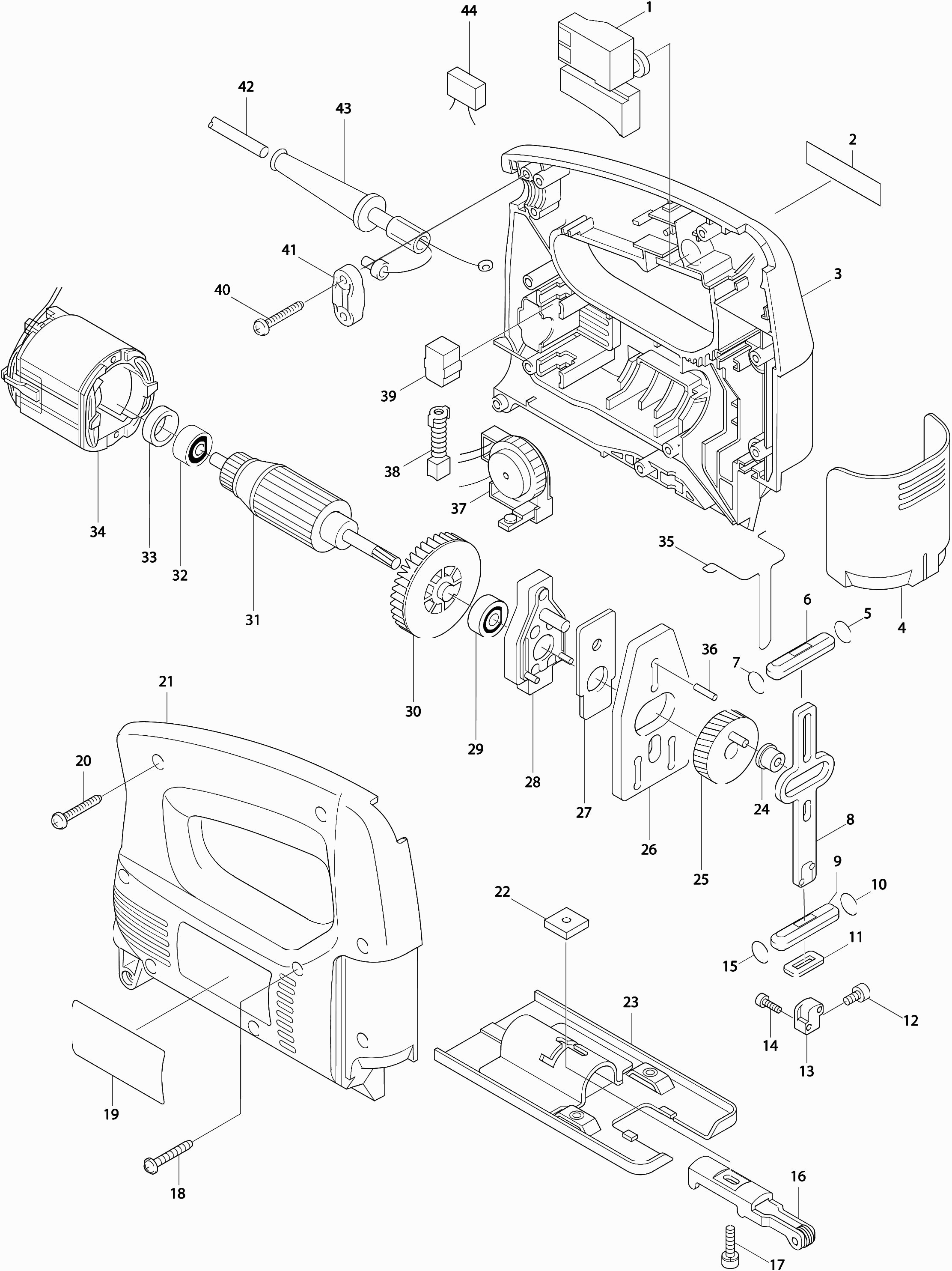

Technical drawing of model Makita 4323
Spare parts list of model Makita 4323
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 001 | 651286-5 | 6.00 | 7.26 | |
| Label Makita | ||||
| 002 | 819063-3 | 2.40 | 2.90 | |
| Engine Housing Set 4323 * | ||||
| 003 | 183030-7 | 19.80 | 23.96 | |
| Rubber Pin 4 | ||||
| 003A | 263002-9 | 1.00 | 1.21 | |
| Dust cap for saw blade | ||||
| 004 | 416476-5 | 2.40 | 2.90 | |
| O-ring 5 | ||||
| 005 | 213038-8 | 1.00 | 1.21 | |
| Saw Guide | ||||
| 006 | 313082-6 | 1.20 | 1.45 | |
| O-ring 5 | ||||
| 007 | 213038-8 | 1.00 | 1.21 | |
| Plunger | ||||
| 008 | 344613-0 | 7.20 | 8.71 | |
| Saw Guide | ||||
| 009 | 313082-6 | 1.20 | 1.45 | |
| O-ring 5 | ||||
| 010 | 213038-8 | 1.00 | 1.21 | |
| Sponge rubber seal | ||||
| 011 | 423307-1 | 1.00 | 1.21 | |
| Hex bolt M4X8 A | ||||
| 012 | 265911-8 | 1.00 | 1.21 | |
| Blade Clamp | ||||
| 013 | 313083-4 | 6.00 | 7.26 | |
| Allen Bolt M3x10 | ||||
| 014 | 266177-3 | 1.00 | 1.21 | |
| O-ring 5 | ||||
| 015 | 213038-8 | 1.00 | 1.21 | |
| Complete Support Wheel 4323 | ||||
| 016 | 152578-0 | 3.60 | 4.36 | |
| Hex bolt 4x16 | ||||
| 017 | 922128-3 | 1.00 | 1.21 | |
| Screw 4x35 | ||||
| 018 | 266351-3 | 1.00 | 1.21 | |
| Label | ||||
| 019 | 859322-3 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 020 | 265A48-7 | 1.00 | 1.21 | |
| Engine Housing Set 4323 * | ||||
| 021 | 183030-7 | 19.80 | 23.96 | |
| Rubber Pin 4 | ||||
| 021A | 263002-9 | 1.00 | 1.21 | |
| Sole Clamp Plate | ||||
| 022 | 343540-8 | 1.20 | 1.45 | |
| Sole Plate | ||||
| 023 | 317796-9 | 11.00 | 13.31 | |
| ANTI-SPLINTERPLAAT DECOUPEERZAAG | ||||
| 023A | 416477-3 | 1.00 | 1.21 | |
| Retaining Collar | ||||
| 024 | 257683-9 | 1.00 | 1.21 | |
| Gear 4323 * | ||||
| 025 | 153254-9 | 8.40 | 10.16 | |
| Balance Plate | ||||
| 026 | 344614-8 | 6.00 | 7.26 | |
| Intermediate Plate | ||||
| 027 | 344615-6 | 1.00 | 1.21 | |
| Gear Housing 4323 * | ||||
| 028 | 152577-2 | 8.40 | 10.16 | |
| Ball Bearing 608ddw | ||||
| 029 | 210005-4 | 4.80 | 5.81 | |
| Fan 52 | ||||
| 030 | 241881-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 031 | 517268-6 | |||
| Ball bearing 607llb | ||||
| 032 | 211021-9 | 4.80 | 5.81 | |
| Field | ||||
| 034 | 633408-9 | 13.20 | 15.97 | |
| Protection Spring | ||||
| 035 | 323748-0 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 036 | 256254-9 | 1.00 | 1.21 | |
| Speed control unit 4323 A | ||||
| 037 | 620409-6 | 13.20 | 15.97 | |
| KOOLBORSTEL SET CB-64 A | ||||
| 038 | 194968-1 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 039 | 643552-4 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 040 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 041 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 041 | 687124-5 | 1.00 | 1.21 | |
| Power cord 2x1.00 2.2mtr | ||||
| 042 | 665383-1 | 10.80 | 13.07 | |
| Cable grommet 8-85 | ||||
| 043 | 682502-4 | 2.40 | 2.90 | |
| Capacitor 0,1uf | ||||
| 044 | 645105-5 | 3.60 | 4.36 | |
