Here you will find all available parts and drawings of the 'Makita 4322'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

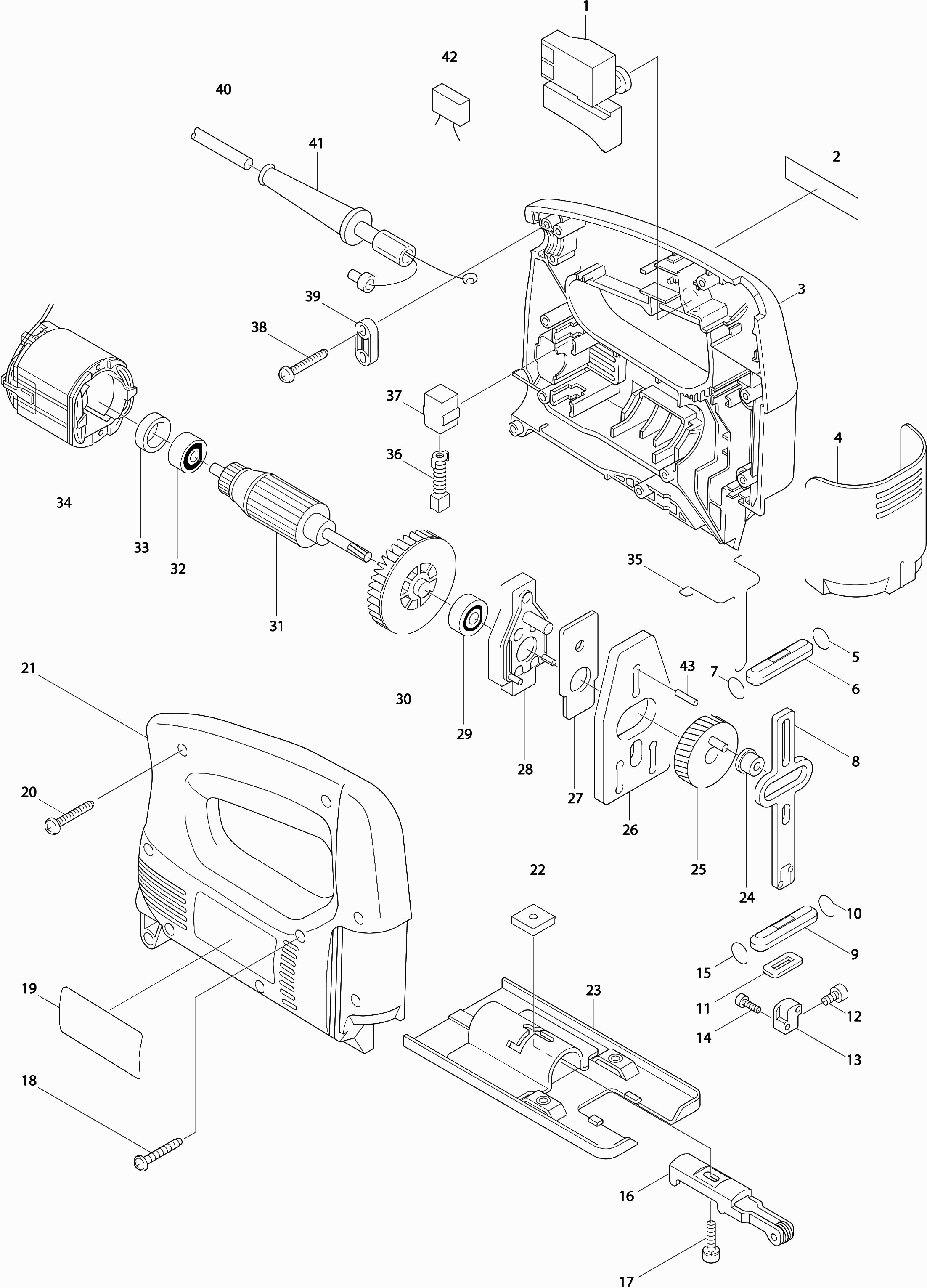

Technical drawing of model Makita 4322
Spare parts list of model Makita 4322
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 001 | 651286-5 | 6.00 | 7.26 | |
| Label Makita | ||||
| 002 | 819063-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 003 | 183034-9 | |||
| Dust cap for saw blade | ||||
| 004 | 416476-5 | 2.40 | 2.90 | |
| O-ring 5 | ||||
| 005 | 213038-8 | 1.00 | 1.21 | |
| Saw Guide | ||||
| 006 | 313082-6 | 1.20 | 1.45 | |
| O-ring 5 | ||||
| 007 | 213038-8 | 1.00 | 1.21 | |
| Plunger | ||||
| 008 | 344613-0 | 7.20 | 8.71 | |
| Saw Guide | ||||
| 009 | 313082-6 | 1.20 | 1.45 | |
| O-ring 5 | ||||
| 010 | 213038-8 | 1.00 | 1.21 | |
| Sponge rubber seal | ||||
| 011 | 423307-1 | 1.00 | 1.21 | |
| Hex bolt M4X8 A | ||||
| 012 | 265911-8 | 1.00 | 1.21 | |
| Blade Clamp | ||||
| 013 | 313083-4 | 6.00 | 7.26 | |
| Allen Bolt M3x10 | ||||
| 014 | 266177-3 | 1.00 | 1.21 | |
| O-ring 5 | ||||
| 015 | 213038-8 | 1.00 | 1.21 | |
| Complete Support Wheel 4323 | ||||
| 016 | 152578-0 | 3.60 | 4.36 | |
| Hex bolt 4x16 | ||||
| 017-1 | 922128-3 | 1.00 | 1.21 | |
| Hex bolt 4x16 | ||||
| 017A | 922128-3 | 1.00 | 1.21 | |
| Hex bolt 4x16 | ||||
| 017B | 922128-3 | 1.00 | 1.21 | |
| Hex bolt 4x16 | ||||
| 017C | 922128-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018 | 266053-1 | |||
| No information available, not orderable | ||||
| 019-1 | 850951-5 | |||
| Tap screw 4x18 | ||||
| 020 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 021 | 183034-9 | |||
| Sole Clamp Plate | ||||
| 022 | 343540-8 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 023 | 163397-9 | |||
| Retaining Collar | ||||
| 024 | 257683-9 | 1.00 | 1.21 | |
| Gear 4323 * | ||||
| 025 | 153254-9 | 8.40 | 10.16 | |
| Balance Plate | ||||
| 026 | 344614-8 | 6.00 | 7.26 | |
| Intermediate Plate | ||||
| 027 | 344615-6 | 1.00 | 1.21 | |
| Gear Housing 4323 * | ||||
| 028 | 152577-2 | 8.40 | 10.16 | |
| Ball Bearing 608ddw | ||||
| 029 | 210005-4 | 4.80 | 5.81 | |
| Fan 52 | ||||
| 030 | 241881-5 | 2.40 | 2.90 | |
| Armature | ||||
| 031-1 | 515718-5 | 23.10 | 27.95 | |
| Ball bearing 627llb | ||||
| 032-1 | 210025-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 033 | 257216-0 | |||
| Field | ||||
| 034 | 633408-9 | 13.20 | 15.97 | |
| Protection Spring | ||||
| 035 | 323748-0 | 1.20 | 1.45 | |
| KOOLBORSTEL SET CB-64 A | ||||
| 036 | 194968-1 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 037-2 | 643552-4 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 038 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 039-1 | 687053-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 040 | 666053-5 | |||
| Cable grommet 8-85 | ||||
| 041 | 682502-4 | 2.40 | 2.90 | |
| Capacitor 0,1uf | ||||
| 042 | 645105-5 | 3.60 | 4.36 | |
| Pen 3 | ||||
| 043 | 256254-9 | 1.00 | 1.21 | |
