Here you will find all available parts and drawings of the 'Makita 4305'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

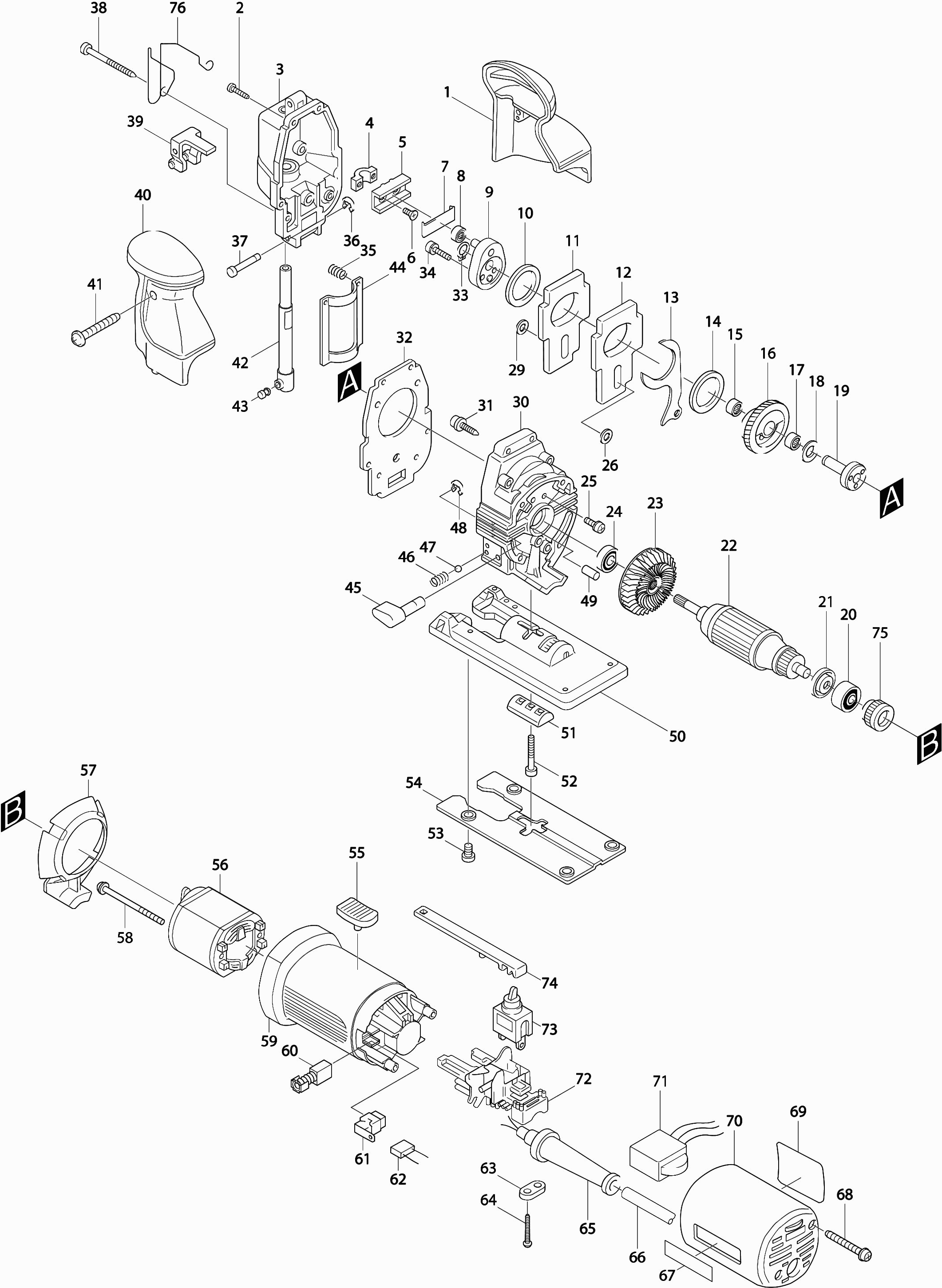

Technical drawing of model Makita 4305

Spare parts list of model Makita 4305

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
001 182681-3
Tapping Screw Ct4x16
002 266034-5 0.83 1.00
Screw 4x14
002 911121-2 0.83 1.00
Gearbox cover
003 153389-6 51.84 62.73
Gearbox cover
003-2 153389-6 51.84 62.73
Glijlager 8
003A 214005-6 1.18 1.43
Slide Bearing 10
003B 214061-6 1.39 1.68
Spring pin 3-12
003C 951057-3 0.83 1.00
Seal 8
003D 421821-1 0.98 1.19
Bridge Holder
004 316608-3 10.99 13.30
New bridge
005 310028-3 11.34 13.72
New bridge
005-1 310028-3 11.34 13.72
Countersunk screw M4x12
006 251263-3 2.56 3.10
Phillips Screw 4x10
006 265035-0 0.83 1.00
Intermediate Plate
007 344232-2 0.83 1.00
Needle Bearing 607
008 212010-7 12.22 14.79
Eccentric
009 152454-8 8.59 10.39
Pin 6
009A 256033-5 0.83 1.00
Washer 26
010 253792-2 0.83 1.00
Balance Plate
011 344330-2 6.38 7.72
Balance Plate
011-1 344330-2 6.38 7.72
Balance Plate
012 344330-2 6.38 7.72
Balance Plate
012-1 344330-2 6.38 7.72
Pressure plate 4304
013 344134-2 4.45 5.38
Washer 26
014 253792-2 0.83 1.00
Needle Bearing 810
015 212043-2 2.71 3.28
Needle Bearing 810
015-1 212043-2 2.71 3.28
Gear 51
016 226428-6 23.06 27.90
Needle Bearing 810
017 212043-2 2.71 3.28
Needle Bearing 810
017-1 212043-2 2.71 3.28
Washer 8x0.5mm
018 253139-0 0.83 1.00
Gear Shaft
019 322691-0 19.23 23.27
Ball bearing 607llb
020 211021-9 4.45 5.38
Insulation ring
021 681636-0 1.18 1.43
Armature
022 517098-5 55.40 67.03
Armature
022C 517098-5 55.40 67.03
Impeller 54
023 240039-3 2.84 3.44
No information available, not orderable
023A 241875-0
Impeller 54
023A1 240039-3 2.84 3.44
Ball Bearing 608ddw
024 210005-4 4.45 5.38
Screw 4X10
025 911111-5 0.83 1.00
Screw 4x12
025 911116-5 0.83 1.00
Washer 6
026 253715-0 0.83 1.00
Retaining Ring E-4
028 961011-9 0.83 1.00
Washer 6
029 253715-0 0.83 1.00
Gear Cover
030 151594-9 54.30 65.70
Gear Cover
030-1 151594-9 54.30 65.70
Tapping screw Pt4x20
031 266045-0 0.83 1.00
No information available, not orderable
031A 266120-2
Tapping screw Pt4x20
031A1 266045-0 0.83 1.00
Gearbox cover gasket
032 442123-2 1.18 1.43
Gearbox cover gasket
032-1 442123-2 1.18 1.43
Lock ring S-8
033 961004-6 0.83 1.00
Hexagon socket bolt M4x16
034 922126-7 0.83 1.00
Hexagon socket bolt M4x16
034-1 922126-7 0.83 1.00
Compression Spring 4
035 231314-8 0.83 1.00
Stopring E-3
036 961017-7 0.83 1.00
Pin 4
037 256693-3 2.48 3.00
Tapping screw Pf 4x55
038 266147-2 0.83 1.00
No information available, not orderable
038A 266115-5
Tapping screw Pf 4x55
038A1 266147-2 0.83 1.00
Support wheel compl.
039 152947-5 13.83 16.73
Support wheel compl.
039-1 152947-5 13.83 16.73
Pin 4
039A 268074-9 2.02 2.44
ROLLER
039B 152950-6 8.21 9.93
Stopring E-3
039C 961017-7 0.83 1.00
No information available, not orderable
040 182681-3
Screw 4x35
041 266351-3 0.83 1.00
No information available, not orderable
041A 266117-1
No information available, not orderable
041A1 266053-1
Plunger
042 165089-6 59.31 71.77
Hex socket head bolt M6x8
043 265894-2 0.83 1.00
Guide Plate
044 344137-6 2.48 3.00
Adjustment Button
045 272231-3 7.57 9.16
Compression Spring 4
046 231314-8 0.83 1.00
Steel ball 4
047 216008-6 0.83 1.00
Retaining Ring E-5
048 961018-5 0.83 1.00
Rubber Pin 4
049 263002-9 0.83 1.00
Foot pad
050 316883-1 25.36 30.69
Foot pad
050-1 316883-1 25.36 30.69
Holding Plate
051 331435-7 2.02 2.44
Hexagon socket screw 4x25
052 922146-1 0.83 1.00
Hexagon Bolt 5x8
053 266055-7 0.83 1.00
Cover plate for sole
054 344443-9 15.38 18.61
Cover plate for sole
054-1 344443-9 15.38 18.61
Switch Slider 4305 *
055 415523-9 1.18 1.43
Field
056 633288-3 18.20 22.02
Field
056C 633288-3 18.20 22.02
Intermediate plate 4304 *
057 415535-2 0.98 1.19
Self Tapping Screw Pt4X60 *
058 266052-3 0.83 1.00
No information available, not orderable
058A 266114-7
Self Tapping Screw Pt4X60 *
058A1 266052-3 0.83 1.00
Motor Housing 4304 *
059 415748-5 12.22 14.79
Motor Housing 4304 *
059-1 415748-5 12.22 14.79
Brush Set CB-419
060 195015-1 4.45 5.38
Brush Set CB-419
060A 195015-1 4.45 5.38
Brush Holder
061 643923-5 1.18 1.43
Capacitor 4305T *
062C 645259-8 3.12 3.78
Clamp Bracket
063 687124-5 0.83 1.00
No information available, not orderable
063B 687063-9
Tap screw 4x18
064 265A48-7 0.83 1.00
No information available, not orderable
064A 266121-0
Tap screw 4x18
064A1 265A48-7 0.83 1.00
Cable grommet 8-85
065 682502-4 1.67 2.02
Cable grommet 8-85
065A 682502-4 1.67 2.02
Power cord 2x1.00 2.2mtr
066 665383-1 10.50 12.70
No information available, not orderable
066H 666066-6
Label Makita
067 819063-3 2.71 3.28
Self Tapping Screw Pt4X60 *
068 266052-3 0.83 1.00
No information available, not orderable
068A 266114-7
Self Tapping Screw Pt4X60 *
068A1 266052-3 0.83 1.00
No information available, not orderable
069 857557-0
Rear casing 4305 *
070 415531-0 9.24 11.18
Speed control unit
071 631678-4 21.08 25.51
No information available, not orderable
071C 631202-3
Speed control unit
071C1 631678-4 21.08 25.51
Support 4305 *
072 687070-2 3.54 4.28
No information available, not orderable
073 651428-1
No information available, not orderable
073-1 651428-1
Switch Rod 4305 *
074 415522-1 1.18 1.43
Rubber Ring 19
075 421494-0 3.96 4.79
Protection Spring
076 322893-8 2.10 2.54
Holding Plate
077 344784-3 0.83 1.00
Sealing felt
078 443106-5 0.83 1.00
