Here you will find all available parts and drawings of the 'Makita 4300BV'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

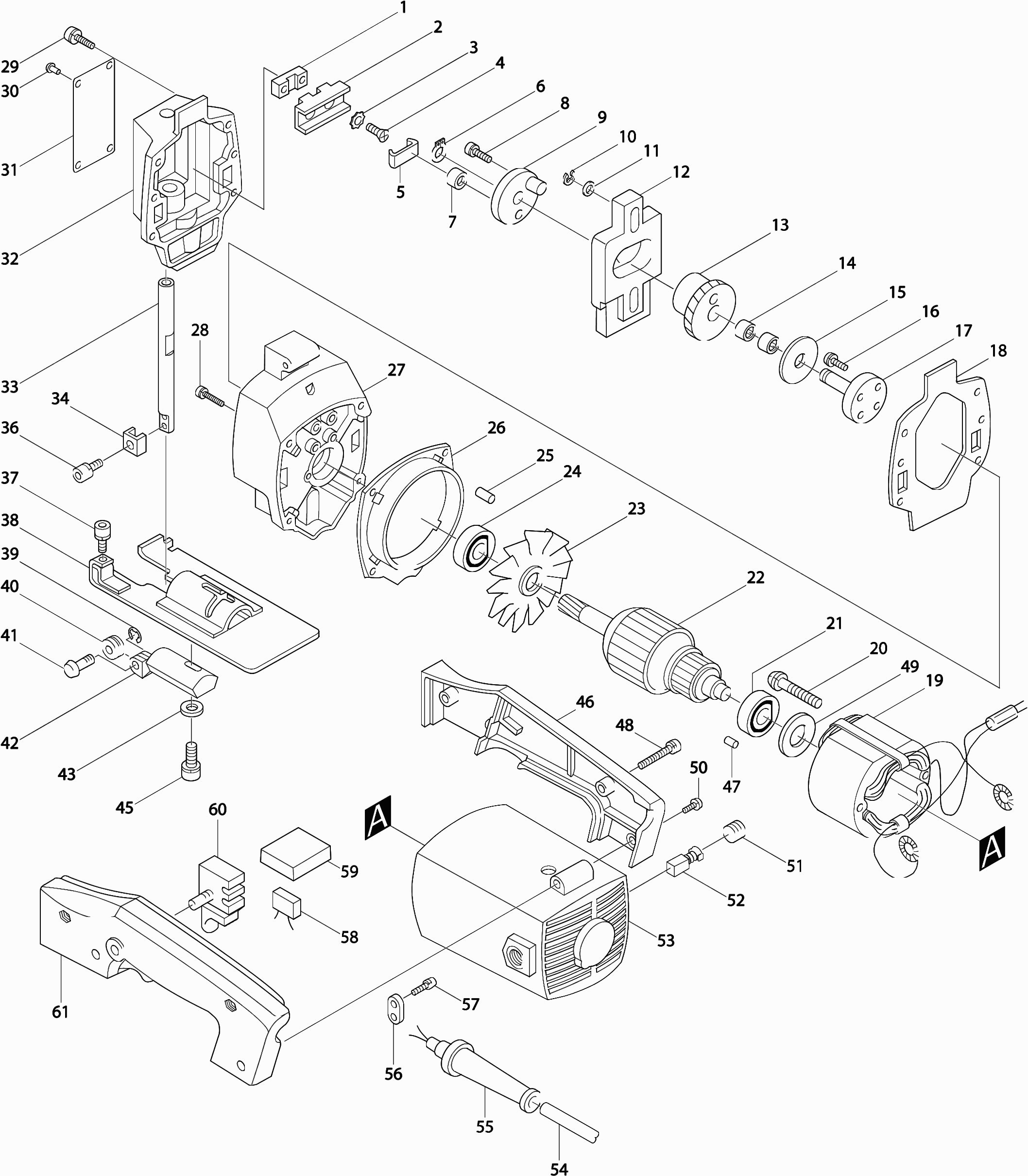

Technical drawing of model Makita 4300BV
Spare parts list of model Makita 4300BV
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bridge | ||||
| 001 | 335018-5 | 3.60 | 4.36 | |
| Bridge piece | ||||
| 002 | 334018-2 | 8.40 | 10.16 | |
| Spring retaining ring | ||||
| 003 | 943052-7 | 1.00 | 1.21 | |
| Countersunk screw M4x12 | ||||
| 004 | 251387-5 | 1.00 | 1.21 | |
| Countersunk screw M4x12 | ||||
| 004-1 | 251387-5 | 1.00 | 1.21 | |
| Label | ||||
| 005 | 342483-1 | 1.00 | 1.21 | |
| Lock ring S-8 | ||||
| 006 | 961004-6 | 1.00 | 1.21 | |
| Needle Bearing 607 | ||||
| 007 | 212010-7 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 007-1 | 212049-0 | |||
| Screw 5x16 | ||||
| 008 | 911221-8 | 1.00 | 1.21 | |
| Screw 5x16 | ||||
| 008 | 911224-2 | 1.00 | 1.21 | |
| Eccentric 4300Bv * | ||||
| 009 | 163021-4 | 17.60 | 21.30 | |
| Retaining Ring E-5 | ||||
| 010 | 961018-5 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 011 | 253077-6 | 1.00 | 1.21 | |
| Weight Block | ||||
| 012 | 313014-3 | 13.20 | 15.97 | |
| Gear 51 | ||||
| 013 | 221160-7 | 22.00 | 26.62 | |
| Needle Bearing 810 | ||||
| 014 | 212043-2 | 3.60 | 4.36 | |
| Washer 8 * | ||||
| 015 | 253076-8 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 016 | 911116-5 | 1.00 | 1.21 | |
| Gear Shaft | ||||
| 017 | 323221-0 | 13.20 | 15.97 | |
| Gasket | ||||
| 018 | 442082-0 | 1.20 | 1.45 | |
| Gasket | ||||
| 018-1 | 442082-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 019 | 528728-3 | |||
| Little stator spring Cb-7 | ||||
| 019A | 654019-7 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 2mm | ||||
| 019B | 654502-4 | 1.00 | 1.21 | |
| Field 4300Ba-4300Bv * | ||||
| 019N | 528719-4 | 36.30 | 43.92 | |
| Field bolt M5x40 | ||||
| 020 | 265336-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 020-2 | 911666-0 | |||
| Ball bearing 608llb | ||||
| 021 | 210043-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 021-1 | 211033-2 | |||
| Armature 4300Bv * | ||||
| 022 | 512065-5 | 63.80 | 77.20 | |
| Armature 4300Bv * | ||||
| 022C | 512065-5 | 63.80 | 77.20 | |
| Armature 4300Bv * | ||||
| 022C1 | 512065-5 | 63.80 | 77.20 | |
| Fan 68 * | ||||
| 023 | 241046-9 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 023-1 | 241518-4 | |||
| Ball bearing 608llb | ||||
| 024 | 210043-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 024-1 | 211033-2 | |||
| Rubber Pin 4 | ||||
| 025 | 263002-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 026 | 343087-2 | |||
| Gear housing New 4300Bv * | ||||
| 027 | 157406-4 | 39.60 | 47.92 | |
| Gear housing New 4300Bv * | ||||
| 027-2 | 157406-4 | 39.60 | 47.92 | |
| Screw 4x25 | ||||
| 028 | 911146-6 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 029 | 911138-5 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 029-1 | 911138-5 | 1.00 | 1.21 | |
| Rivet 0,5 | ||||
| 030 | 953106-2 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 032 | 157407-2 | 40.70 | 49.25 | |
| Inner Cover | ||||
| 032-1 | 157407-2 | 40.70 | 49.25 | |
| Plunger | ||||
| 033 | 325125-2 | 14.30 | 17.30 | |
| Terminal Device | ||||
| 034 | 344979-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 034-1 | 331211-9 | |||
| Terminal Device | ||||
| 034-2 | 344979-8 | 3.60 | 4.36 | |
| Allen bolt M4x10 | ||||
| 036 | 922112-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 036-1 | 922111-0 | |||
| Allen bolt m4x12 | ||||
| 037 | 922118-6 | 1.00 | 1.21 | |
| New base plate | ||||
| 038 | 164491-0 | 11.00 | 13.31 | |
| Stop Ring E-2.3 | ||||
| 039 | 257903-1 | 1.00 | 1.21 | |
| Support wheel | ||||
| 040 | 322376-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 040-1 | 321742-6 | |||
| Support wheel | ||||
| 040-2 | 322376-8 | 3.60 | 4.36 | |
| Pen 3 | ||||
| 041 | 256254-9 | 1.00 | 1.21 | |
| Locking Pin 3 | ||||
| 041-1 | 256644-6 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 041-2 | 256254-9 | 1.00 | 1.21 | |
| Locking Pin 3 | ||||
| 041-3 | 256644-6 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 041A | 256254-9 | 1.00 | 1.21 | |
| Locking Pin 3 | ||||
| 041B | 256644-6 | 1.20 | 1.45 | |
| Support wheel complete | ||||
| 042 | 154530-4 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 042-1 | 134273-4 | |||
| No information available, not orderable | ||||
| 042-2 | 152848-7 | |||
| Support wheel complete | ||||
| 042-3 | 154530-4 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 042A | 152848-7 | |||
| Support wheel complete | ||||
| 042B | 154530-4 | 10.80 | 13.07 | |
| 4 Washer | ||||
| 043 | 941051-3 | 1.00 | 1.21 | |
| Hex bolt 4x16 | ||||
| 045 | 922128-3 | 1.00 | 1.21 | |
| Hexagon socket screw 4x20 | ||||
| 045-1 | 922136-4 | 1.00 | 1.21 | |
| Hex bolt 4x16 | ||||
| 045-2 | 922128-3 | 1.00 | 1.21 | |
| Hexagon socket screw 4x20 | ||||
| 045-3 | 922136-4 | 1.00 | 1.21 | |
| Hex bolt 4x16 | ||||
| 045A | 922128-3 | 1.00 | 1.21 | |
| Hexagon socket screw 4x20 | ||||
| 045B | 922136-4 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 046 | 181150-1 | |||
| Rubber Pin 4 | ||||
| 047 | 263002-9 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 047-1 | 263014-2 | 1.00 | 1.21 | |
| Screw 4x28 | ||||
| 048 | 911151-3 | 1.00 | 1.21 | |
| Washer 14 | ||||
| 049 | 253192-6 | 1.00 | 1.21 | |
| Screw 5x16 | ||||
| 050 | 911224-2 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 051 | 643550-8 | 1.20 | 1.45 | |
| CARBON BRUSH SET CB-51 A | ||||
| 052 | 194963-1 | 3.12 | 3.78 | |
| CARBON BRUSH SET CB-51 A | ||||
| 052B | 194963-1 | 3.12 | 3.78 | |
| No information available, not orderable | ||||
| 053 | 157819-9 | |||
| No information available, not orderable | ||||
| 053-1 | 157819-9 | |||
| Power cord 2x1.00 2.2mtr | ||||
| 054 | 665383-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 054S | 666066-6 | |||
| Cable grommet 10-85 | ||||
| 055 | 682504-0 | 2.40 | 2.90 | |
| Cable grommet 8-85 | ||||
| 055A | 682502-4 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 056 | 687001-1 | 1.00 | 1.21 | |
| Screw 4x16 | ||||
| 057 | 911126-2 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 057-1 | 911133-5 | 1.00 | 1.21 | |
| Capacitor | ||||
| 058 | 645253-0 | 4.80 | 5.81 | |
| Capacitor | ||||
| 058L1 | 645253-0 | 4.80 | 5.81 | |
| Sponge rubber | ||||
| 059 | 685700-9 | 1.00 | 1.21 | |
| Switch Sw-121 | ||||
| 060 | 651256-4 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 060F1 | 651247-5 | |||
| No longer available, no replacement | ||||
| 061 | 181150-1 | |||
| Stop Ring E-2.3 | ||||
| 064B | 257903-1 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 065 | 941051-3 | 1.00 | 1.21 | |
