Here you will find all available parts and drawings of the 'Makita 4300BA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

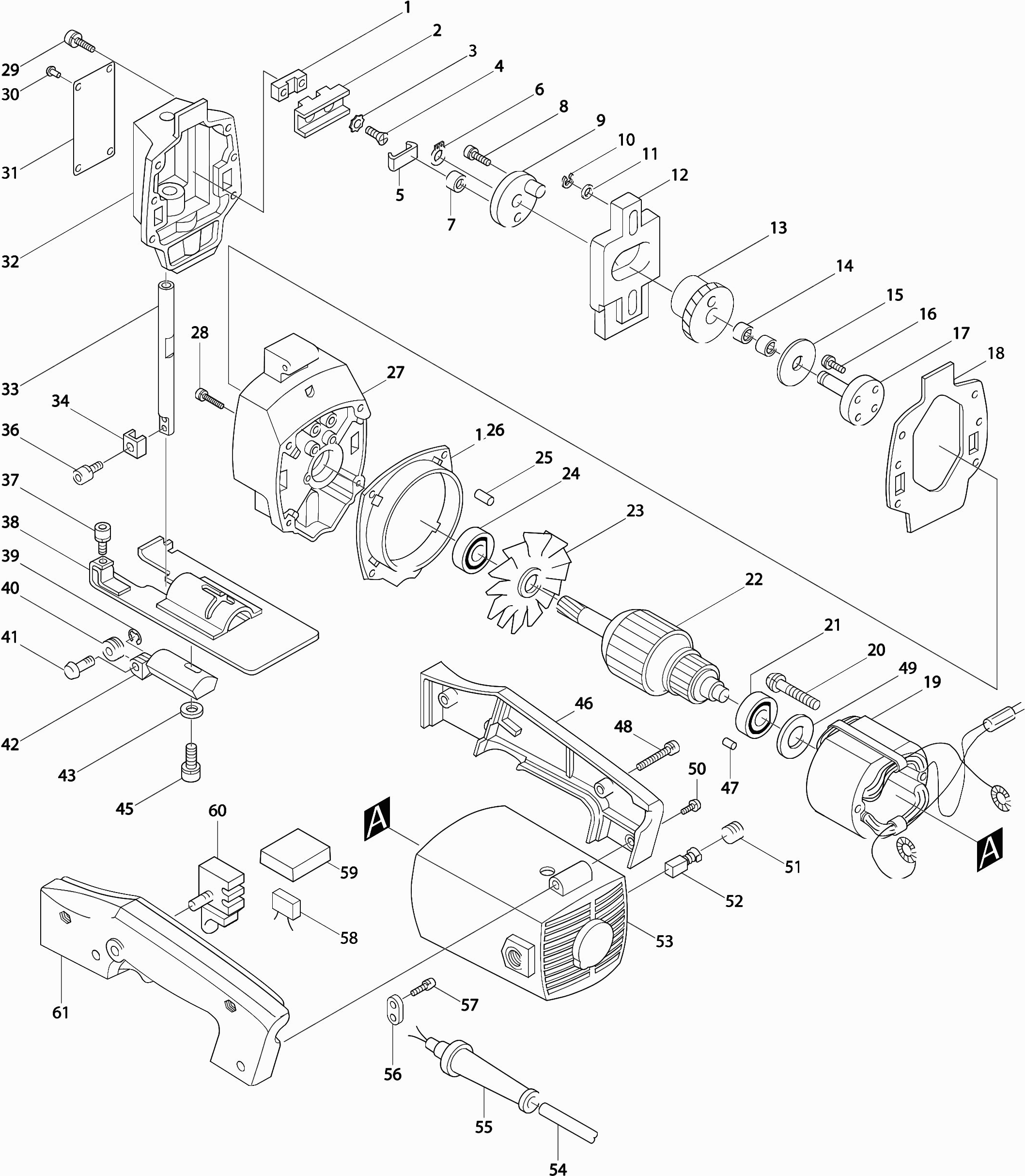

Technical drawing of model Makita 4300BA
Spare parts list of model Makita 4300BA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bridge | ||||
| 001 | 335018-5 | 2.71 | 3.28 | |
| Bridge piece | ||||
| 002 | 334018-2 | 8.35 | 10.10 | |
| Spring retaining ring | ||||
| 003 | 943052-7 | 0.83 | 1.00 | |
| Countersunk screw M4x12 | ||||
| 004-1 | 251387-5 | 0.83 | 1.00 | |
| Label | ||||
| 005 | 342483-1 | 0.83 | 1.00 | |
| Lock ring S-8 | ||||
| 006 | 961004-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 007-1 | 212049-0 | |||
| Screw 5x16 | ||||
| 008 | 911221-8 | 0.83 | 1.00 | |
| Eccentric 4300Bv * | ||||
| 009 | 163021-4 | 17.40 | 21.05 | |
| Retaining Ring E-5 | ||||
| 010 | 961018-5 | 0.83 | 1.00 | |
| Washer 6 | ||||
| 011 | 253077-6 | 0.83 | 1.00 | |
| Weight Block | ||||
| 012 | 313014-3 | 12.22 | 14.79 | |
| Gear 51 | ||||
| 013 | 221160-7 | 21.08 | 25.51 | |
| No information available, not orderable | ||||
| 014 | 212005-0 | |||
| Washer 8 * | ||||
| 015 | 253076-8 | 0.83 | 1.00 | |
| Screw 4x12 | ||||
| 016 | 911116-5 | 0.83 | 1.00 | |
| Gear Shaft | ||||
| 017 | 323221-0 | 12.80 | 15.49 | |
| Gasket | ||||
| 018 | 442082-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 020-2 | 911666-0 | |||
| No information available, not orderable | ||||
| 021-1 | 211033-2 | |||
| Armature 4300Bv * | ||||
| 022C | 512065-5 | 63.68 | 77.05 | |
| Armature 4300Bv * | ||||
| 022C1 | 512065-5 | 63.68 | 77.05 | |
| No information available, not orderable | ||||
| 023-1 | 241518-4 | |||
| No information available, not orderable | ||||
| 024-1 | 211033-2 | |||
| Rubber Pin 4 | ||||
| 025 | 263002-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 026 | 343087-2 | |||
| No information available, not orderable | ||||
| 027C | 156167-3 | |||
| Gear housing New 4300Bv * | ||||
| 027C1 | 157406-4 | 38.72 | 46.85 | |
| Screw 4x25 | ||||
| 028 | 911146-6 | 0.83 | 1.00 | |
| Screw 4x20 | ||||
| 029-1 | 911138-5 | 0.83 | 1.00 | |
| Rivet 0,5 | ||||
| 030 | 953106-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 031-1 | 851599-6 | |||
| Gear Cover Old 4300B * | ||||
| 032B | 156168-1 | 21.08 | 25.51 | |
| Inner Cover | ||||
| 032B1 | 157407-2 | 40.56 | 49.08 | |
| Plunger | ||||
| 033 | 325125-2 | 13.82 | 16.72 | |
| No information available, not orderable | ||||
| 034-1 | 331211-9 | |||
| Terminal Device | ||||
| 034-2 | 344979-8 | 3.54 | 4.28 | |
| No information available, not orderable | ||||
| 036-1 | 922111-0 | |||
| No information available, not orderable | ||||
| 037 | 922117-8 | |||
| New base plate | ||||
| 038 | 164491-0 | 11.82 | 14.30 | |
| Stop Ring E-2.3 | ||||
| 039 | 257903-1 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 040-1 | 321742-6 | |||
| Support wheel | ||||
| 040-2 | 322376-8 | 3.12 | 3.78 | |
| Locking Pin 3 | ||||
| 041-1 | 256644-6 | 0.83 | 1.00 | |
| Pen 3 | ||||
| 041-2 | 256254-9 | 0.83 | 1.00 | |
| Locking Pin 3 | ||||
| 041-3 | 256644-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 042-1 | 134273-4 | |||
| No information available, not orderable | ||||
| 042-2 | 152848-7 | |||
| Support wheel complete | ||||
| 042-3 | 154530-4 | 10.50 | 12.70 | |
| 4 Washer | ||||
| 043 | 941051-3 | 0.83 | 1.00 | |
| Hexagon socket screw 4x20 | ||||
| 045-1 | 922136-4 | 0.83 | 1.00 | |
| Hex bolt 4x16 | ||||
| 045-2 | 922128-3 | 0.83 | 1.00 | |
| Hexagon socket screw 4x20 | ||||
| 045-3 | 922136-4 | 0.83 | 1.00 | |
| Handle Set 4300Ba * | ||||
| 046 | 181134-9 | 12.19 | 14.75 | |
| Rubber Pin 4 | ||||
| 047-1 | 263014-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 048 | 911153-9 | |||
| Washer 14 | ||||
| 049 | 253192-6 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 050 | 911223-4 | |||
| Brush holder cap | ||||
| 051 | 643550-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 052B | 194963-1 | |||
| No information available, not orderable | ||||
| 053-1 | 157819-9 | |||
| No information available, not orderable | ||||
| 054S | 666066-6 | |||
| Cable grommet 8-85 | ||||
| 055A | 682502-4 | 1.67 | 2.02 | |
| Clamp Bracket | ||||
| 056 | 687001-1 | 0.83 | 1.00 | |
| Screw 4X18 | ||||
| 057-1 | 911133-5 | 0.83 | 1.00 | |
| Capacitor | ||||
| 058I | 645253-0 | 4.45 | 5.38 | |
| Sponge rubber | ||||
| 059 | 685700-9 | 0.83 | 1.00 | |
| Switch Sw-85 | ||||
| 060F | 651232-8 | 5.71 | 6.91 | |
| Handle Set 4300Ba * | ||||
| 061 | 181134-9 | 12.19 | 14.75 | |
