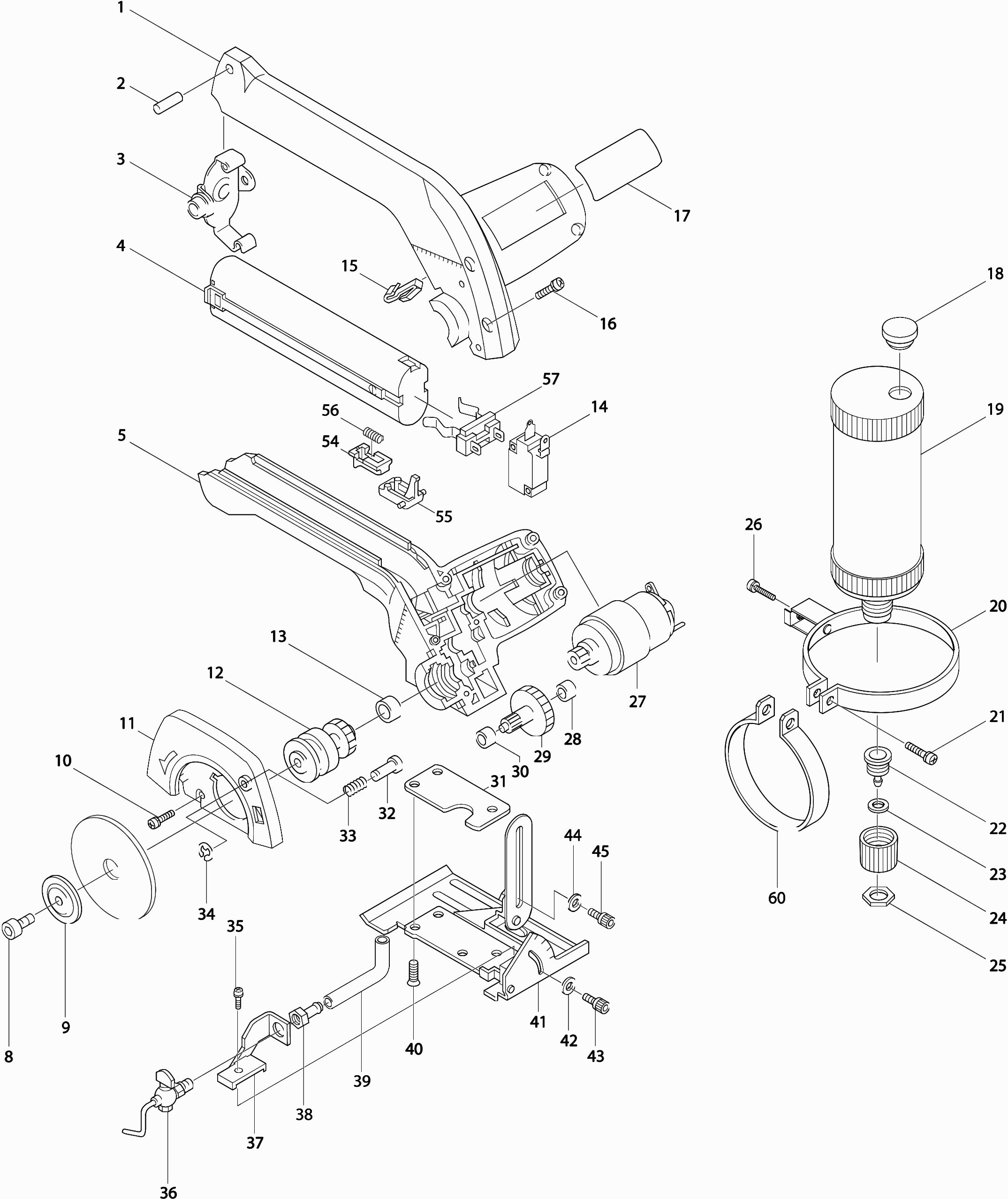

Technical drawing of model Makita 4190D
Spare parts list of model Makita 4190D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 001 | 182025-7 | 30.80 | 37.27 | |
| Pen 4 | ||||
| 002 | 256085-6 | 1.20 | 1.45 | |
| Battery terminal plate | ||||
| 003 | 342833-0 | 2.40 | 2.90 | |
| Motor Housing | ||||
| 005 | 182025-7 | 30.80 | 37.27 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 008 | 922212-4 | 1.00 | 1.21 | |
| Outer flange 28 4190Dw-4191Dwa | ||||
| 009 | 224177-9 | 2.40 | 2.90 | |
| Screw 4x14 | ||||
| 010 | 911123-8 | 1.00 | 1.21 | |
| Guard | ||||
| 011 | 164872-8 | 18.70 | 22.63 | |
| Gear | ||||
| 012 | 153132-3 | 19.80 | 23.96 | |
| Slide Bearing 5 | ||||
| 013 | 214017-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 014 | 651866-7 | |||
| Leaf Spring * | ||||
| 015 | 232061-4 | 1.20 | 1.45 | |
| Screw 4x25 | ||||
| 016 | 911148-2 | 1.00 | 1.21 | |
| Cap | ||||
| 018 | 421198-4 | 2.40 | 2.90 | |
| Watertank | ||||
| 019 | 134152-6 | 19.80 | 23.96 | |
| Water tank mounting | ||||
| 020 | 163159-5 | 24.20 | 29.28 | |
| Screw 4x25 | ||||
| 021 | 911146-6 | 1.00 | 1.21 | |
| Reduction Sleeve | ||||
| 022 | 321512-3 | 7.20 | 8.71 | |
| Plastic Washer 12 | ||||
| 023 | 261056-0 | 1.00 | 1.21 | |
| Fuel cap for supply | ||||
| 024 | 411988-3 | 1.20 | 1.45 | |
| Hex nut 12x3 | ||||
| 025 | 252064-2 | 2.40 | 2.90 | |
| Screw 4x25 | ||||
| 026 | 911146-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 027 | 629574-8 | |||
| Slide Bearing 4 | ||||
| 028 | 214019-5 | 1.00 | 1.21 | |
| Gear 11-67 | ||||
| 029 | 226053-3 | 11.00 | 13.31 | |
| Slide Bearing 4 | ||||
| 030 | 214019-5 | 1.00 | 1.21 | |
| Gasket | ||||
| 031 | 423070-6 | 1.20 | 1.45 | |
| Locking Pin 5 | ||||
| 032 | 256625-0 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 033 | 231098-8 | 1.00 | 1.21 | |
| Retaining Ring E-10 | ||||
| 034 | 961016-9 | 1.00 | 1.21 | |
| Screw M4x5 | ||||
| 035 | 265132-2 | 1.00 | 1.21 | |
| Met.Screw Ck M4x6mm | ||||
| 035 | 911104-2 | 0.83 | 1.00 | |
| Water Supply | ||||
| 036 | 168189-1 | 48.40 | 58.56 | |
| Faucet Holder | ||||
| 037 | 343517-3 | 7.20 | 8.71 | |
| Hose Swivel | ||||
| 038 | 323601-0 | 4.80 | 5.81 | |
| Vinyl hose 5 | ||||
| 039 | 412079-3 | 2.40 | 2.90 | |
| Countersunk Screw 5x16 | ||||
| 040 | 912221-1 | 1.00 | 1.21 | |
| Sole Plate | ||||
| 041 | 163345-8 | 42.90 | 51.91 | |
| Lock washer 5 | ||||
| 042 | 253184-5 | 1.00 | 1.21 | |
| Hexagon Socket Bolt 5x10 | ||||
| 043 | 922206-9 | 1.20 | 1.45 | |
| Lock washer 5 | ||||
| 044 | 253184-5 | 1.00 | 1.21 | |
| Hexagon Socket Bolt 5x10 | ||||
| 045 | 922206-9 | 1.20 | 1.45 | |
| Unlock button | ||||
| 054 | 414169-8 | 1.00 | 1.21 | |
| Start button | ||||
| 055 | 414168-0 | 1.00 | 1.21 | |
| Compression spring 3 * | ||||
| 056 | 231390-2 | 1.00 | 1.21 | |
| Battery connector piece | ||||
| 057 | 643909-9 | 3.60 | 4.36 | |
