Here you will find all available parts and drawings of the 'Makita 4112HS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

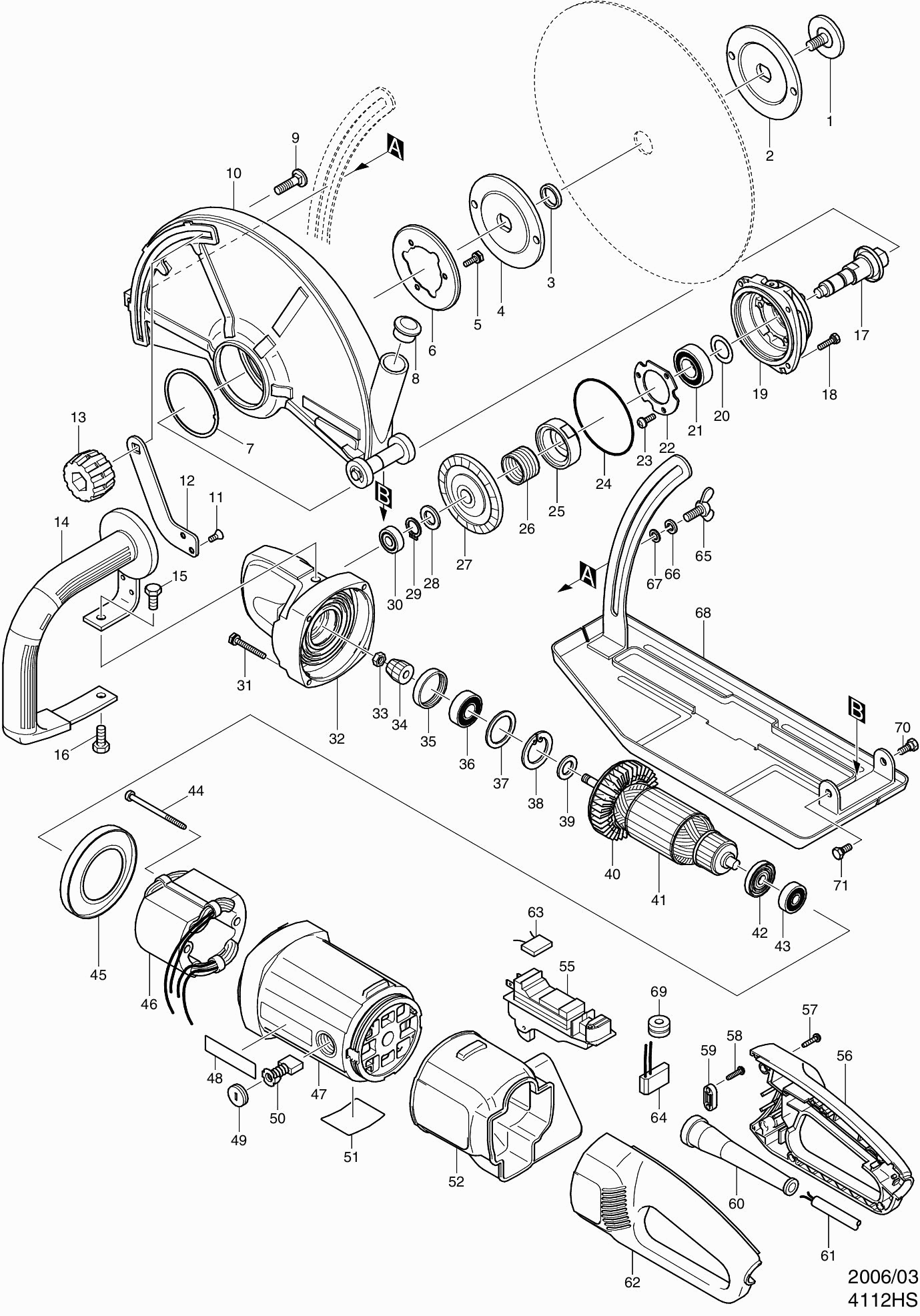

Technical drawing of model Makita 4112HS
Spare parts list of model Makita 4112HS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hexagonal Bolt M10X25 | ||||
| 001 | 265265-3 | 3.60 | 4.36 | |
| Internal Flange 100 4110C | ||||
| 002 | 224184-2 | 16.50 | 19.96 | |
| Washer 20 | ||||
| 003 | 257054-0 | 2.40 | 2.90 | |
| Internal Flange 100 4110C | ||||
| 004 | 224184-2 | 16.50 | 19.96 | |
| Hexagonal bolt M5X14 4112HS | ||||
| 005 | 925216-5 | 1.00 | 1.21 | |
| Pressure plate 4112HS | ||||
| 006 | 345269-2 | 6.00 | 7.26 | |
| Plate B 4112HS | ||||
| 007 | 341853-1 | 1.20 | 1.45 | |
| Cover 32mm A | ||||
| 008 | 286289-6 | 4.80 | 5.81 | |
| Carriage Bolt M8x30 | ||||
| 009 | 265845-5 | 1.20 | 1.45 | |
| Protective Cap 4112HS | ||||
| 010 | 125185-2 | 184.80 | 223.61 | |
| No information available, not orderable | ||||
| 010C10 | 257091-4 | |||
| Retaining Ring E-9 | ||||
| 010C20 | 961015-1 | 1.00 | 1.21 | |
| Warning label 4112HS | ||||
| 010C30 | 817574-2 | 2.40 | 2.90 | |
| Countersunk screw 5x8 | ||||
| 011 | 912202-5 | 1.00 | 1.21 | |
| Closure plate 4112HS | ||||
| 012 | 345291-9 | 3.60 | 4.36 | |
| Wing nut M8 4112HS | ||||
| 013 | 252648-6 | 7.20 | 8.71 | |
| Handle 4112HS | ||||
| 014 | 273655-6 | 30.80 | 37.27 | |
| Hex bolt 8x20 | ||||
| 015 | 921432-7 | 1.00 | 1.21 | |
| Hex bolt 8x20 | ||||
| 016 | 921432-7 | 1.00 | 1.21 | |
| Axle cpl 4112HS | ||||
| 017 | 153541-6 | 42.90 | 51.91 | |
| Nut bolt M5x20mm | ||||
| 018 | 265502-5 | 1.00 | 1.21 | |
| Bearing housing cpl 4112HS | ||||
| 019 | 153539-3 | 34.10 | 41.26 | |
| Washer 20 | ||||
| 020 | 267041-1 | 1.00 | 1.21 | |
| Ball bearing 6004ddw DLM463 | ||||
| 021 | 210237-3 | 2.40 | 2.90 | |
| Circlip 50 4112HS | ||||
| 022 | 285708-9 | 4.80 | 5.81 | |
| Screw 5x16 | ||||
| 023 | 911221-8 | 1.00 | 1.21 | |
| O-ring 80 | ||||
| 024 | 213757-6 | 1.20 | 1.45 | |
| Locking Bush 4112HS | ||||
| 025 | 331644-8 | 17.60 | 21.30 | |
| Locking washer 24 4112HS | ||||
| 026 | 233922-1 | 9.60 | 11.62 | |
| Gear 48 4112HS | ||||
| 027 | 227438-6 | 56.10 | 67.88 | |
| Washer 15mm 4112HS | ||||
| 028 | 267251-0 | 4.80 | 5.81 | |
| Lock washer S-15 | ||||
| 029 | 961055-9 | 1.00 | 1.21 | |
| Ball bearing 6000llb | ||||
| 030 | 211061-7 | 8.40 | 10.16 | |
| Allen bolt M5x40mm 4112HS | ||||
| 031 | 925261-0 | 1.00 | 1.21 | |
| Gear housing cap 4112HS | ||||
| 032 | 153542-4 | 59.40 | 71.87 | |
| NUT M8 | ||||
| 033 | 252178-7 | 1.00 | 1.21 | |
| Gear 9 4112HS | ||||
| 034 | 227440-9 | 19.80 | 23.96 | |
| Rubber ring 36 4112HS | ||||
| 035 | 262554-7 | 1.20 | 1.45 | |
| Ball bearing 6202llb | ||||
| 036 | 211228-7 | 8.40 | 10.16 | |
| Washer 30mm 4112HS | ||||
| 037 | 267250-2 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 038 | 257998-4 | 1.20 | 1.45 | |
| Washer 15mm 4112HS | ||||
| 039 | 267251-0 | 4.80 | 5.81 | |
| Fan 80mm 4112HS | ||||
| 040 | 240060-2 | 6.00 | 7.26 | |
| Armature 220-240V 4112HS | ||||
| 041 | 516888-3 | 93.50 | 113.14 | |
| Insulation ring | ||||
| 042 | 681630-2 | 2.40 | 2.90 | |
| Ball bearing 6200dw | ||||
| 043 | 211087-9 | 8.40 | 10.16 | |
| Zelftapper Pt 5x75 | ||||
| 044 | 266059-9 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 045 | 416131-9 | |||
| Field 220-240V 4112HS | ||||
| 046 | 626134-7 | 78.10 | 94.50 | |
| Motor House 4112HS | ||||
| 047 | 183564-0 | 28.60 | 34.61 | |
| Brush Holder | ||||
| 047C10 | 643707-1 | 4.80 | 5.81 | |
| Label "makita" | ||||
| 048 | 819064-1 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 049 | 643710-2 | |||
| Carbon brush set Cb-204 | ||||
| 050 | 194992-4 | 11.00 | 13.31 | |
| Nameplate 4112HS | ||||
| 051 | 850449-2 | 1.20 | 1.45 | |
| Dust cap 4112HS | ||||
| 052 | 421831-8 | 7.20 | 8.71 | |
| Safety switch | ||||
| 055 | 651179-6 | 41.80 | 50.58 | |
| Handle Set 4112HS | ||||
| 056 | 183615-9 | 22.00 | 26.62 | |
| Buffer 4112HS | ||||
| 056C10 | 421833-4 | 1.00 | 1.21 | |
| Tapping screw Pt4x20 | ||||
| 057 | 266045-0 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 058 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 059 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 059 | 687124-5 | 1.00 | 1.21 | |
| Cable gland 10 | ||||
| 060 | 682560-0 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 061 | 695123-3 | 22.00 | 26.62 | |
| Handle Set 4112HS | ||||
| 062 | 183615-9 | 22.00 | 26.62 | |
| Buffer 4112HS | ||||
| 062C10 | 421833-4 | 1.00 | 1.21 | |
| Capacitor 0.22uF | ||||
| 063 | 645190-8 | 2.40 | 2.90 | |
| Circuit soft start 4112HS | ||||
| 064 | 631553-4 | 30.80 | 37.27 | |
| Wing Bolt 4112HS | ||||
| 065 | 924426-1 | 1.20 | 1.45 | |
| Lock Washer M8 | ||||
| 066 | 942201-3 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 067 | 941202-8 | 1.00 | 1.21 | |
| Base plate 4112HS | ||||
| 068 | 165343-8 | 16.50 | 19.96 | |
| Line filter | ||||
| 069 | 688131-1 | 1.00 | 1.21 | |
| Nut bolt M6 4112HS | ||||
| 070 | 265506-7 | 2.40 | 2.90 | |
| Nut bolt M6 4112HS | ||||
| 071 | 265506-7 | 2.40 | 2.90 | |
