Here you will find all available parts and drawings of the 'Makita 4105KB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

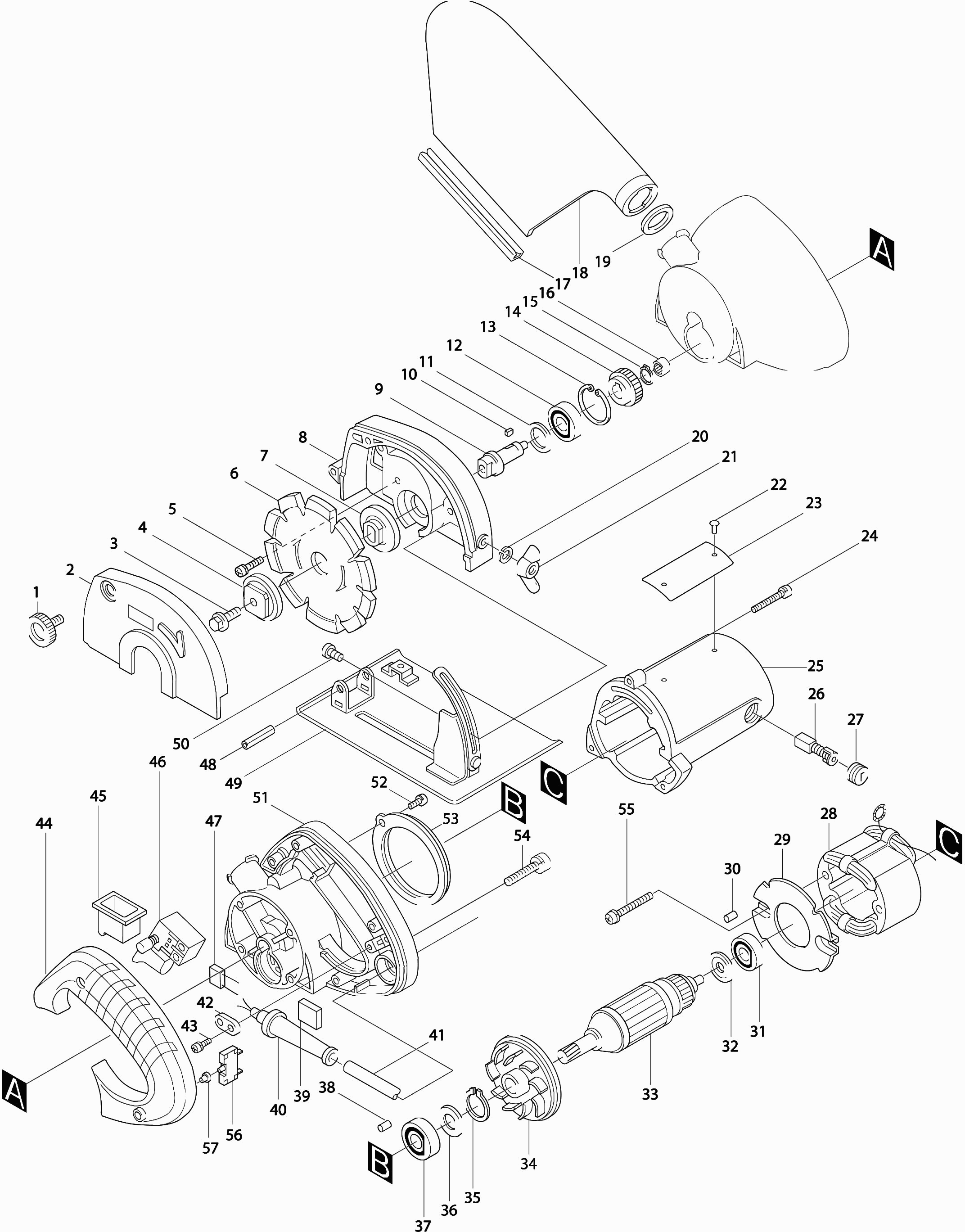

Technical drawing of model Makita 4105KB
Spare parts list of model Makita 4105KB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 5x10 | ||||
| 001-1 | 911209-8 | 1.00 | 1.21 | |
| Set screw M5X10 | ||||
| 001A | 251812-6 | 1.20 | 1.45 | |
| Screw 5x10 | ||||
| 001B | 911209-8 | 1.00 | 1.21 | |
| Guard | ||||
| 002-1 | 140428-1 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 002A | 155463-6 | |||
| Guard | ||||
| 002B | 140428-1 | 13.20 | 15.97 | |
| Hex bolt 6x20 | ||||
| 003 | 266133-3 | 1.00 | 1.21 | |
| Hex bolt 6x20 | ||||
| 003-1 | 266133-3 | 1.00 | 1.21 | |
| Outer flange 36 | ||||
| 004 | 224081-2 | 7.20 | 8.71 | |
| Screw 4X18 | ||||
| 005 | 911131-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006-1 | 724920-1 | |||
| Inner flange 36 | ||||
| 007 | 224080-4 | 10.80 | 13.07 | |
| FIXED PROTECTIVE COVER | ||||
| 008 | 315360-0 | 46.20 | 55.90 | |
| Spindle Ass'y | ||||
| 009 | 321383-8 | 28.60 | 34.61 | |
| Feather Key 4 | ||||
| 010 | 254011-9 | 1.00 | 1.21 | |
| Thin Washer 12 * | ||||
| 011 | 253335-0 | 1.20 | 1.45 | |
| Ball Bearing 6201dw1 | ||||
| 012 | 211129-9 | 8.40 | 10.16 | |
| Ball Bearing 6201dw1 | ||||
| 012-1 | 211129-9 | 8.40 | 10.16 | |
| Lock washer r-32 | ||||
| 013 | 962151-6 | 1.00 | 1.21 | |
| Gear 40 | ||||
| 014 | 221692-4 | 20.90 | 25.29 | |
| Lock washer S-12 | ||||
| 015 | 961052-5 | 1.00 | 1.21 | |
| Needle Bearing 79 | ||||
| 016 | 212019-9 | 9.60 | 11.62 | |
| Rubber Washer 26 * | ||||
| 019 | 262018-1 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 020 | 253903-9 | 1.00 | 1.21 | |
| Wing nut M6 | ||||
| 021 | 934301-3 | 1.20 | 1.45 | |
| Rivet 0,5 | ||||
| 022 | 953106-2 | 1.00 | 1.21 | |
| Label | ||||
| 023-1 | 854596-1 | 4.80 | 5.81 | |
| Screw 5x40 | ||||
| 024 | 911263-2 | 1.00 | 1.21 | |
| Motor House 4105Kb * | ||||
| 025 | 156300-7 | 28.60 | 34.61 | |
| Carbon Brush Set Cb-100 | ||||
| 026 | 181030-1 | 3.54 | 4.28 | |
| Carbon Brush CB100 | ||||
| 026 | 194974-6 | 3.54 | 4.28 | |
| Carbon Brush CB100 | ||||
| 026-1 | 194974-6 | 3.54 | 4.28 | |
| Carbon Brush Set Cb-100 | ||||
| 026-1 | 181030-1 | 3.54 | 4.28 | |
| Brush holder cap | ||||
| 027 | 643600-9 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 028 | 522533-0 | |||
| No longer available, no replacement | ||||
| 028C | 522533-0 | |||
| Intermediate plate 4105Kb * | ||||
| 029 | 411902-9 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 030 | 263002-9 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 030-1 | 263014-2 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 031 | 210043-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 032 | 681603-5 | |||
| Insulation ring | ||||
| 032-1 | 681613-2 | 1.00 | 1.21 | |
| Armature | ||||
| 033 | 512923-5 | 81.40 | 98.49 | |
| Armature | ||||
| 033C1 | 512923-5 | 81.40 | 98.49 | |
| Fan 72 * | ||||
| 034 | 241636-8 | 12.10 | 14.64 | |
| Lock washer S-12 | ||||
| 035 | 961052-5 | 1.00 | 1.21 | |
| Washer 12 | ||||
| 036 | 253748-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 036-1 | 253978-8 | |||
| Ball Bearing 6001dw | ||||
| 037 | 211131-2 | 9.60 | 11.62 | |
| Ball Bearing 6001dw | ||||
| 037-1 | 211131-2 | 9.60 | 11.62 | |
| Rubber Pin 4 | ||||
| 038 | 263002-9 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 038-1 | 263014-2 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 039 | 210043-6 | 2.40 | 2.90 | |
| Sponge rubber | ||||
| 039 | 685700-9 | 1.00 | 1.21 | |
| Cable grommet 10-85 | ||||
| 040 | 682504-0 | 2.40 | 2.90 | |
| Cable grommet 8-85 | ||||
| 040A | 682502-4 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 041 | 665383-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 041T | 666066-6 | |||
| Clamp Bracket | ||||
| 042 | 687001-1 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 042B | 687001-1 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 043 | 911131-9 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 043-1 | 911133-5 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 044-1 | 155919-9 | 7.20 | 8.71 | |
| Handle Cover 4105KB A * | ||||
| 044-2 | 142662-9 | 6.00 | 7.26 | |
| Handle Cover | ||||
| 044A | 155919-9 | 7.20 | 8.71 | |
| Handle Cover 4105KB A * | ||||
| 044B | 142662-9 | 6.00 | 7.26 | |
| Dust cover for switch | ||||
| 045 | 421142-1 | 2.40 | 2.90 | |
| Switch Sw-05 6512035 | ||||
| 046A | 651203-5 | 8.40 | 10.16 | |
| Switch SW-99 | ||||
| 046B | 651252-2 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 046F1 | 651236-0 | |||
| No information available, not orderable | ||||
| 046F2 | 650210-5 | |||
| Switch SW-99 | ||||
| 046F3 | 651252-2 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 047A | 645200-1 | |||
| Tension pin 6-36 * | ||||
| 048 | 951222-4 | 1.00 | 1.21 | |
| Base | ||||
| 049 | 168165-5 | 36.30 | 43.92 | |
| Base | ||||
| 049A | 168165-5 | 36.30 | 43.92 | |
| Slotted bolt M6x20 | ||||
| 050 | 251919-8 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 051 | 157540-0 | 26.40 | 31.94 | |
| Gear Cover | ||||
| 051-1 | 157540-0 | 26.40 | 31.94 | |
| Screw 4X10 | ||||
| 052 | 911113-1 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 052 | 911116-5 | 1.00 | 1.21 | |
| Spacer STM 1800 | ||||
| 053 | 162097-8 | 8.40 | 10.16 | |
| Screw 4x20 | ||||
| 054 | 911138-5 | 1.00 | 1.21 | |
| Screw 4x22 | ||||
| 054 | 911143-2 | 1.00 | 1.21 | |
| Screw 5x65 | ||||
| 055 | 911290-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 055-2 | 911686-4 | |||
| Overload Protection | ||||
| 056 | 652603-2 | 8.40 | 10.16 | |
| Overload Protection | ||||
| 056C | 652603-2 | 8.40 | 10.16 | |
| Protective cap for thermal protection.* | ||||
| 057 | 410192-1 | 1.00 | 1.21 | |
| Washer 15 | ||||
| 058 | 253147-1 | 1.00 | 1.21 | |
| Little stator spring Cb-7 | ||||
| 059 | 654019-7 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 2mm | ||||
| 060 | 654502-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 061 | 503275 | |||
