Here you will find all available parts and drawings of the 'Makita 4101RH'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

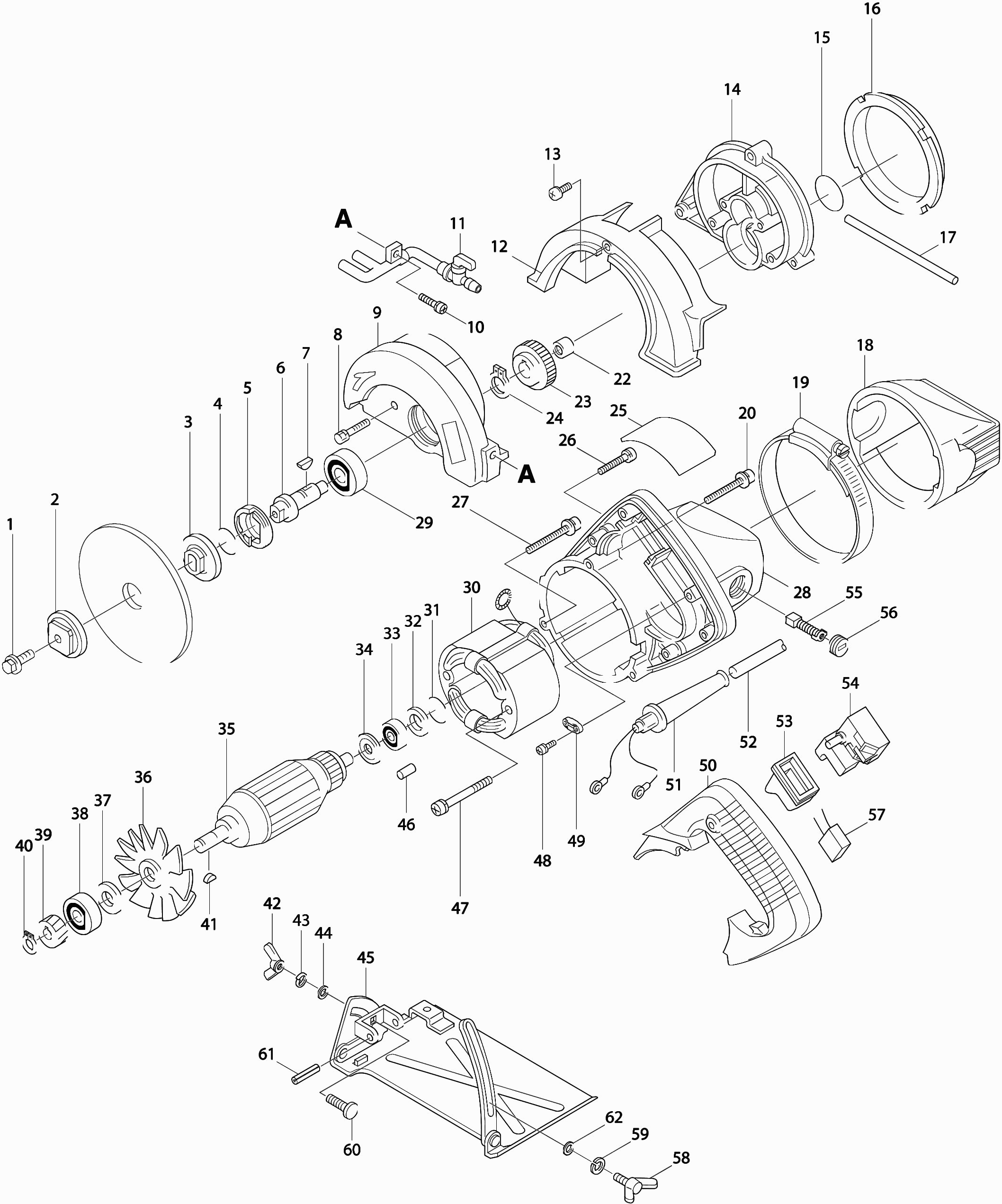

Technical drawing of model Makita 4101RH
Spare parts list of model Makita 4101RH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex bolt 6x20 | ||||
| 001 | 266133-3 | 1.00 | 1.21 | |
| Outer flange 36 | ||||
| 002 | 224081-2 | 7.20 | 8.71 | |
| Inner flange 36 | ||||
| 003 | 224080-4 | 10.80 | 13.07 | |
| O-ring 18 | ||||
| 004 | 213255-0 | 1.20 | 1.45 | |
| Bearing Lock 19-33 | ||||
| 005 | 285815-8 | 2.40 | 2.90 | |
| Plunger | ||||
| 006 | 321197-5 | 30.80 | 37.27 | |
| Feather Key 4 | ||||
| 007 | 254001-2 | 1.00 | 1.21 | |
| Hex bolt 4x25 | ||||
| 008 | 925146-0 | 1.00 | 1.21 | |
| FIXED PROTECTIVE COVER | ||||
| 009 | 151509-6 | 40.70 | 49.25 | |
| FIXED PROTECTIVE COVER | ||||
| 009-1 | 151509-6 | 40.70 | 49.25 | |
| No information available, not orderable | ||||
| 009A | 810939-7 | |||
| Screw 4x14 | ||||
| 010 | 911123-8 | 1.00 | 1.21 | |
| Water Supply | ||||
| 011 | 153409-6 | 19.80 | 23.96 | |
| Water Supply | ||||
| 011-1 | 153409-6 | 19.80 | 23.96 | |
| Cover cap 4100R-4101R * | ||||
| 012 | 410910-7 | 9.60 | 11.62 | |
| Screw 5x8 | ||||
| 013 | 911203-0 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 014 | 150926-7 | 48.40 | 58.56 | |
| O-ring 26 | ||||
| 015 | 213407-3 | 1.20 | 1.45 | |
| Intermediate plate 4101Rh * | ||||
| 016 | 415403-9 | 2.40 | 2.90 | |
| Rubber seal | ||||
| 017 | 423155-8 | 1.20 | 1.45 | |
| Rubber Cover Cap 4100R-4101R * | ||||
| 018 | 414074-9 | 8.40 | 10.16 | |
| Tension clamp 100 | ||||
| 019 | 163282-6 | 6.00 | 7.26 | |
| Screw 5x36 | ||||
| 020 | 911258-5 | 1.00 | 1.21 | |
| Needle Bearing 810 | ||||
| 022 | 212004-2 | 4.80 | 5.81 | |
| Gear 42 | ||||
| 023 | 226420-2 | 10.80 | 13.07 | |
| Lock washer S-12 | ||||
| 024 | 961052-5 | 1.00 | 1.21 | |
| Label | ||||
| 025 | 859604-3 | 3.60 | 4.36 | |
| Screw 4x25 | ||||
| 026 | 911148-2 | 1.00 | 1.21 | |
| Screw 5x40 | ||||
| 027 | 911263-2 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 028 | 150927-5 | 42.90 | 51.91 | |
| Carbon Brush holder 5X11 A | ||||
| 028A | 644501-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 028B | 810948-6 | |||
| No information available, not orderable | ||||
| 028C | 818572-9 | |||
| No information available, not orderable | ||||
| 028D | 810946-0 | |||
| No information available, not orderable | ||||
| 028E | 810947-8 | |||
| Ball Bearing 6201dw1 | ||||
| 029 | 211129-9 | 8.40 | 10.16 | |
| Field | ||||
| 030 | 522843-5 | 51.70 | 62.56 | |
| O-ring 18 | ||||
| 031 | 213262-3 | 1.20 | 1.45 | |
| Washer 14 | ||||
| 032 | 253192-6 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 033 | 210043-6 | 2.40 | 2.90 | |
| Insulation ring | ||||
| 034 | 681613-2 | 1.00 | 1.21 | |
| Armature | ||||
| 035 | 516343-5 | 67.10 | 81.19 | |
| Fan 68 | ||||
| 036 | 240007-6 | 2.40 | 2.90 | |
| Washer 9 | ||||
| 037 | 253741-9 | 1.00 | 1.21 | |
| Ball bearing 629llb | ||||
| 038 | 210042-8 | 2.40 | 2.90 | |
| Ball bearing 629llb | ||||
| 038-1 | 210042-8 | 2.40 | 2.90 | |
| Gear 19 | ||||
| 039 | 226419-7 | 10.80 | 13.07 | |
| Lock ring S-8 | ||||
| 040 | 961004-6 | 1.00 | 1.21 | |
| Inlegspie 3 | ||||
| 041 | 254002-0 | 1.00 | 1.21 | |
| Wing nut M6 | ||||
| 042 | 934301-3 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 043 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 044 | 941151-9 | 1.00 | 1.21 | |
| Base plate 4101R | ||||
| 045 | 168216-4 | 39.60 | 47.92 | |
| Rubber Pin 4 | ||||
| 046 | 263002-9 | 1.00 | 1.21 | |
| Screw 5x65 | ||||
| 047 | 911290-9 | 1.20 | 1.45 | |
| Screw 5x65 | ||||
| 047-1 | 911290-9 | 1.20 | 1.45 | |
| Screw 4X18 | ||||
| 048 | 911133-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 049 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 049 | 687124-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 049-1 | 687053-2 | 1.00 | 1.21 | |
| Handle Cover 4101Rh * | ||||
| 050 | 152597-6 | 13.20 | 15.97 | |
| Dust Seal | ||||
| 050A | 421459-2 | 3.60 | 4.36 | |
| Cable grommet 10-85 | ||||
| 051 | 682504-0 | 2.40 | 2.90 | |
| Cable grommet 10-85 | ||||
| 051A1 | 682504-0 | 2.40 | 2.90 | |
| Power cord 3x1.5x5mtr Ra | ||||
| 052 | 695350-2 | 31.90 | 38.60 | |
| No longer available, no replacement | ||||
| 052C10 | 652739-7 | |||
| Dust cover for switch | ||||
| 053 | 421329-5 | 2.40 | 2.90 | |
| Switch SW-99 | ||||
| 054 | 651252-2 | 11.00 | 13.31 | |
| Switch SW-99 | ||||
| 054-1 | 651252-2 | 11.00 | 13.31 | |
| Screw 4x8 | ||||
| 054A | 652014-1 | 1.00 | 1.21 | |
| Carbon brush set Cb-303 | ||||
| 055 | 194996-6 | 6.00 | 7.26 | |
| Carbon brush cap | ||||
| 056 | 643515-0 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 056-1 | 643755-0 | 1.20 | 1.45 | |
| Capacitor 0.22uF | ||||
| 057 | 645190-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 057-1 | 645200-1 | |||
| Wing Bolt 6x10 | ||||
| 058 | 251886-7 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 059 | 253903-9 | 1.00 | 1.21 | |
| Slotted bolt M6x20 | ||||
| 060 | 251919-8 | 1.00 | 1.21 | |
| Tension pin 6-32 | ||||
| 061 | 951219-3 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 062 | 941151-9 | 1.00 | 1.21 | |
| Terminal block Bo4553-Bo4554 A | ||||
| 063 | 654475-1 | 1.00 | 1.21 | |
| Wire tree 4101Rh * | ||||
| 064 | 632829-2 | 2.40 | 2.90 | |
| Screw 4x8 | ||||
| 065 | 652014-1 | 1.00 | 1.21 | |
